Zone 6

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.

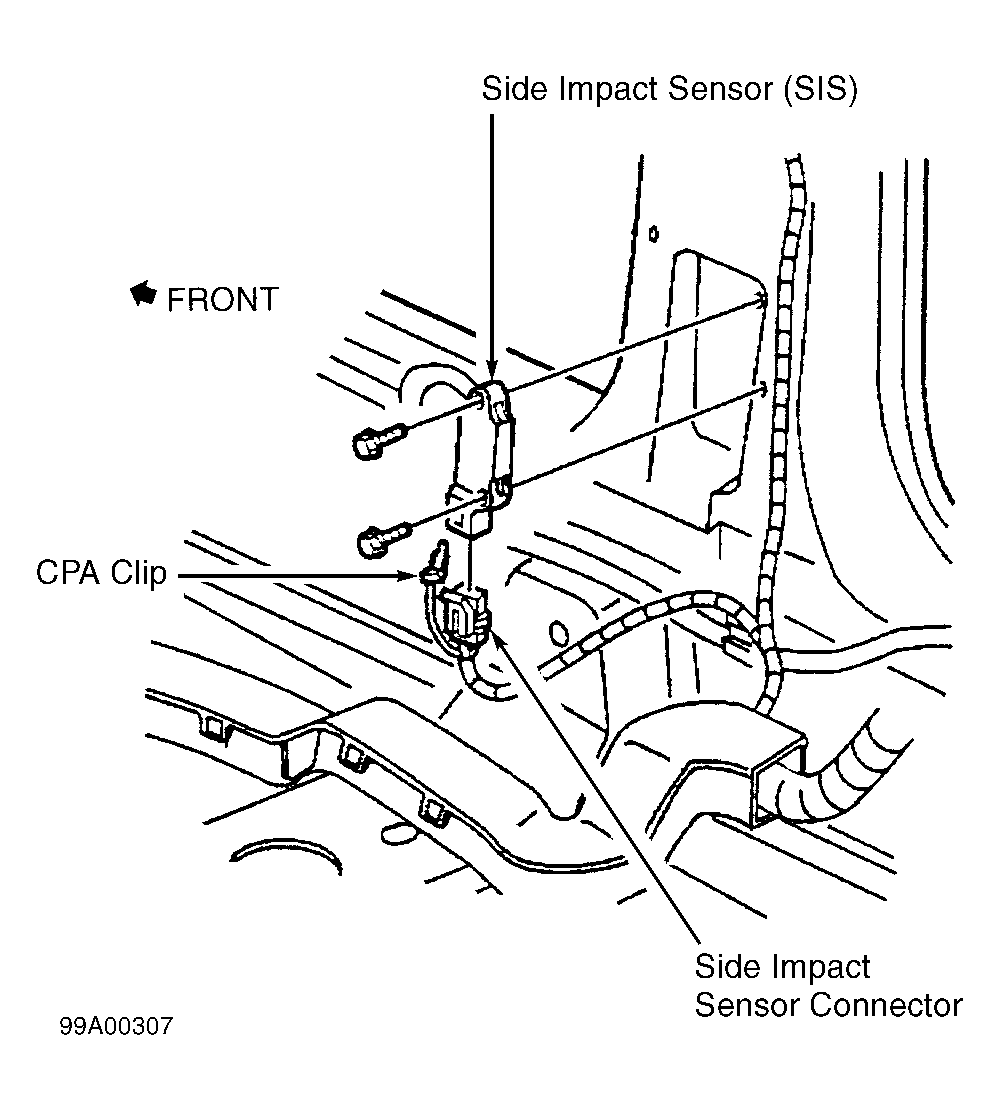

  2. Remove SIR fuse from rear junction block, located under rear seat. See Figure. Remove passenger-side lower B-pillar trim. Remove Connector Position Assurance (CPA) clip from Side Impact Sensor (SIS). See Figure. Disconnect SIS connector.
