Removal Procedure

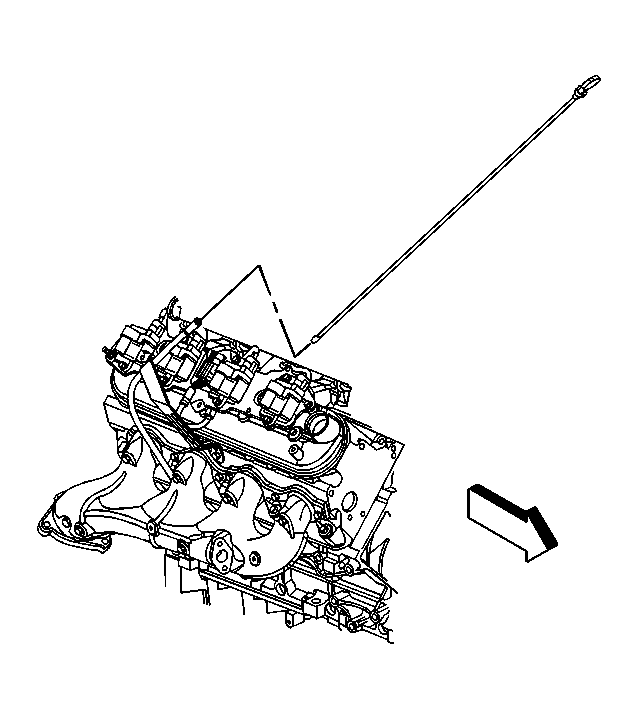

    Fig 1: Connecting Oil Level Indicator to Tube
    GM647796Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator from the tube.

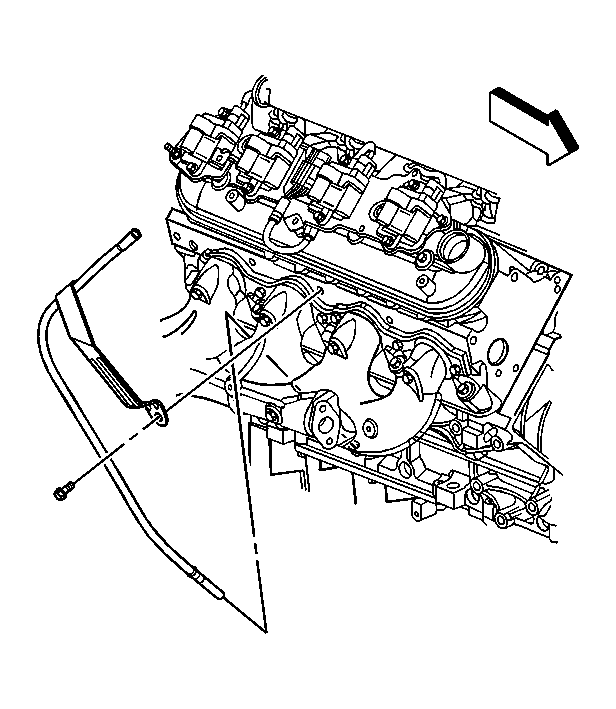

    2. Fig 2: Oil Level Indicator & Tube
    GM647797Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.
    4. IMPORTANT: The O-ring seal may be reused if not cut or damaged.
  4. Inspect the O-ring seal for cuts or damage.
  5. Remove the O-ring seal from the tube (if required).
