Installation Procedure

  1. Install the radiator inlet hose (4) to the radiator (6).
  2. Position the radiator inlet hose clamp (5) to the radiator (6).
    Fig 1: Radiator Hose & Radiator (Inlet)
    GM801113Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose (4) to the mounting clip (3).
  4. Install the radiator inlet hose (2) to the engine (1).

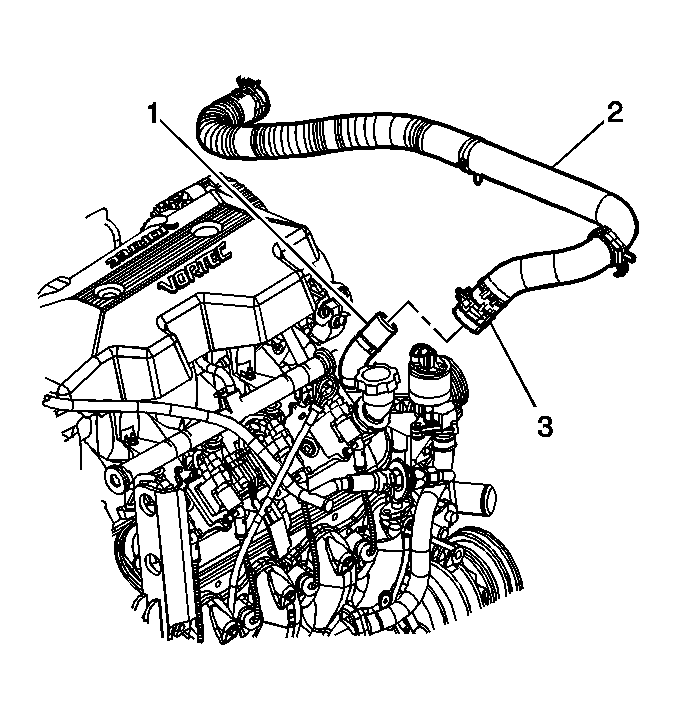

    Fig 2: Radiator Hose & Engine (Inlet)
    GM814579Courtesy of GENERAL MOTORS CORP.

    Position the radiator inlet hose clamp (3) to the engine (1).

  5. Install the air cleaner resonator outlet duct.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .
