Fuel Composition Sensor Connector End View (5.3L Flex-Fuel)

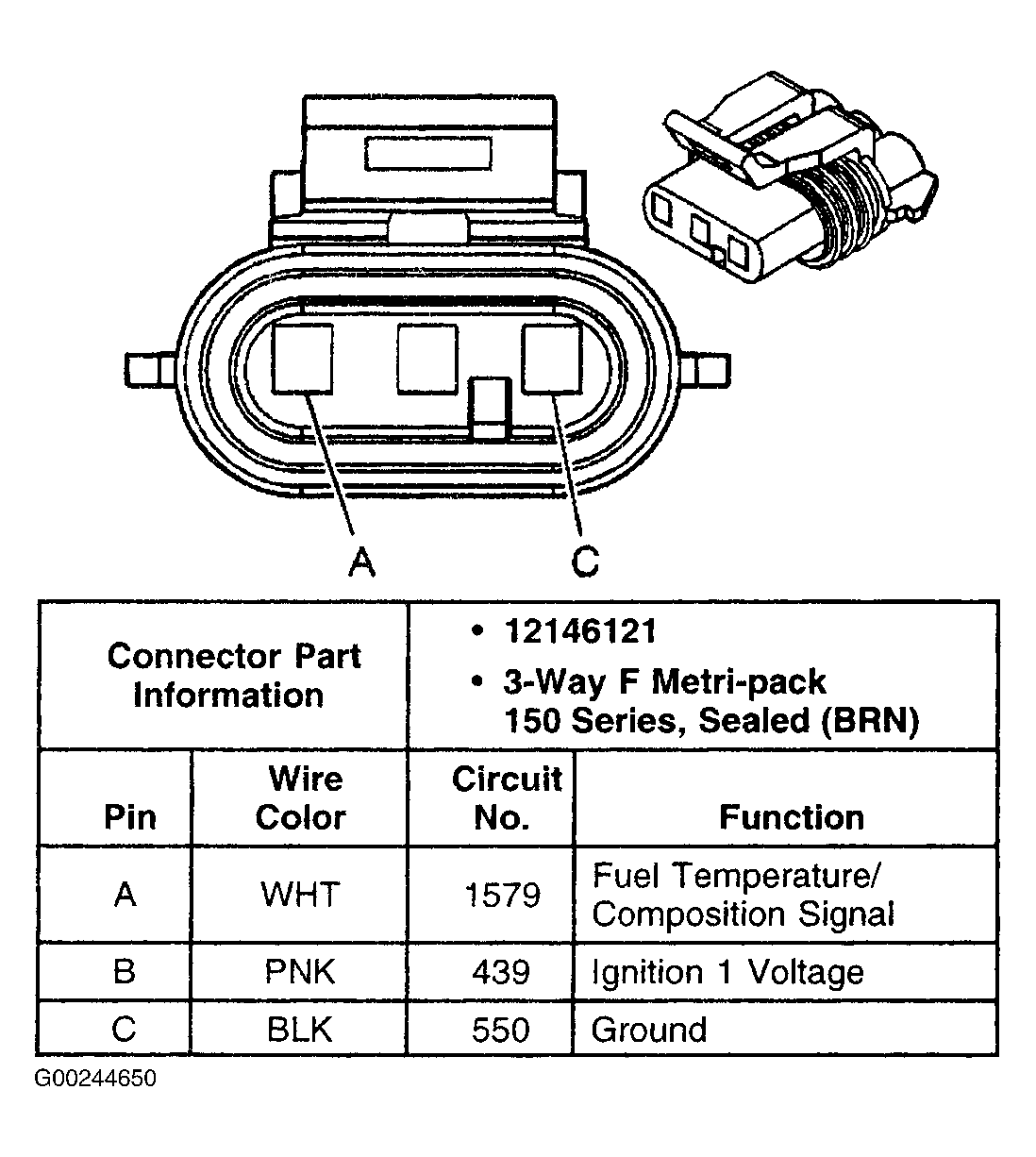

Fig 1: Fuel Composition Sensor Connector End View (5.3L Flex-Fuel)

G00244650

Courtesy of GENERAL MOTORS CORP.
