Accelerator Pedal Position Sensor Connector End View (Hummer H2)

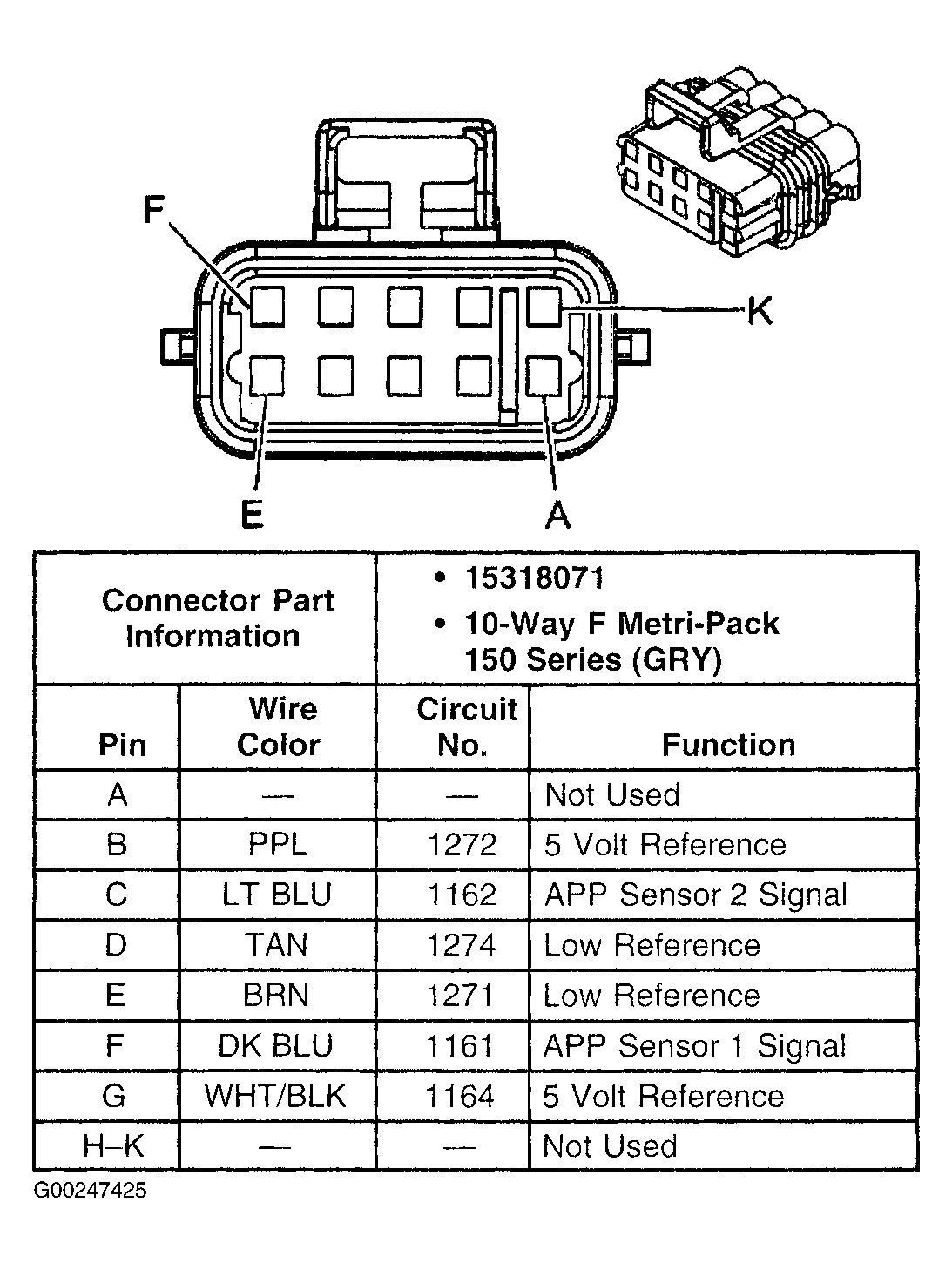

Fig 1: Accelerator Pedal Position Sensor Connector End View (Hummer H2)

G00247425

Courtesy of GENERAL MOTORS CORP.
