Axle Preload & Backlash Specifications

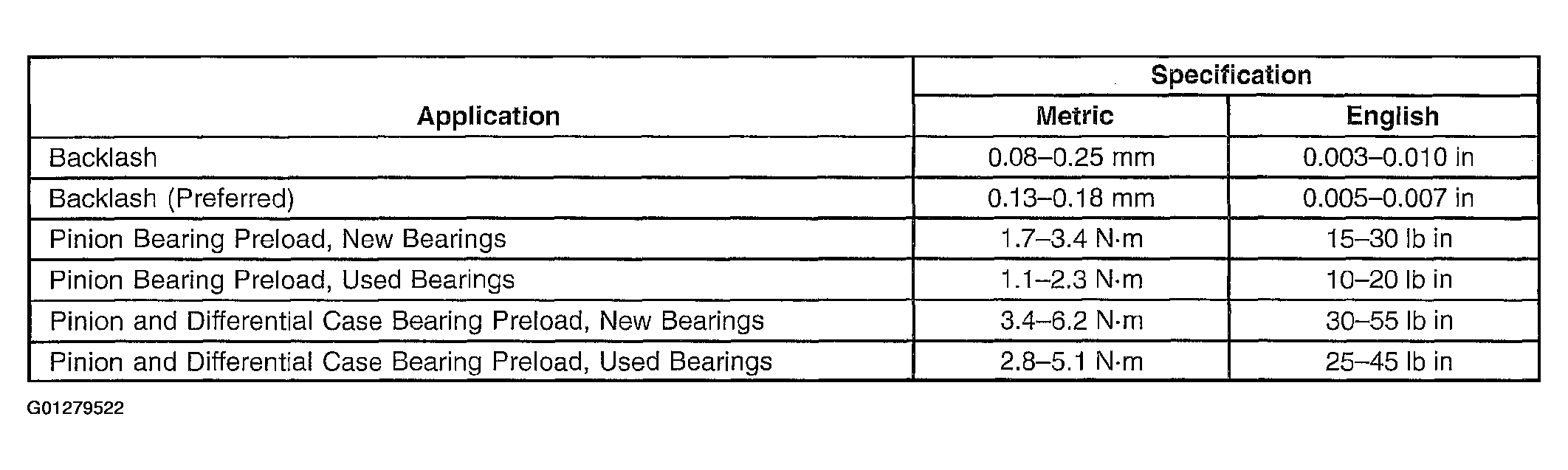

Fig 1: Axle Preload & Backlash Specifications Table

G01279522

Courtesy of GENERAL MOTORS CORP.
