Tools Required

  1. Remove the differential side bearing by performing the following steps:
    1. 1.1 Place the differential case in a vise.
    2. 1.2 Install the J 22888-20A  (2) and the J 36597  (1) as shown.
    3. 1.3 Remove the differential side bearings using the J 22888-20A.

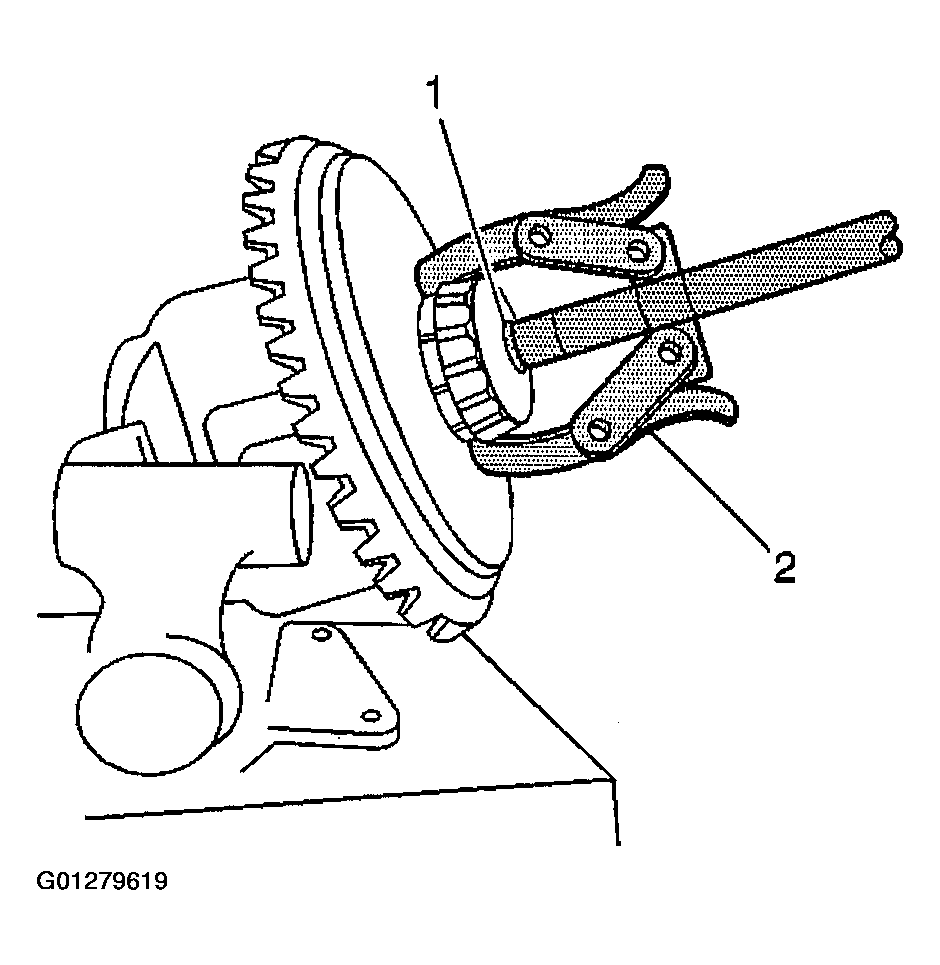

    4. Fig 1: Removing Differential Side Bearing
      G01279619Courtesy of GENERAL MOTORS CORP.
  2. Remove the differential assembly from the vise.

    Important:  The ring gear bolts have left-hand threads.

  3. Remove the ring gear bolts. Discard the bolts.

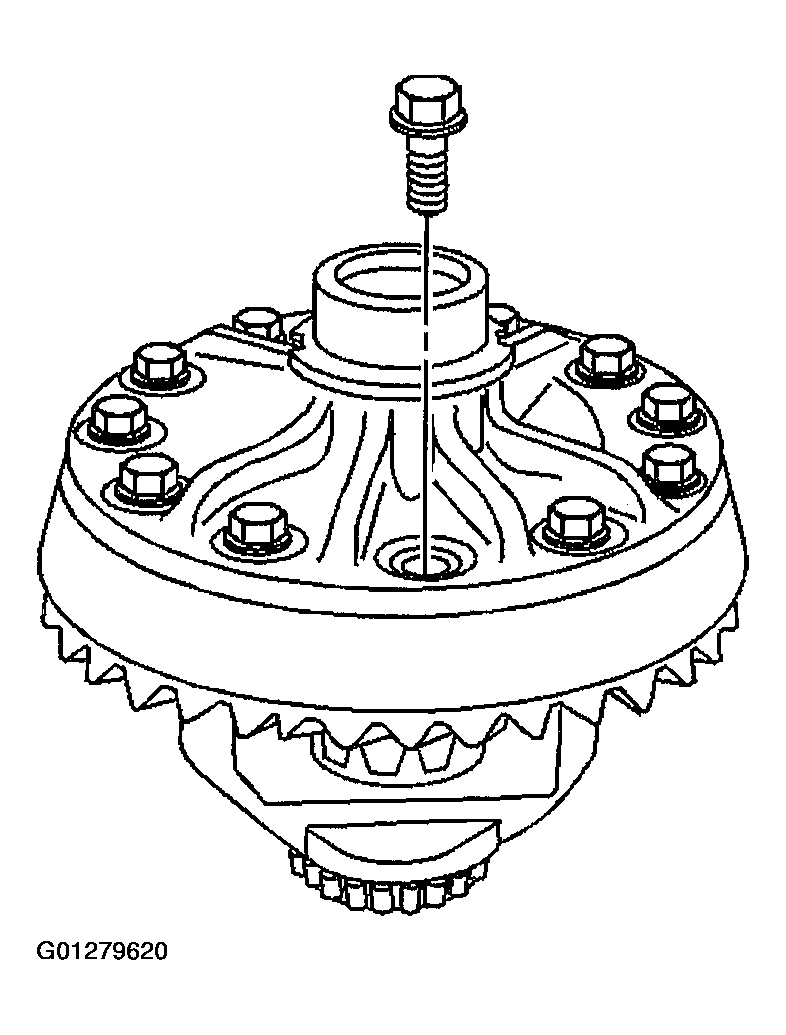

    Fig 2: Identifying Ring Gear Bolts
    G01279620Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not pry the ring gear from the differential case. Prying the ring gear from the differential case may cause damage to the ring gear and/or the differential case.
  4. Remove the ring gear from the differential case.

    Drive the ring gear off with a brass drift if necessary.

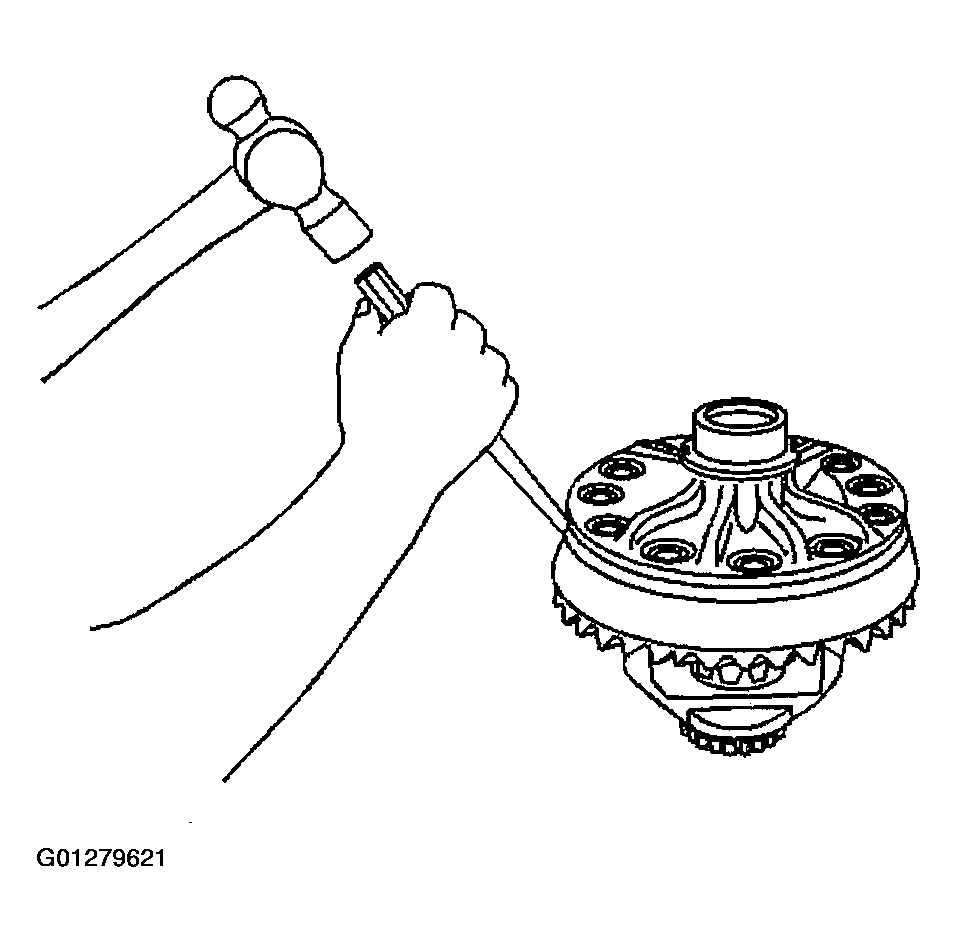

    Fig 3: Removing Ring Gear From Differential Case
    G01279621Courtesy of GENERAL MOTORS CORP.
  5. Remove the pinion shaft lock bolt.

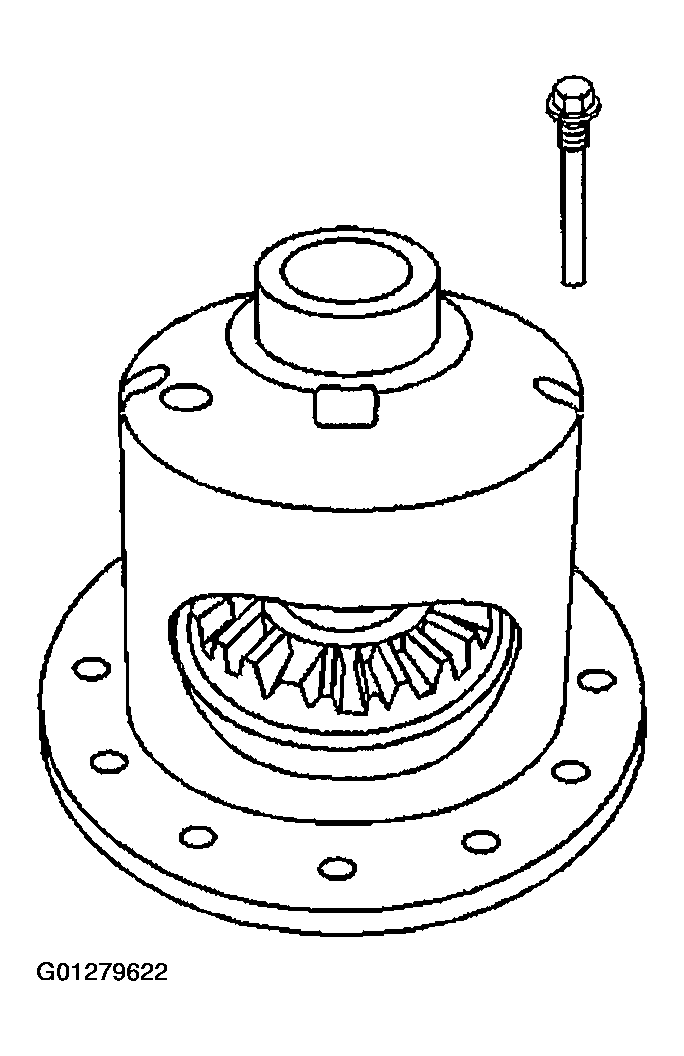

    Fig 4: Identifying Pinion Shaft Lock Bolt
    G01279622Courtesy of GENERAL MOTORS CORP.
  6. Remove the pinion shaft.

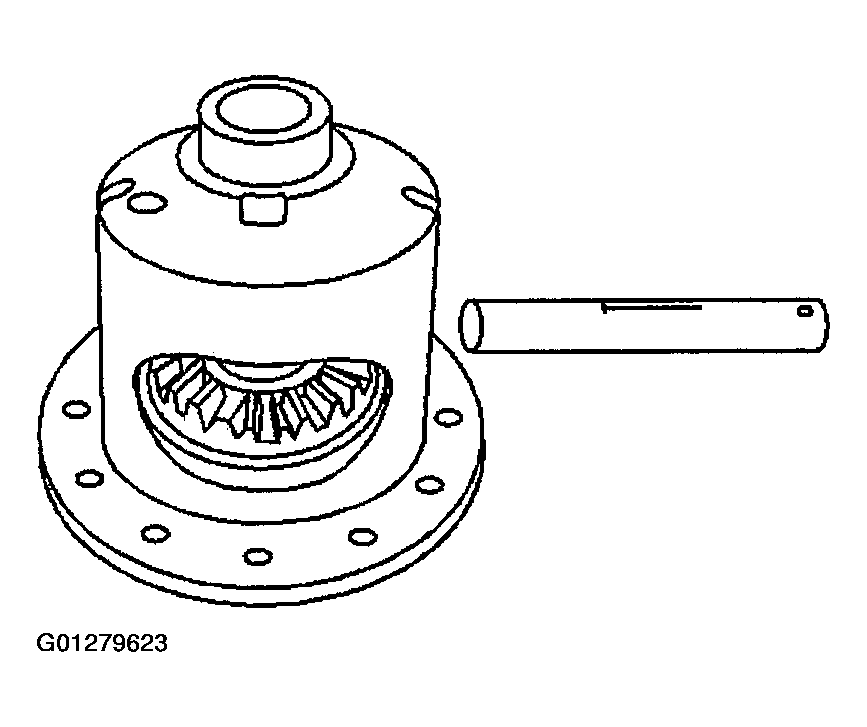

  7. Fig 5: Identifying Pinion Shaft
    G01279623Courtesy of GENERAL MOTORS CORP.
  8. Remove the differential side gear spacers.
  9. Remove the differential pinion gears and thrust washers by performing the following steps:
    1. 8.1 Drive the pinion gear thrust washers out from the differential case using a hammer and a brass drift.
    2. 8.2 Roll the differential pinion gears out of the differential case.

      Mark the pinion gears and thrust washers top and bottom.

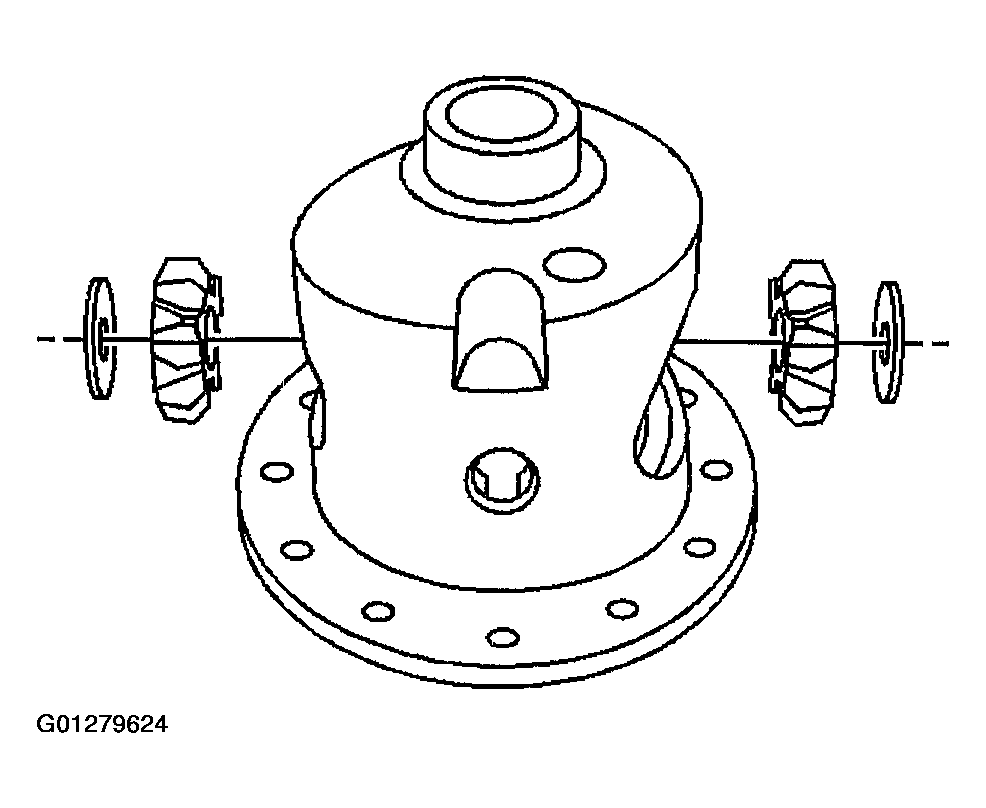

    3. Fig 6: Identifying Differential Pinion Gears & Thrust Washers
      G01279624Courtesy of GENERAL MOTORS CORP.
  10. Remove the differential side gears and thrust washers.

    Mark the differential side gears and thrust washers left and right.

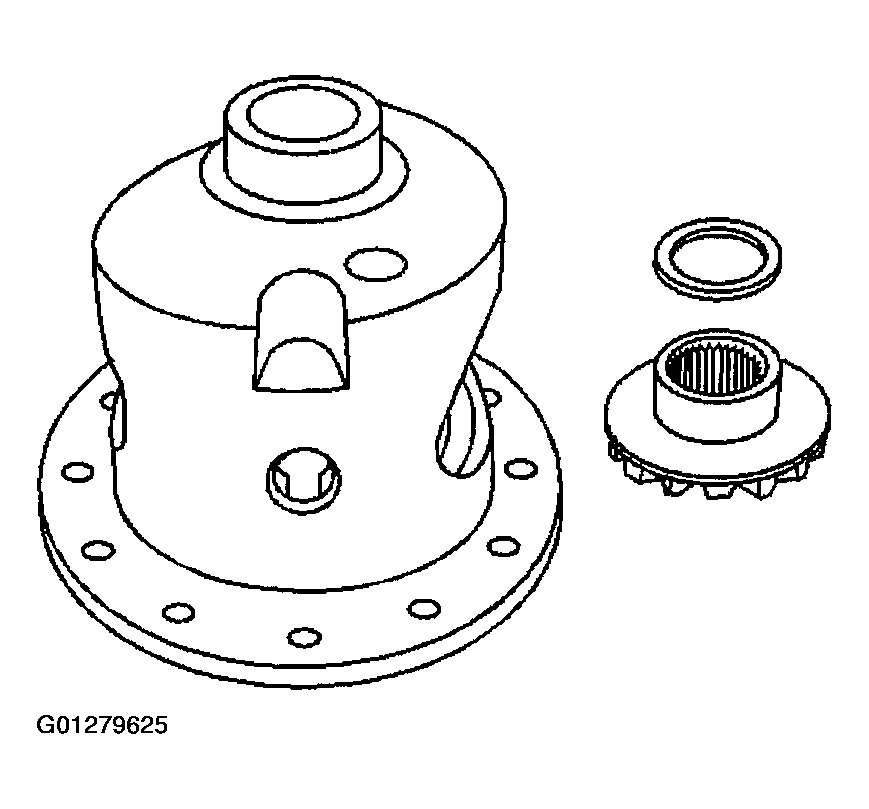

    Fig 7: Identifying Differential Side Gears & Thrust Washers
    G01279625Courtesy of GENERAL MOTORS CORP.
