Front Drive Axle Disassembled Views

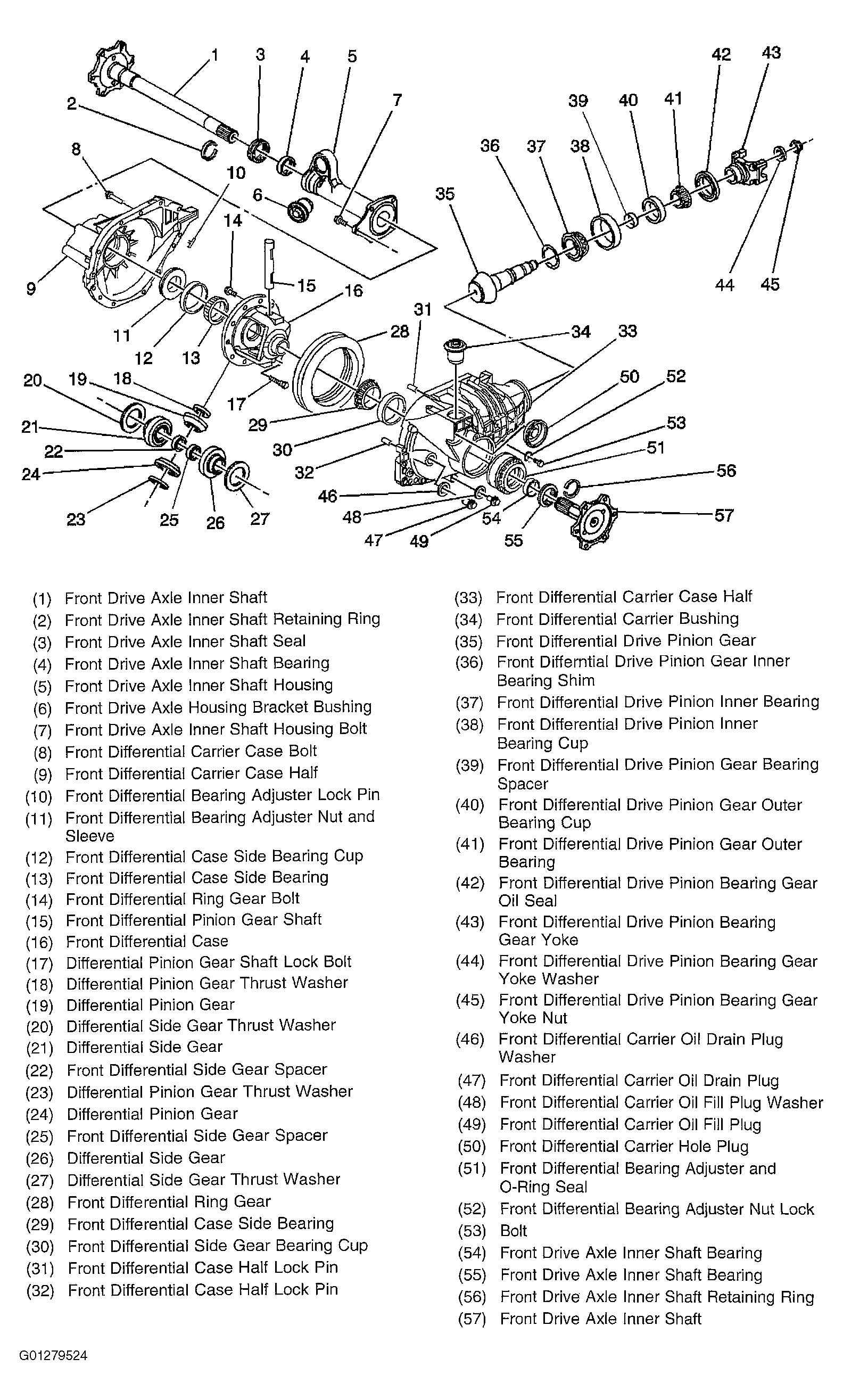

Fig 1: Exploded View Of Front Drive Axle Components

G01279524

Courtesy of GENERAL MOTORS CORP.
