Power Window Schematics

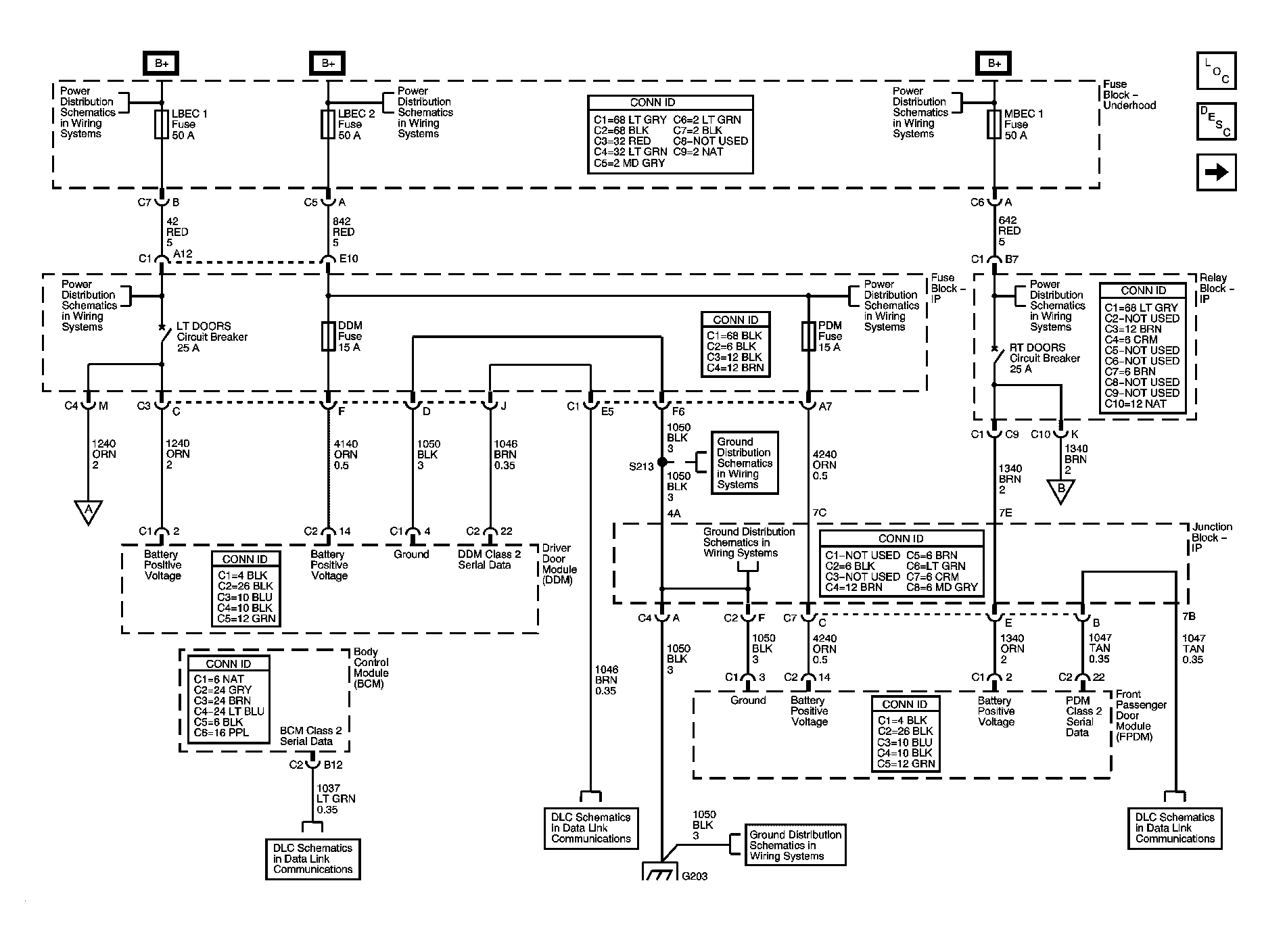

Fig 1: Door Modules - Power, Grounding, and DLC Schematic
GM832687Courtesy of GENERAL MOTORS CORP.

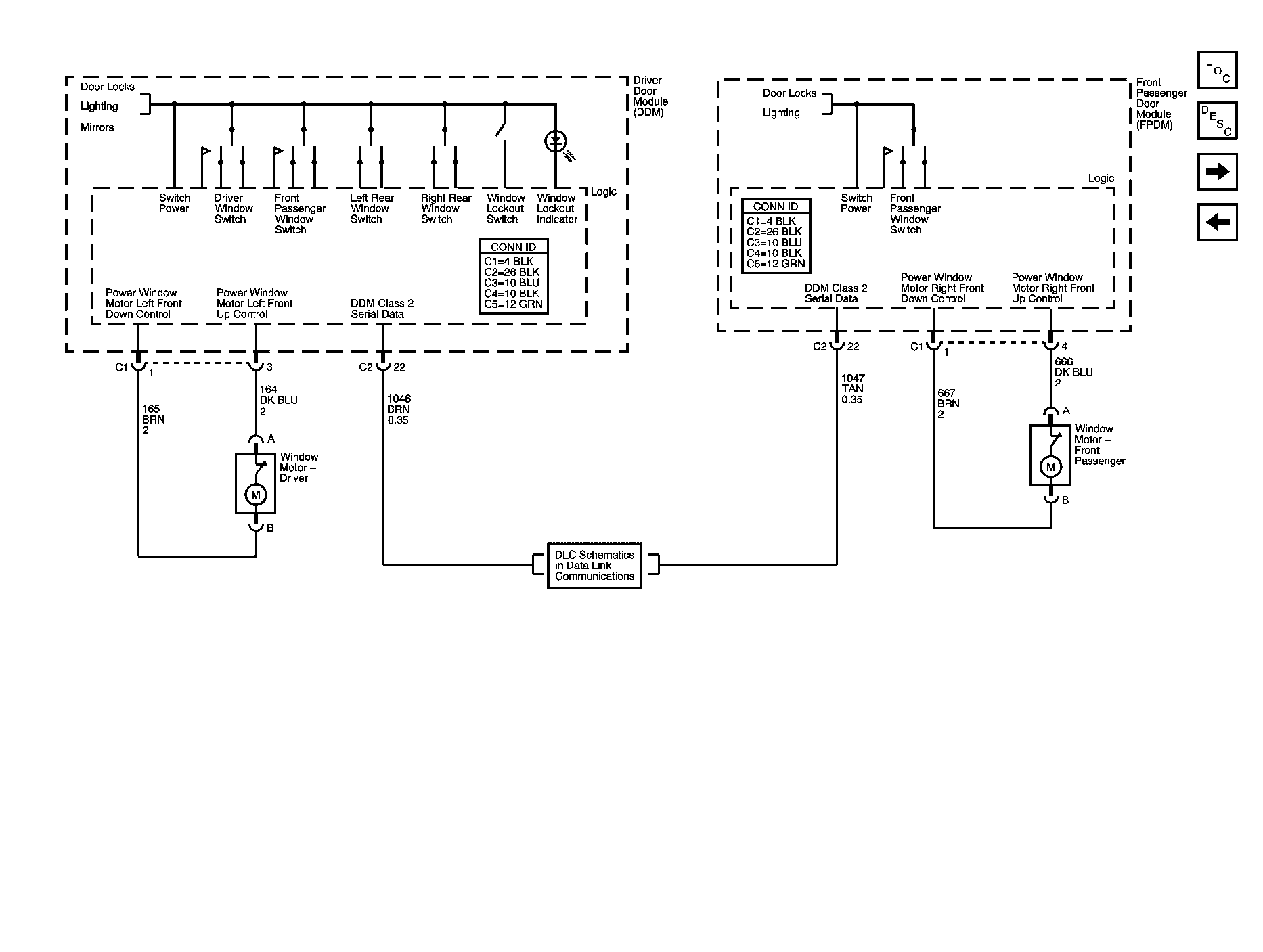

Fig 2: Front Door Windows Schematic
GM832688Courtesy of GENERAL MOTORS CORP.

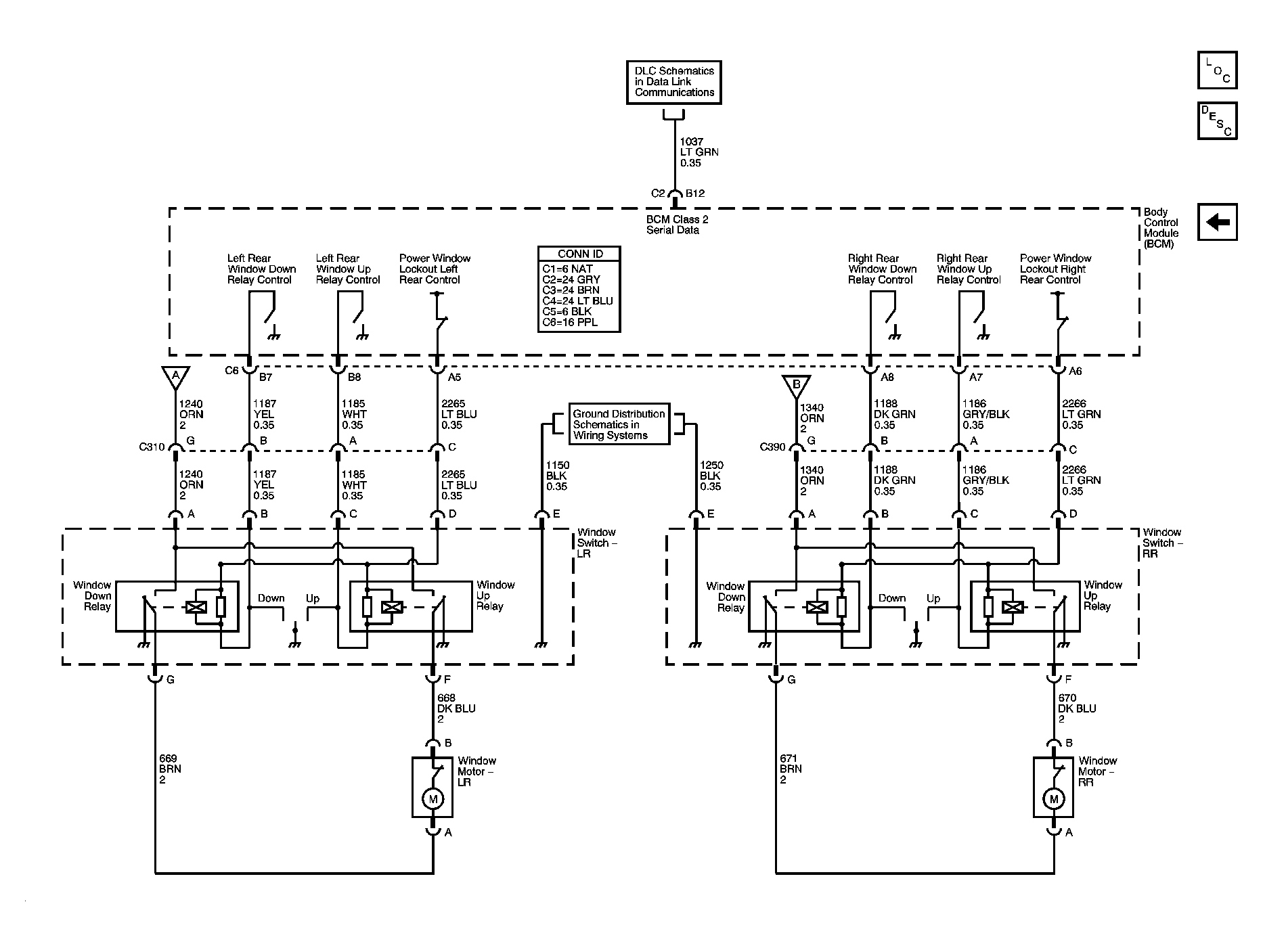

Fig 3: Rear Door Windows Schematic
GM832689Courtesy of GENERAL MOTORS CORP.
