Removal Procedure

  1. Remove the front seats. Refer to Seat Replacement - Front Bucket in Seats.
  2. Remove the rear seats. Refer to Seat Replacement - Rear No. 1 in Seats.
  3. Remove the floor center console. Refer to Console Replacement in Instrument Panel, Gages, and Console.
  4. Remove the door sill trim plates. Refer to Door Sill Plate Replacement - Front  and Door Sill Plate Replacement - Rear  .
  5. Remove the front kick panels. Refer to Kick-Up Panel Replacement - Front Floor  .
  6. Remove the hinge pillar trim panels from both sides. Refer to Trim Replacement - Hinge Pillar  .
  7. Remove the lock pillar trim. Refer to Trim Replacement - Lock Pillar  .

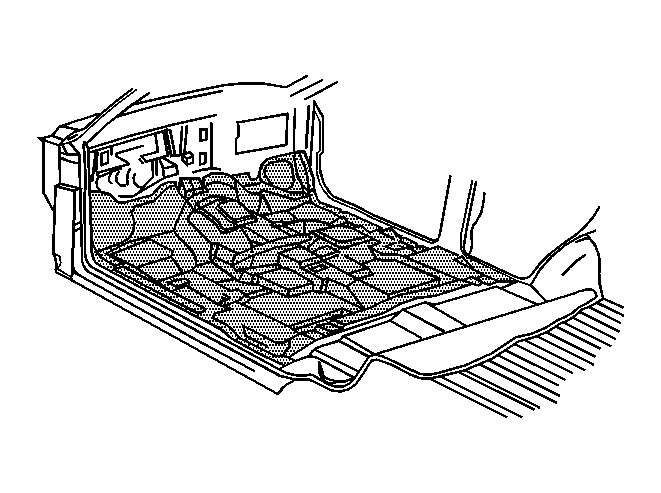

    8. Fig 1: Front Carpet
    GM625225Courtesy of GENERAL MOTORS CORP.
  8. Remove the carpet.
