Installation Procedure

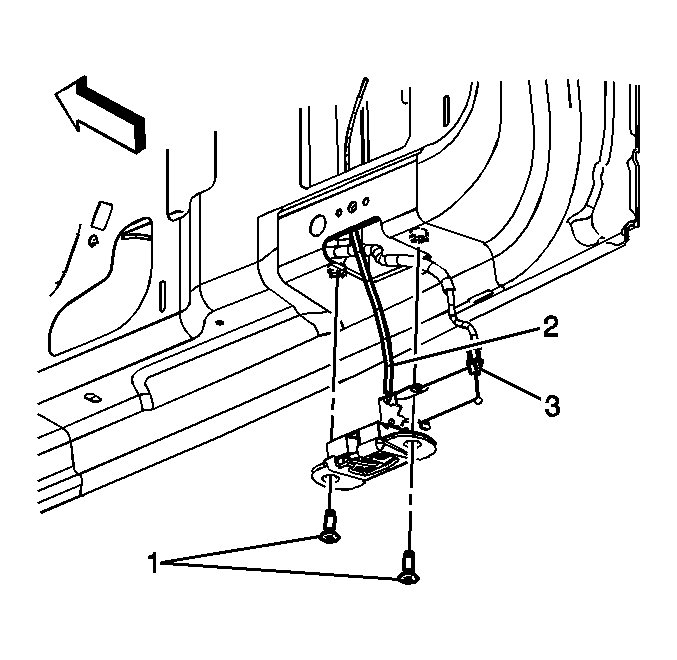

    Fig 1: Electrical Connectors & Liftgate Latch
    GM831323Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (2) to the latch.
  2. Connect the latch release cable by placing the cable end in the cup and securing the retainer (3) to the latch.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fasteners (1) retaining the latch to the liftgate.

    Tighten:  Tighten fasteners to 25 N.m (19 lb ft).

  4. Inspect the latch for proper operation.
