Throttle Actuator Control Module Connector End View C2 (Hummer H2)

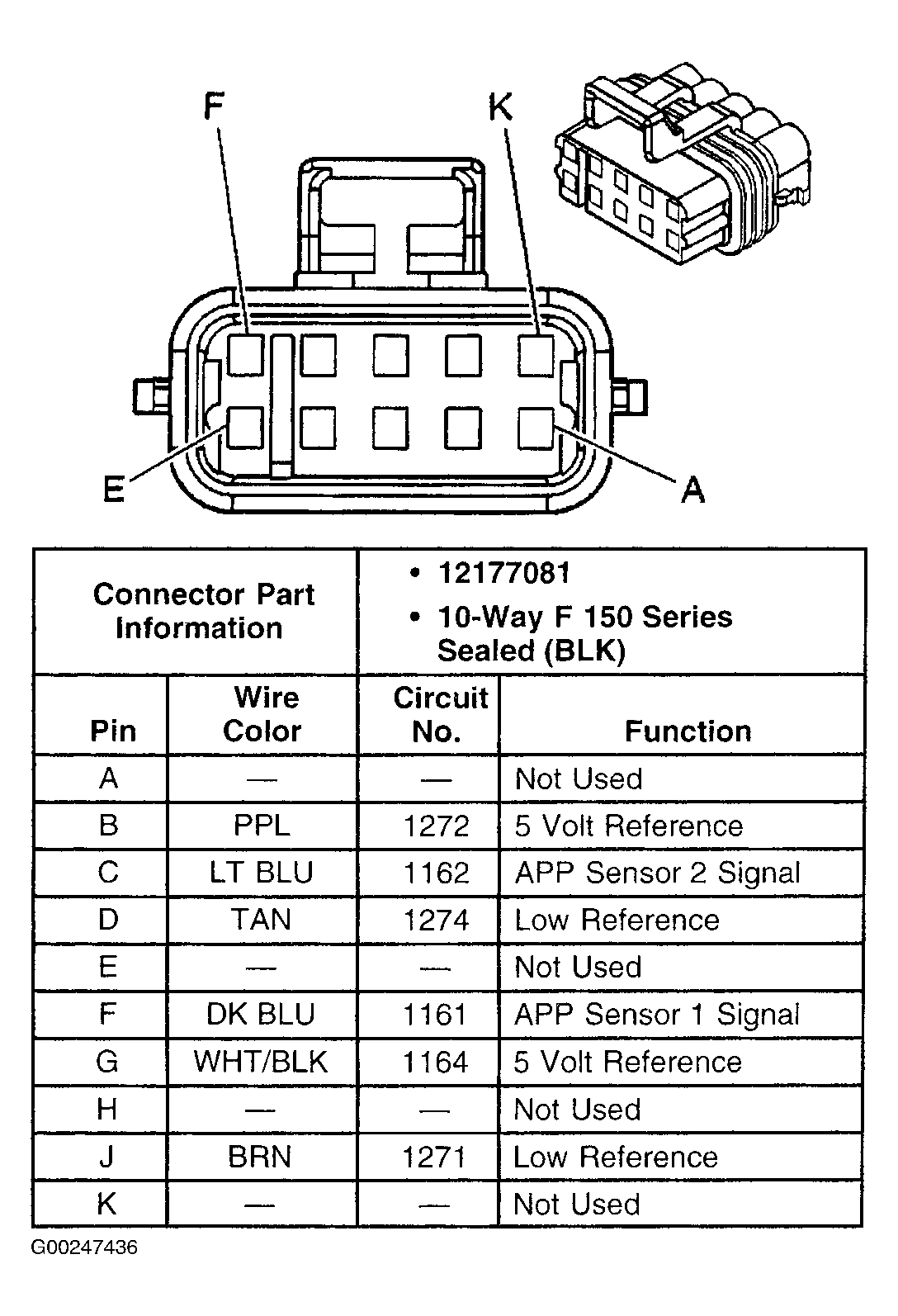

Fig 1: Throttle Actuator Control Module C2 Connector End View (Hummer H2)

G00247436

Courtesy of GENERAL MOTORS CORP.
