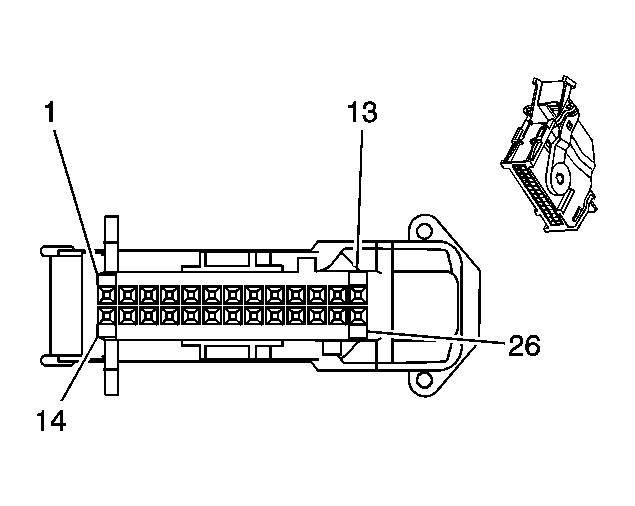

Driver Door Module (DDM) Connector End View - C2
Driver Door Module (DDM) Connector End View - C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | BRN | 1183 | Left Front Door Switch Low Reference |
| 4 | DK BLU | 660 | Left Courtesy Lamp Control |
| 5-9 | - | - | Not Used |
| 10 | GRY | 1690 | Automatic Day/Night Mirror Signal |
| 11 | - | - | Not Used |
| 12 | PNK | 1691 | Automatic Day/Night Mirror Low Reference |
| 13 | DK BLU/WHT | 149 | Courtesy Lamp-Left Front Door Supply Voltage |
| 14 | ORN | 4140 | Battery Positive Voltage |
| 15 | LT GRN | 262 | Driver Door Key Switch Signal |
| 16-17 | - | - | Not Used |
| 18 | GRY/BLK | 745 | Left Front Door Ajar Switch Signal |
| 19 | - | - | Not Used |
| 20 | TAN | 294 | Door Lock Actuator Unlock Control |
| 21 | GRY | 295 | Door Lock Actuator Lock Control |
| 22 | BRN | 1046 | DDM Class 2 Serial Data |
| 23-26 | - | - | Not Used |

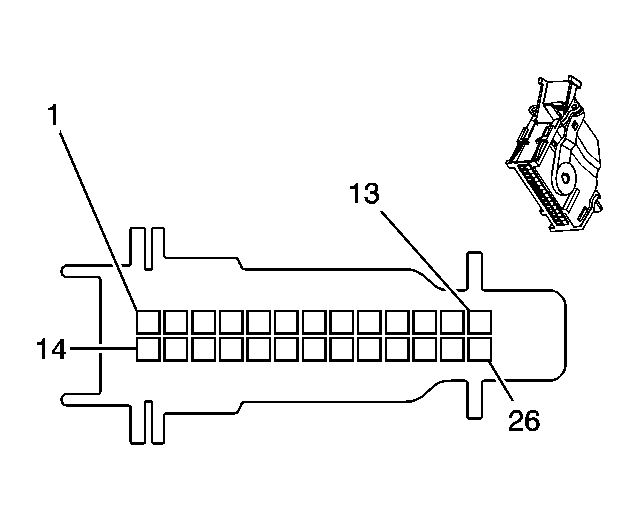

Driver Door Module (DDM) - C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | BRN | 1183 | Left Front Door Switch Low Reference |
| 4 | DK BLU | 660 | Left Courtesy Lamp Control |
| 5-9 | - | - | Not Used |
| 10 | GRY | 1690 | Automatic Day/Night Mirror Signal |
| 11 | - | - | Not Used |
| 12 | PNK | 1691 | Automatic Day/Night Mirror Low Reference |
| 13 | DK BLU/WHT | 149 | Courtesy Lamp - Left Front Door Supply Voltage |
| 14 | ORN | 4140 | Battery Positive Voltage |
| 15 | LT GRN | 262 | Driver Door Key Switch Signal |
| 16-17 | - | - | Not Used |
| 18 | GRY/BLK | 745 | Left Front Door Ajar Switch Signal |
| 19 | - | - | Not Used |
| 20 | TAN | 294 | Door Lock Actuator Unlock Control |
| 21 | GRY | 295 | Door Lock Actuator Lock Control |
| 22 | BRN | 1046 | DDM Class 2 Serial Data |
| 23-26 | - | - | Not Used |
Driver Door Module (DDM) Connector End View - C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | BRN | 1183 | Left Front Door Switch Low Reference |
| 4 | DK BLU | 660 | Left Front Door Courtesy Lamp Control |
| 5-9 | - | - | Not Used |
| 10 | GRY | 1690 | Automatic Day/Night Mirror Signal |
| 11 | - | - | Not Used |
| 12 | PNK | 1691 | Automatic Day/Night Mirror Low Reference |
| 13 | DK BLU/WHT | 149 | Courtesy Lamp-Left Front Door Supply Voltage |
| 14 | ORN | 4140 | Battery Positive Voltage |
| 15 | LT GRN | 262 | Driver Door Key Switch Signal |
| 16-17 | - | - | Not Used |
| 18 | GRY/BLK | 745 | Left Front Door Ajar Switch Signal |
| 19 | - | - | Not Used |
| 20 | TAN | 294 | Door Lock Actuator Unlock Control |
| 21 | GRY | 295 | Door Lock Actuator Lock Control |
| 22 | BRN | 1046 | DDM Class 2 Serial Data |
| 23-26 | - | - | Not Used |
Driver Door Module (DDM) Connector End View - C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | BRN | 1183 | Left Front Door Switch Low Reference |
| 4 | DK BLU | 660 | Left Front Door Courtesy Lamp Control |
| 5-9 | - | - | Not Used |
| 10 | GRY | 1690 | Automatic Day/Night Mirror Signal |
| 11 | - | - | Not Used |
| 12 | PNK | 1691 | Automatic Day/Night Mirror Low Reference |
| 13 | DK BLU/WHT | 149 | Courtesy Lamp-Left Front Door Supply Voltage |
| 14 | ORN | 4140 | Battery Positive Voltage |
| 15 | LT GRN | 262 | Driver Door Key Switch Signal |
| 16-17 | - | - | Not Used |
| 18 | GRY/BLK | 745 | Left Front Door Ajar Switch Signal |
| 19 | - | - | Not Used |
| 20 | TAN | 294 | Door Lock Actuator Unlock Control |
| 21 | GRY | 295 | Door Lock Actuator Lock Control |
| 22 | BRN | 1046 | DDM Class 2 Serial Data |
| 23-26 | - | - | Not Used |
