Cooling System Component Views

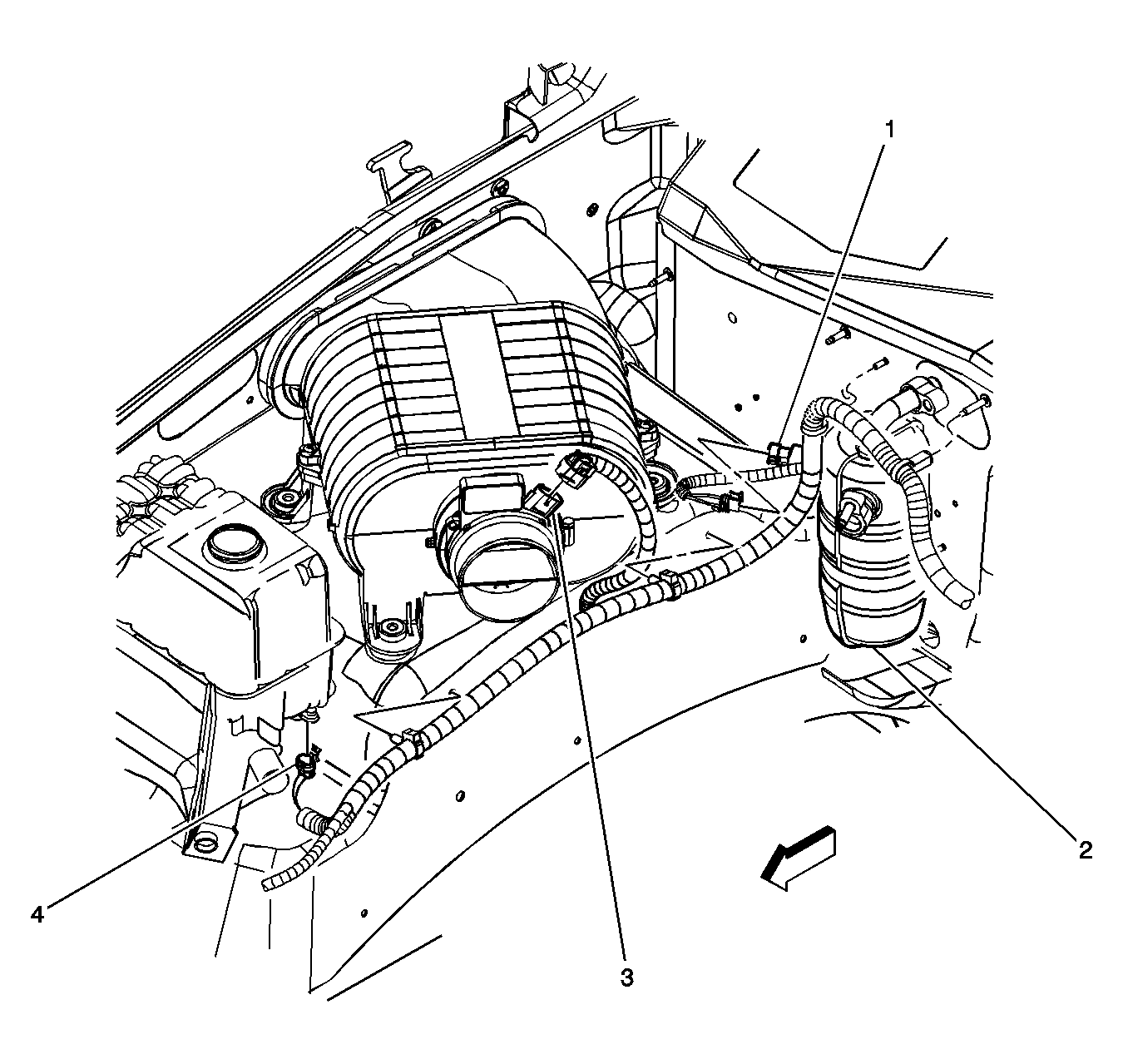

Fig 1: Coolant Level Switch Component View
GM828796Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Low Pressure Switch
2 A/C Accumulator
3 Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
4 Coolant Level Switch
