Wiper/Washer System Component Views

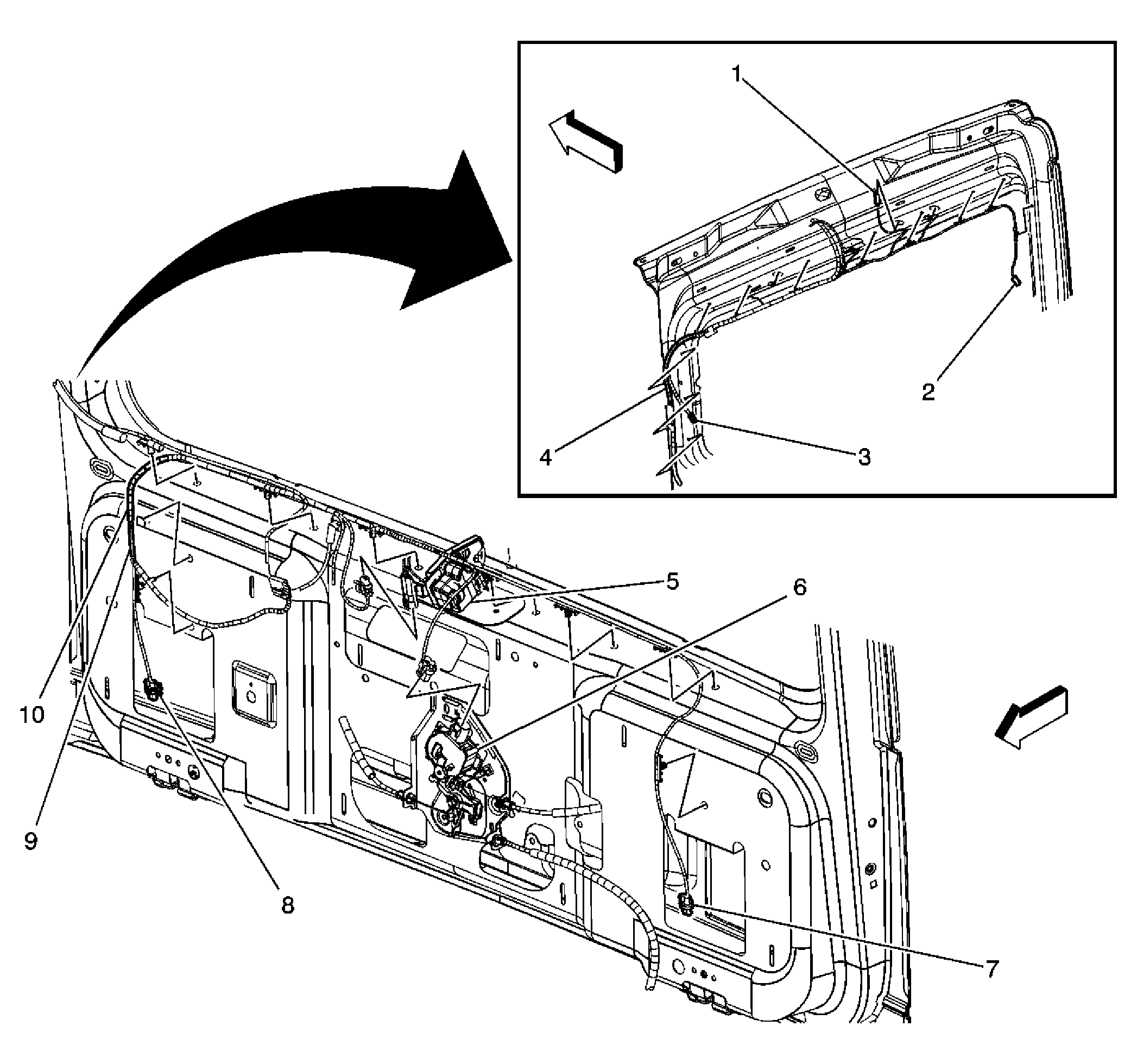

Fig 1: Rear Window Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) Connector
2	Rear Window Defogger Grid Connector
3	Rear Window Defogger Grid Connector
4	Splice S900
5	Rear Window Wiper Module - w/Motor
6	Door Lock Actuator-Liftgate
7	Liftgate Ajar Switch-Left
8	Liftgate Ajar Switch-Right
9	Splice S902
10	Splice S901

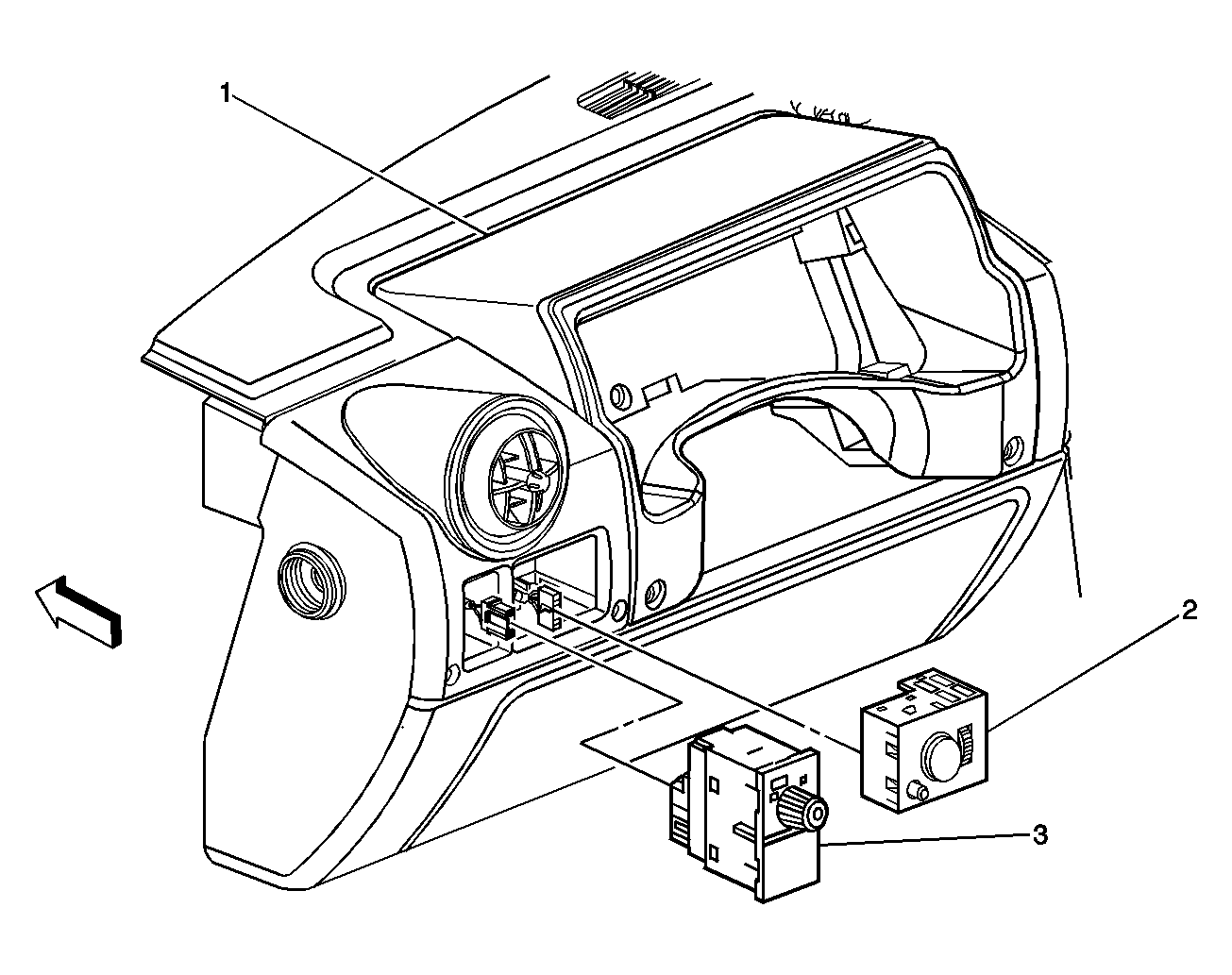

Fig 2: Rear Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Headlamp and Panel Dimmer Switch
3	Rear Wiper/Washer Switch

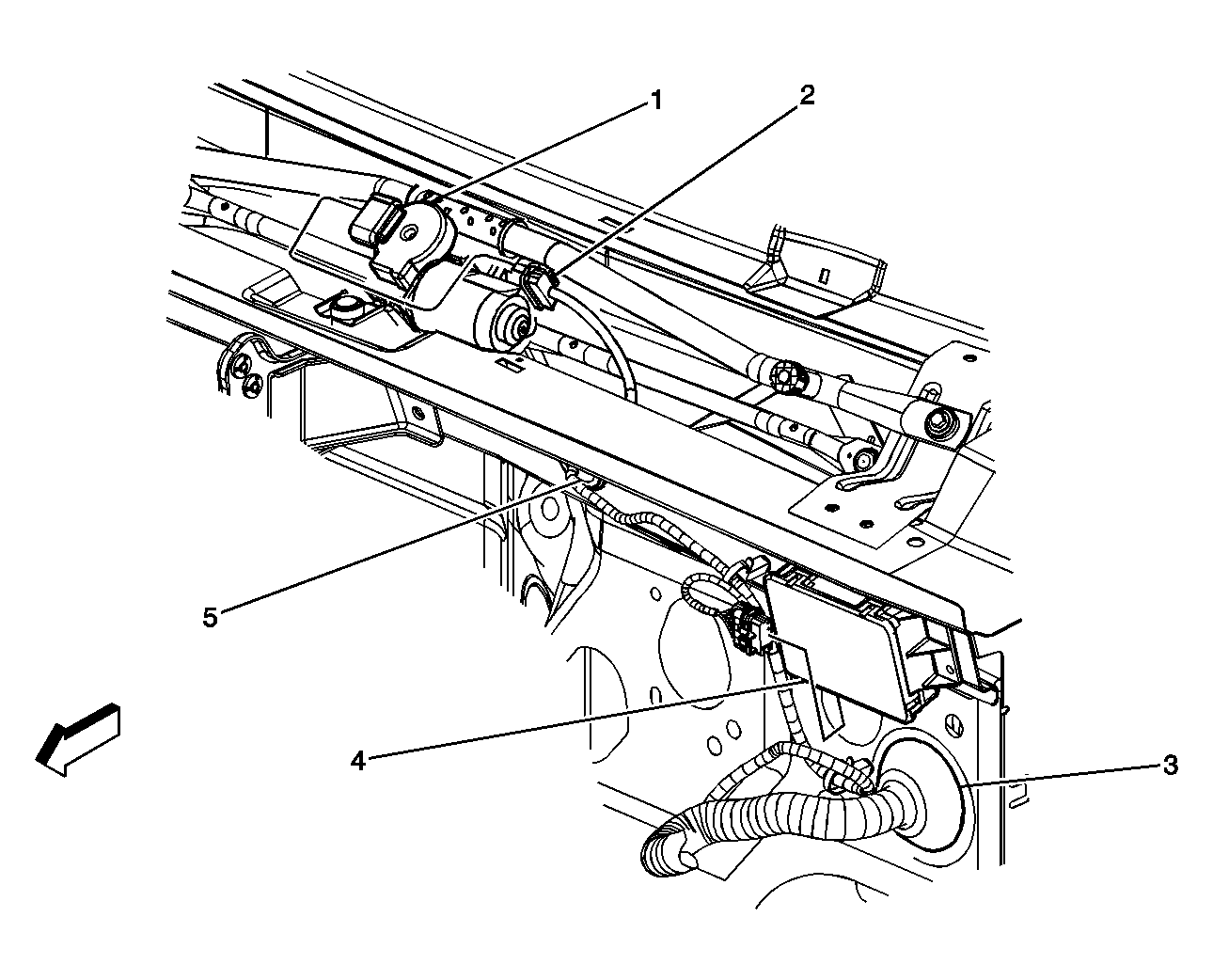

Fig 3: Windshield Wiper/Washer Module & Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper/Washer Module
2	Windshield Wiper Motor
3	I/P Harness Pull-Through Grommet
4	Throttle Actuator Control (TAC) Module
5	I/P Harness

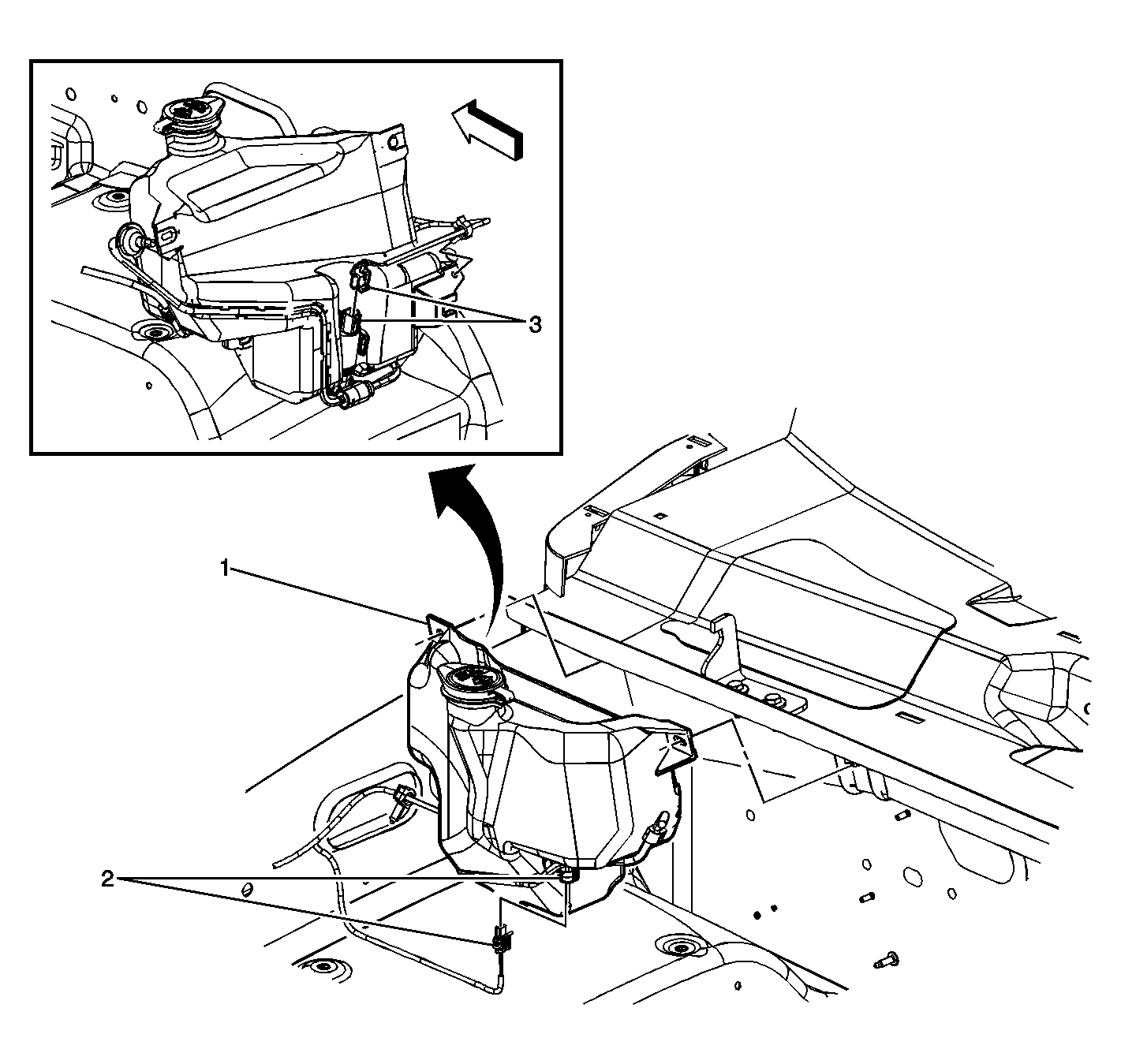

Fig 4: Windshield Washer Fluid Pump & Washer Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Container
2	Washer Fluid Level Sensor
3	Windshield Washer Fluid Pump-Reversible
