Repair Procedure

How to use this manual .

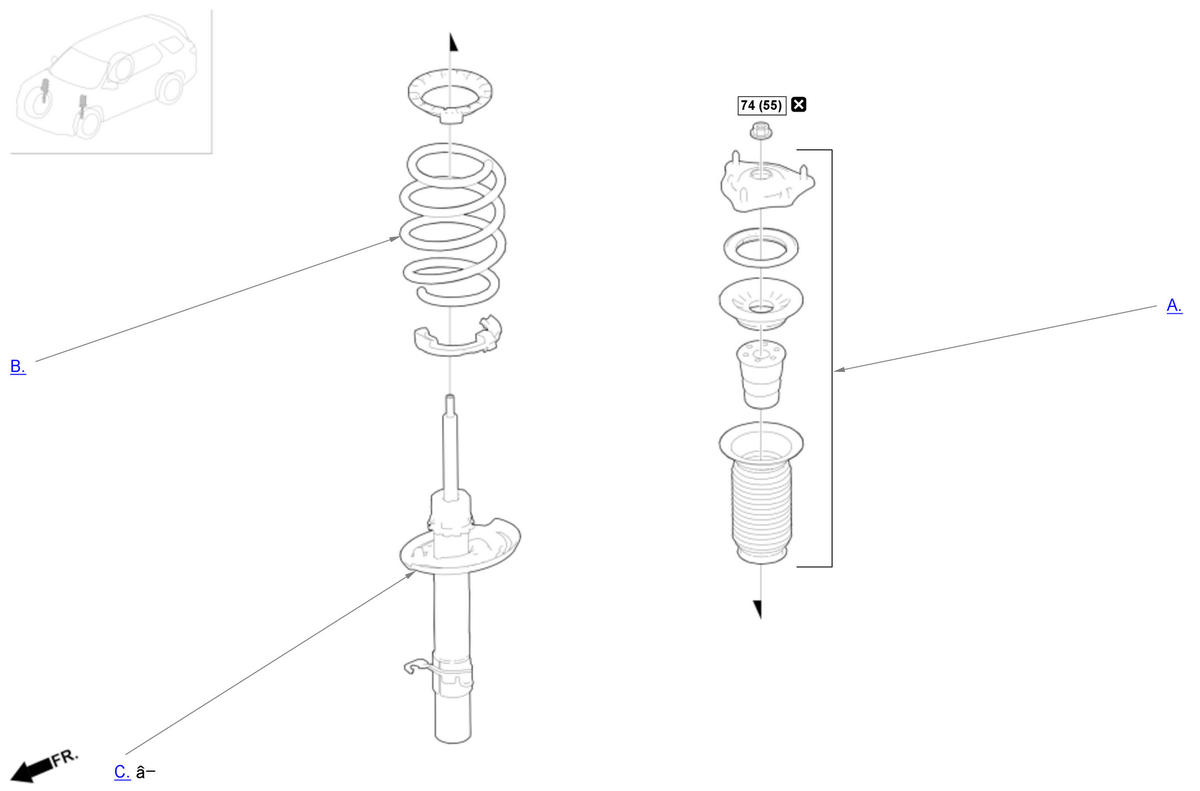

Fig 1: Front Damper/Spring Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

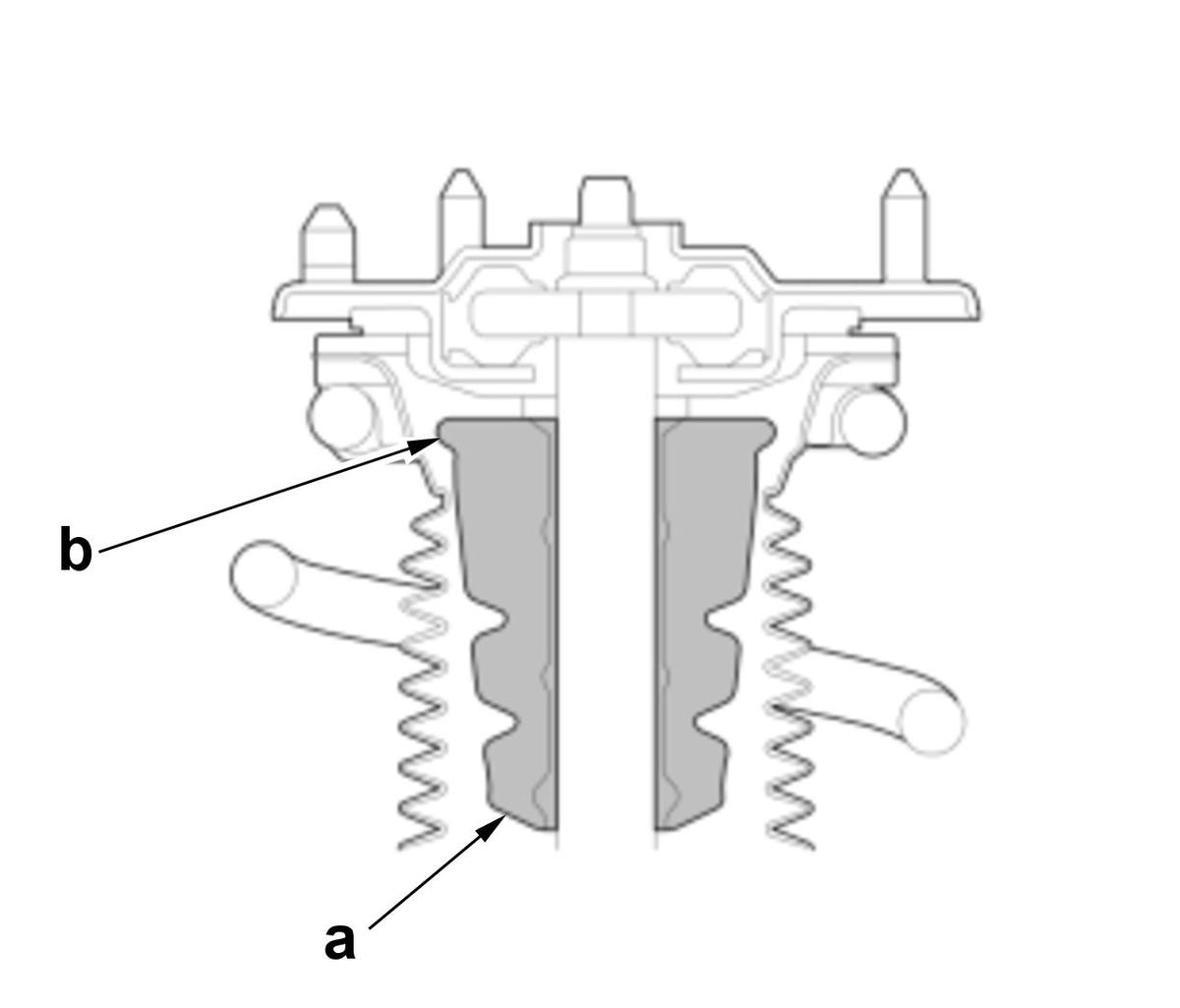

   • Push the bump stop rubber (a) into the dent (b) of the upper spring seat securely.
2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

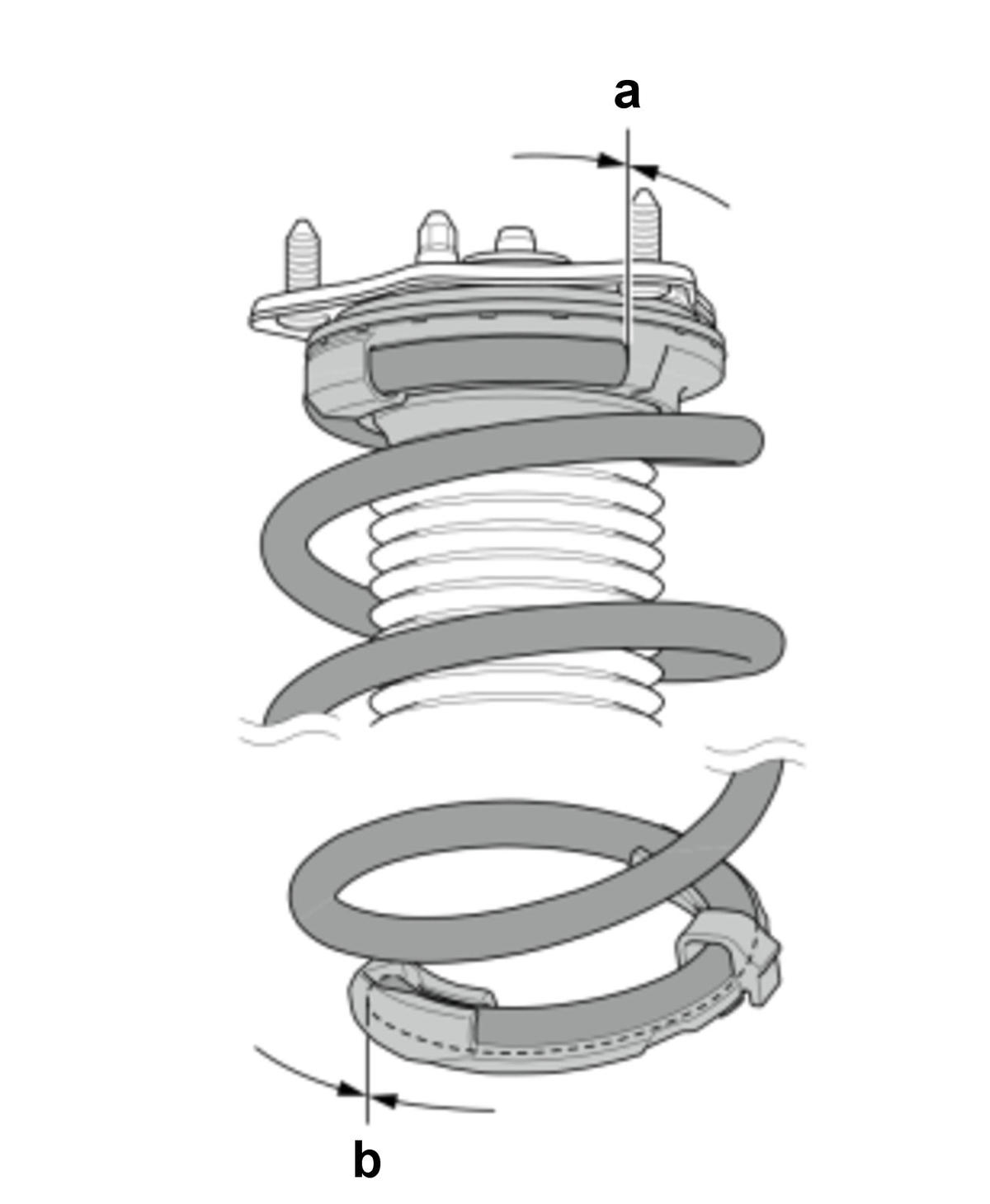

   Specifications

   Specification
   a	No Clearance
   b

3. C.-

   Sub-Procedure

   Removal

   NOTICE:

   Do not compress the spring more than necessary to remove the nut.

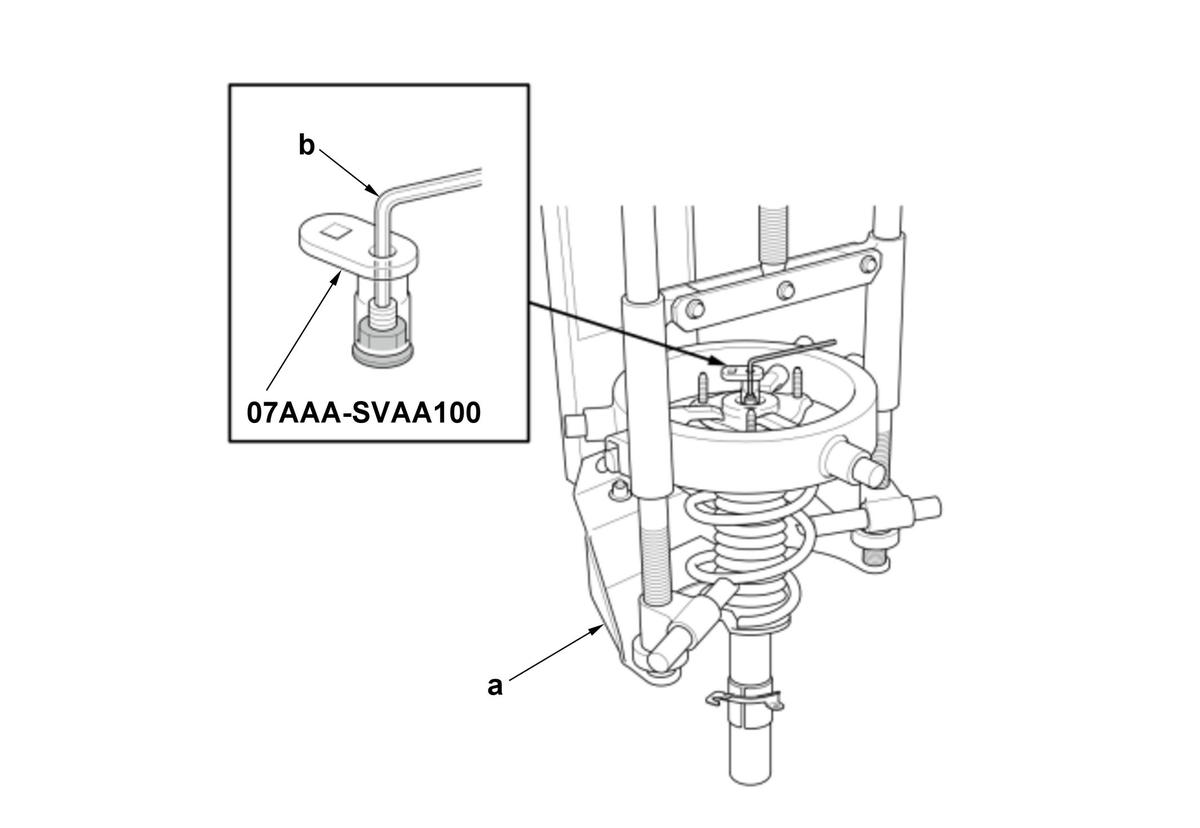

   • Refer to figure 1.

   Tool Details (Figure 1)

   Name
   a	Spring Compressor(Commercially Available)or Equivalent Tool
   b	Hex Wrench(Commercially Available)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

   NOTICE:

   Do not compress the spring excessively.

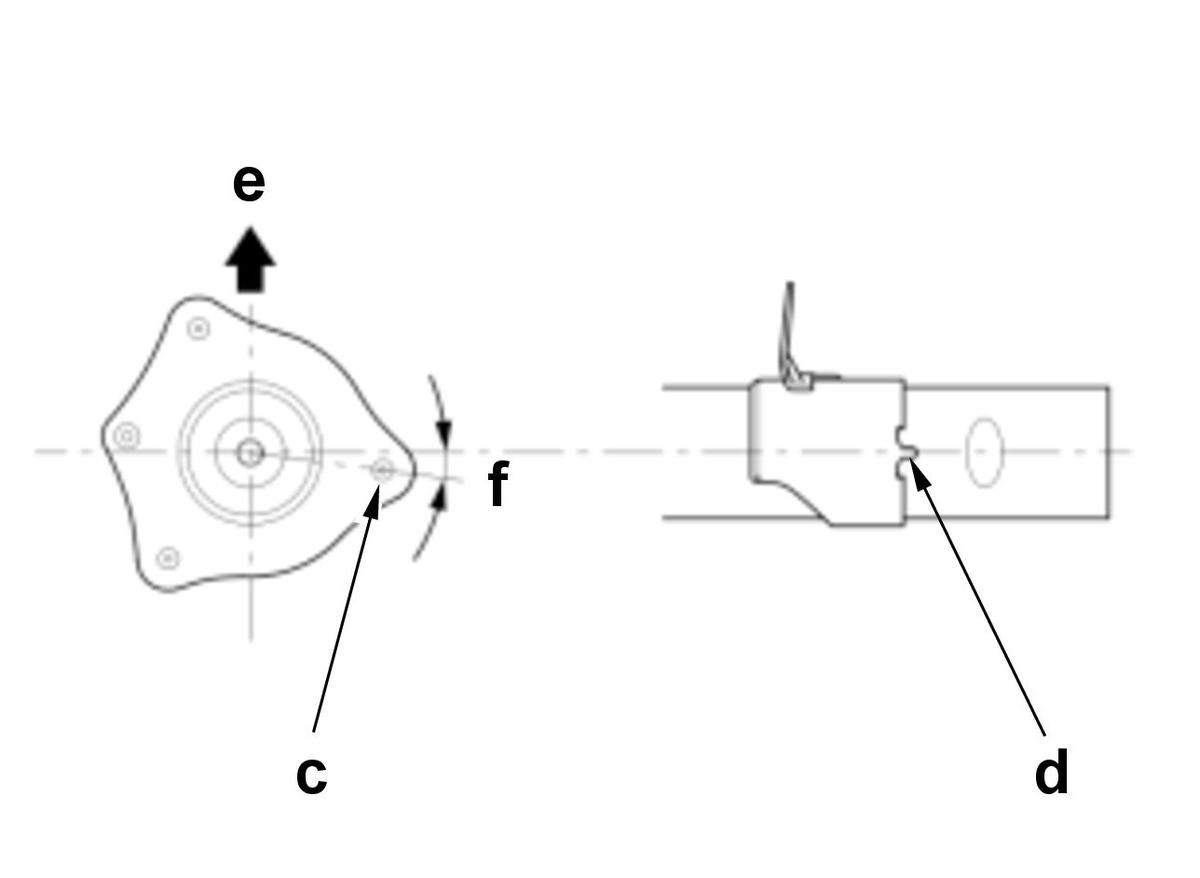

   1. Align the angle of the stud (c) on the damper mounting rubber with the aligning tab (d) on the bottom of the damper unit. (Figure 2)

   Vehicle Directions (Figure 2)

   Position	Direction
   e	Front

   Specifications (Figure 2)

   Standard Value
   f	10° ± 3°

   igure 2

   Courtesy of HONDA, U.S.A., INC.

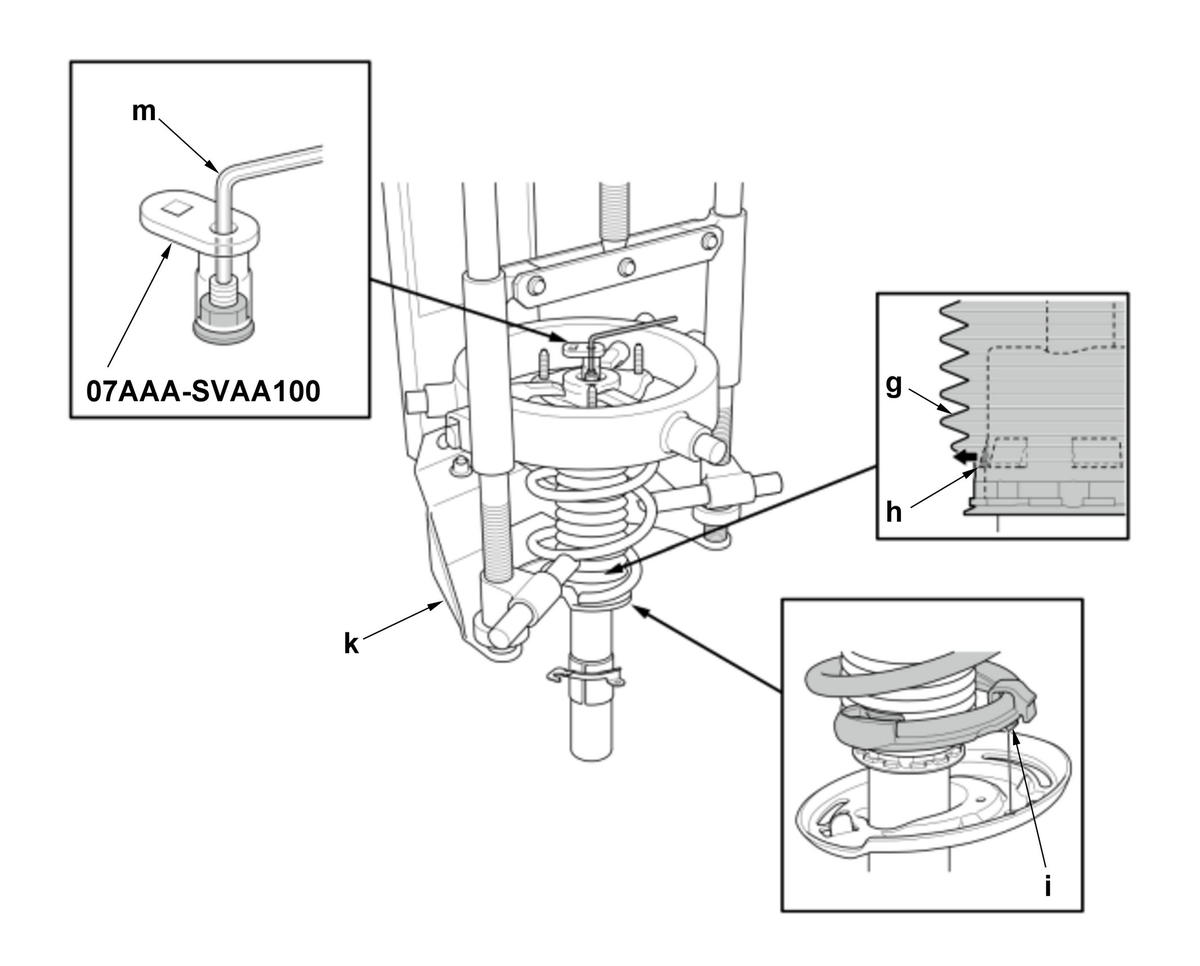

   2. Refer to figure 3.

   NOTE:

   • Make sure that the dust cover (g) is properly positioned into the raised portion (h) of the damper unit. (Figure 3)
   • Make sure that the tab (i) of the spring seat rubber is properly installed into the damper uint. (Figure 3)

   Tool Details (Figure 3)

   Name
   k	Spring Compressor (Commercially Available) or Equivalent Tool
   m	Hex Wrench (Commercially Available)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.
