Repair Procedure

How to use this manual .

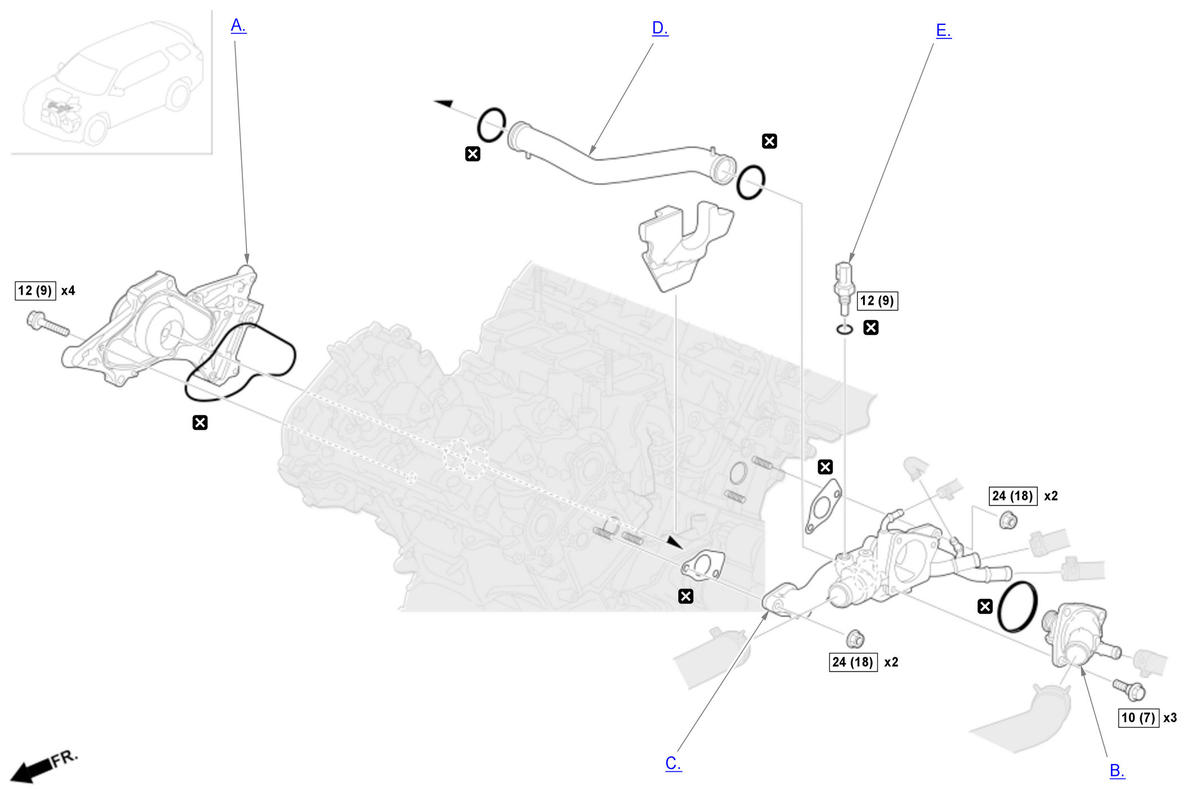

Fig 1: Water Pump Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check () or Coolant Replacement ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Timing Belt Case/Timing Belt Area Parts
     • Timing Belt Auto-Tensioner
     • Touch Idler Pulley

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check () or Coolant Replacement ()
2. B.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check () or Coolant Replacement ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Flow Chamber

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check () or Coolant Replacement ()
3. C.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check () or Coolant Replacement ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Starter

   Sub-Procedure

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check () or Coolant Replacement ()
4. D.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check () or Coolant Replacement ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Water Passage

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check () or Coolant Replacement ()
5. E.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check () or Coolant Replacement ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Cleaner Housing

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check () or Coolant Replacement ()
