Exploded View
| *1: Without power tailgate *2: With power tailgate *3: Part(s) are shown for one side only as the procedure is the same for both sides. |
| *1: With power tailgate |

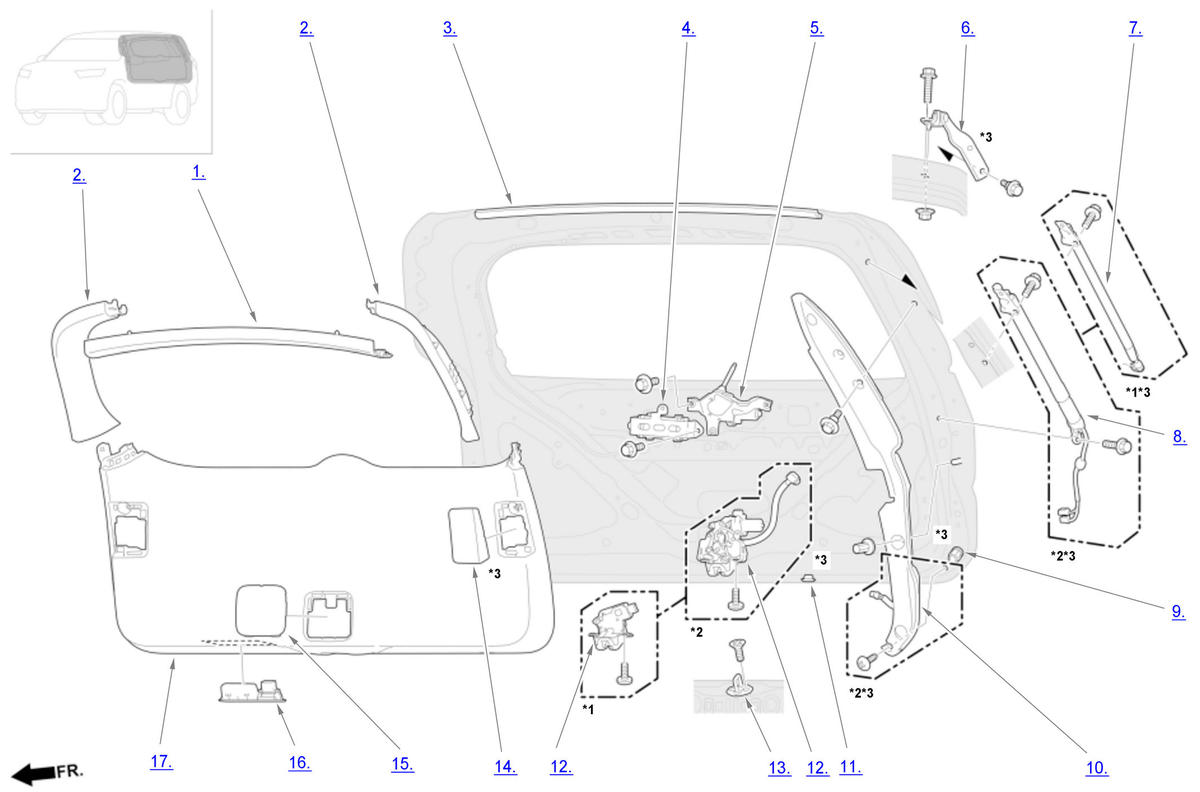

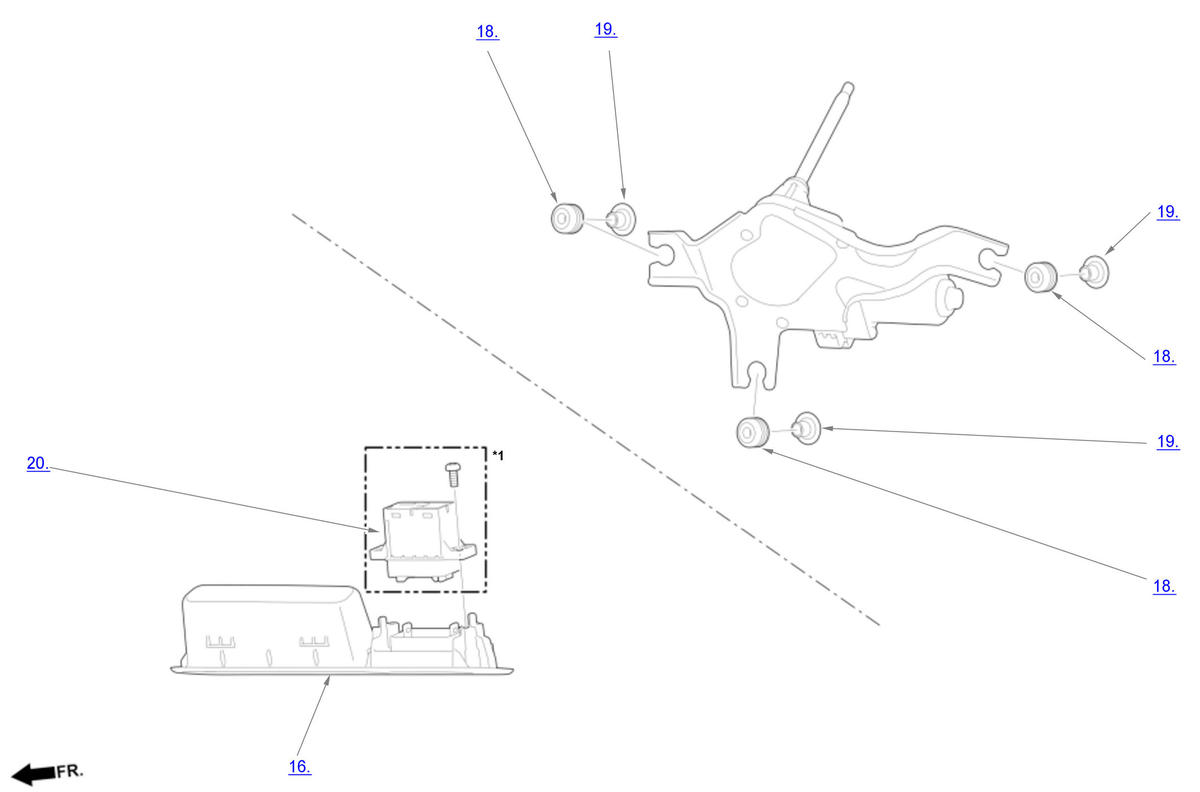

Tailgate - Inner Side Area Legend
| Component Name | Callout |
|---|---|
| Tailgate Upper Trim Panel | 1 |
| Tailgate Side Trim Panel | 2 |
| Tailgate Roof Seal | 3 |
| Tailgate Dynamic Damper | 4 |
| Rear Window Wiper Motor | 5 |
| Tailgate Hinge | 6 |
| Tailgate Support Strut | 7 |
| Power Tailgate Drive Unit/Tailgate Support Strut | 8 |
| Tailgate Edge Cushion | 9 |
| Power Tailgate Pinch Sensor/Tailgate Side Garnish | 10 |
| Drain Plug | 11 |
| Tailgate Latch | 12 |
| Tailgate Striker | 13 |
| Tailgate Maintenance Lid B | 14 |
| Tailgate Maintenance Lid A | 15 |
| Tailgate Pull Pocket | 16 |
| Tailgate Lower Trim Panel | 17 |
| Rear Window Wiper Motor Mount Rubber | 18 |
| Rear Window Wiper Motor Collar | 19 |
| Power Tailgate Inside Switch | 20 |
