Repair Procedure

How to use this manual .

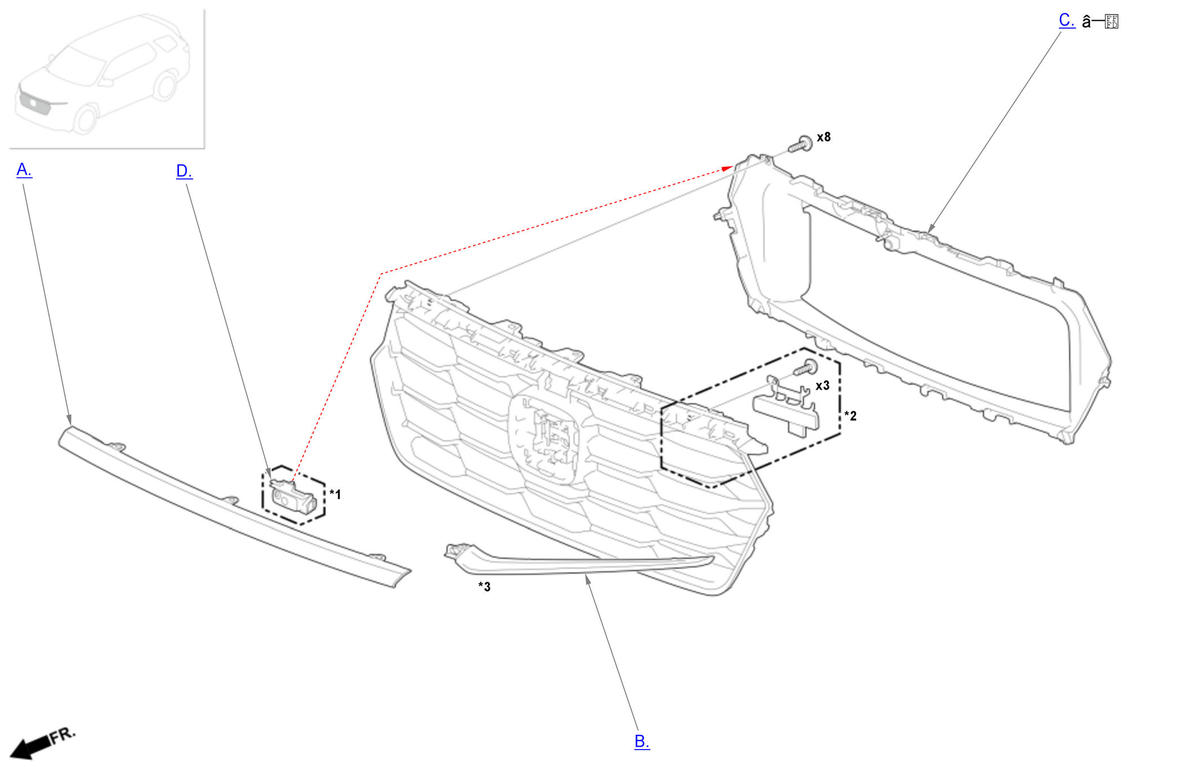

GHH578582Courtesy of HONDA, U.S.A., INC.
: Torque, Nm (lbfft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With multi view camera system
*2: For some models
*3: Part(s) are shown for one side only as the procedure is the same for both sides.

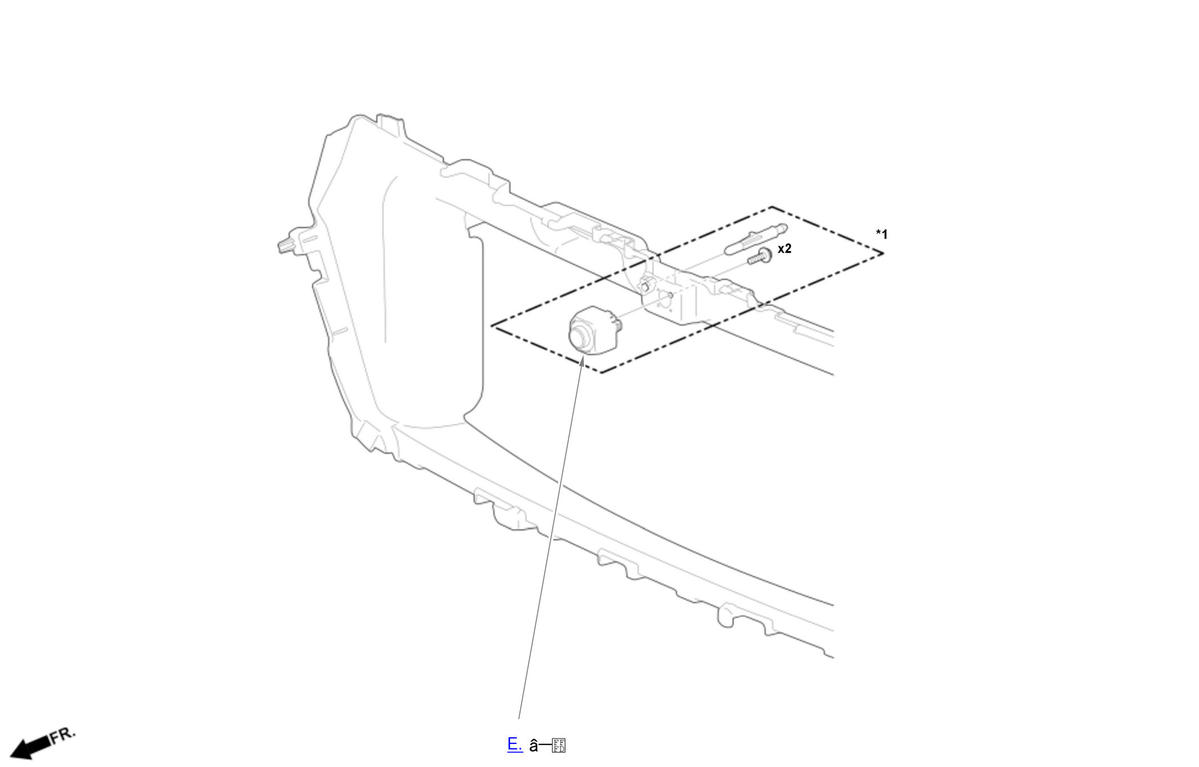

GHH578583Courtesy of HONDA, U.S.A., INC.
: Torque, Nm (lbfft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With multi view camera system
  1. A.-

    NOTE:  The front grille center garnish can be removed without removing the front bumper assembly.

    Sub-Procedure

    Removal

    • Refer to the figure.

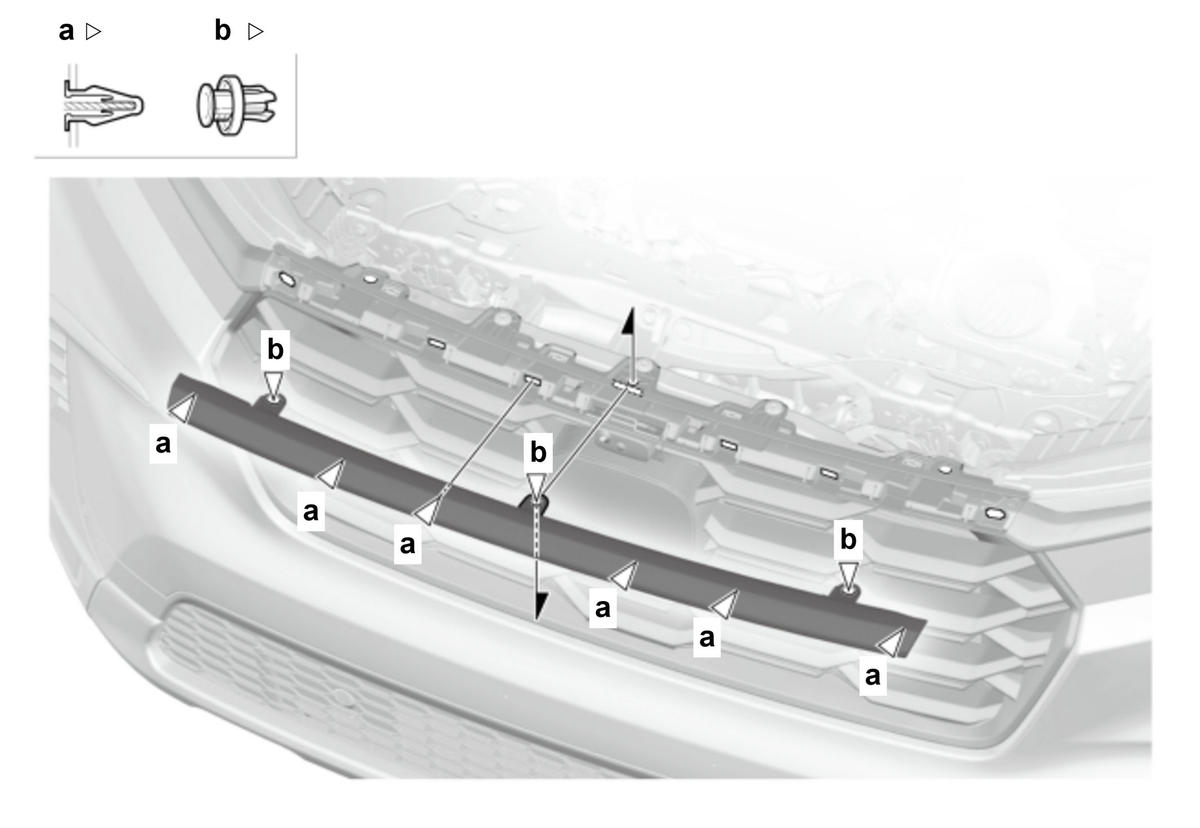

    GHH578584Courtesy of HONDA, U.S.A., INC.
  2. B.-

    NOTE:  The front grille side garnish can be removed without removing the front bumper assembly.

    Sub-Procedure

    Removal

    • Refer to the figure.

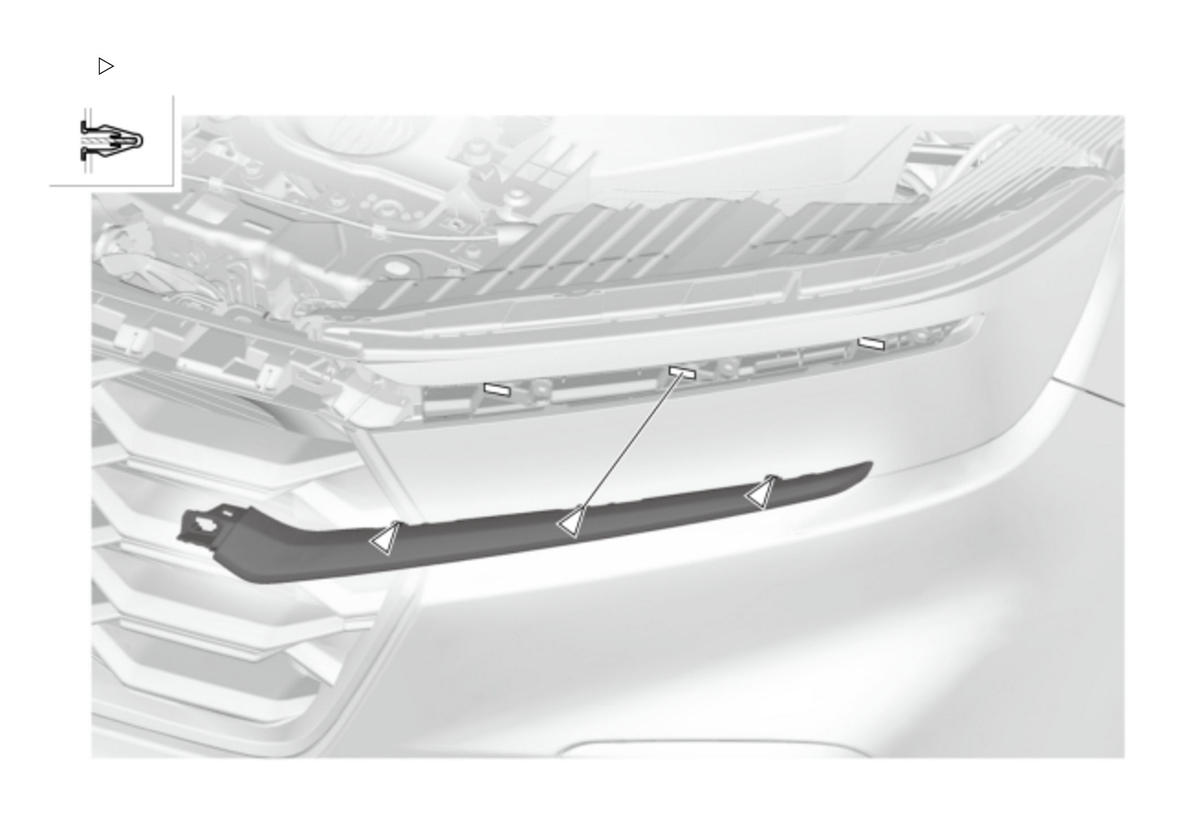

    GHH578585Courtesy of HONDA, U.S.A., INC.
  3. C.-

    Sub-Procedure

    Removal

    • Refer to the figure.

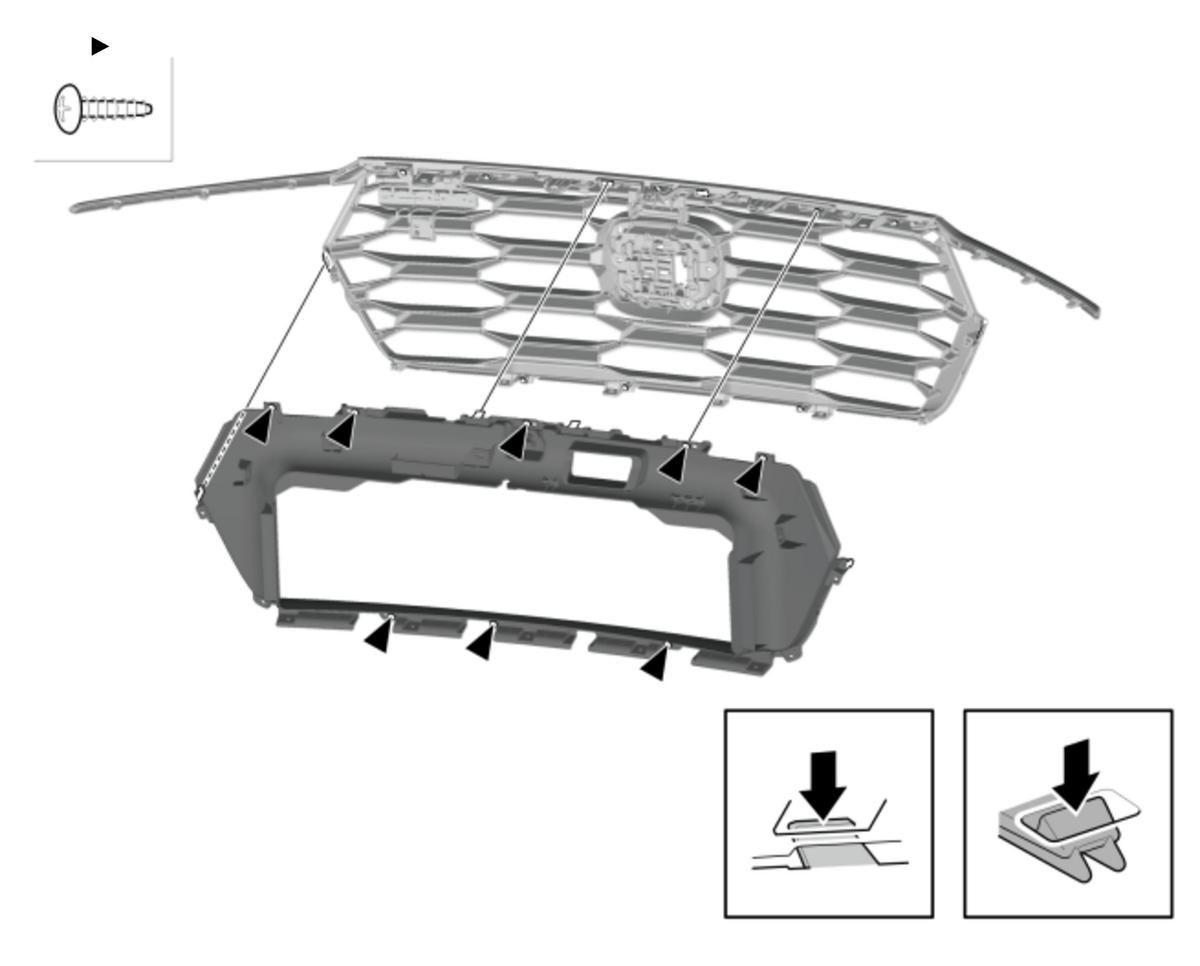

    GHH578586Courtesy of HONDA, U.S.A., INC.

    After Installation

  4. D.-

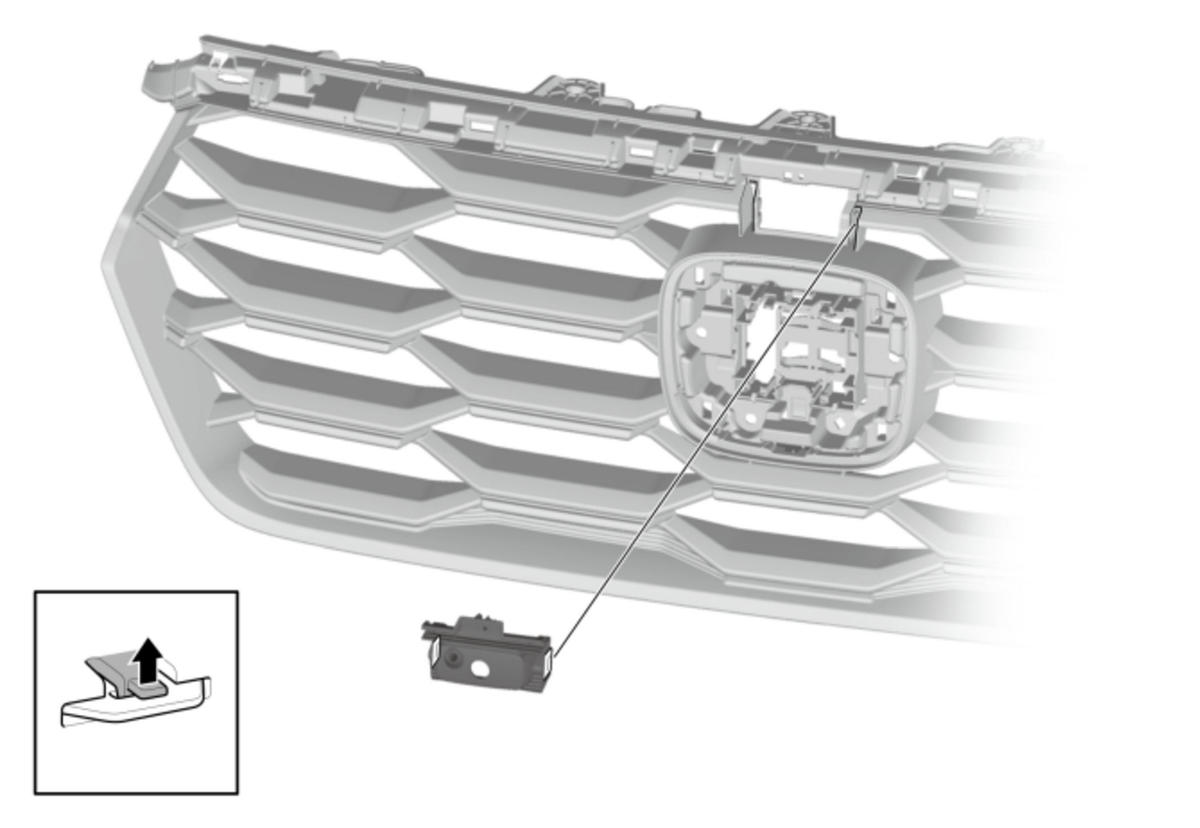

    GHH578587Courtesy of HONDA, U.S.A., INC.
  5. E.-

    After Installation
