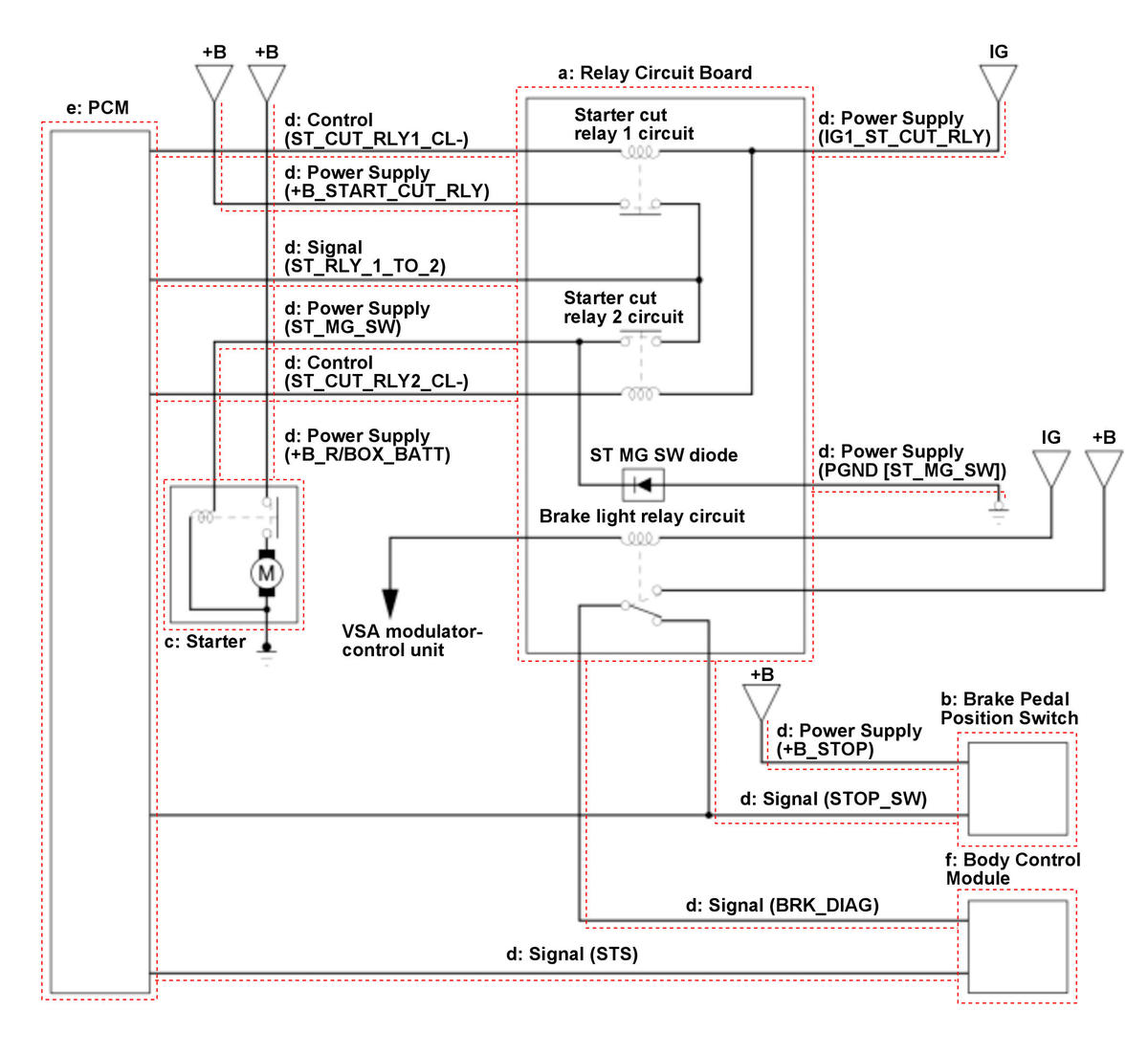

Inspection Outline

• The components to be tested are indicated by a dotted line.
• The illustration does not show all of the areas to be inspected.

Courtesy of HONDA, U.S.A., INC.

• Troubleshoot any DTCs listed or indicated systems below first.
  • PGM-FI System [PGM-FI]: Go to the indicated DTC's troubleshooting .
  • A/T System [A/T]: Go to the indicated DTC's troubleshooting .
  • Keyless Access System [Power Control Unit]: Go to the indicated DTC's troubleshooting .

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Check that the starter is running when doing the confirmation procedure.
  • The starter is running:
  • The starter is not running, and the HDS [Starter Switch] changes:
  • The starter is not running, and the HDS [Starter Switch] does not change:

Inspection Items		Work Items
a	Relay Circuit Board	Do the Relay Ciruit Board Test (Starter Cut Relay 1 Circuit, Starter Cut Relay 2 Circuit)		◦
-	12 Volt Battery	Do the 12 Volt Battery Test - Refer to: 12 Volt Battery Internal Resistance Reset () or 12 Volt Battery Test ()	◦	◦	◦
b	Brake Pedal Position Switch	Do the Brake Pedal Position Switch Test			◦
-	Drive Plate	Ring Gear Visual Inspection	◦
c	Starter	Drive Gear Visual Inspection	◦
		Starter Functional Inspection	◦
		Do the Starter Performance Test	◦	◦
d	External Circuit	+B_BATTERY Circuit Inspection		◦
		ST_MG_SW, PGND [ST_MG_SW] Circuit Inspection		◦
		+B_STOP Circuit Inspection			◦
		STOP_SW [BRK_DIAG] Circuit Inspection			◦
		STS Circuit Inspection			◦
		+B_START_CUT_RLY Circuit Inspection	◦	◦
		ST_RLY_1_TO_2 Circuit Inspection	◦	◦
		ST_CUT_RLY1_CL-, ST_CUT_RLY2_CL- Circuit Inspection	◦	◦
		IG1_ST_CUT_RLY Circuit Inspection	◦	◦
e	PCM	PCM Inspection (Starter Switch Internal Circuit)			◦
		PCM Inspection (Starter Cut Relay Internal Circuit)		◦
f	Body Control Module	Body Control Module Inspection			◦
-	Engine	Engine Assembly Inspection	◦	◦
