DTC B1657 (Keyless Access Control Unit)
>>
Inspection Outline

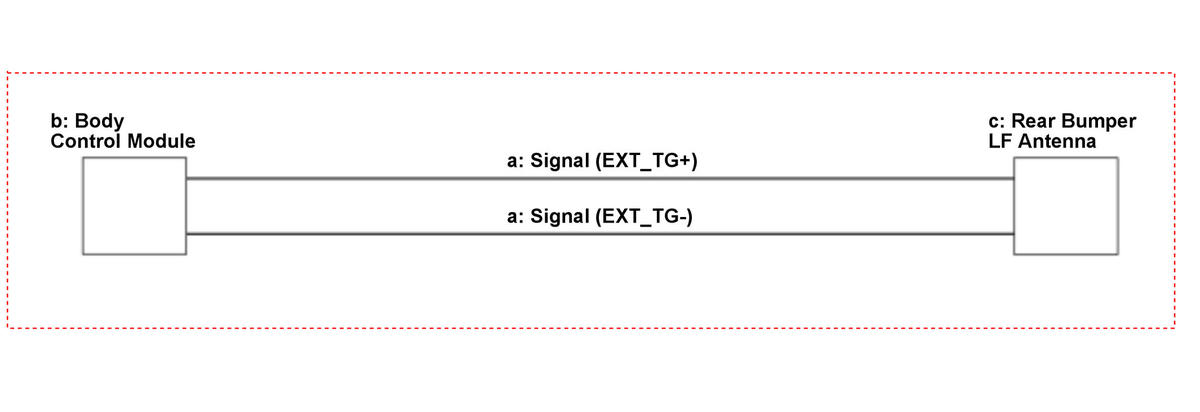

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_TG+, EXT_TG- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Rear Bumper LF Antenna
Rear Bumper LF Antenna Inspection
Courtesy of HONDA, U.S.A., INC.
