Inspection Outline

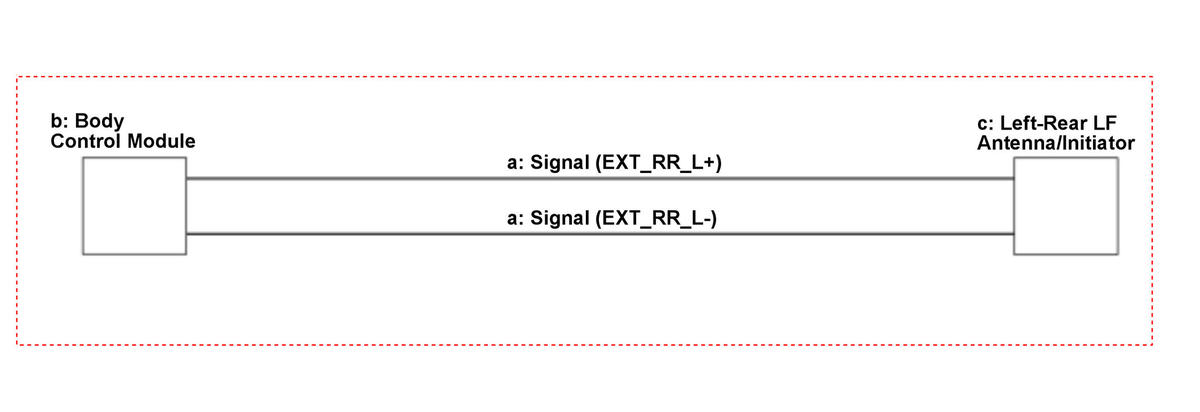

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | EXT_RR_L+, EXT_RR_L- Open Wire Inspection |
| EXT_RR_L+, EXT_RR_L- Shorted Wire Inspection | ||
| b | Body Control Module | Body Control Module Inspection |
| c | Left-Rear LF Antenna/Initiator | Left-Rear LF Antenna/Initiator Inspection |
