DTC Advanced Diagnostics: U0302(AT): General Description

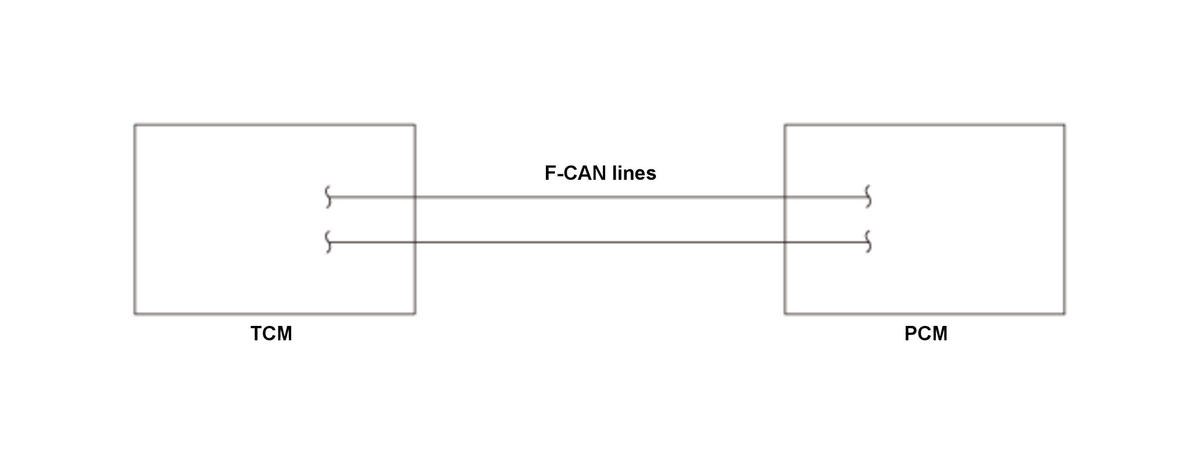

The transmission control module (TCM) and the powertrain control module (PCM) uses communication line (F-CAN lines) to transmit/receive multiple signals simultaneously. When the software version in the TCM and software version sent from the PCM via the F-CAN lines are mismatched for a set time, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL on, shift position indicator blinks |
