DTC Advanced Diagnostics: P07B9, P07BA: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

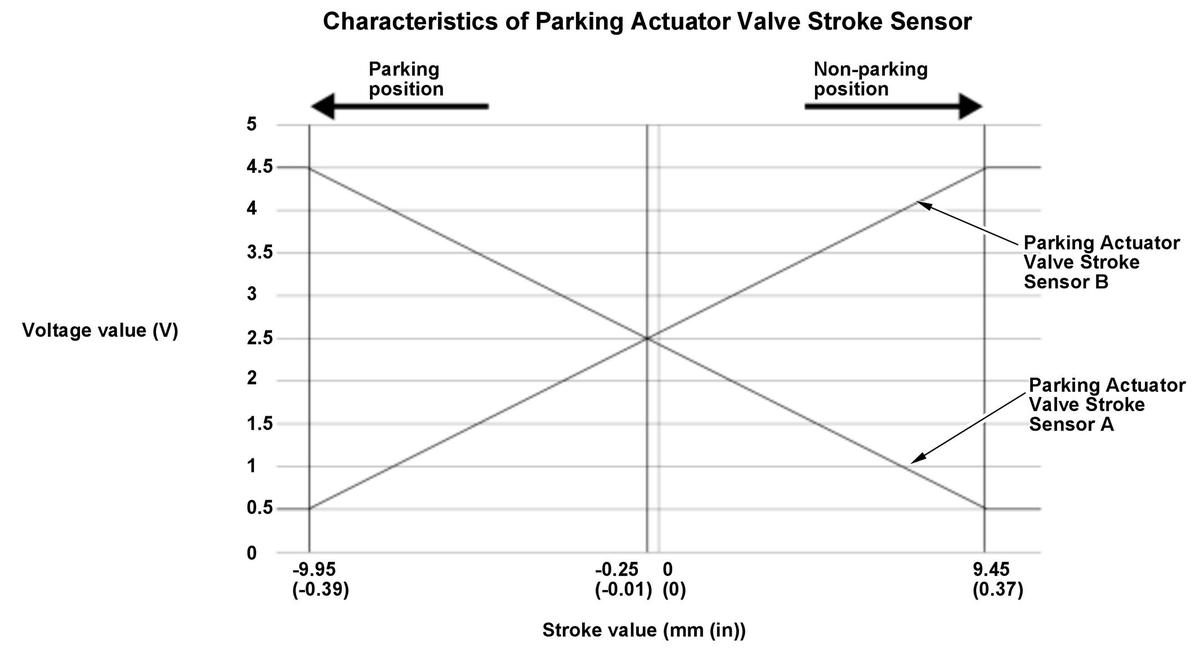

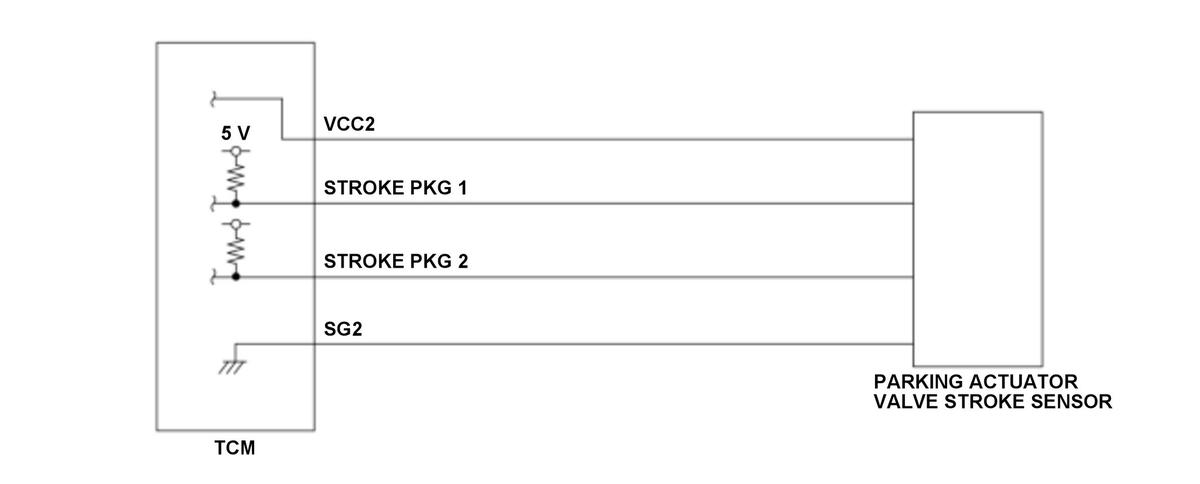

The transmission control module (TCM) judges the parking position by the output voltage from the parking actuator valve stroke sensor. The TCM monitors the parking actuator valve stroke sensor output voltage, and when the output voltage is a specified value for a specified duration, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type
