DTC Advanced Diagnostics: P07B2, P1716: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

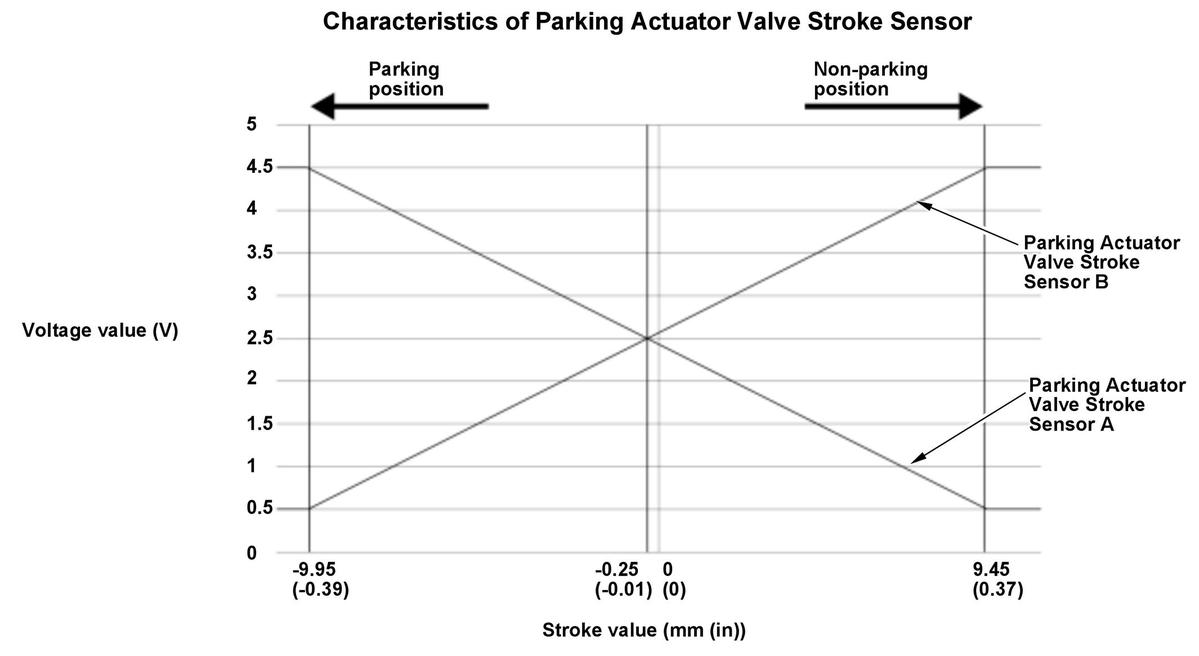

The transmission control module (TCM) judges the parking position by the output voltage from the parking actuator valve stroke sensor. If both the parking actuator valve stroke sensor A and the parking actuator valve stroke sensor B voltages are in a specified range for a specified duration, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type
