Power Steering Assist Check: Check

How to use this manual .

1. Power Steering Assist - Check

   Preconditions

   • Parked Vehicle on a Clean and Dry Floor
   • Engine Started

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   NOTE:  This test should be done with original equipment tires and wheels at the correct tire pressure.

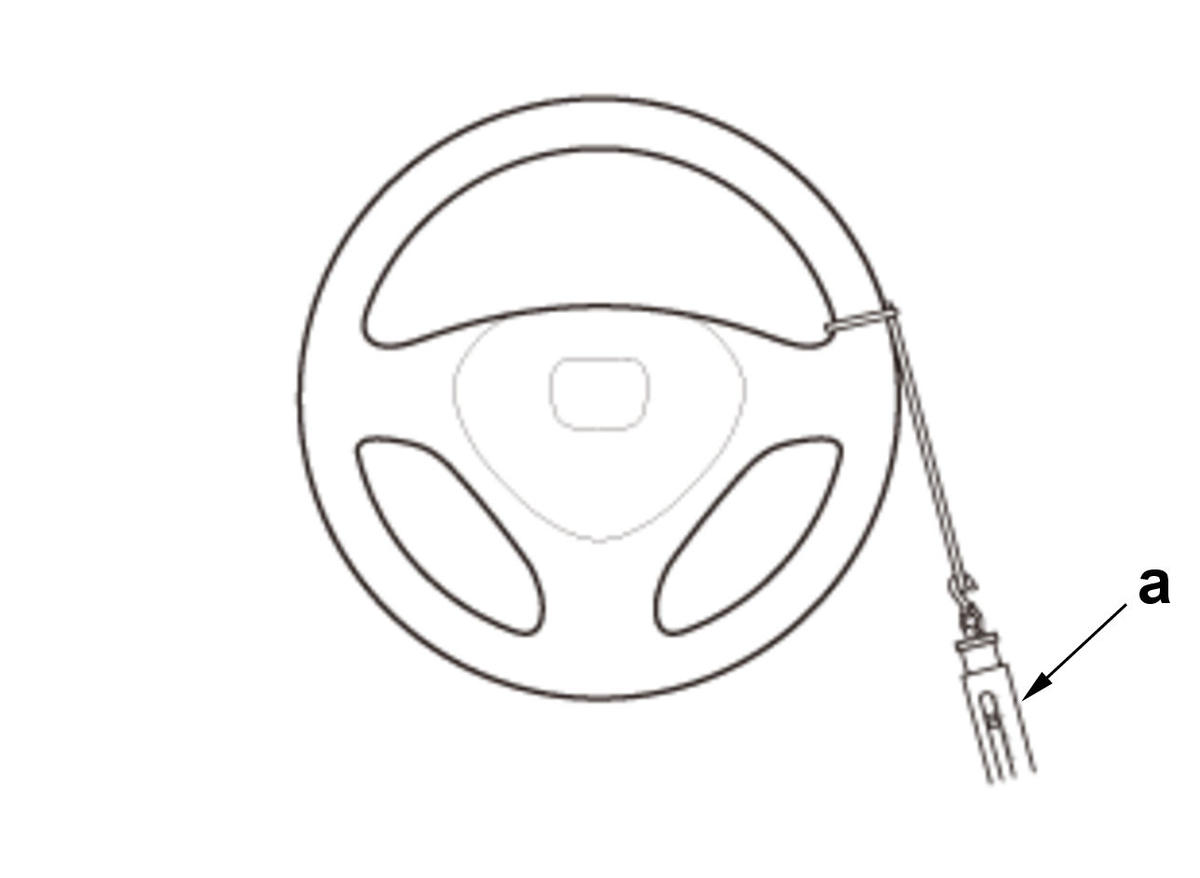

   • Pull the scale as shown, and read it as soon as the tires begin to turn.

   Tool Details

   Name
   a	Spring Scale

   Specifications (Initial Turning Load)

   Standard Value
   28 N (6.3 lbf) max.

   Result

   • If the measurement is not within specifications, check these items:
     • Steering linkage
     • EPS system
     • Wheel alignment
