Engine Lubrication System Description

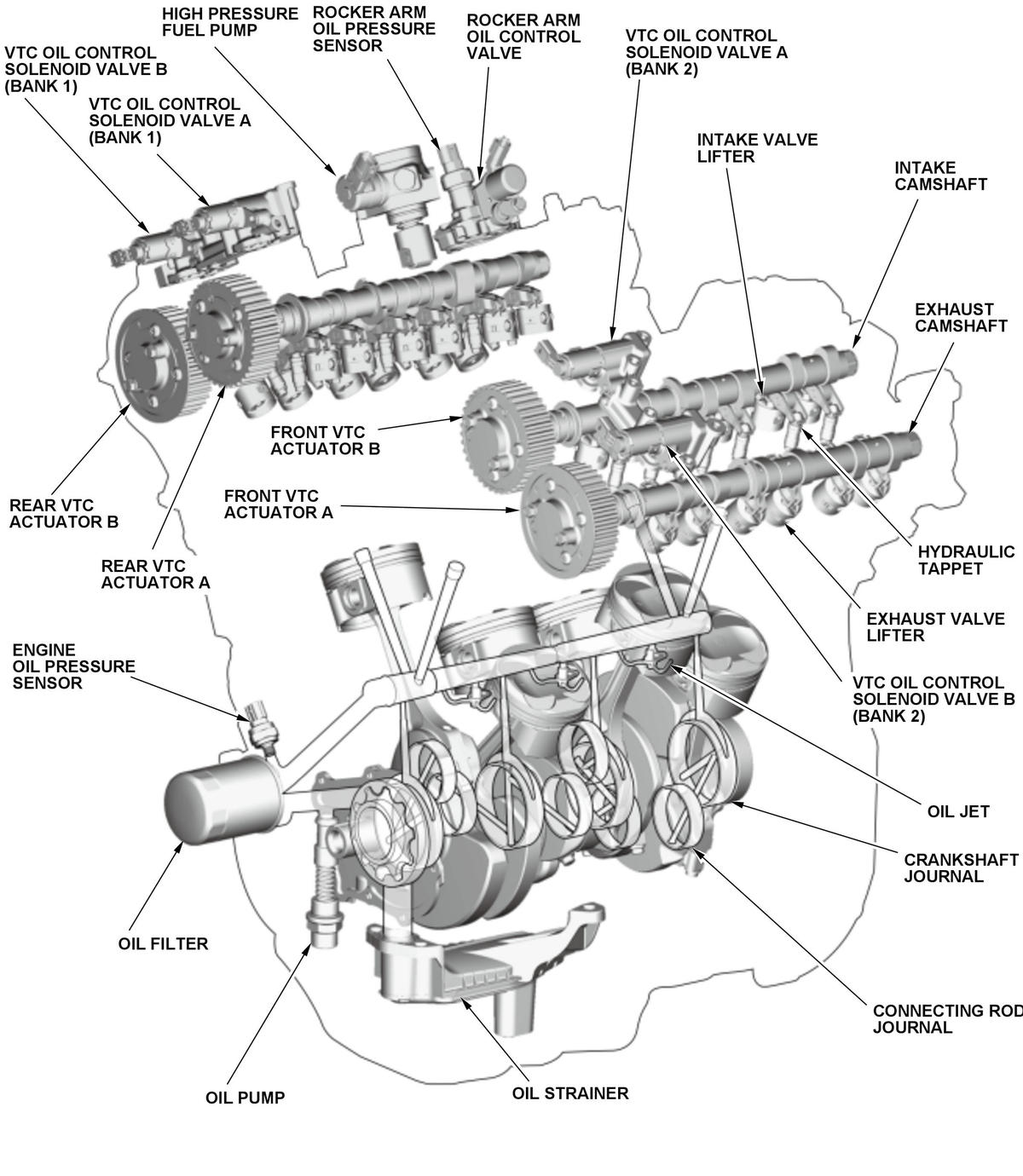

Engine Lubrication System Description

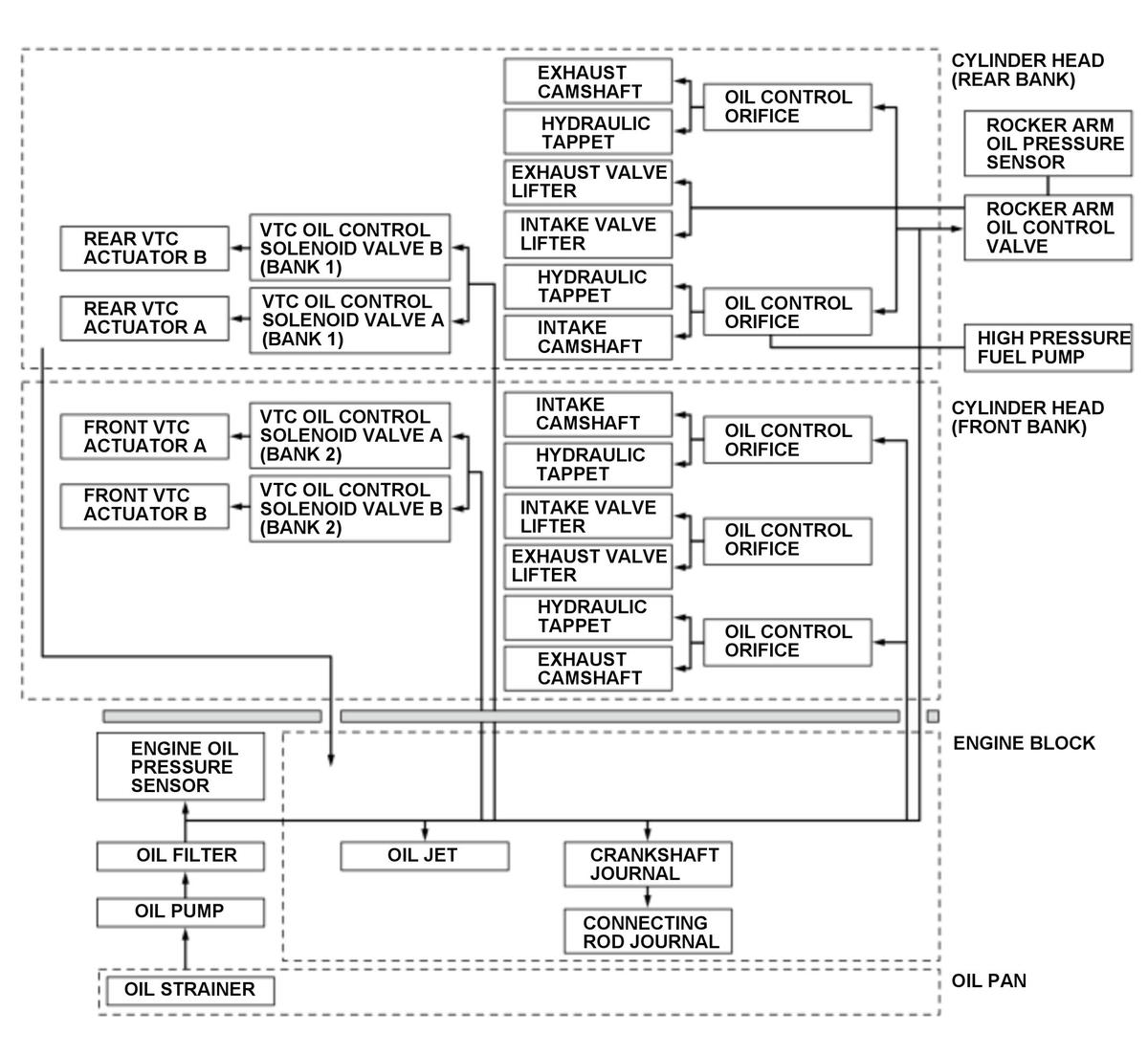

Hydraulic Circuit
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
