Repair Procedure

How to use this manual .

WARNING:

• SRS components are located in this area. Before doing repairs or service:
  • Review the SRS component locations .
  • Review the precautions and procedures .

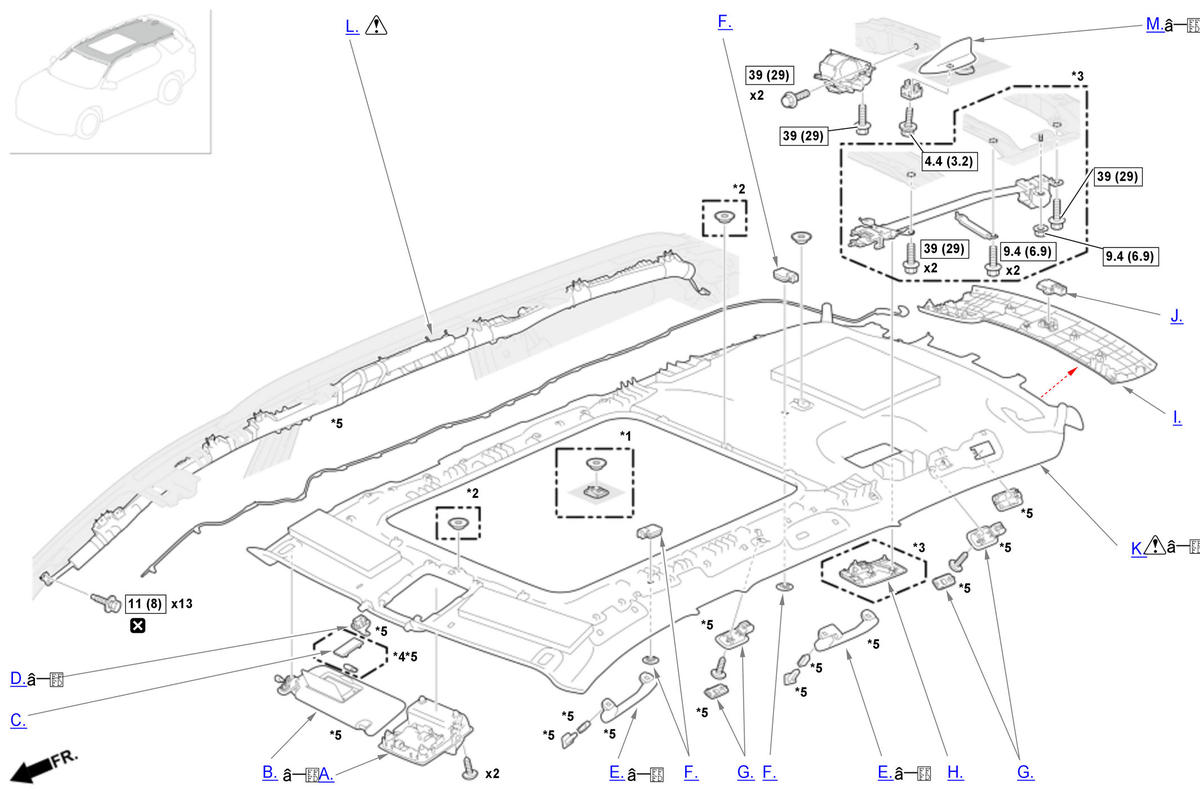

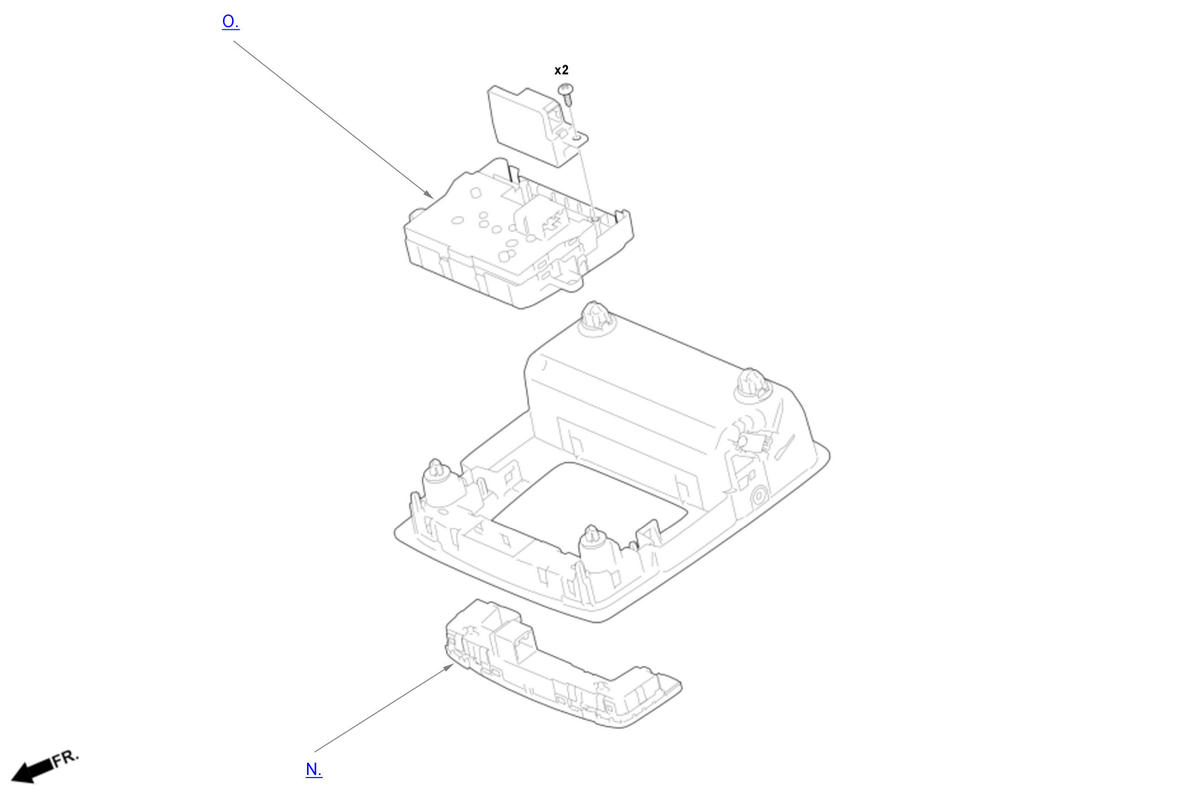

Headliner Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Sub-Procedure

   Removal

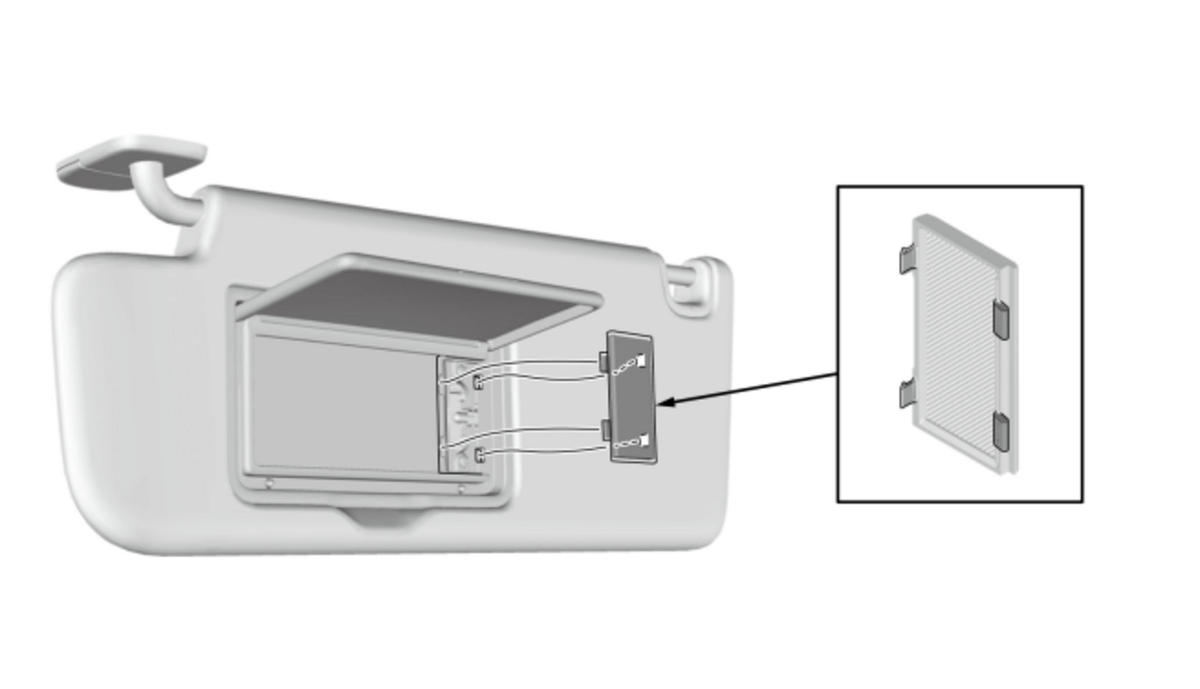

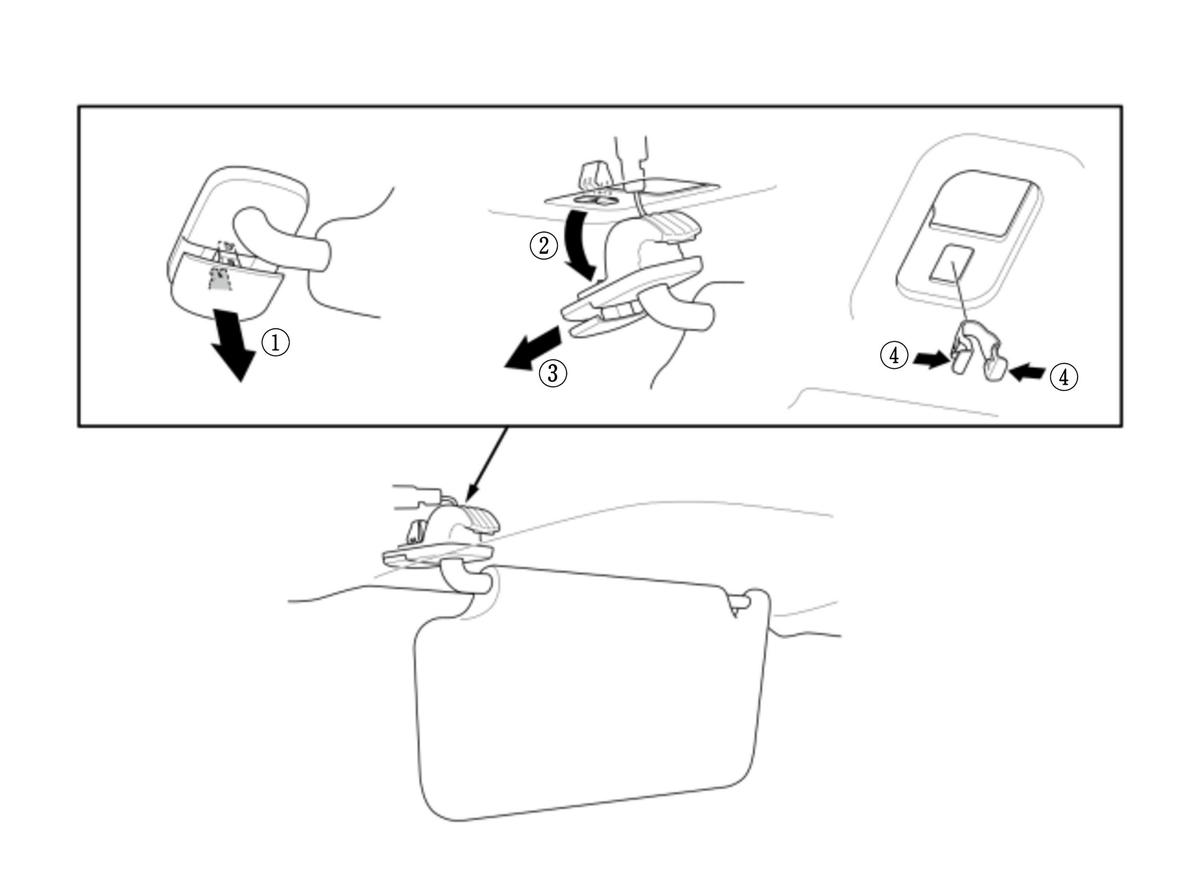

   • Refer to figure 1.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

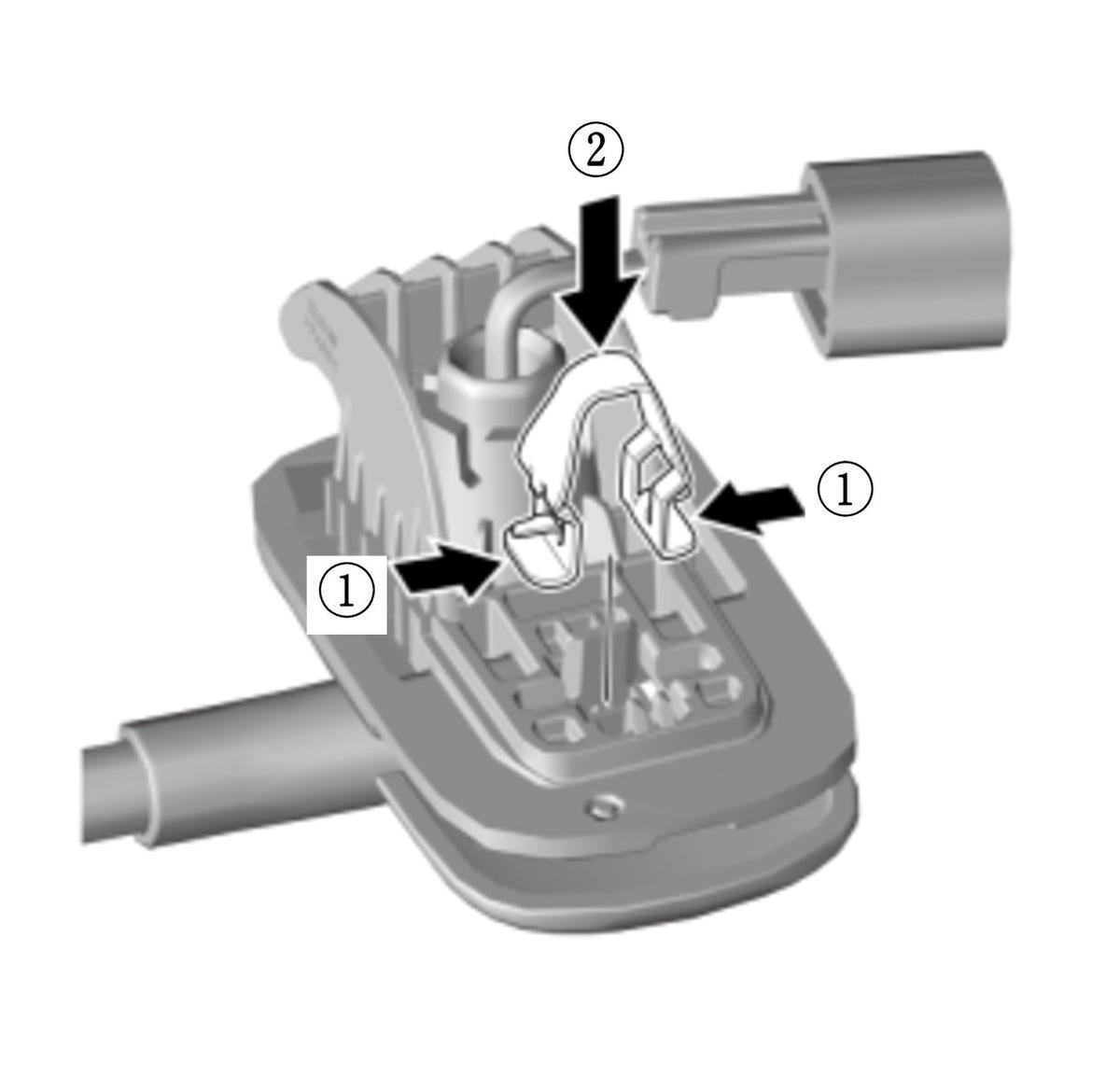

   • Refer to figure 2.
   • After inspecting the sunvisor, install the sunvisor.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

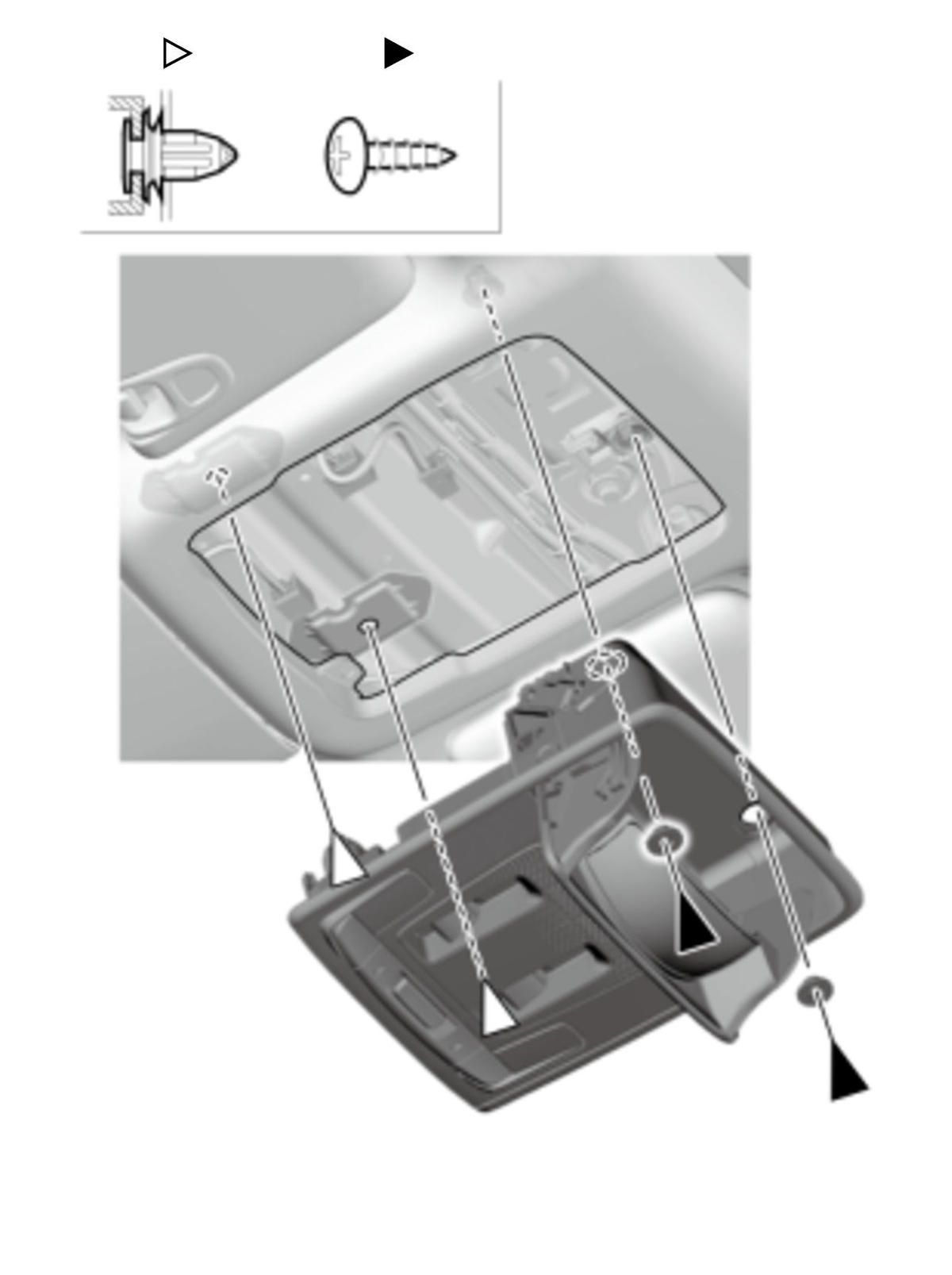

3. C.-

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

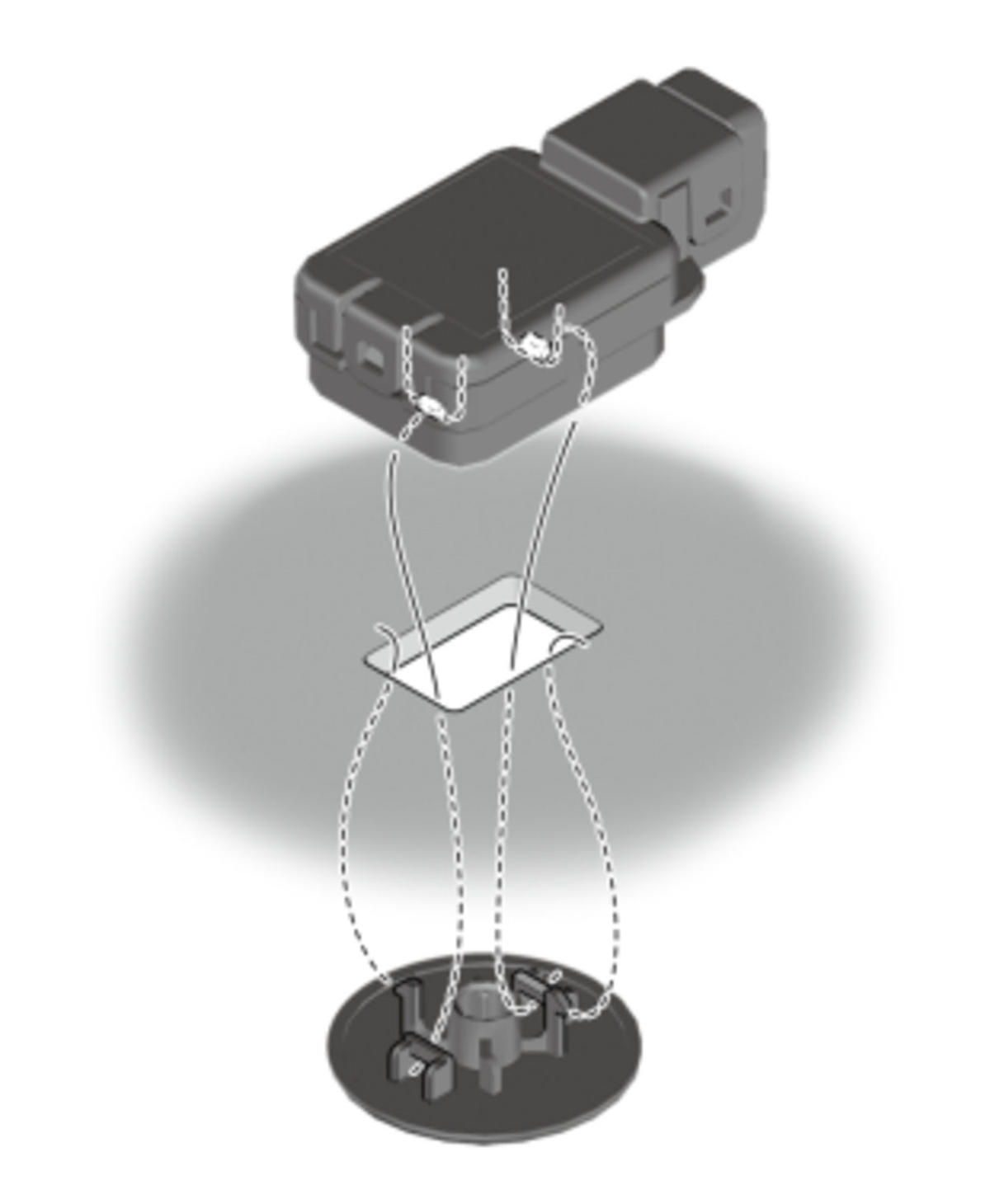

   • Refer to the figure.

   Installation

   • After inspecting the sunvisor holder, install the sunvisor holder.
5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

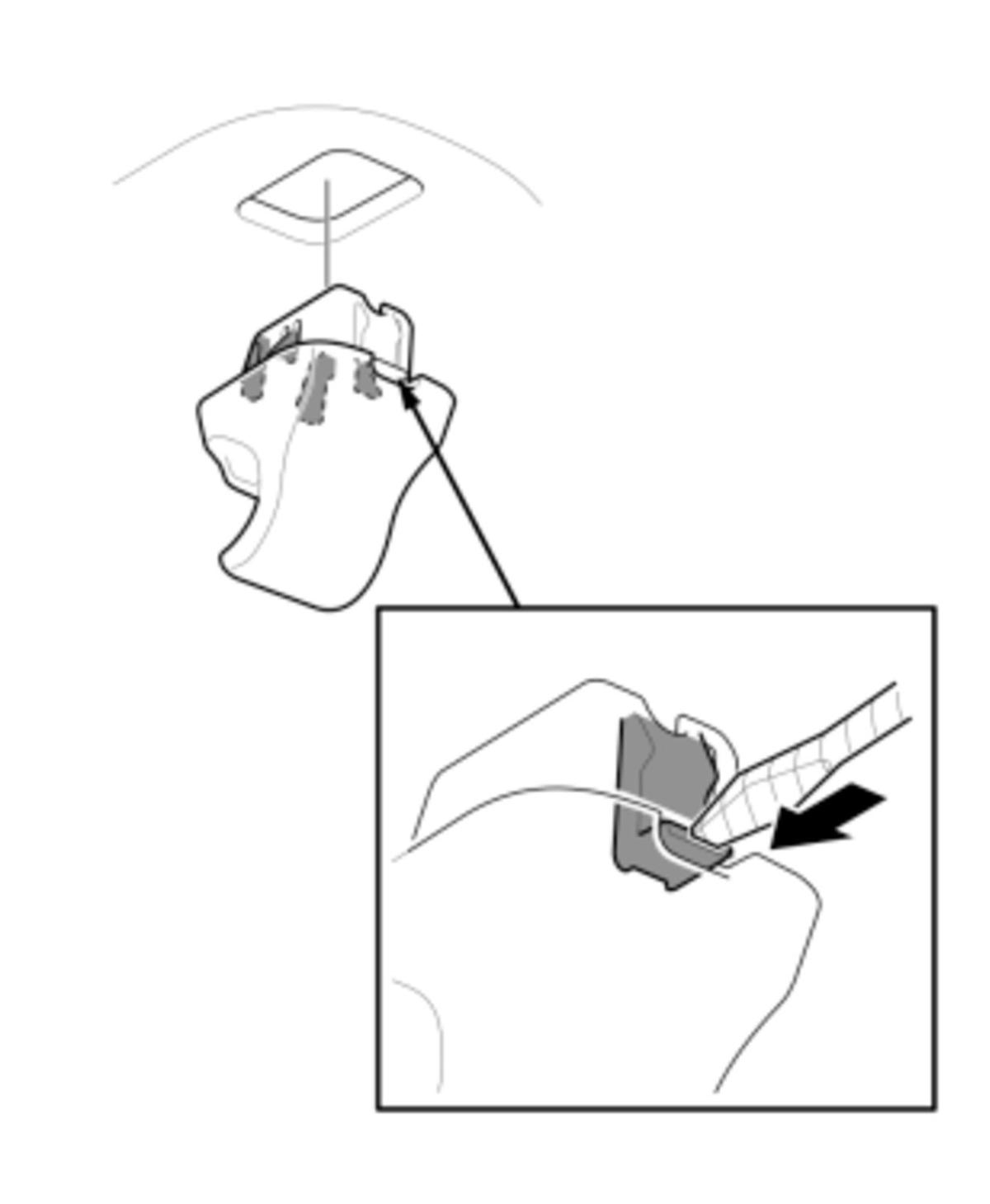

   Removal

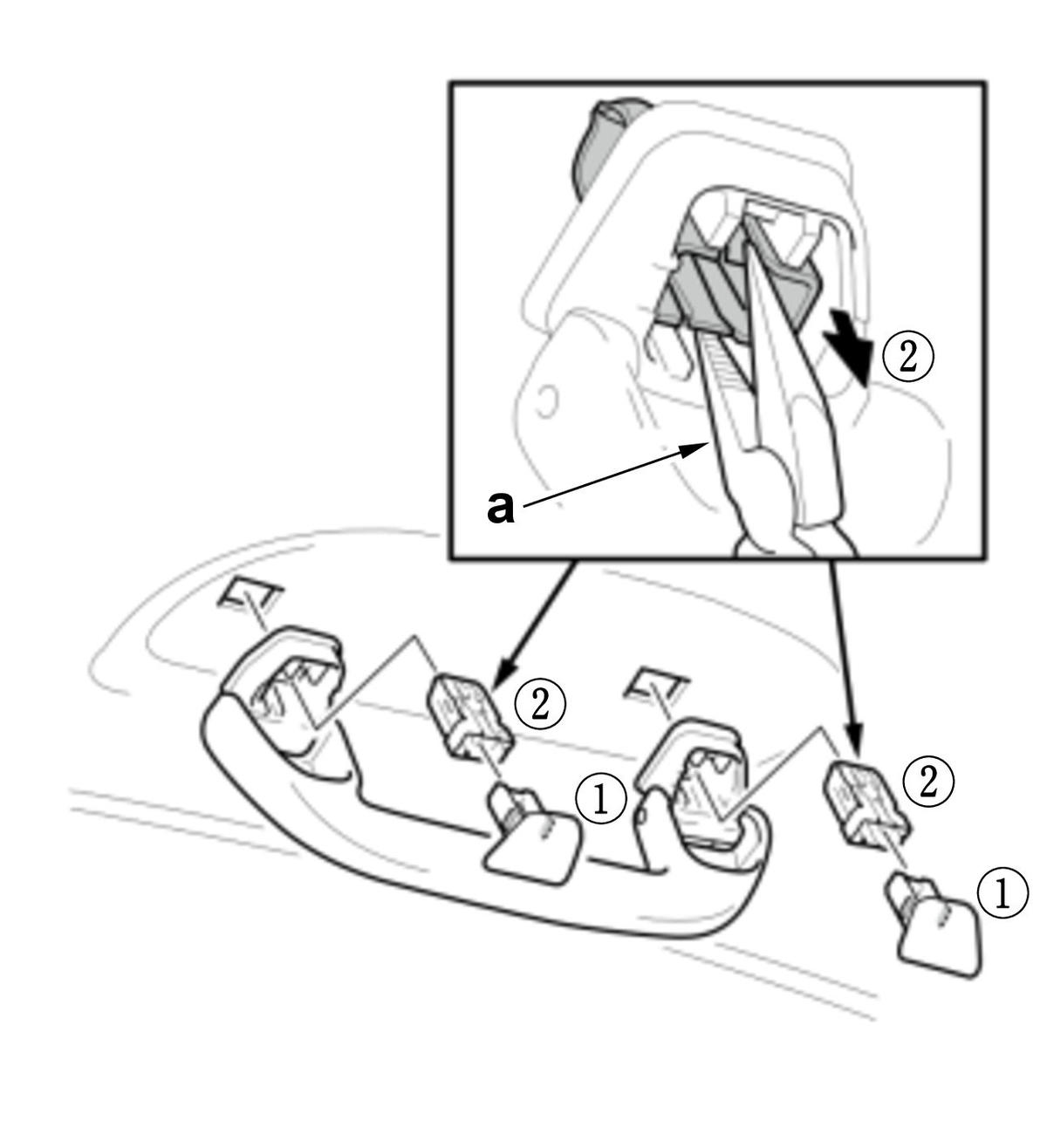

   • Refer to the figure.

   Tool Details

   Name
   a	Pliers (Commercially Available)

   Installation

   • After inspecting the grab handle, install the grab handle.
6. F.-

   Courtesy of HONDA, U.S.A., INC.

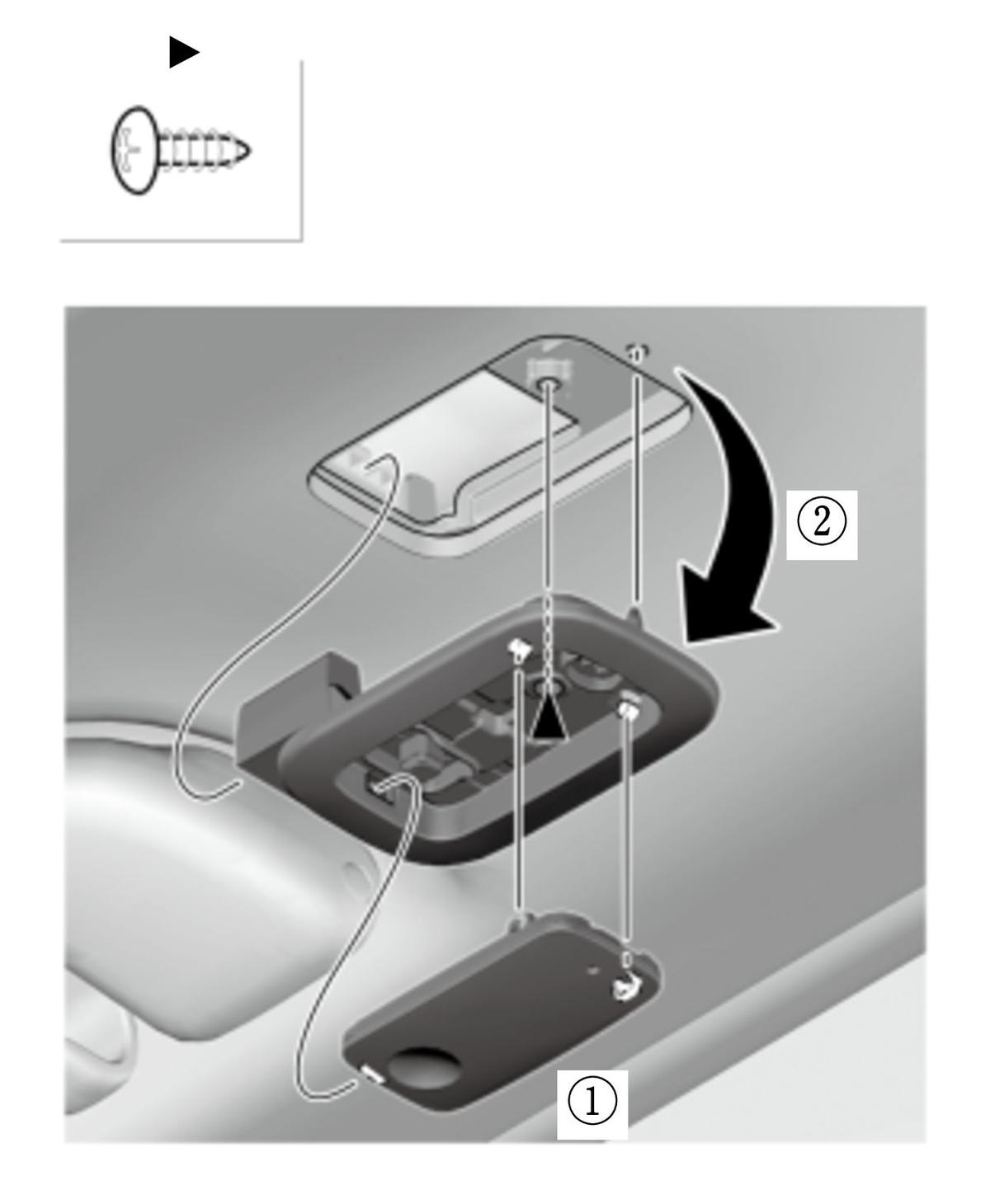

7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

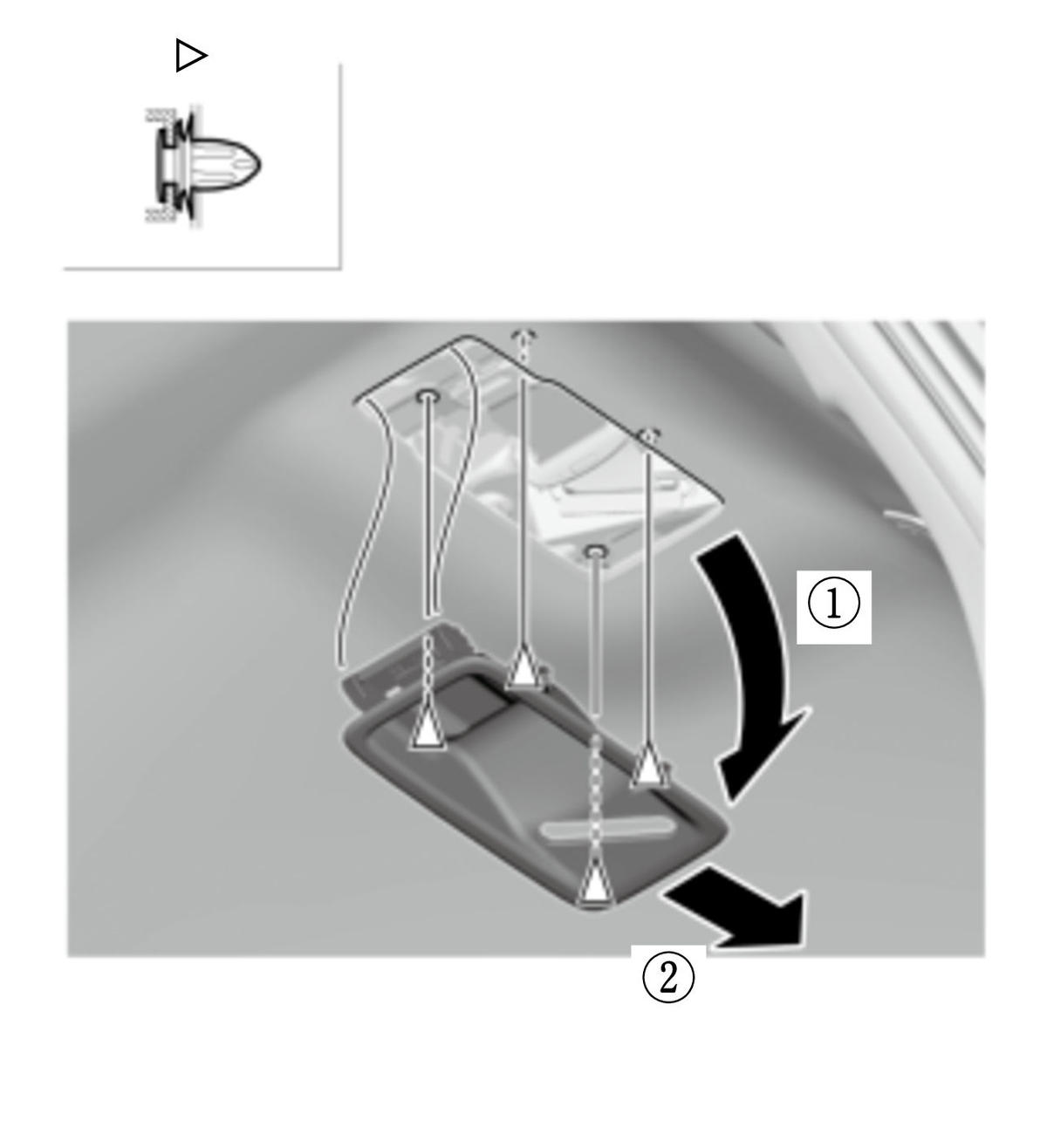

   • Refer to the figure.
8. H.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

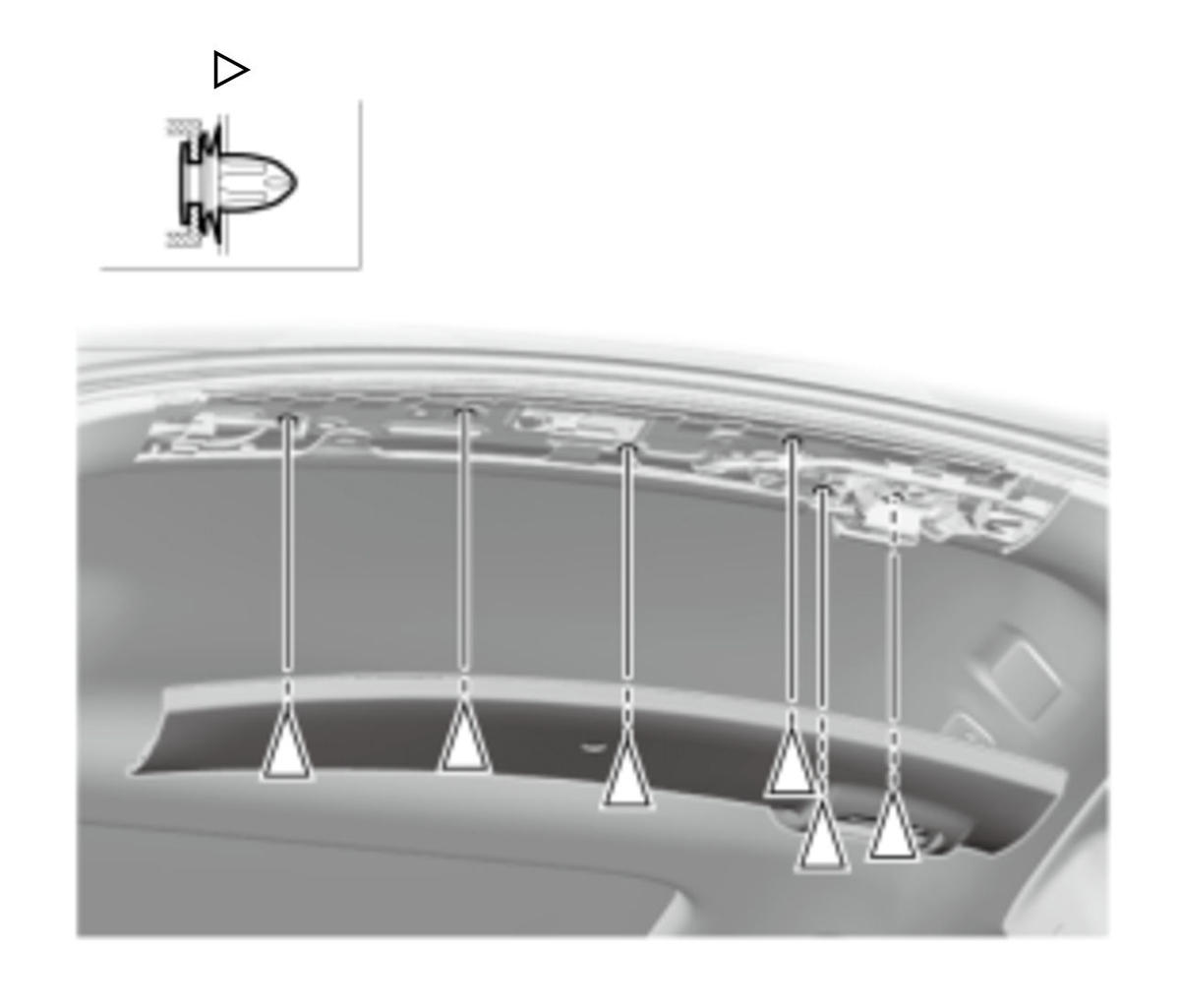

   • Refer to the figure.

   NOTICE:

   • Do not bend the headliner. Bending the headliner will crease and damage it.
10. J.-

    Courtesy of HONDA, U.S.A., INC.

11. K.-

    WARNING:

    • SRS components are located in this area. Before doing repairs or service:
      • Review the SRS component locations .
      • Review the precautions and procedures .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTE:  Do not bend the headliner. Bending the headliner will crease and damage it.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected
    • Both Front Seat-Backs Full Reclined
    • Second Row Seat-Backs Full Reclined

    Key Information

    Do the following before starting your work.

    Remove:

    • Camera Cover
    • Interior Trim Area
      • A-Pillar Trim
      • B-Pillar Upper Trim
      • Rear Pillar Trim
      • Quarter Pillar Trim
      • Front Door Opening Seal (as needed)
      • Rear Door Opening Seal (as needed)
      • Tailgate Weatherstrip (as needed)

    Sub-Procedure

    Removal

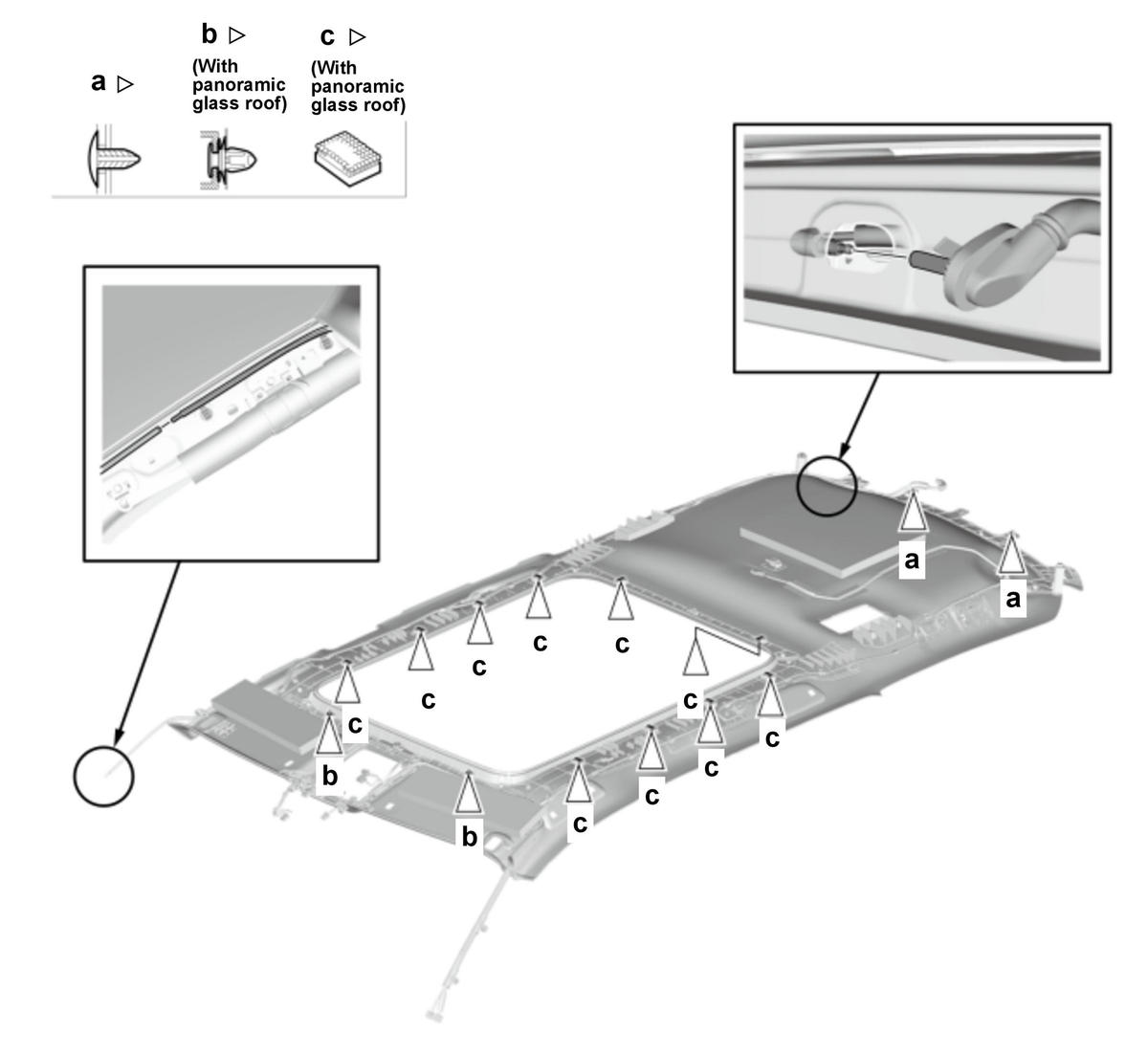

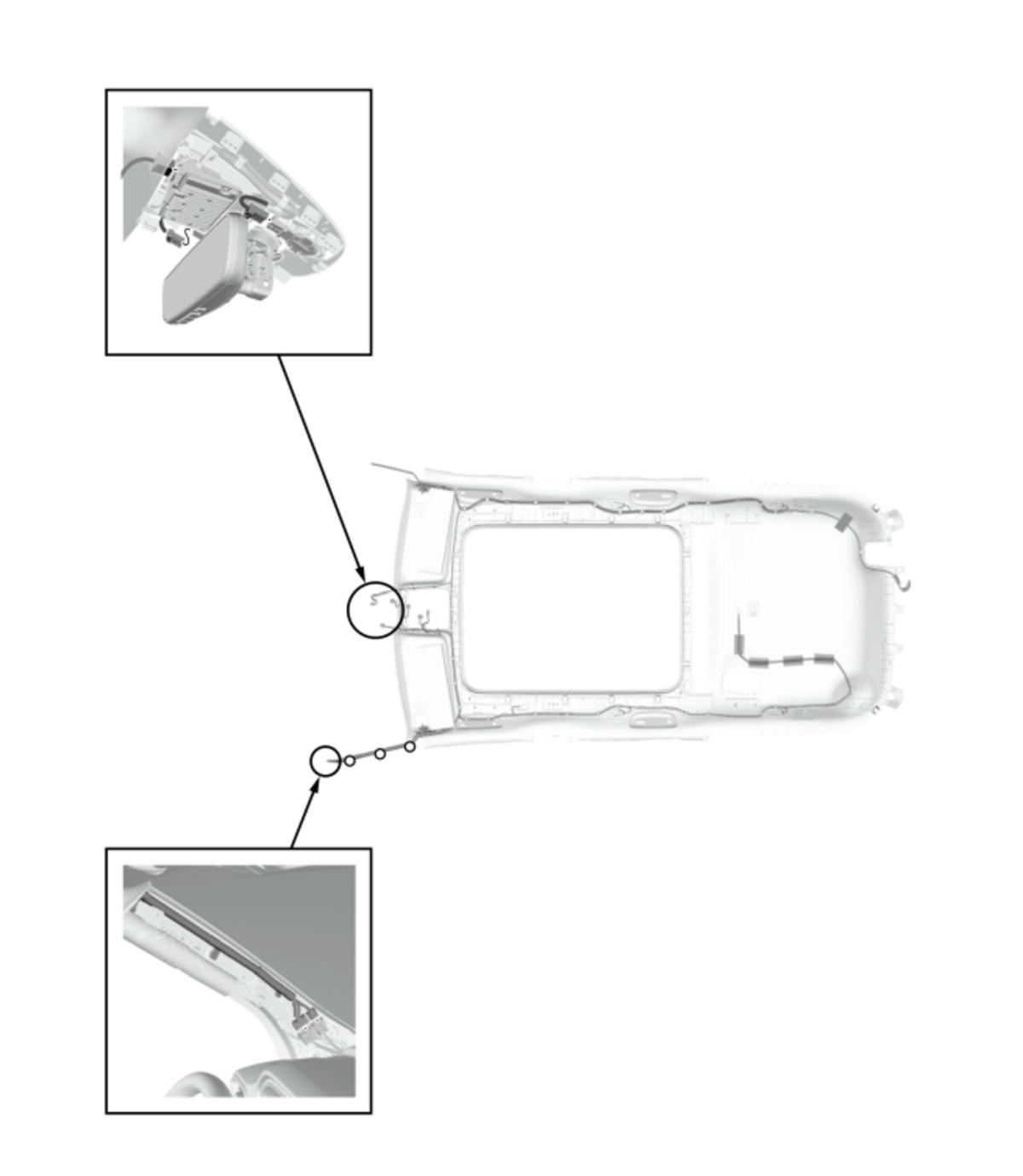

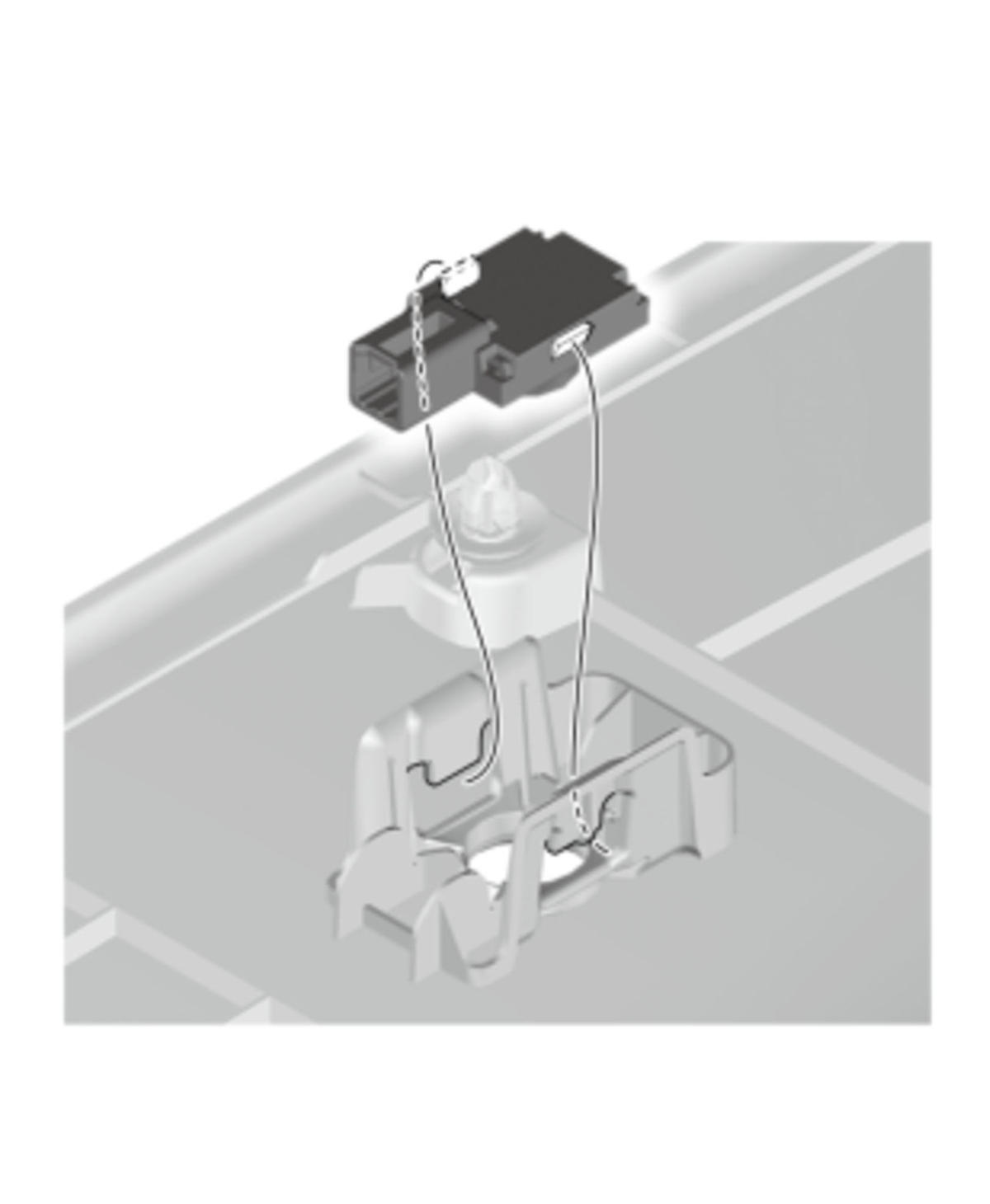

    1. Refer to figure 1.

    NOTE: The positions and number of connectors vary depending on models.

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    2. Refer to figure 2.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

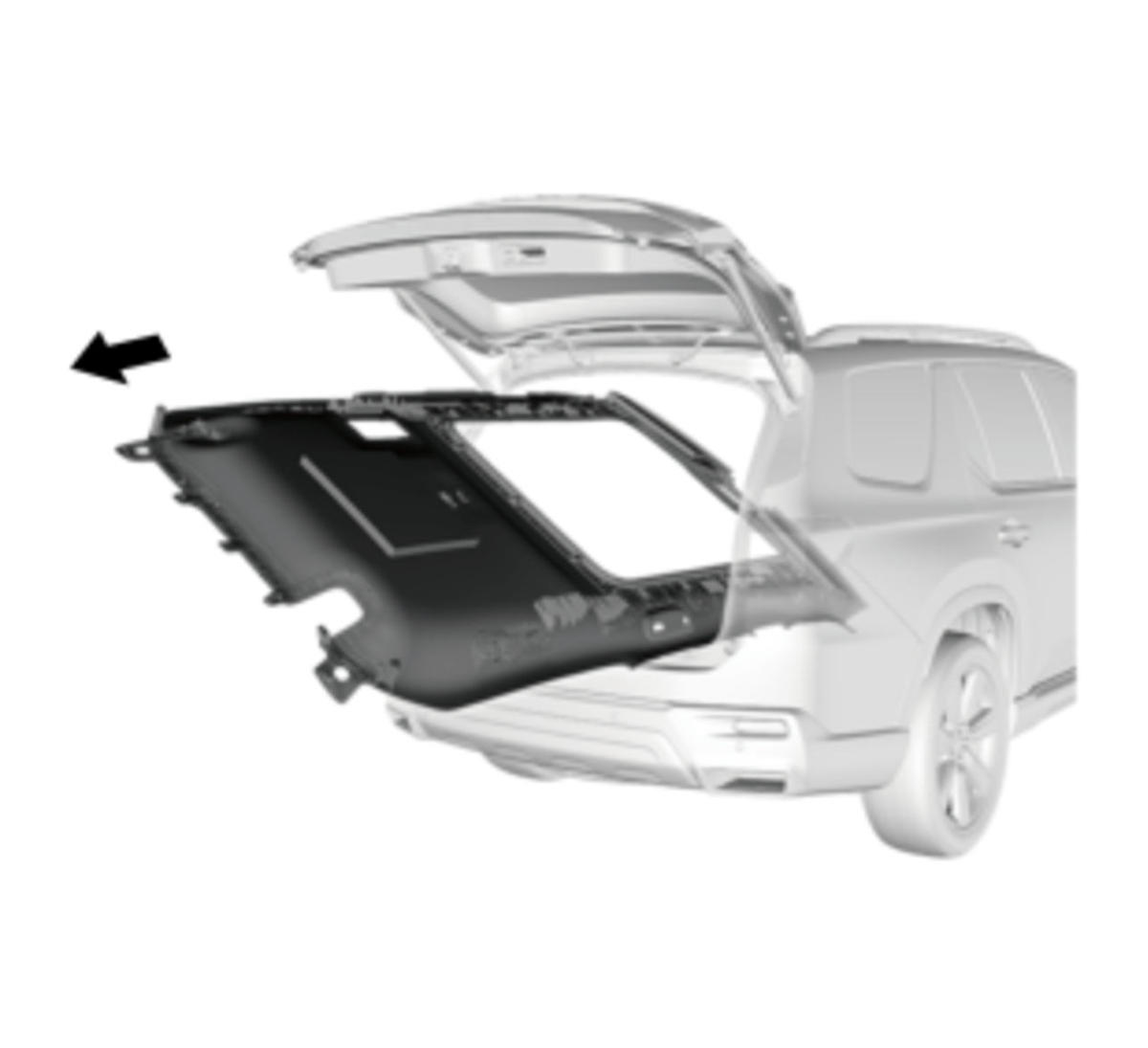

    3. Refer to figure 3.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTICE:

    When using a new headliner, check the headliner and the pillar trim overlap - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () .

    NOTE: After inspecting the headliner, then install the headliner .

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Headliner/Pillar Trim Overlap Check - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment ()
12. L.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    If you are replacing the side curtain airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

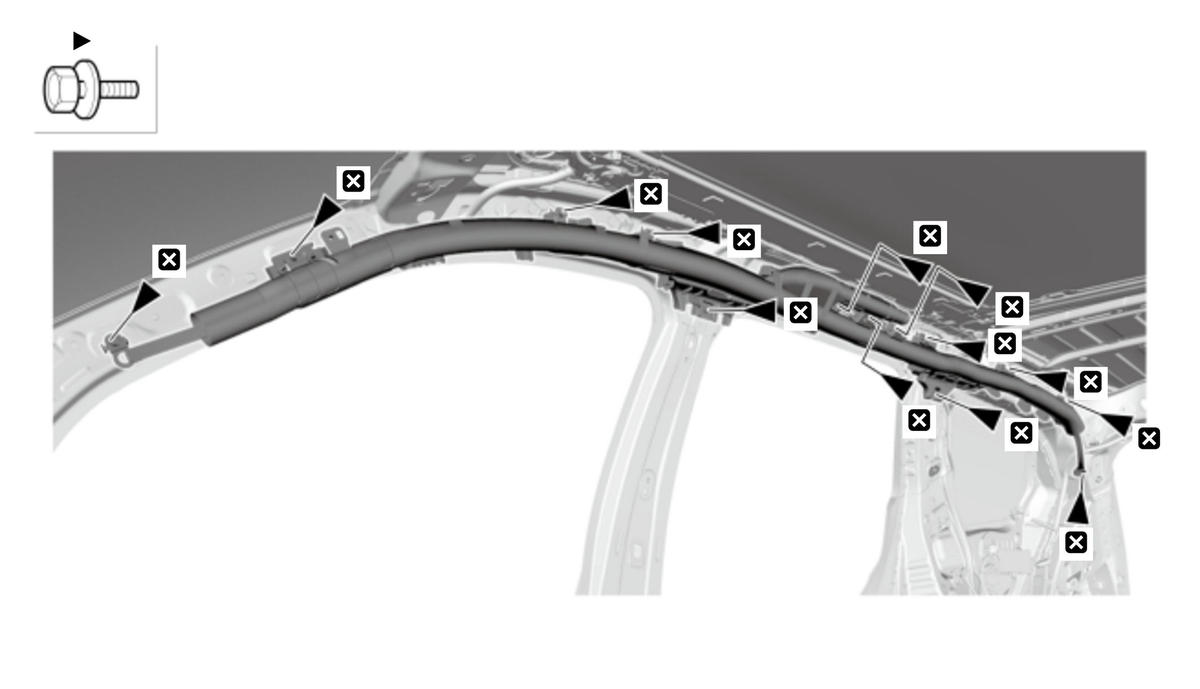

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTICE:

    • If the side curtain airbag is frayed, or has any other visible damage, replace it. Do not attempt to repair an airbag.
    • When you install the side curtain airbag, make sure it is not twisted, and that it is not caught between the inflator bracket by the bracket bolts.
    • Make sure that the side curtain airbag inflator retainer is installed properly. Otherwise the side curtain airbag could incorrectly deploy and cause damage or injuries.
    • Assemble the wire harness of the side curtain airbag in order not to be caught.
    • Apply light force to the inflator and the adapter pipe to make sure there is no excessive play or looseness.
    • Before installing the headliner, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

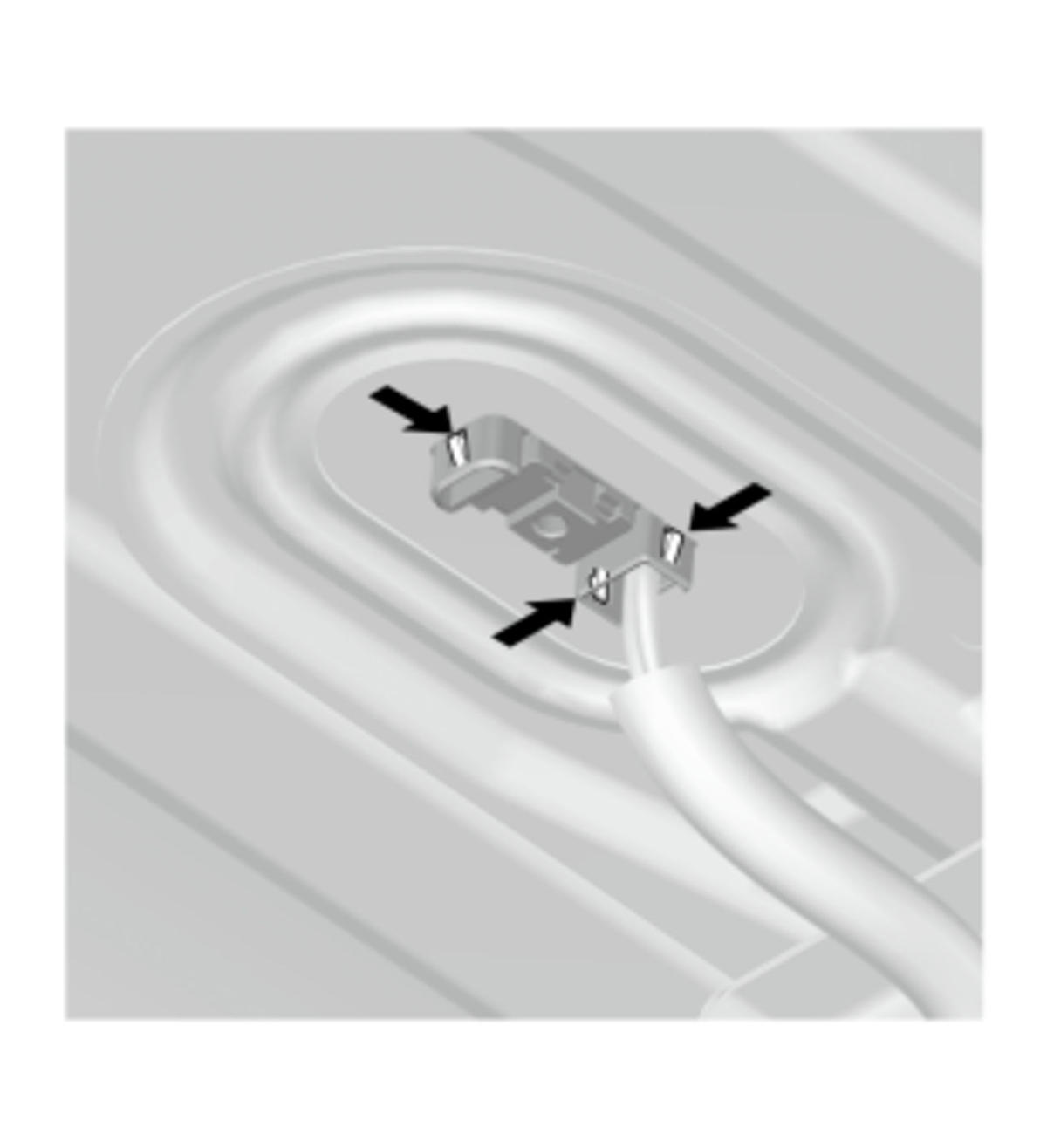

13. M.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

    After Installation

    NOTE:  In case of reusing the capture washer, perform the shower test to confirm that there is no water leakage.

    • Water Leaks Check

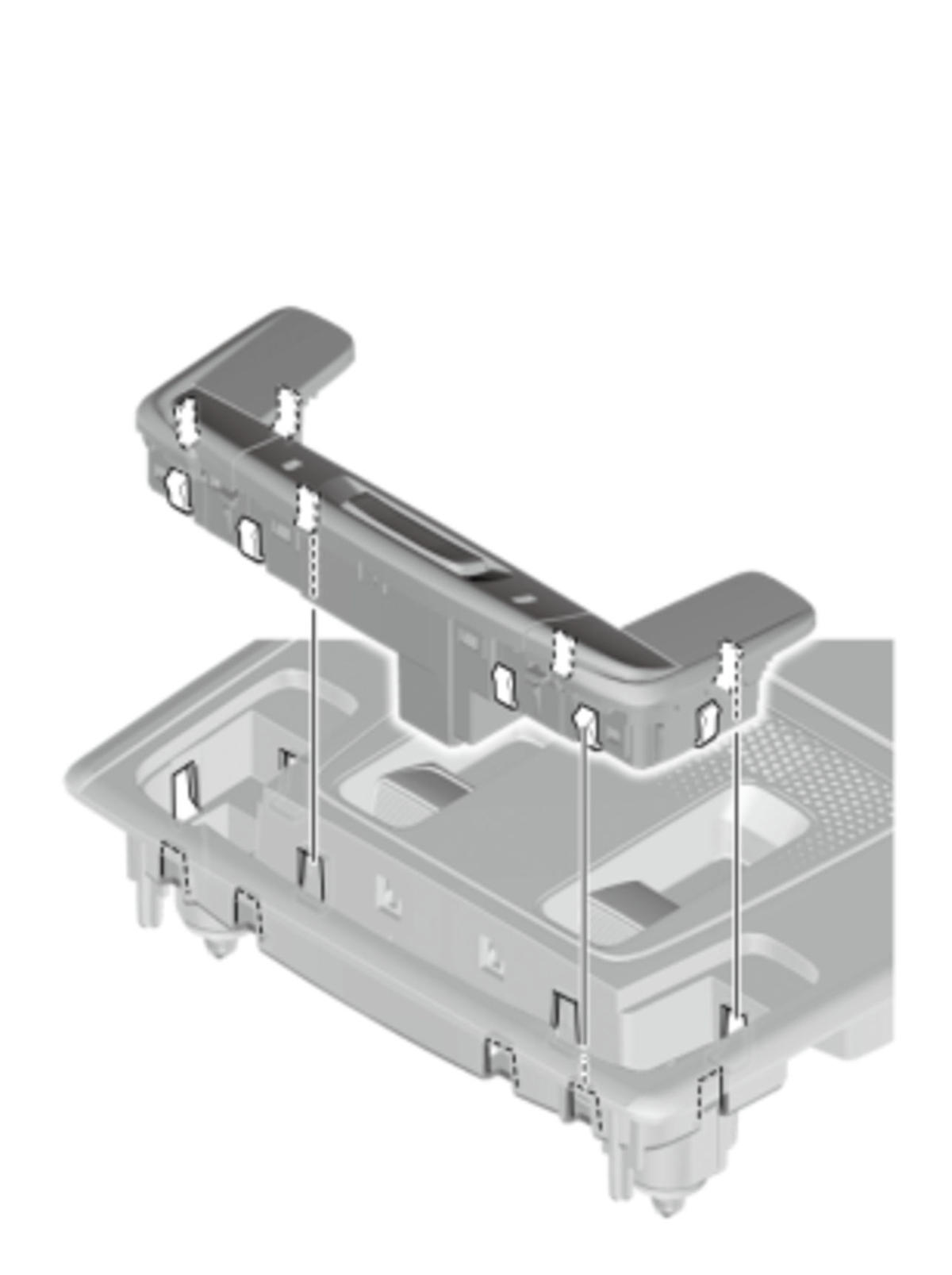

14. N.-

    Courtesy of HONDA, U.S.A., INC.

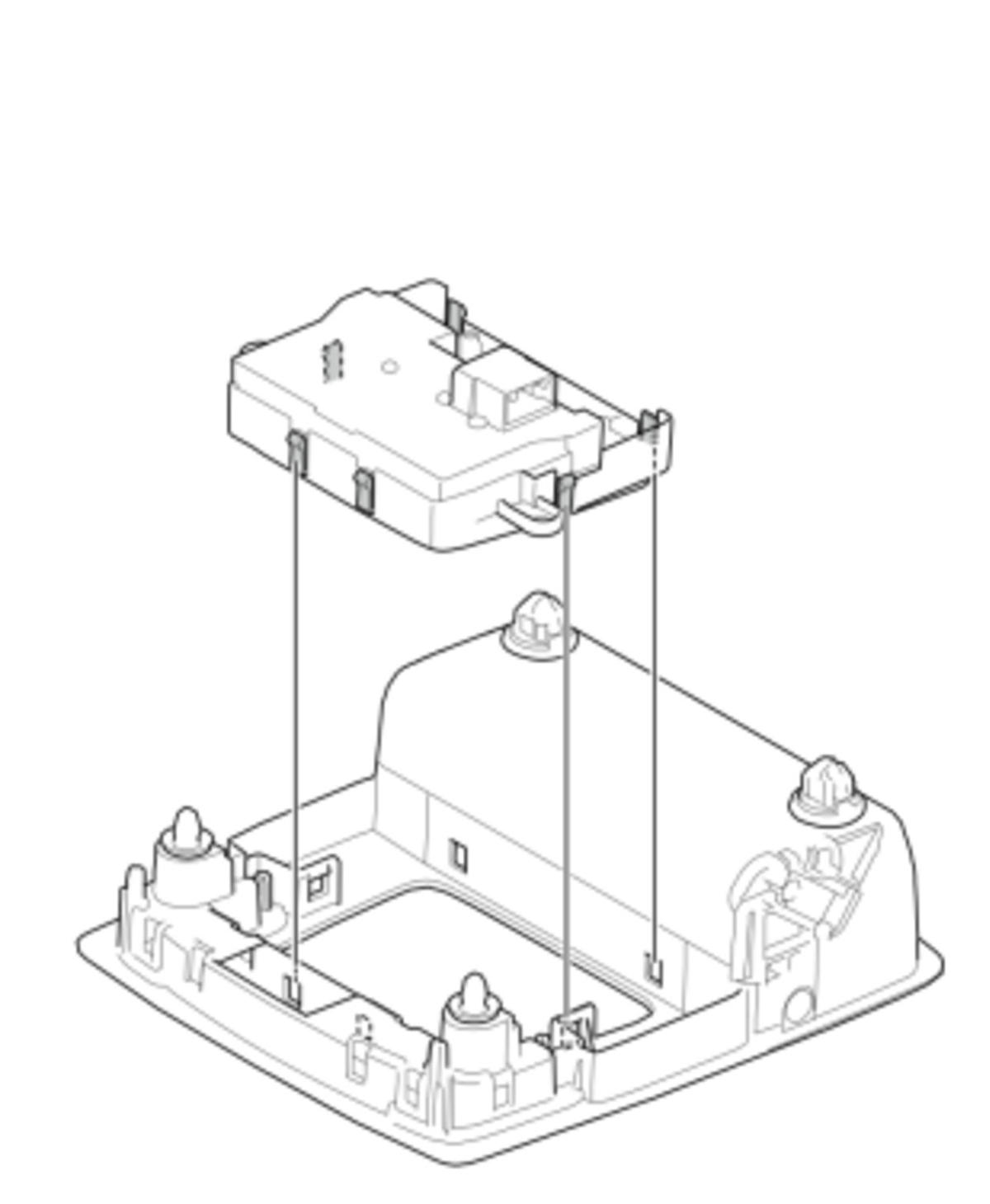

15. O.-

    Courtesy of HONDA, U.S.A., INC.
