Inspection Outline

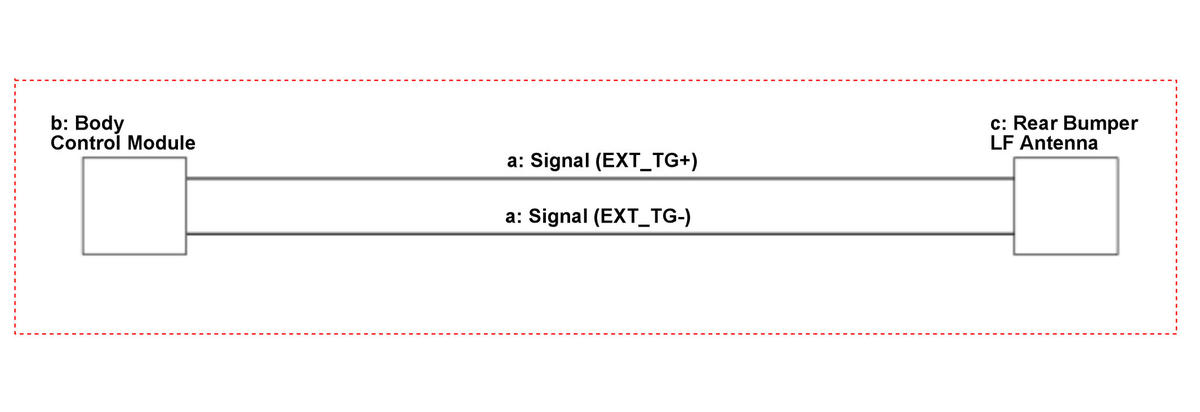

GHH575026Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a External Circuit EXT_TG+, EXT_TG- Open Wire Inspection
EXT_TG+, EXT_TG- Shorted Wire Inspection
b Body Control Module Body Control Module Inspection
c Rear Bumper LF Antenna Rear Bumper LF Antenna Inspection
