Inspection Outline

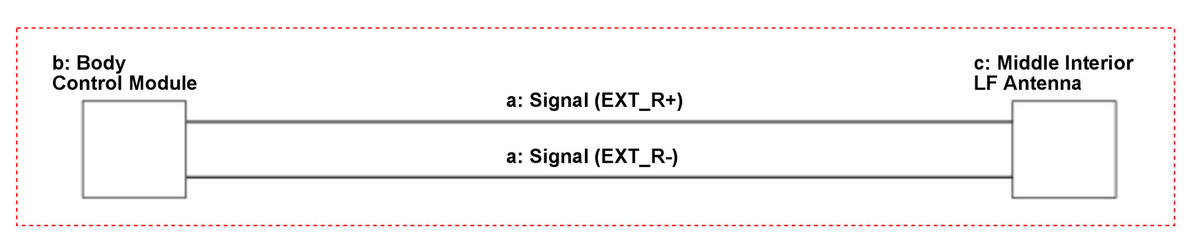

GHH580234Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a External Circuit EXT_R+, EXT_R- Shorted Wire Inspection
b Body Control Module Body Control Module Inspection
c Middle Interior LF Antenna Middle Interior LF Antenna Inspection
