Honda
>>
2024
>>
Pilot EX-L, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Keyless Access (Power Control Unit) - Diagnostics
>>
Troubleshooting
>>
DTC B12D0 (Keyless Access Power Control Unit)
>>
Inspection Outline

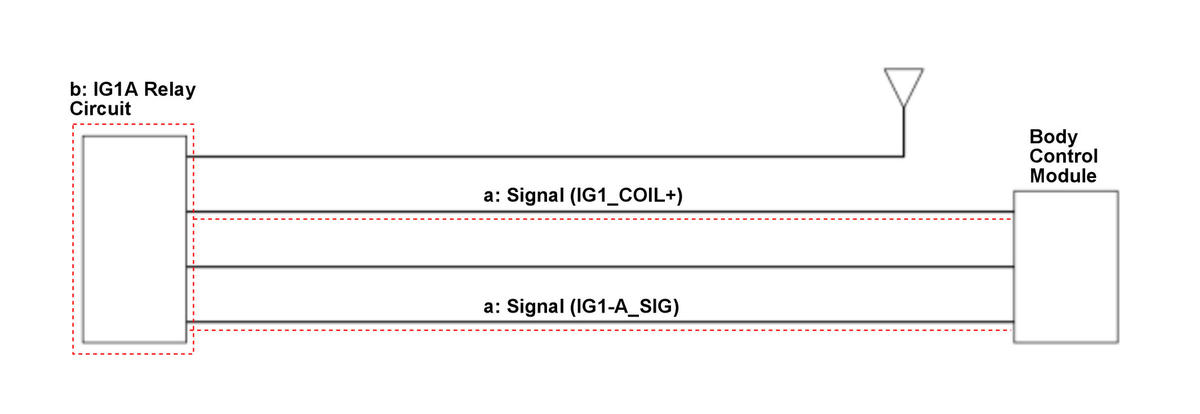

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
IG1-A_SIG, IG1_COIL+ Circuit Inspection
b
IG1A Relay Circuit
Courtesy of HONDA, U.S.A., INC.
