TPMS System Description - System Diagram
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Honda HR-V, 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, and 2018 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

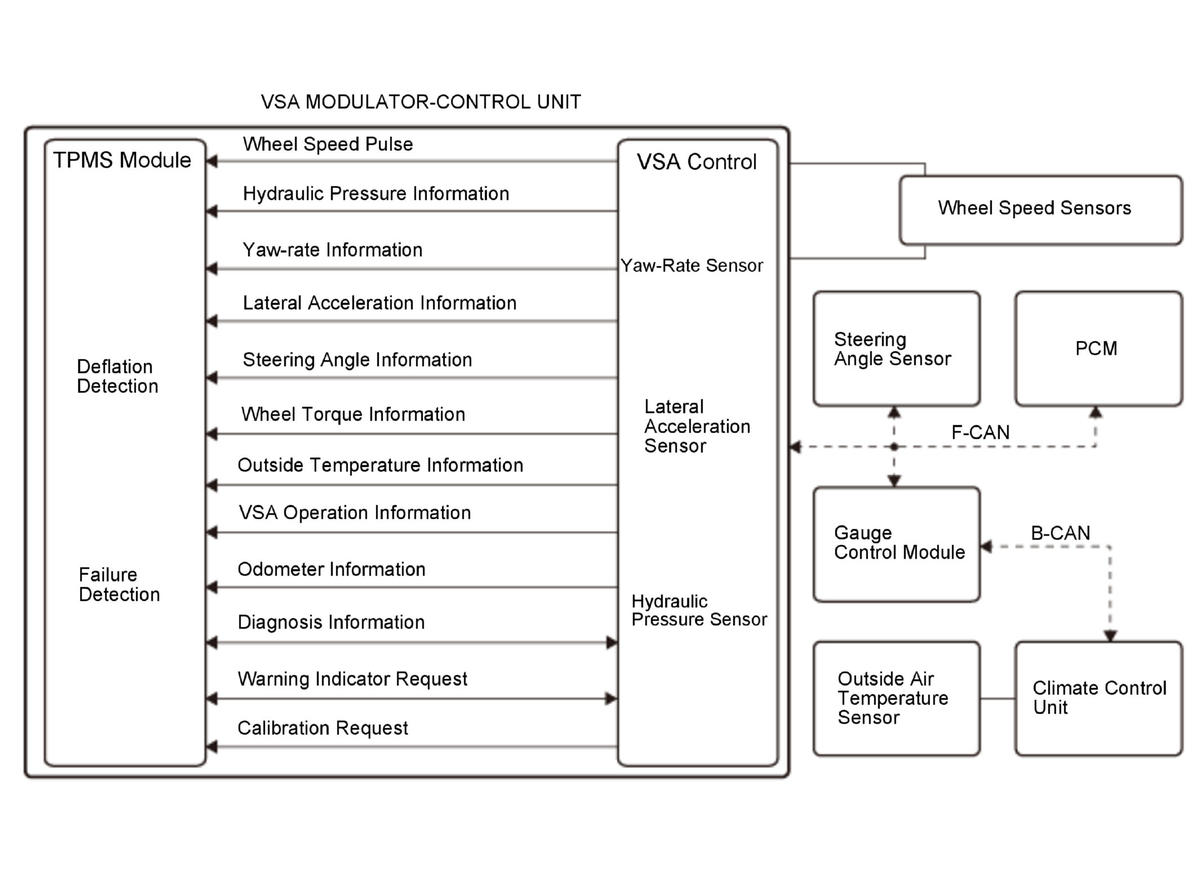

The TPMS module is integrated into the VSA modulator-control unit. In order to control tire pressure monitoring, the TPMS module first receives inputs from the VSA system, which includes the wheel speed sensors, the lateral acceleration sensor, the yaw rate sensor, the hydraulic pressure sensor, the steering angle sensor, the PCM, and the gauge control module. Then, the TPMS module sends commands to the gauge control module through the VSA modulator-control unit and issues warnings to the driver.
