TPMS System Description - Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Honda HR-V, 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, and 2018 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
System Outline
The Indirect Tire Pressure Monitoring System (TPMS), establishes a baseline tire pressure reading using the wheel speed sensors and indirectly monitors tire pressure to detect pressure loss in any of the four tires. The low tire pressure/TPMS indicator turns ON appear when the tire pressure of any tire, or tires, falls below the specified threshold or a system malfunction is detected.

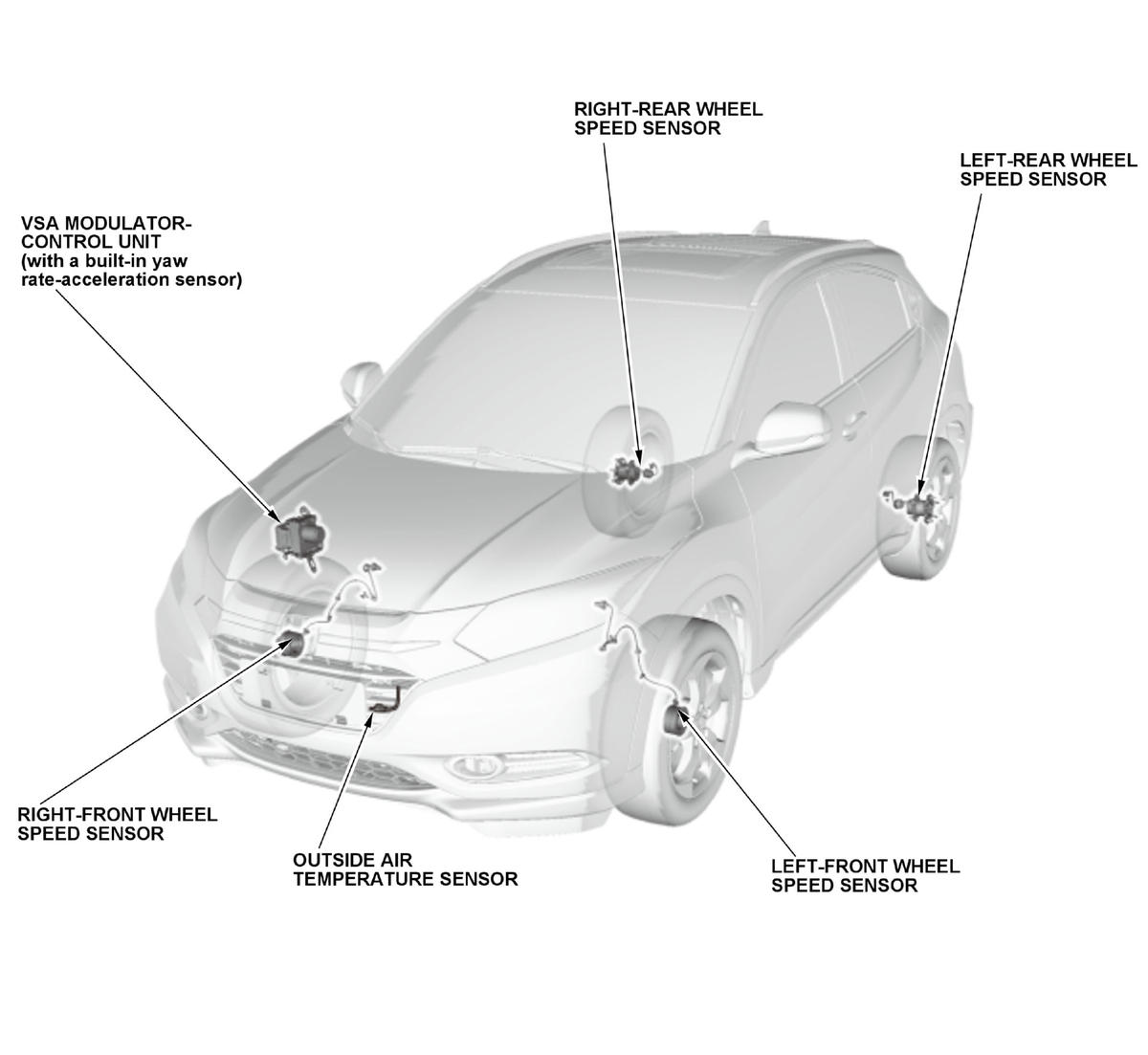

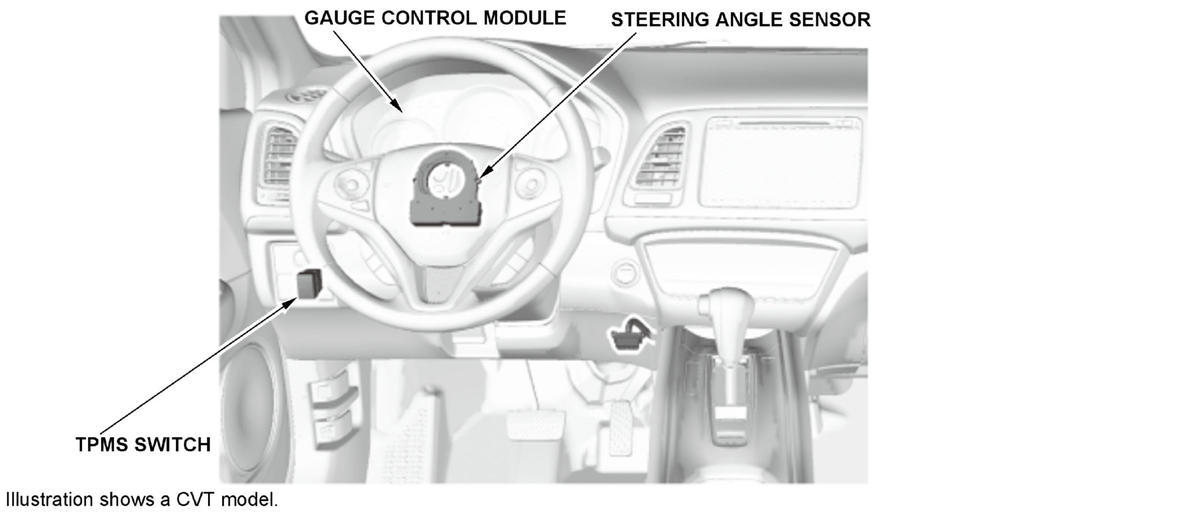

The system configuration is shown below. The system is controlled by the VSA modulator-control unit.
