ANC/Active Sound Control Microphone Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Honda HR-V, 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, and 2018 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ANC/active sound control microphone, HFL-ANC/active sound control microphone, and the HFL microphone are the same parts.

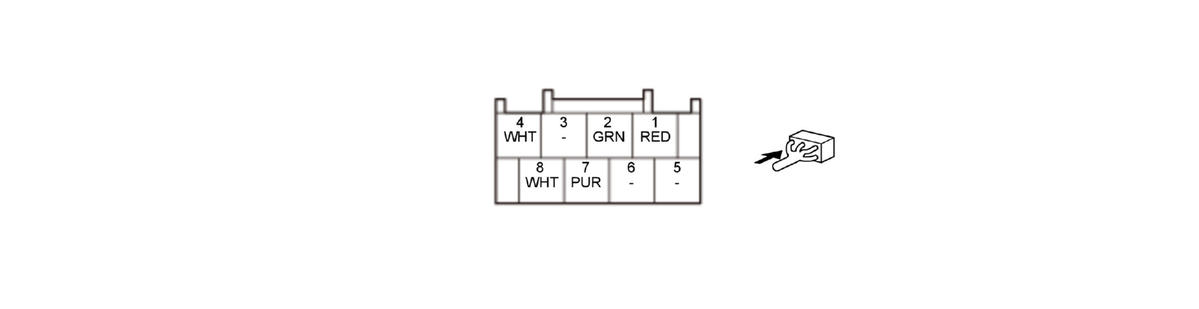

ANC/Active Sound Control Microphone 8P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | MIC- | Ground for HFL-ANC/active sound control microphone |
| 2 | MIC+ | Outputs voice signal |
| 3 | Not used | --- |
| 4 | MIC PWR | Power source from audio-navigation unit *1 or audio unit *2 |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | HFT MUTE | Inputs HFL microphone directivity switching signal |
| 8 | ANC F MIC+8V | Outputs ANC/active sound control microphone signal |
*1: With navigation
*2: Without navigation
