Engine Control Systems
>>
Engine Control System / Engine Mechanical - Service, Testing And Troubleshooting
>>
Troubleshooting
>>
MIL Circuit Troubleshooting
>>
Inspection Outline
Inspection Outline

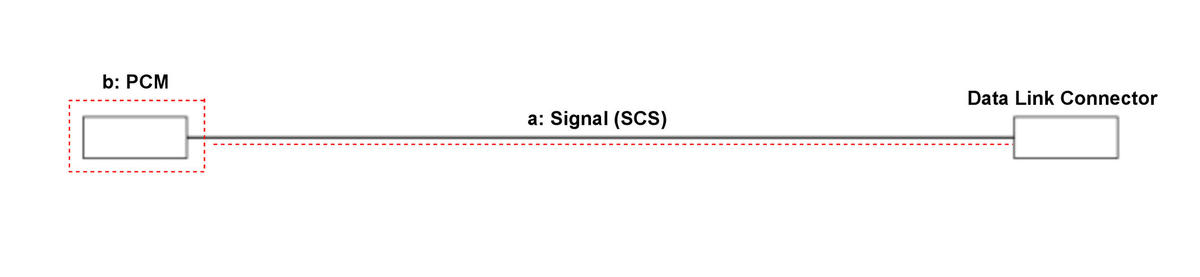

The components to be tested are indicated by a dotted line.
The illustration does not show all of the areas to be inspected.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
-
Gauge Control Module
Gauge Control Module Inspection
a
External Circuit
SCS Shorted Wire Inspection
b
PCM
PCM Inspection
Courtesy of HONDA, U.S.A., INC.
