DTC B1040: Inspection

+B_WIPER, GND, LIN(FR_WIPER) Circuit Inspection

Test Procedure

• Preparation
  1. -

     Windshield wiper control unit/motor connector (4P): disconnected

  2. -

     Body control module connector A (66P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following chart.

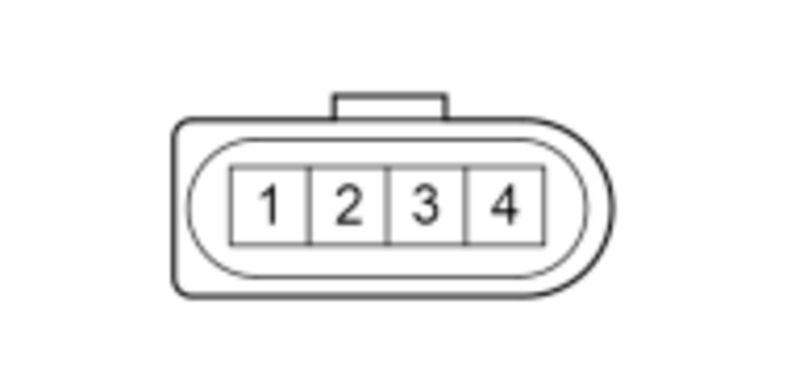

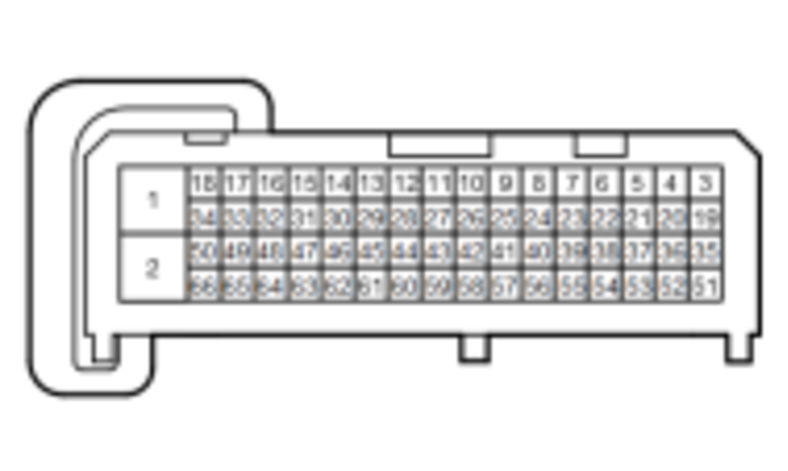

			(Disconnected) Windshield wiper control unit/motor connector (4P) connector female terminals	(Disconnected) Body control module connector A (66P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	+B_WIPER circuit inspection	OFF			12 V battery voltage [circuit type 1]
	GND open wire inspection	OFF			There is less than 1 Ohm
	LIN(FR_WIPER) open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	LIN(FR_WIPER) shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

• If normal, there is a problem with the body control module.
