DTC B1036: Inspection

IG1_METER Circuit Inspection

Test Procedure

• Preparation
  1. -

     Gauge control module connector A (32P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following chart.

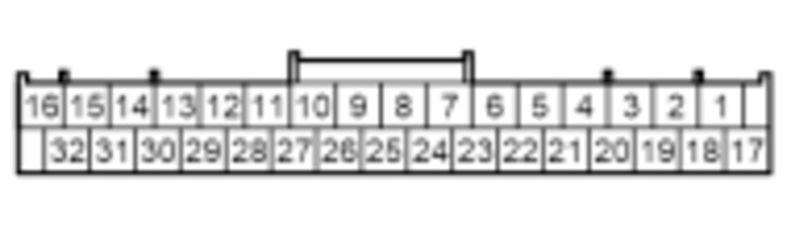

			(Disconnected) Gauge control module connector A (32P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IG1_METER circuit inspection	ON		12 V battery voltage [circuit type 1]

Results

• If abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
