Repair Procedure

How to use this manual .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

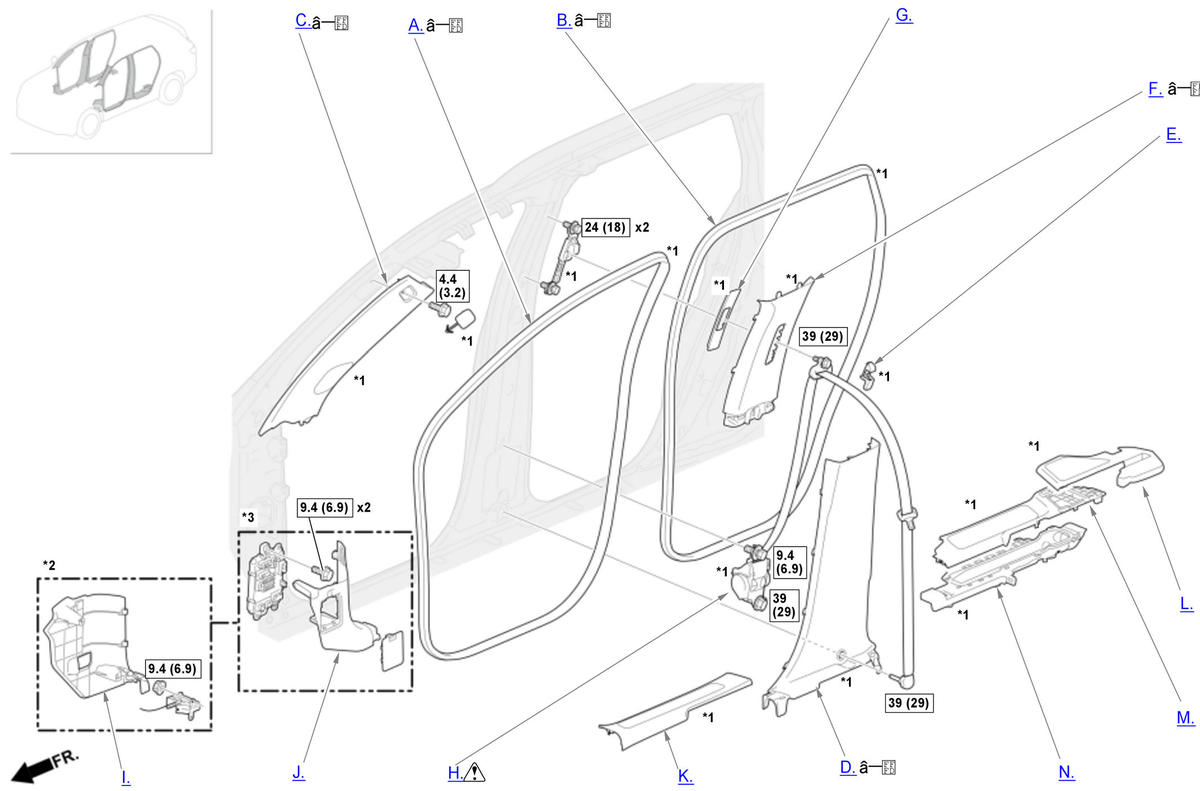

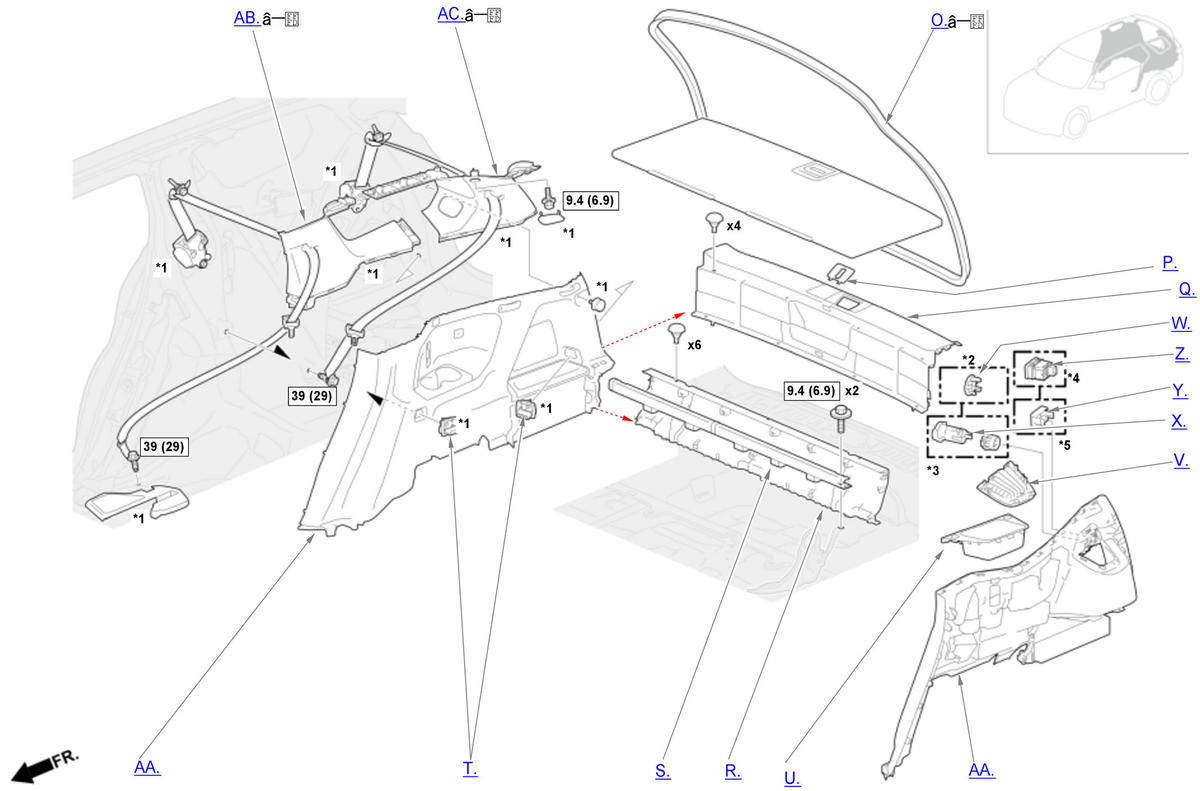

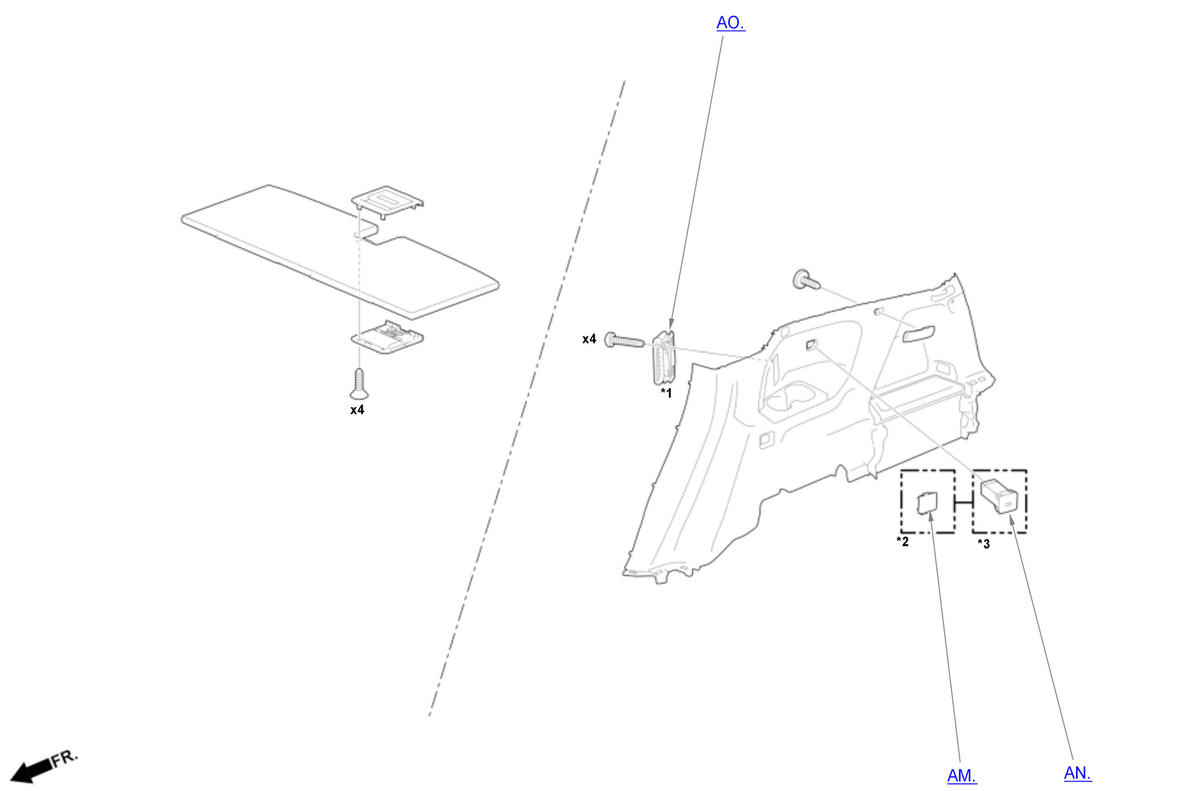

Interior Trim Area Replacement Components With Torque Specifications (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Driver's side
*3: Passenger's side

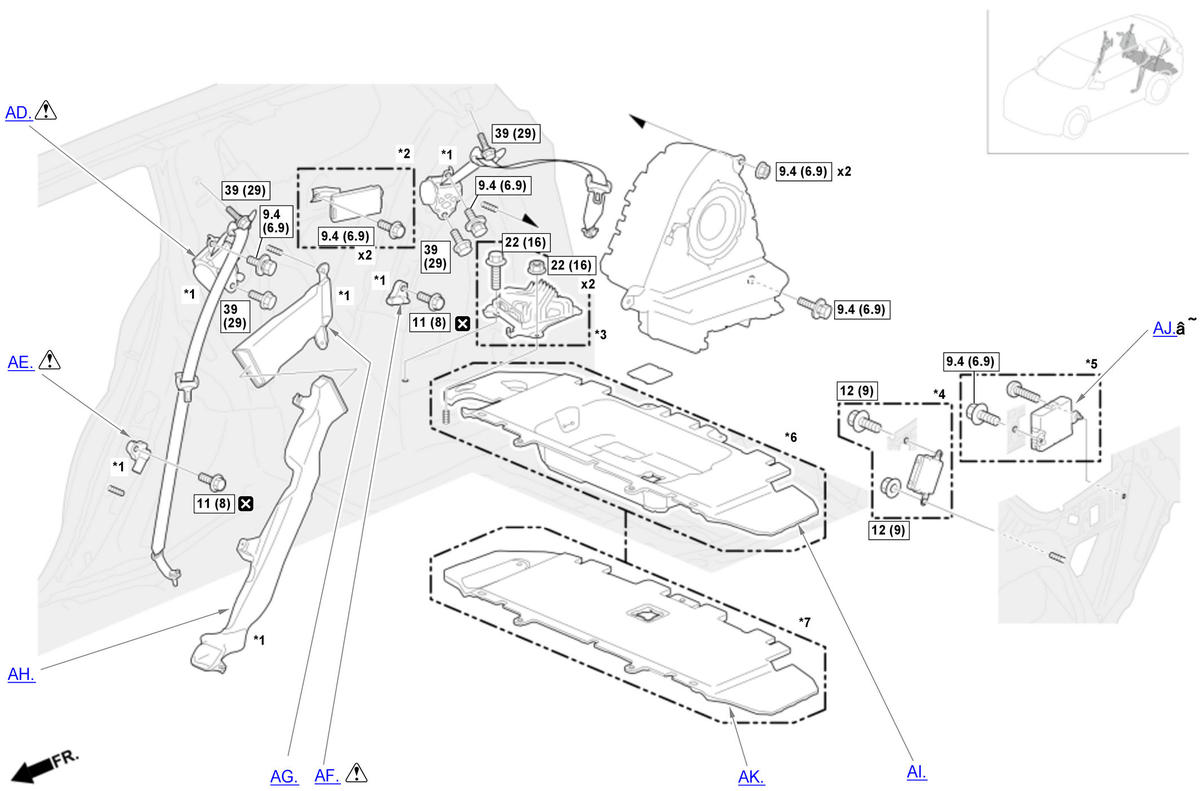

Interior Trim Area Replacement Components With Torque Specifications (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Without cargo area accessory power socket
*3: With cargo area accessory power socket
*4: With walk away close power tailgate
*5: Without walk away close power tailgate

Interior Trim Area Replacement Components With Torque Specifications (3 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: With display audio type
*3: With stereo amplifier
*4: AWD
*5: With power tailgate
*6: Deep type
*7: Flat type

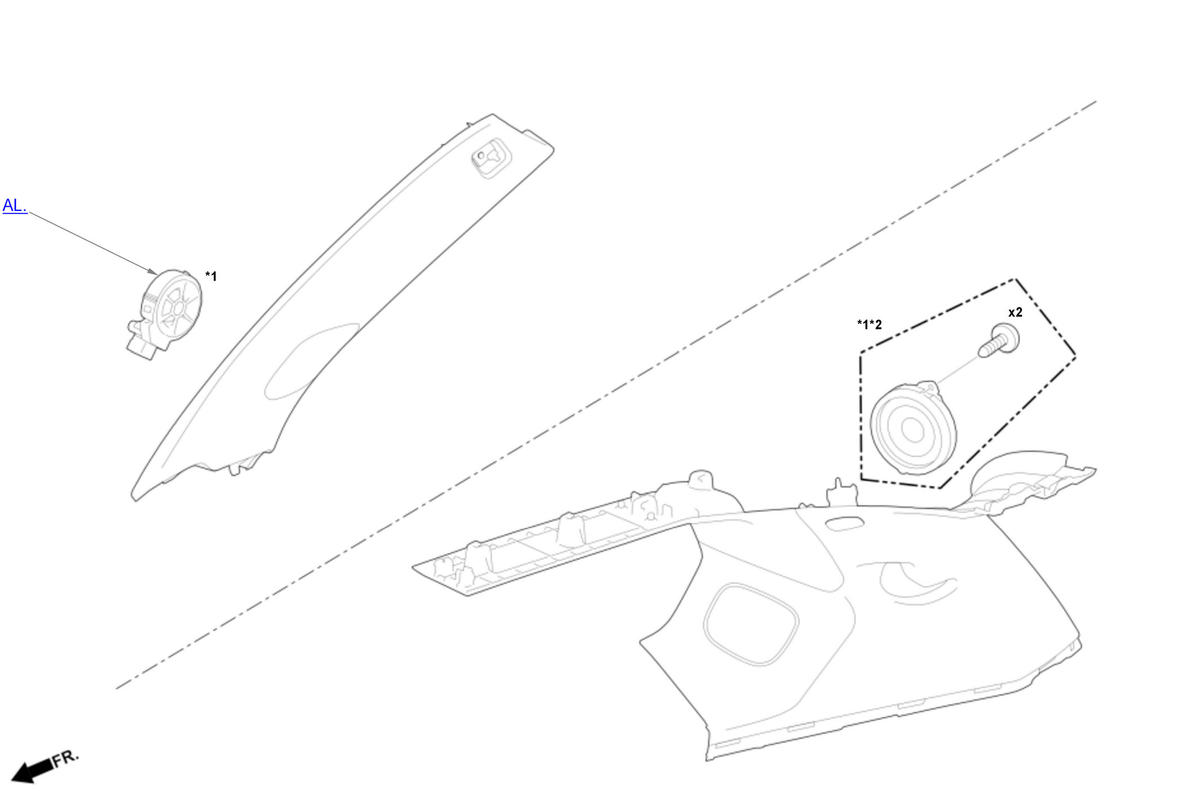

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: With satelite speaker

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Without third row USB charger unit
*3: With third row USB charger unit

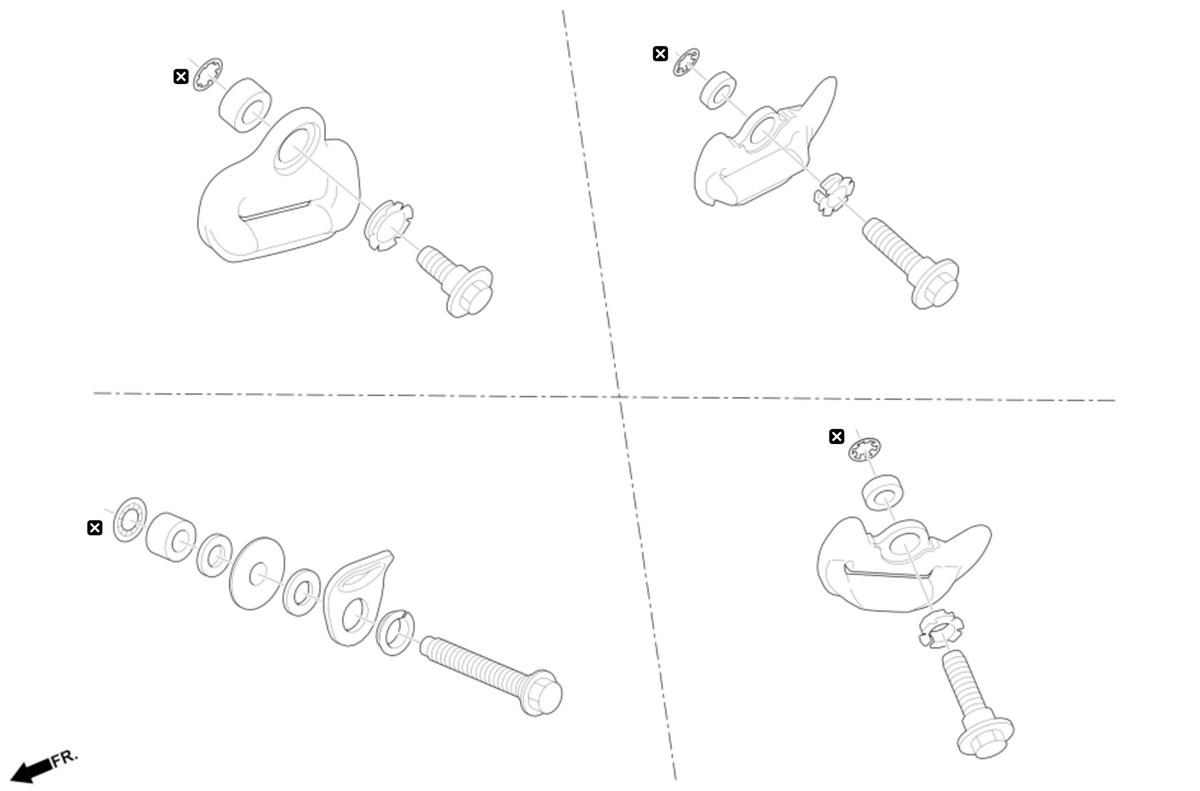

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

A.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

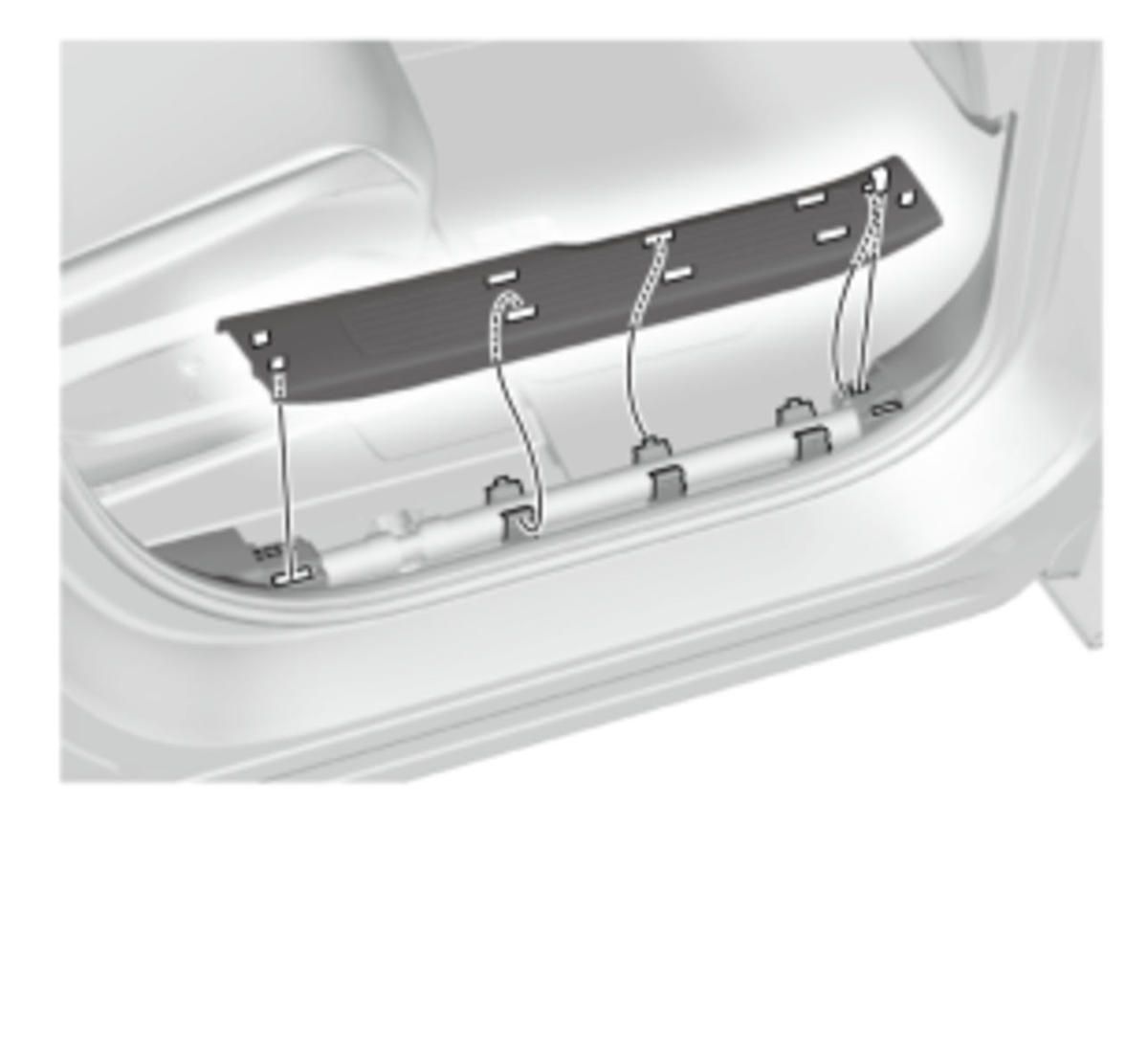

- Refer to the figure.
After Installation

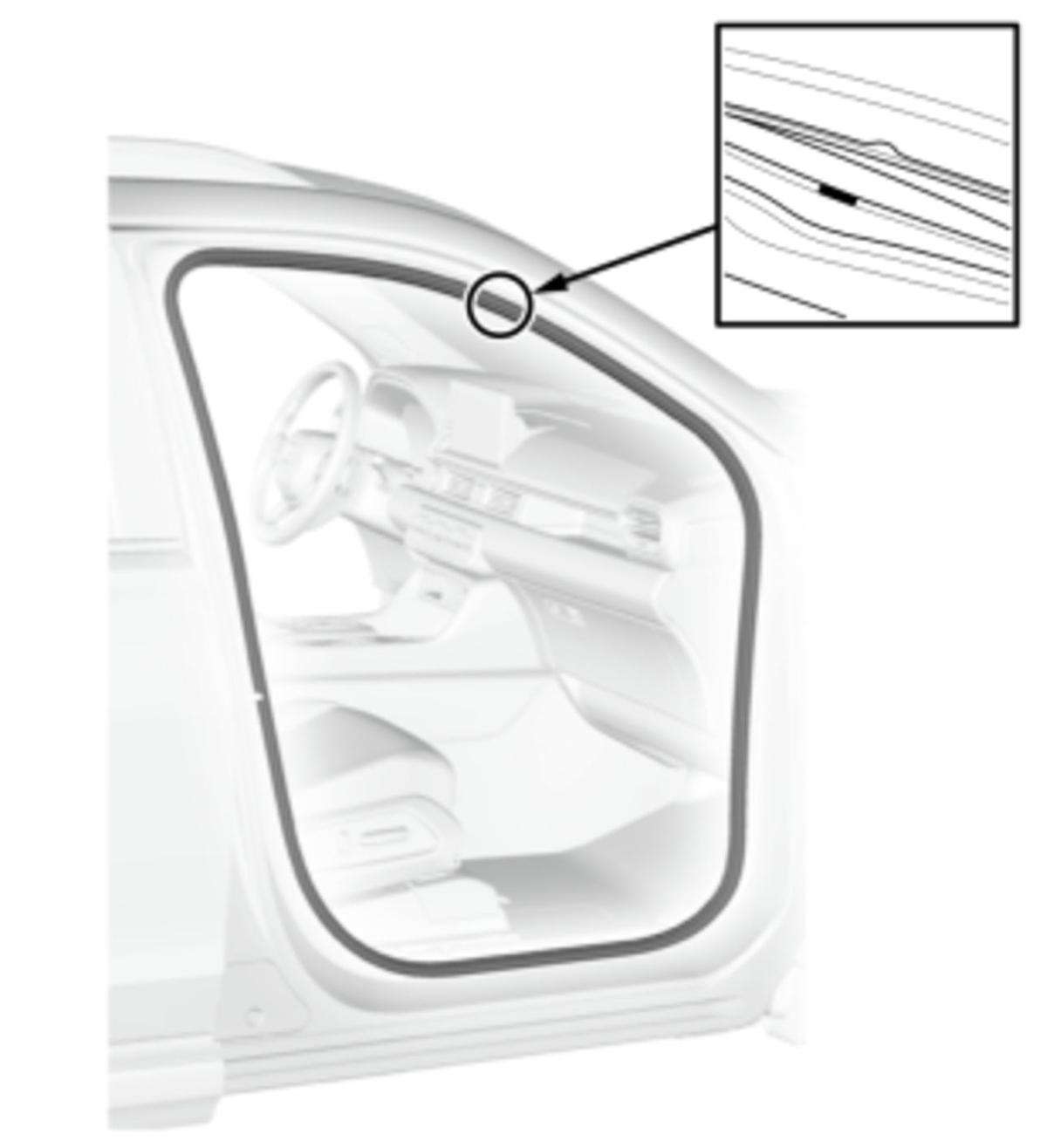

- Water Leaks Check
B.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

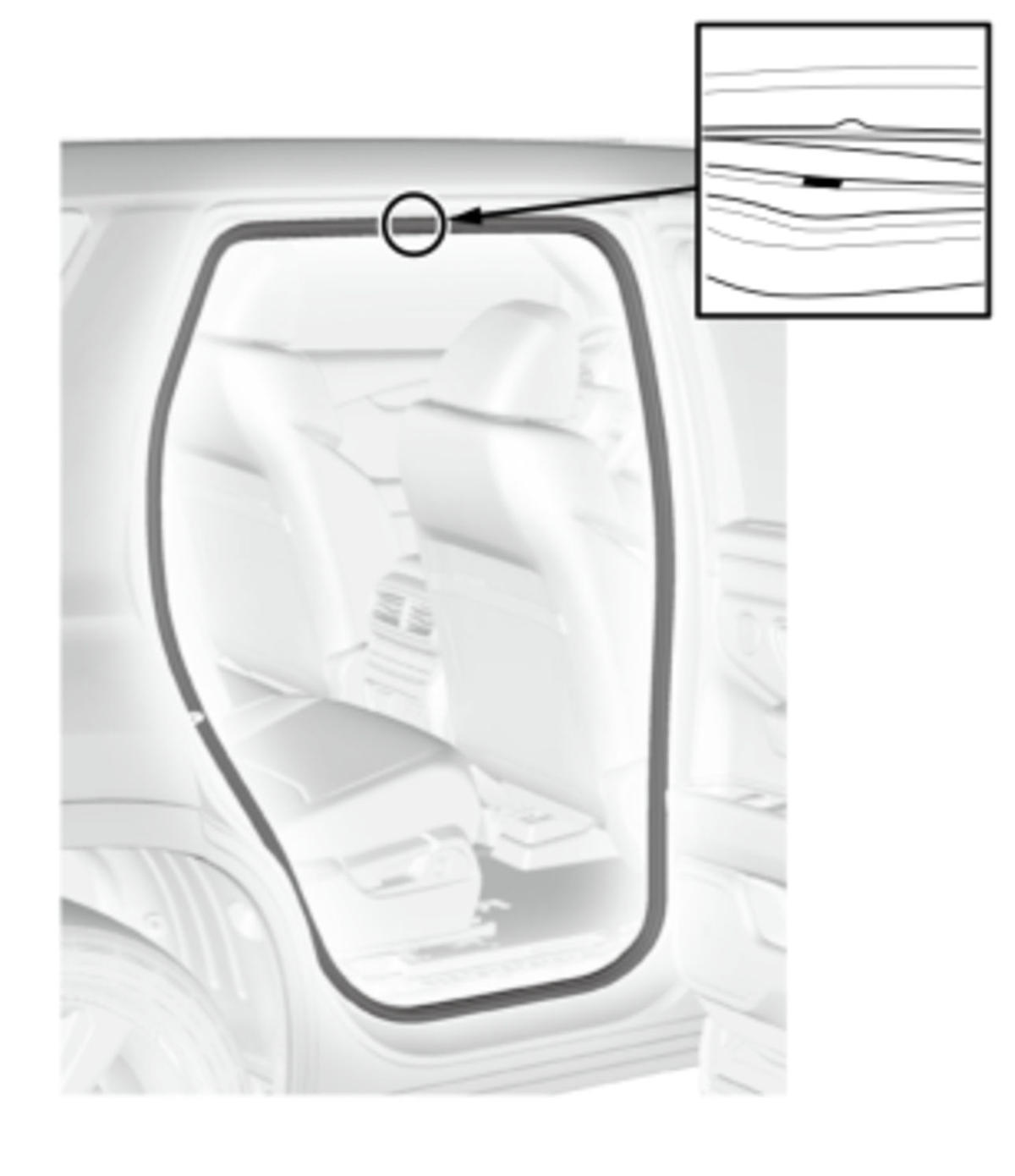

- Refer to the figure.
After Installation
- Water Leaks Check
C.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

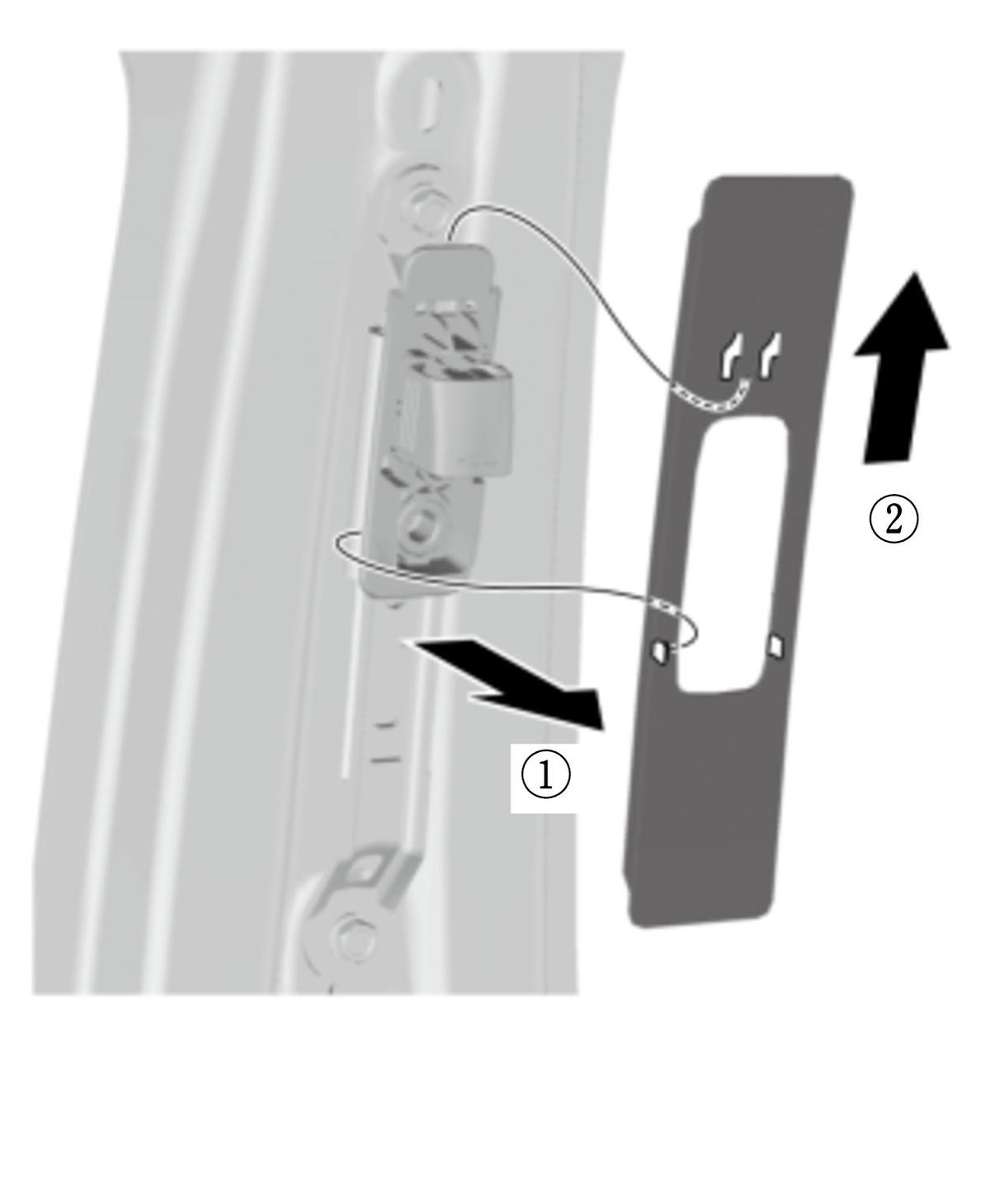

Removal

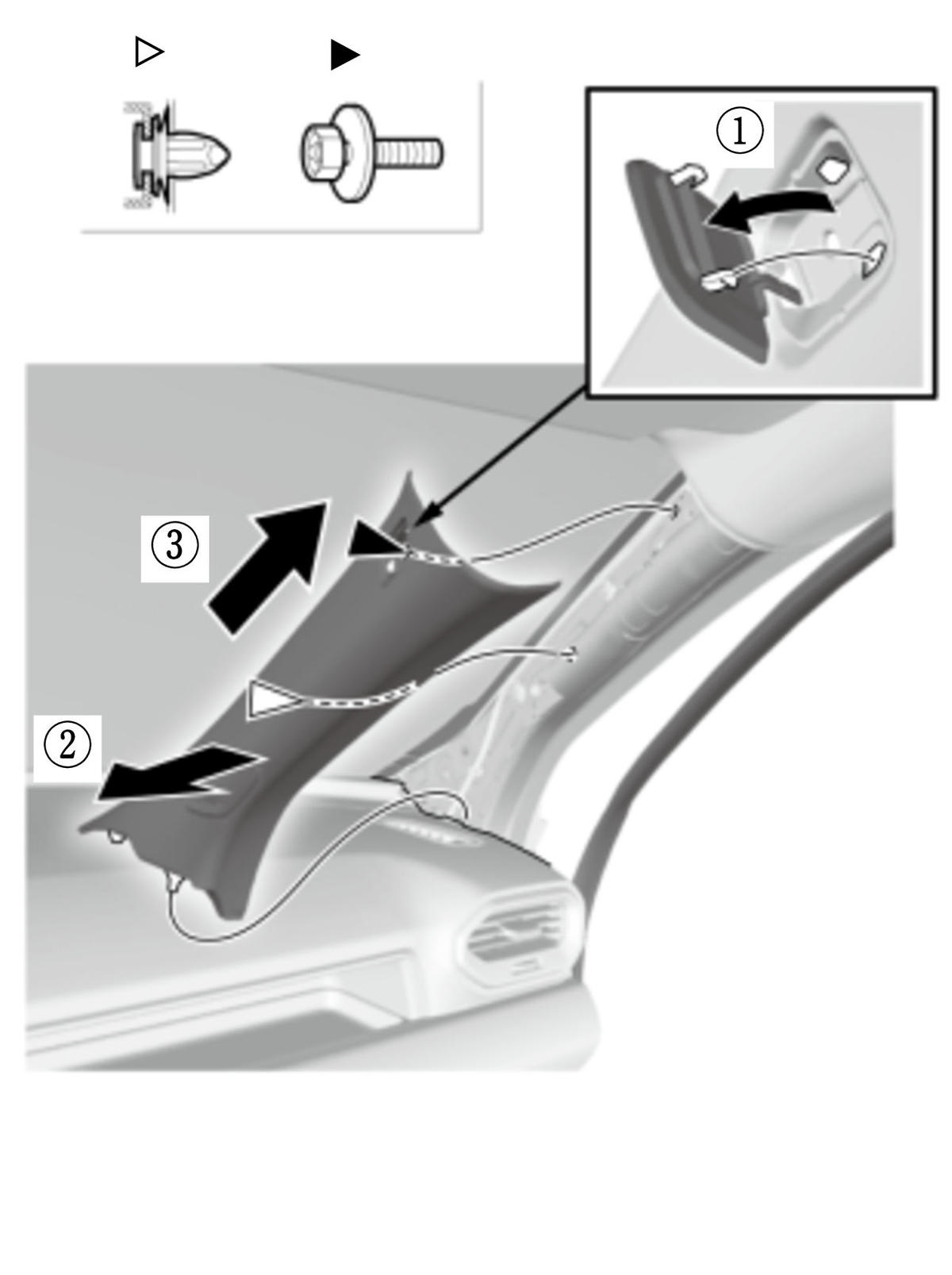

- Refer to the figure.
Installation

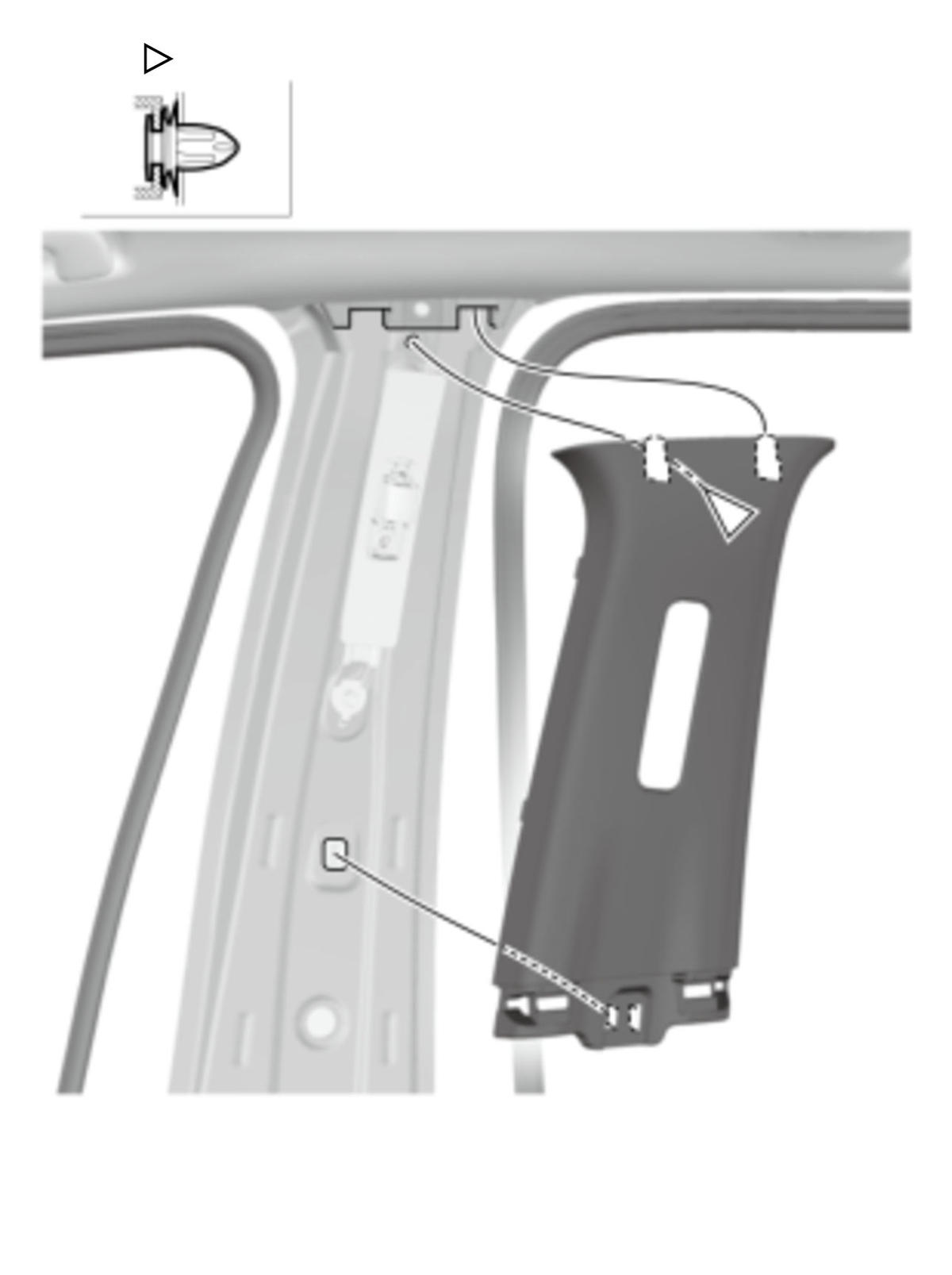

- Inspect the A-pillar trim, then install it.
D.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

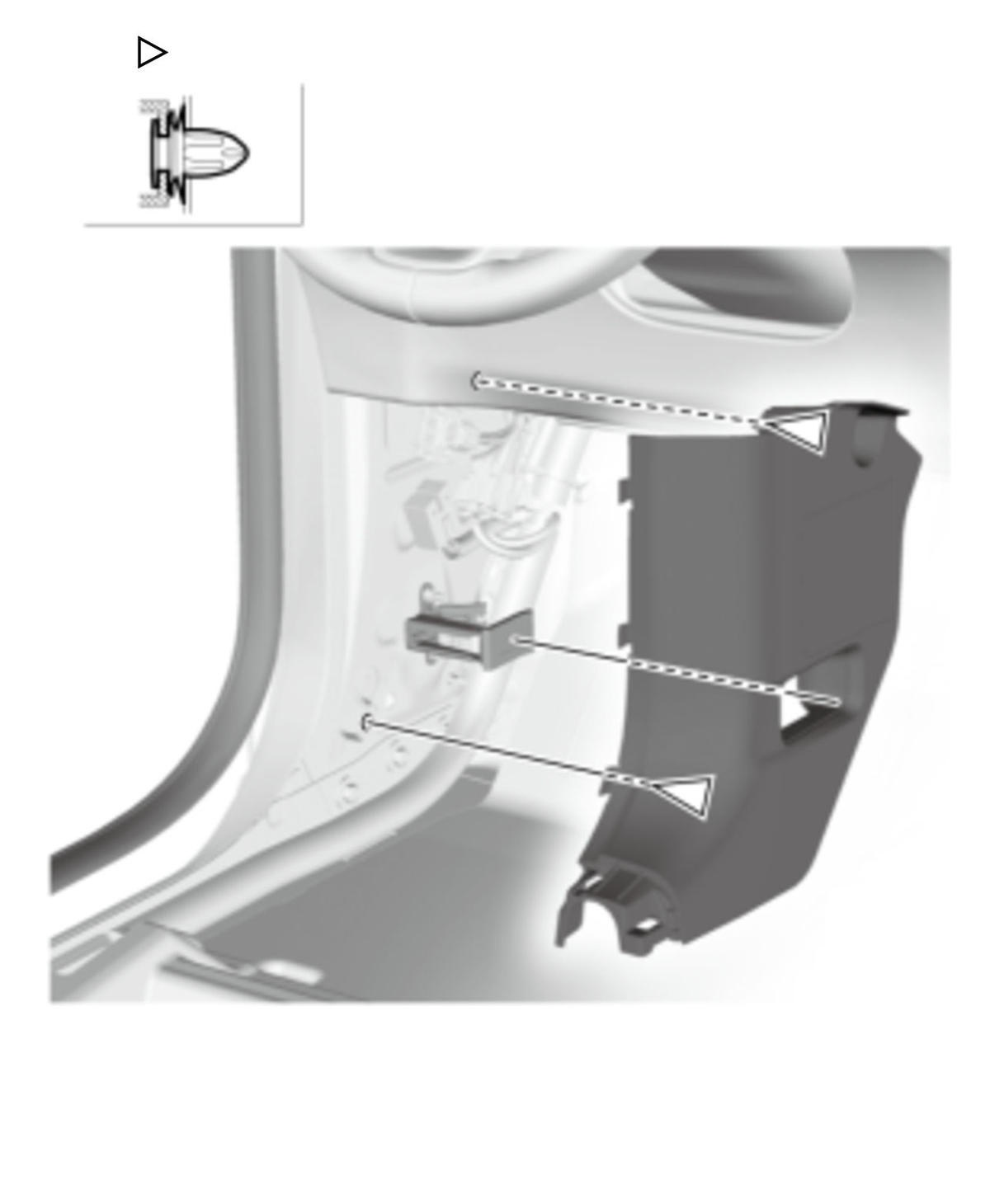

Removal

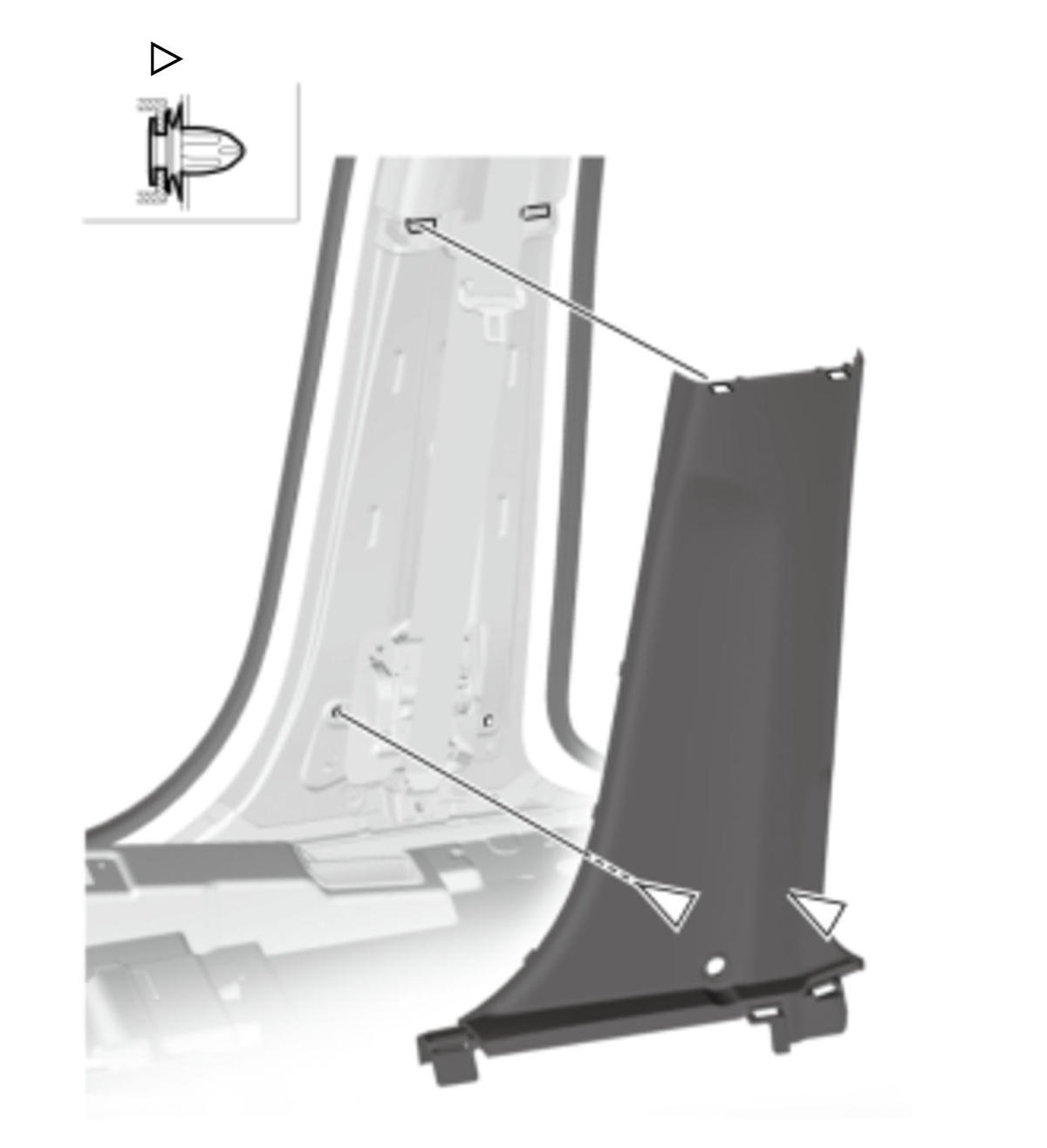

- Refer to the figure.
Installation

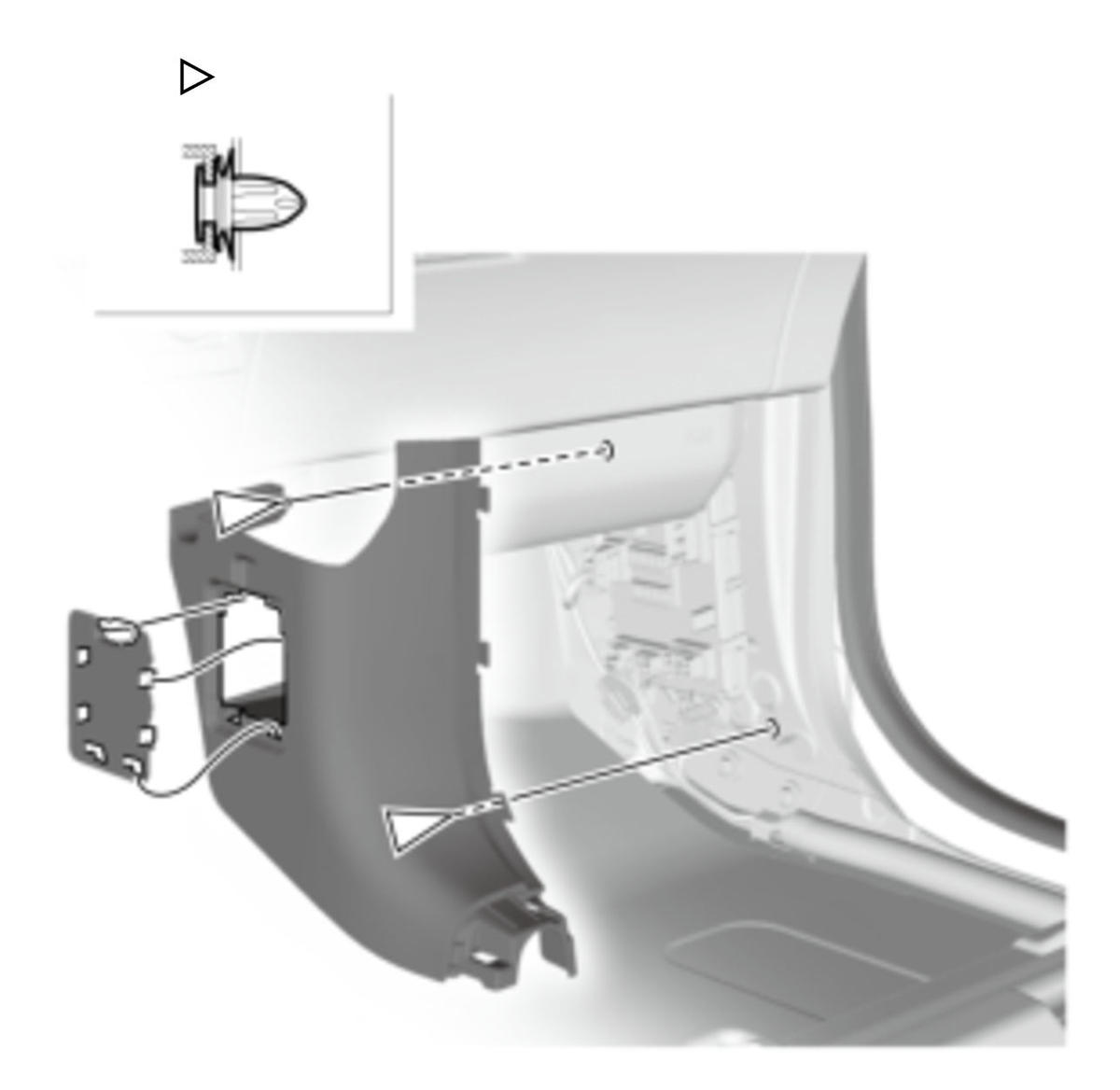

- Inspect the B-pillar lower trim, then install it.

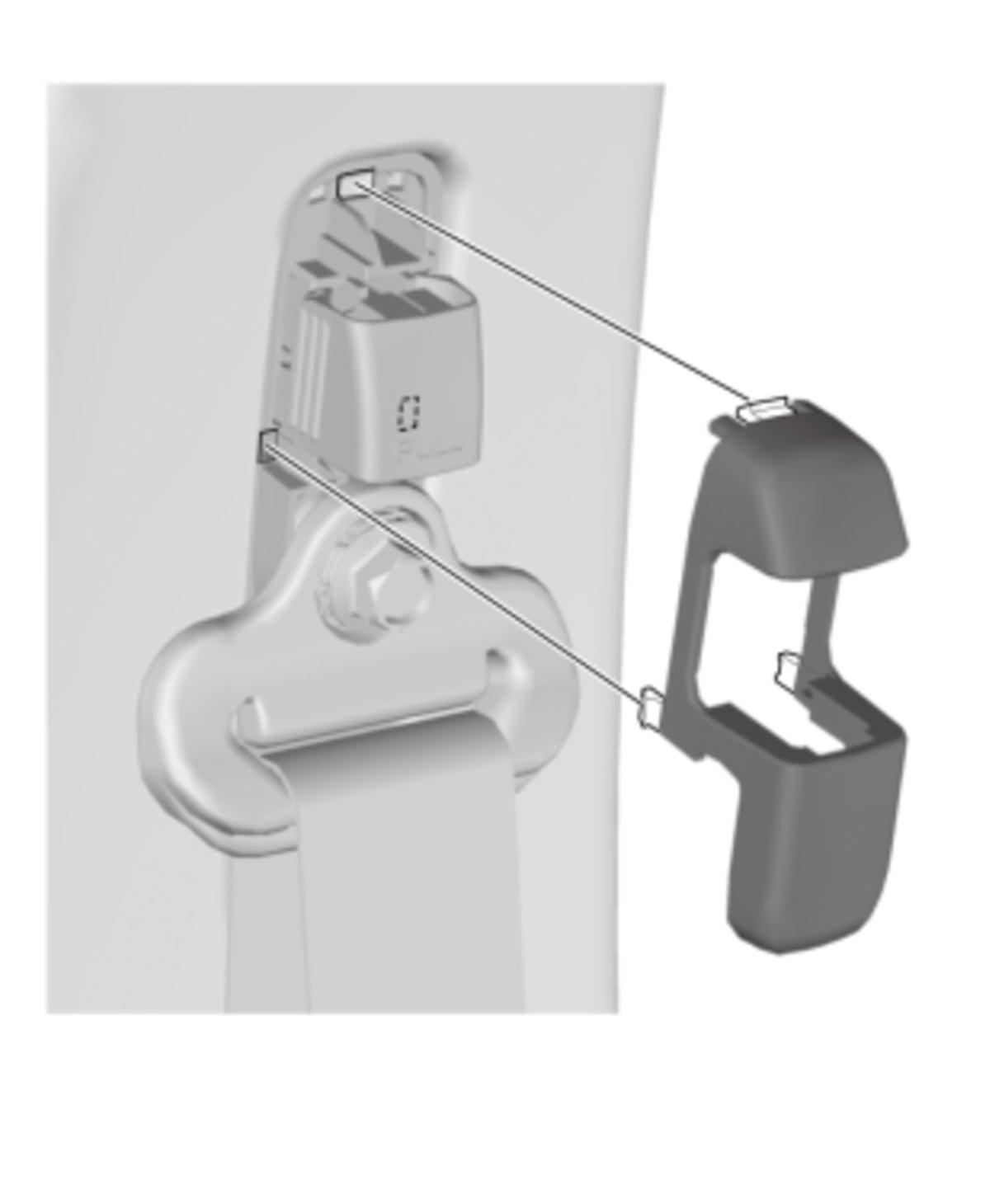

E.-

Courtesy of HONDA, U.S.A., INC.
F.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal
- Refer to the figure.
Installation
- After inspecting the B-pillar upper trim, then install the B-pillar upper trim.
G.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal
- Refer to the figure.
H.-
WARNING:
- SRS components are located in this area. Before doing repairs or service:
  - Review the SRS component locations .
  - Review the precautions and procedures .
NOTE: If you are replacing the front seat belt after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.

Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

Installation

NOTE: Before installing the center pillar lower trim, make sure the SRS indicator works normally.

After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
I.-

Courtesy of HONDA, U.S.A., INC.
J.-

Courtesy of HONDA, U.S.A., INC.
K.-
Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Removal
- Refer to figure 1 and 2.
L.-

Courtesy of HONDA, U.S.A., INC.
M.-

Courtesy of HONDA, U.S.A., INC.
N.-

Courtesy of HONDA, U.S.A., INC.

O.-

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

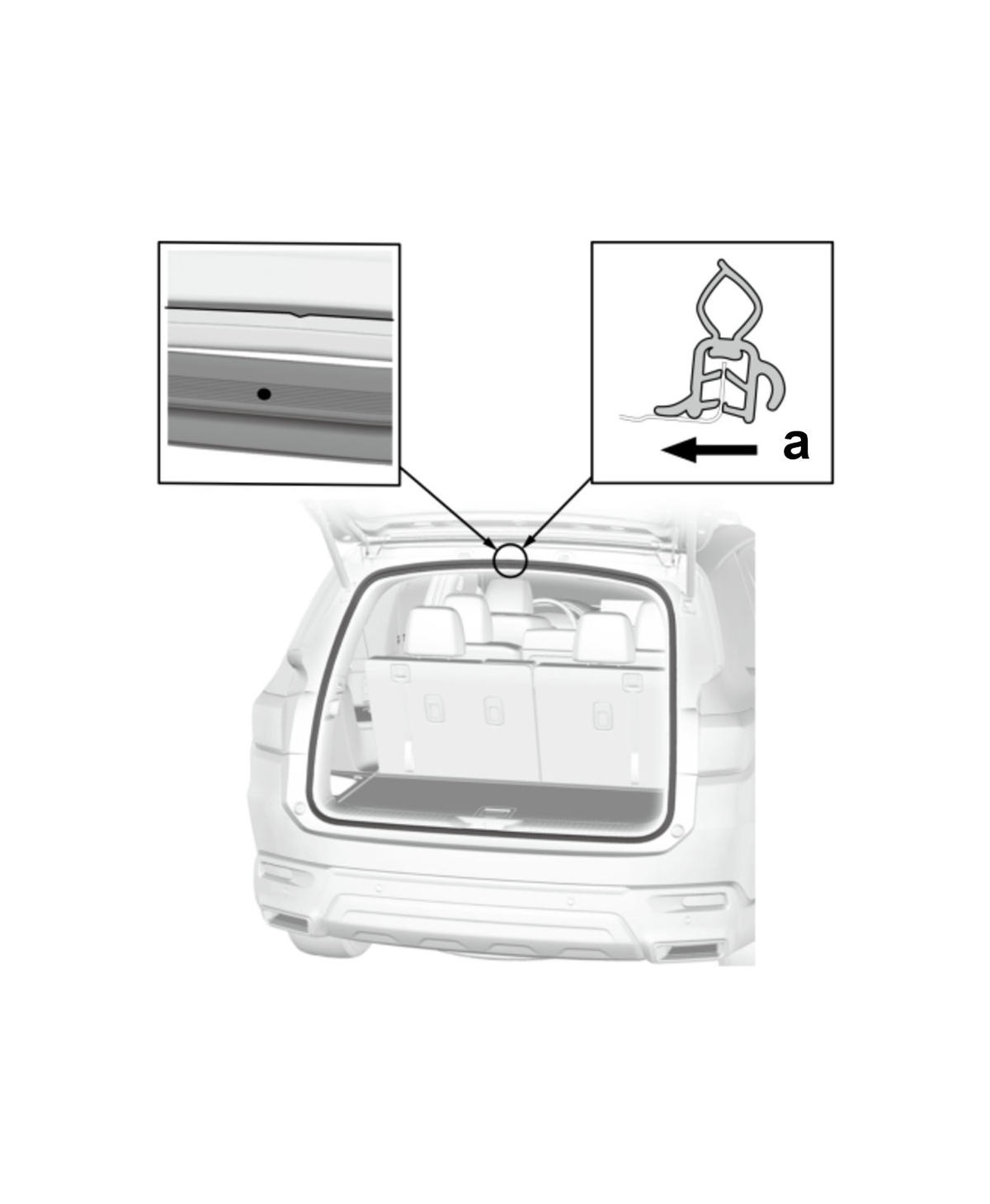

Refer to the figure.

Installation Directions (Figure 1)

Position	Direction
a	Front

After Installation

Water Leaks Check

P.-

Courtesy of HONDA, U.S.A., INC.
Q.-

Courtesy of HONDA, U.S.A., INC.
R.-

Courtesy of HONDA, U.S.A., INC.
S.-
Sub-Procedure

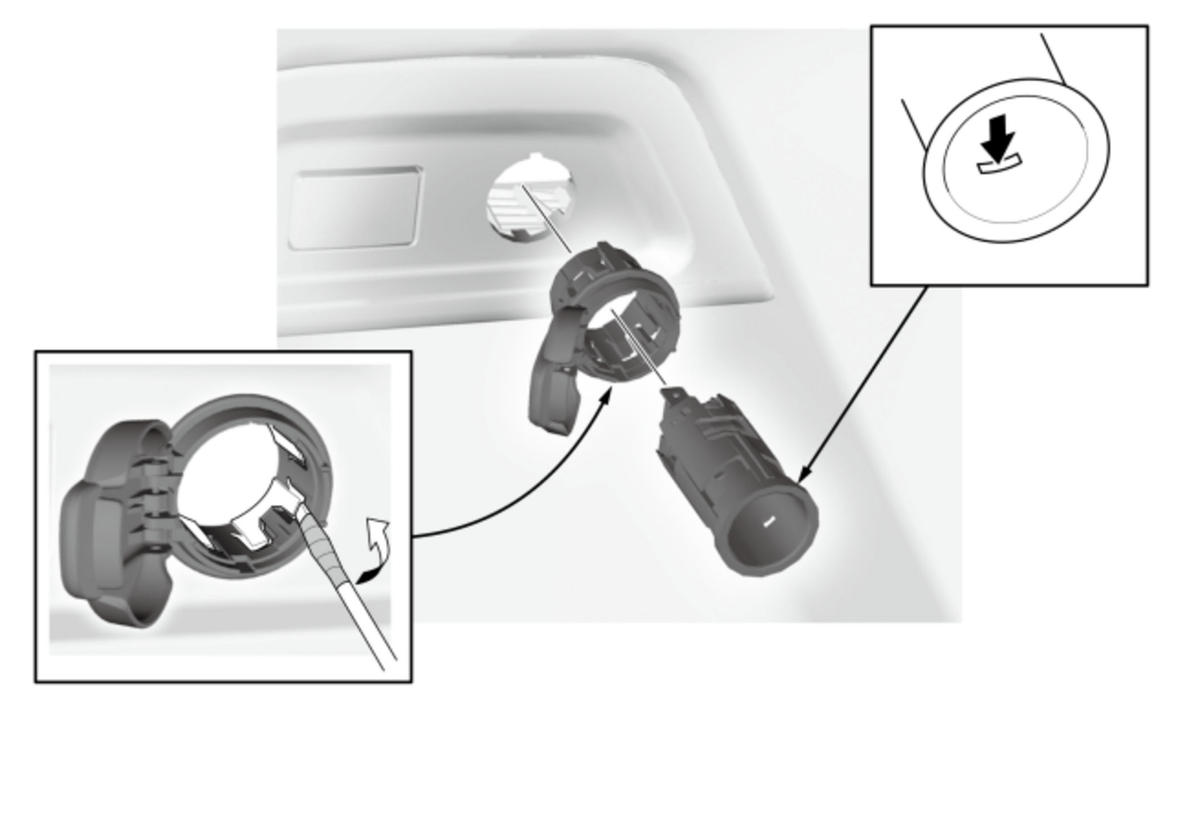

Removal

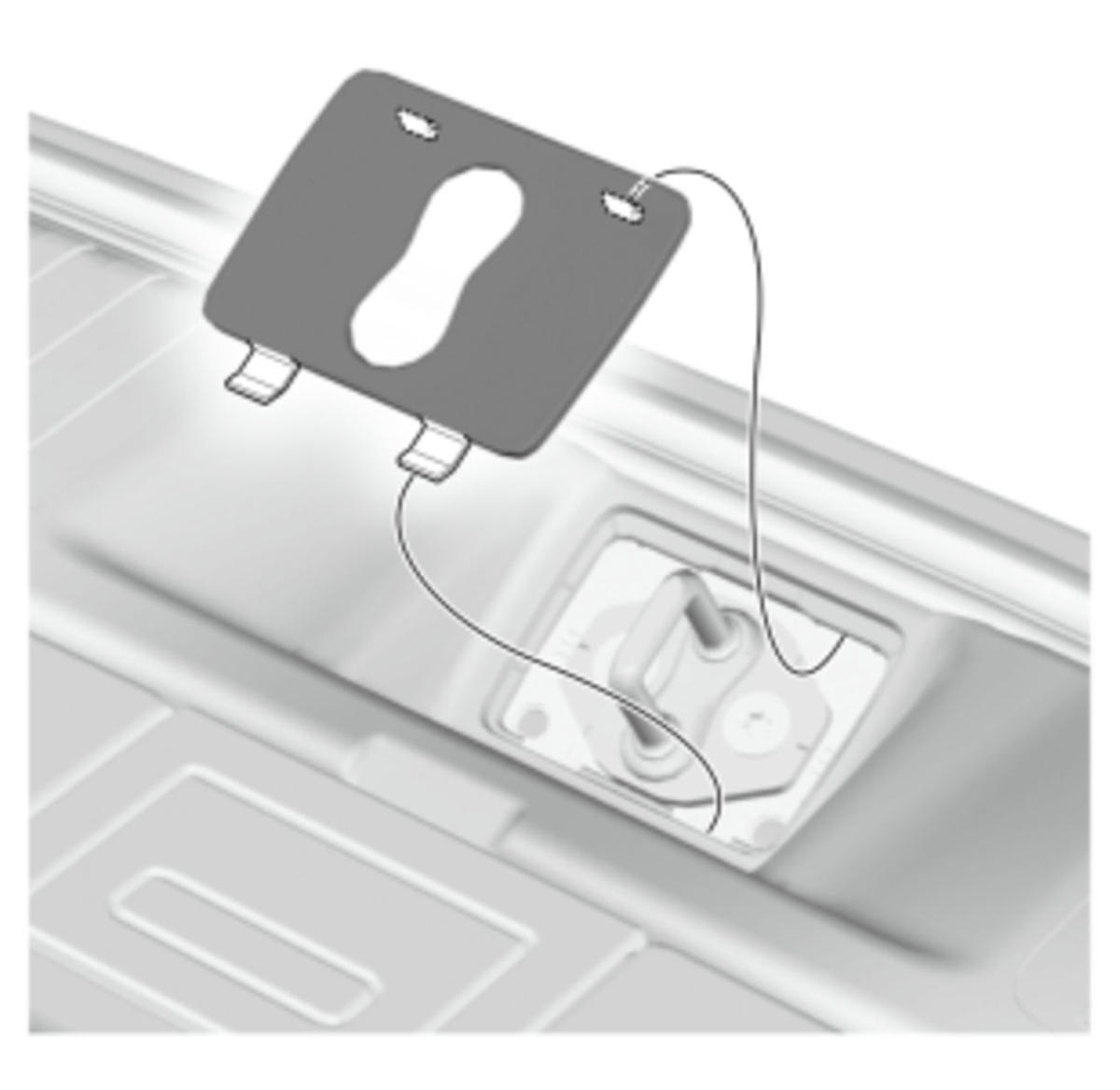

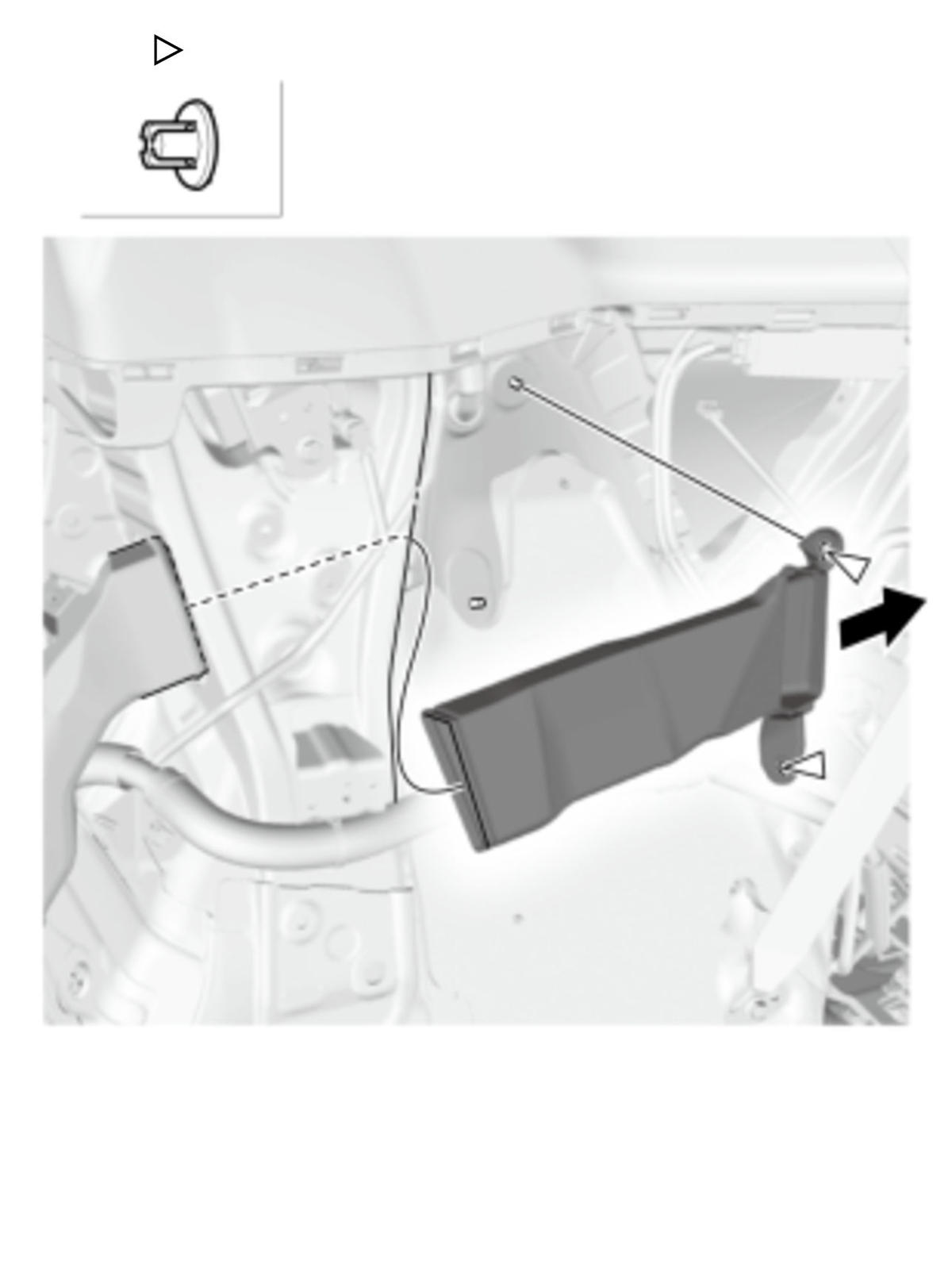

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
T.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

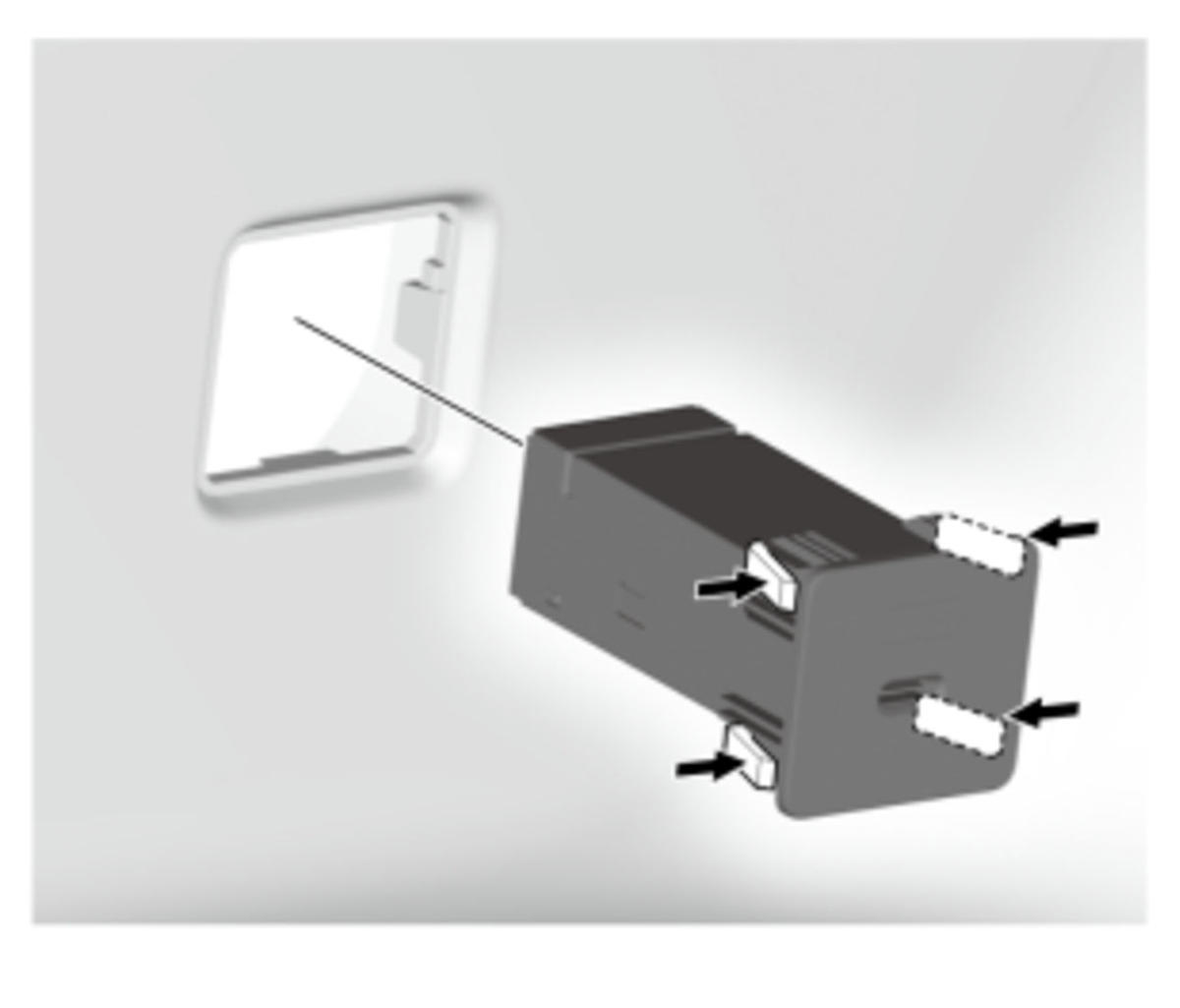

Removal
- Refer to the figure.
U.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal
- Refer to the figure.
V.-

Courtesy of HONDA, U.S.A., INC.
W.-

Courtesy of HONDA, U.S.A., INC.
X.-
Sub-Procedure

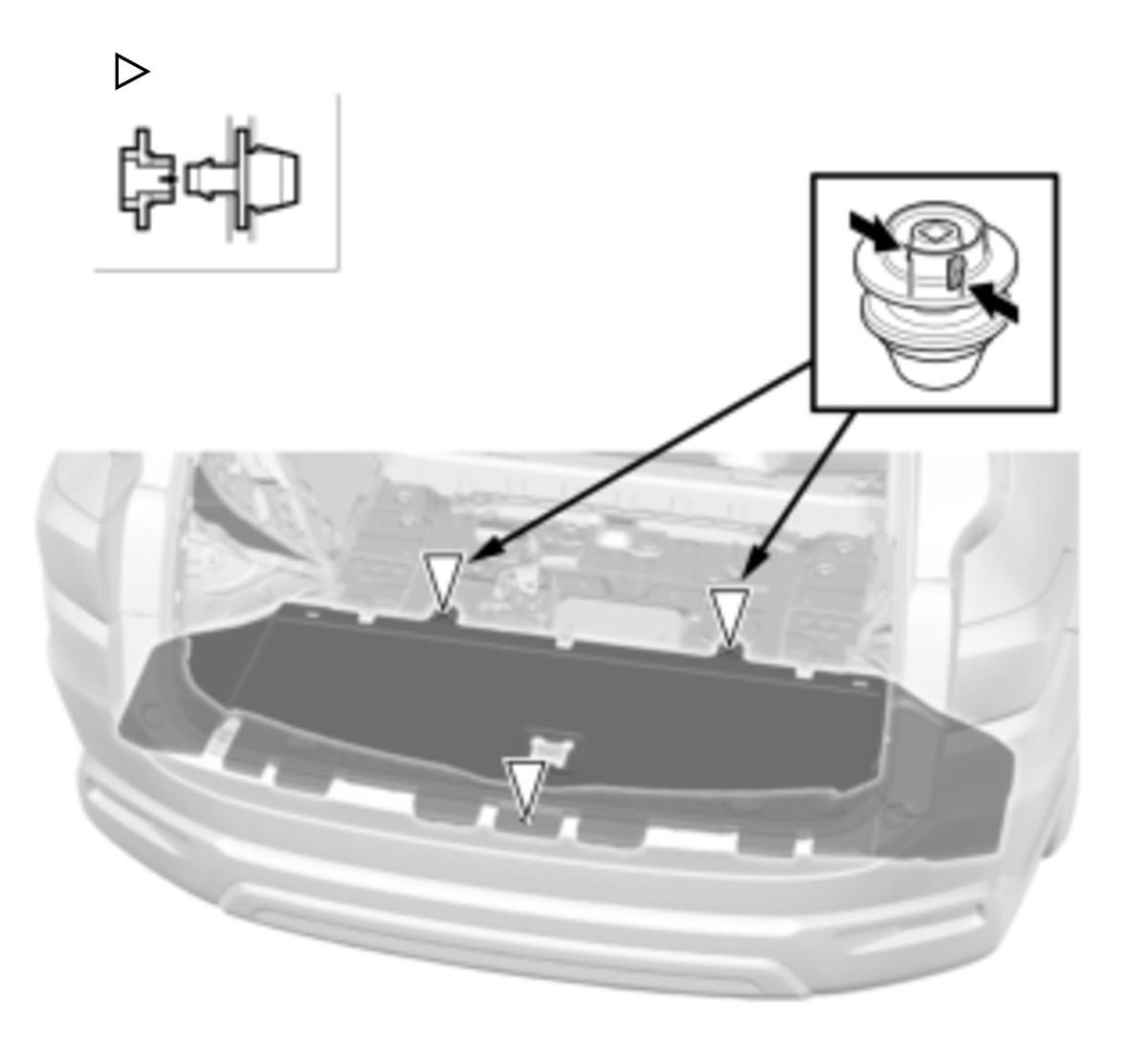

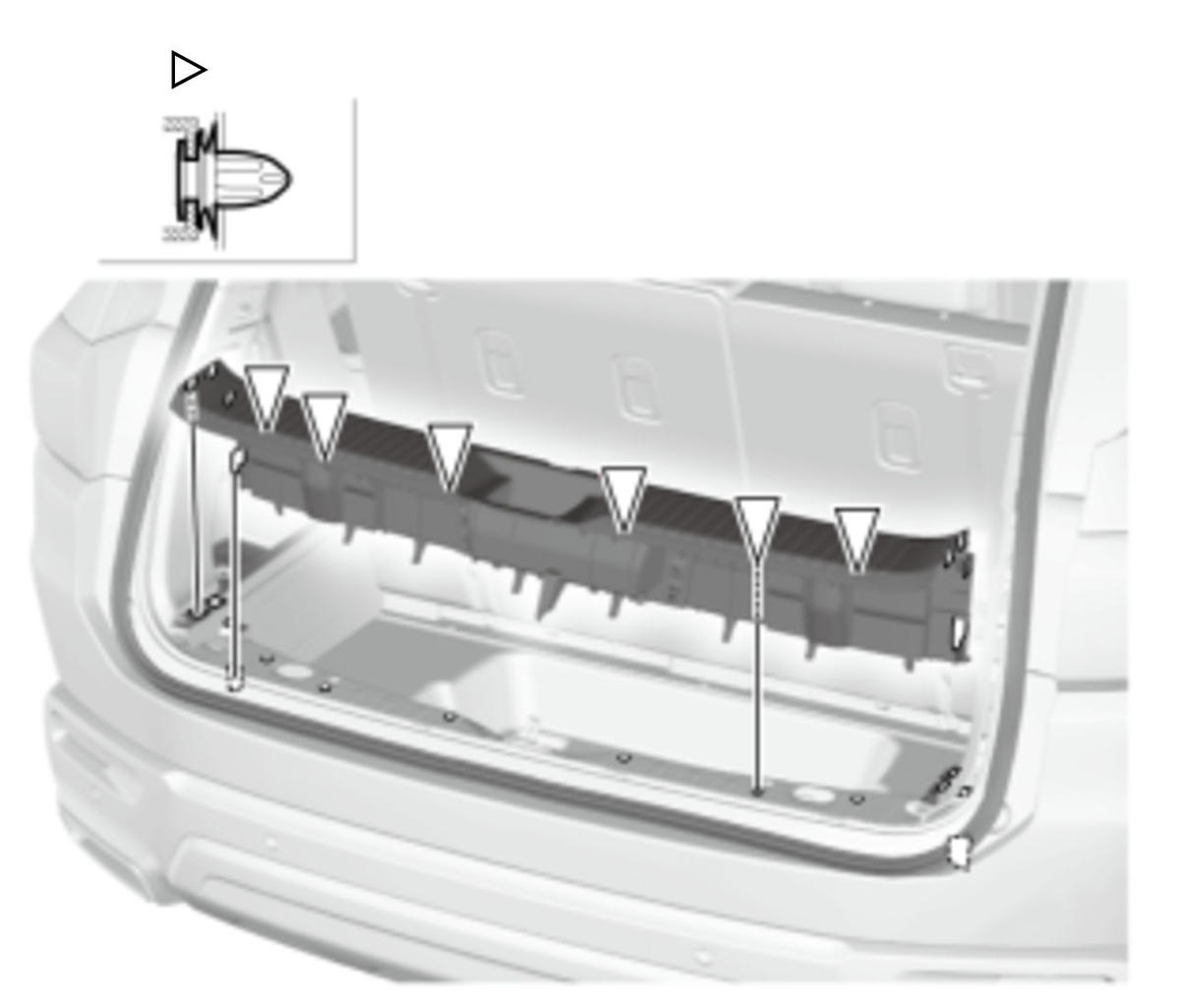

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
Y.-

Courtesy of HONDA, U.S.A., INC.
Z.-
Sub-Procedure

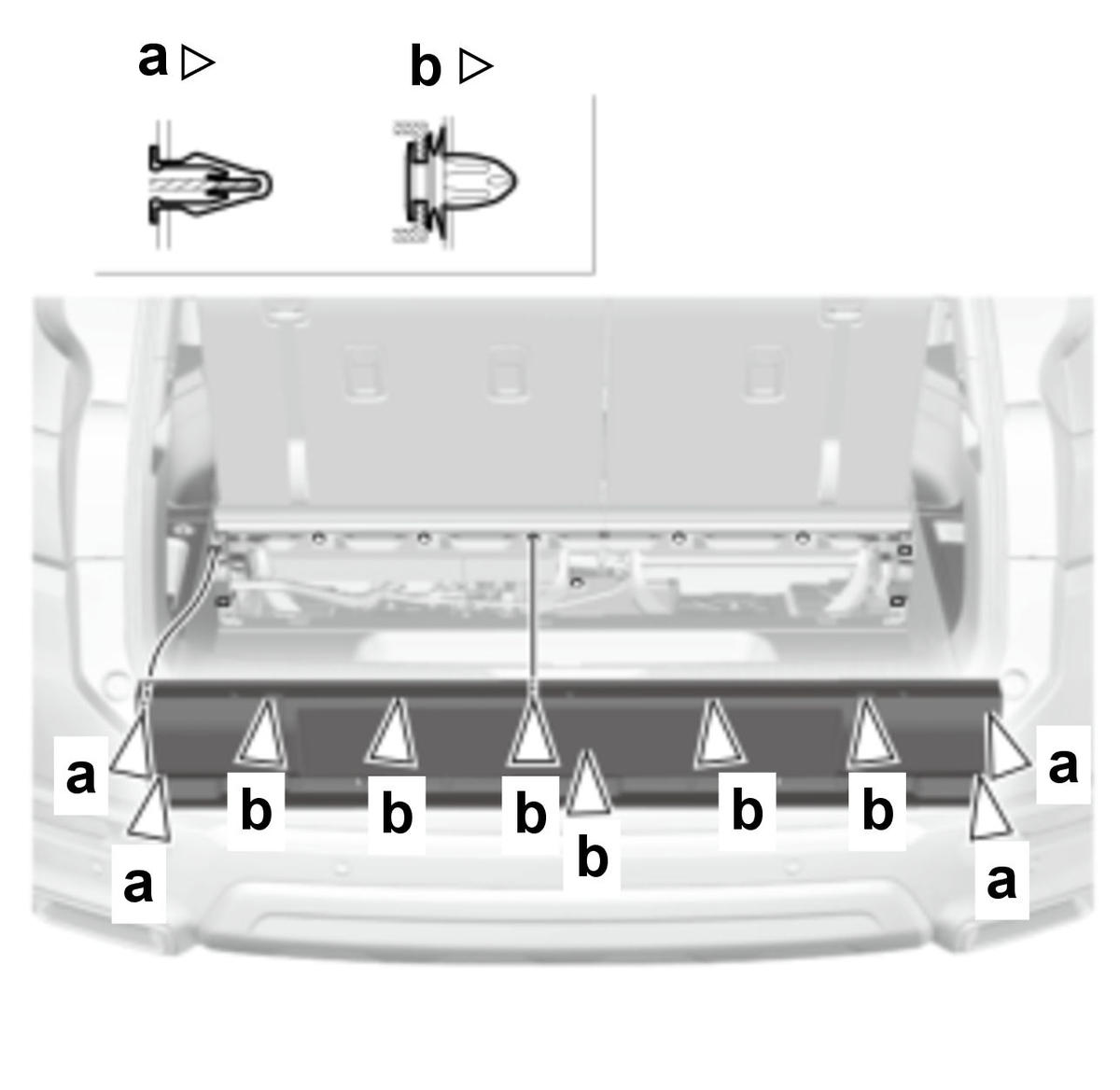

Removal

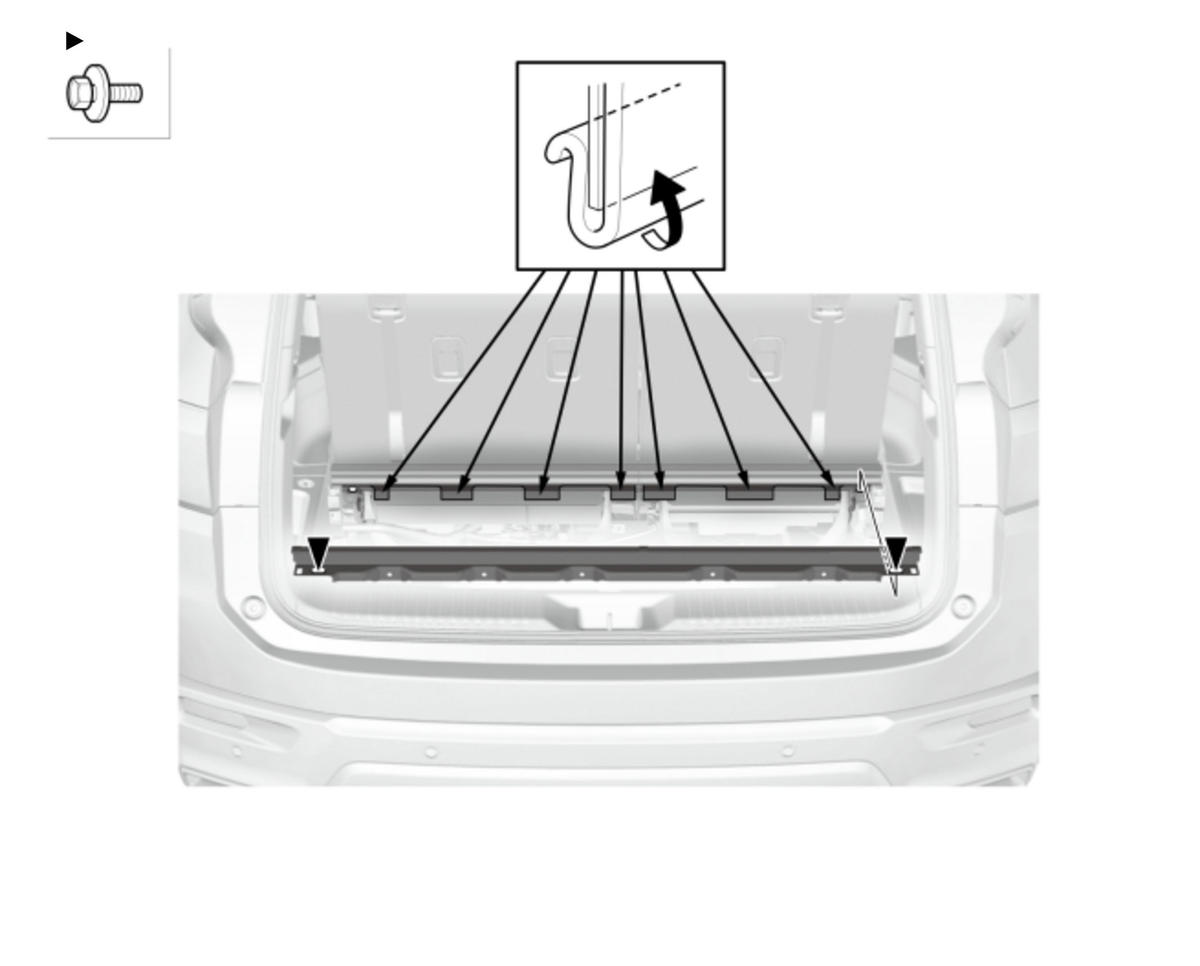

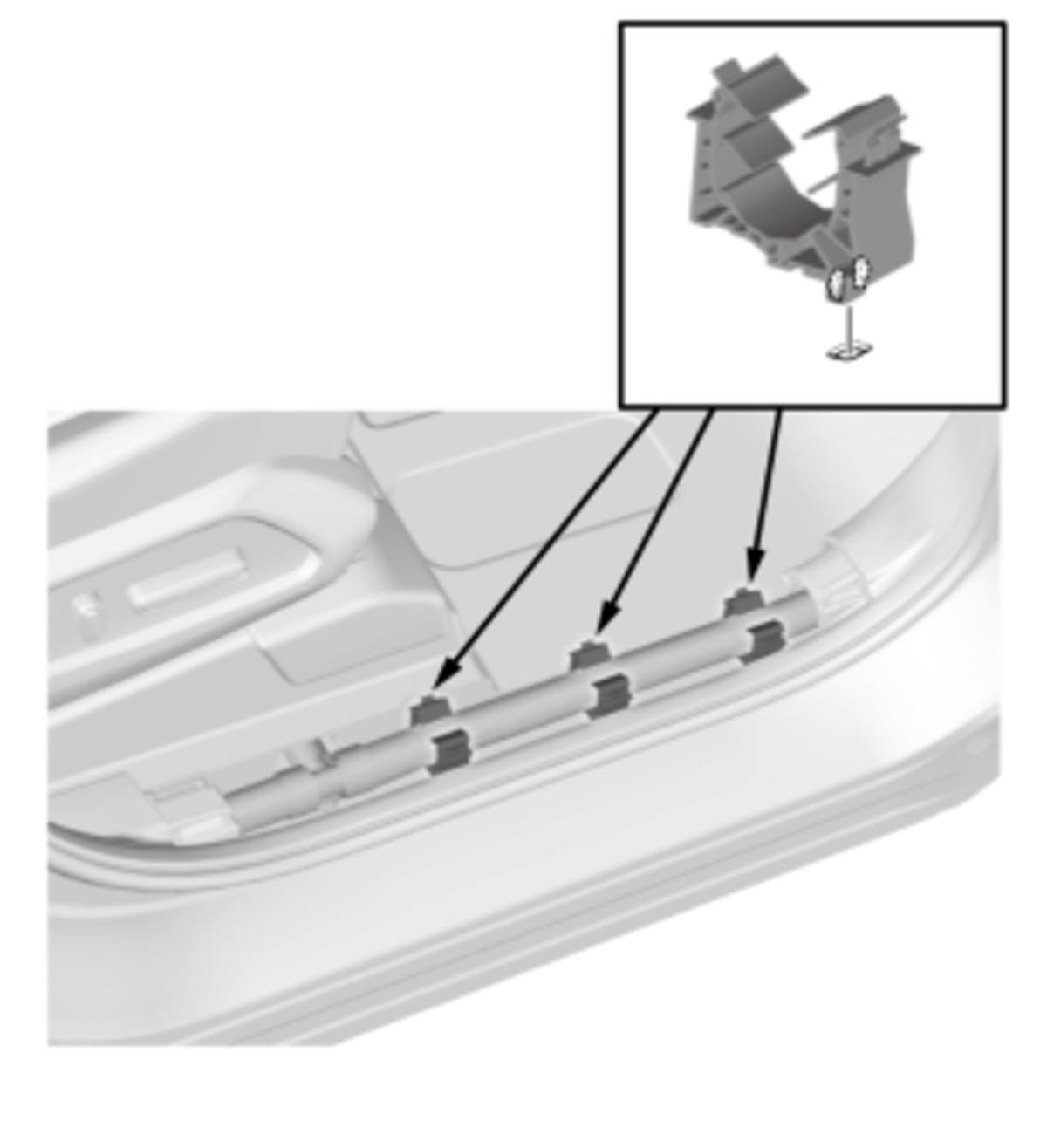

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
AA.-
Key Information

Do the following before starting your work.

Remove:
- Third Row Seat
Sub-Procedure

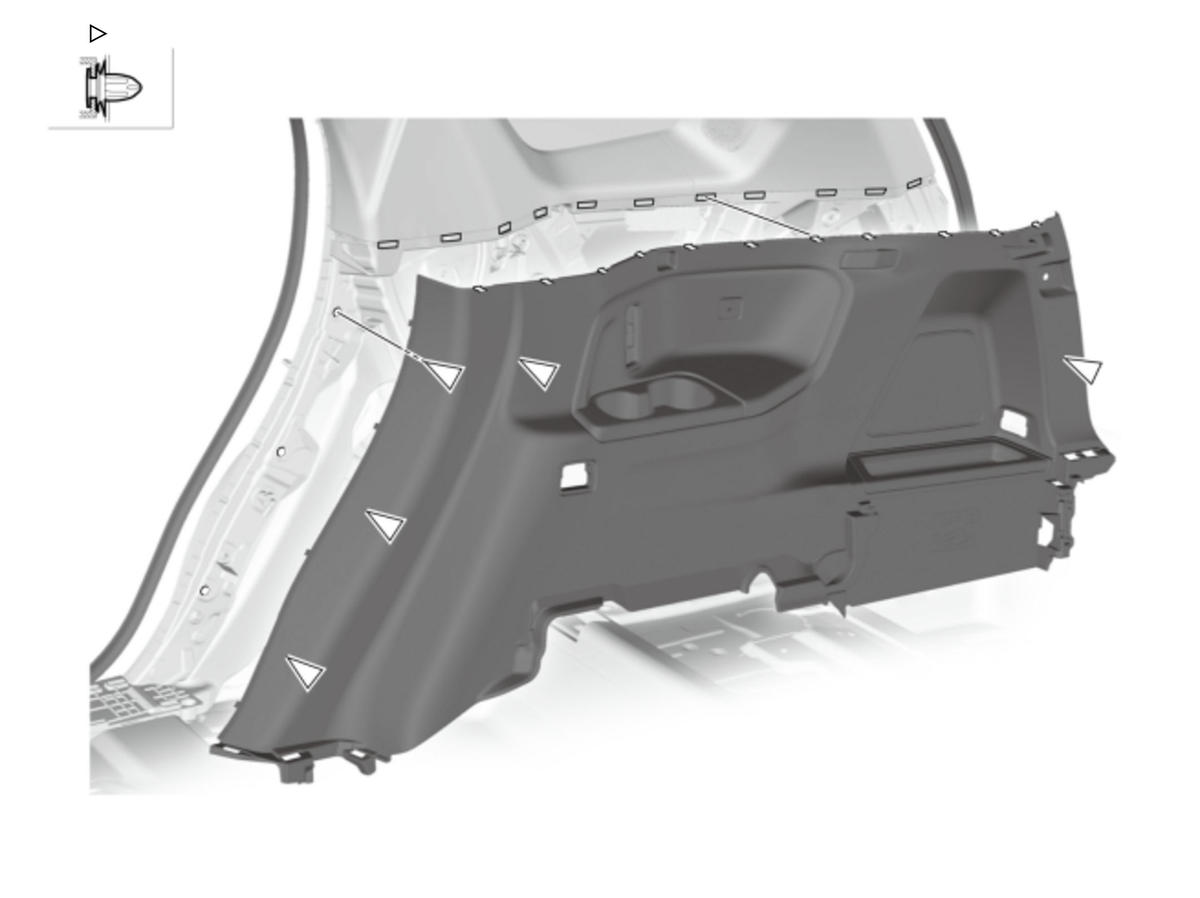

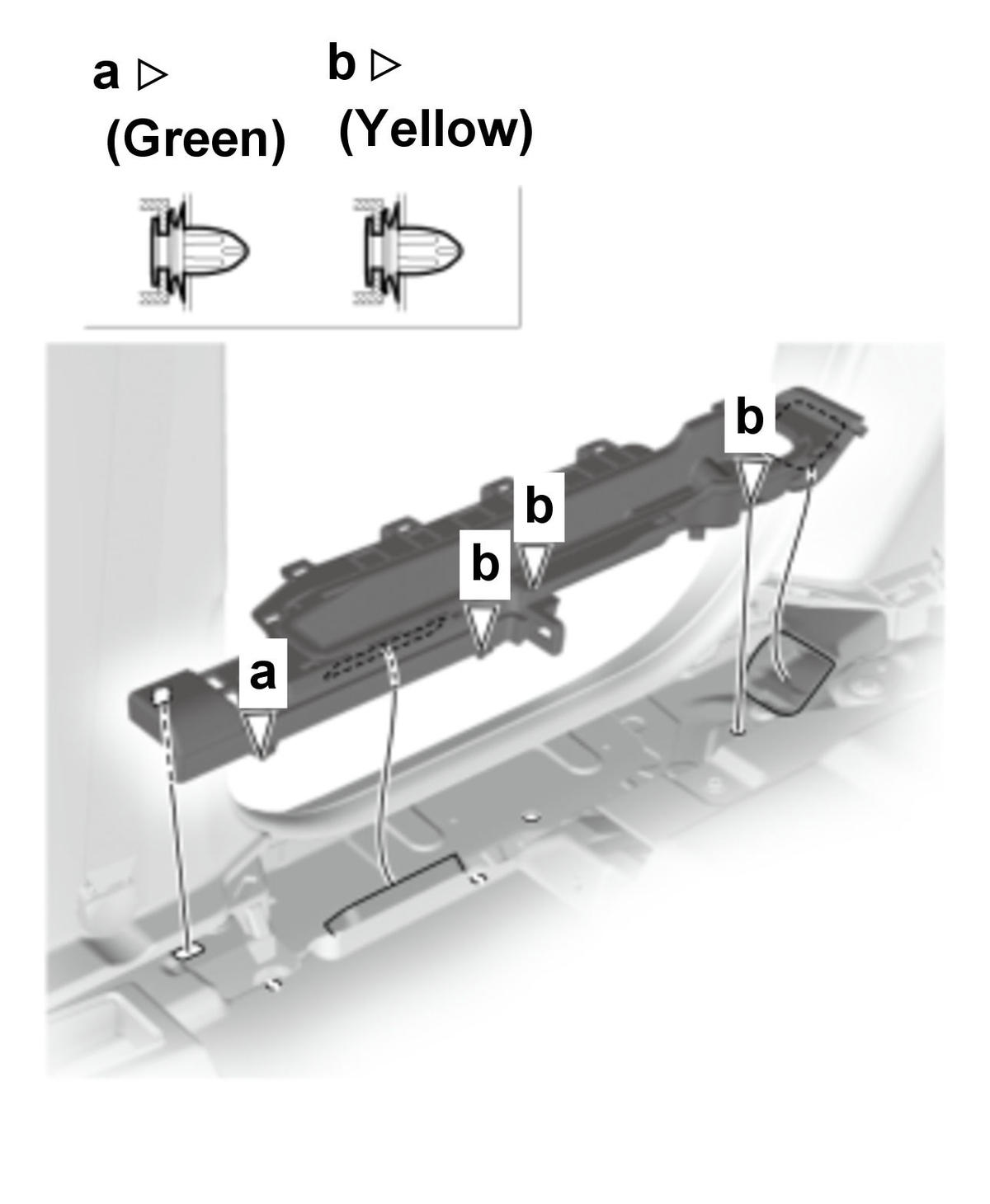

Removal

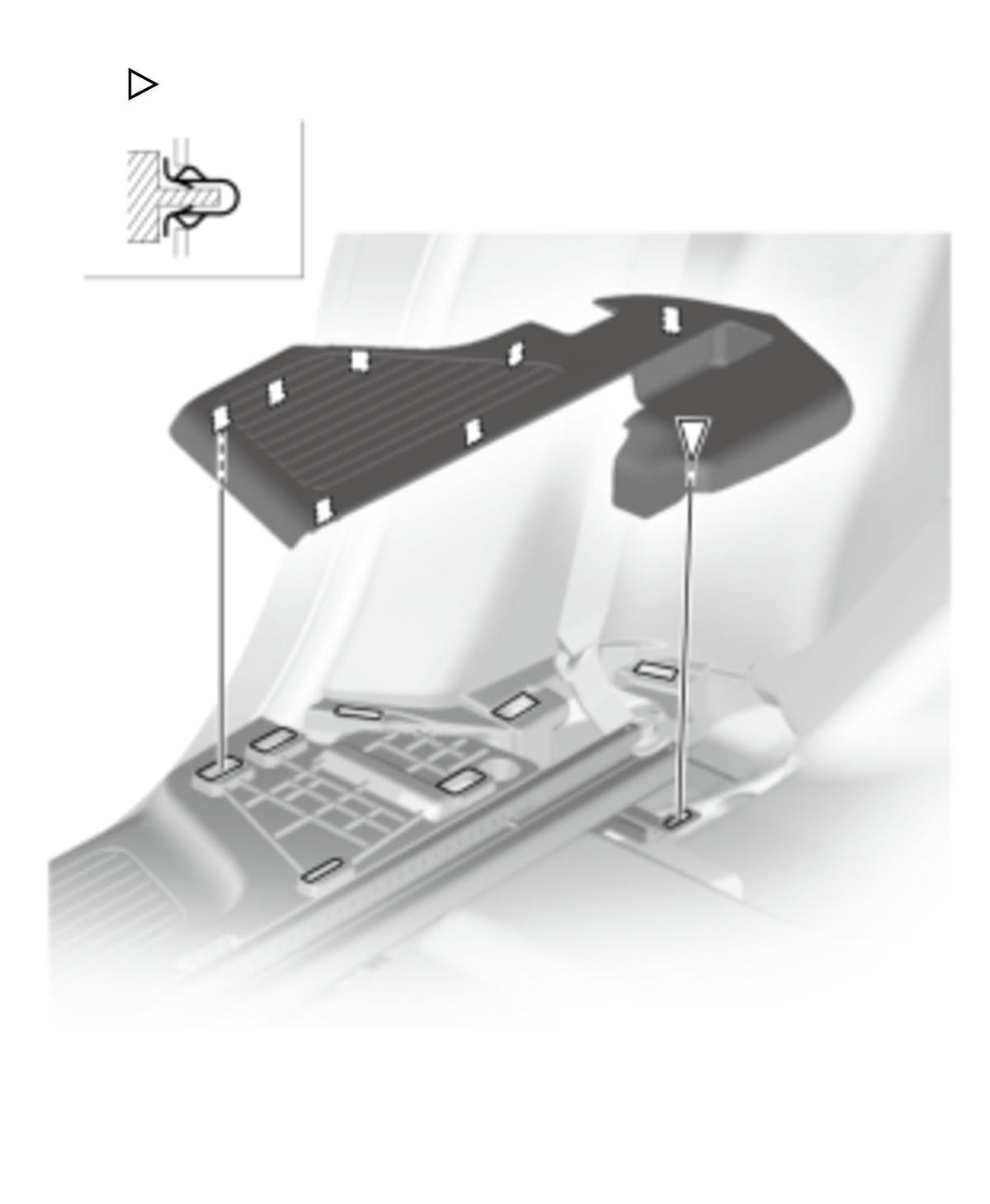

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
AB.-
Sub-Procedure

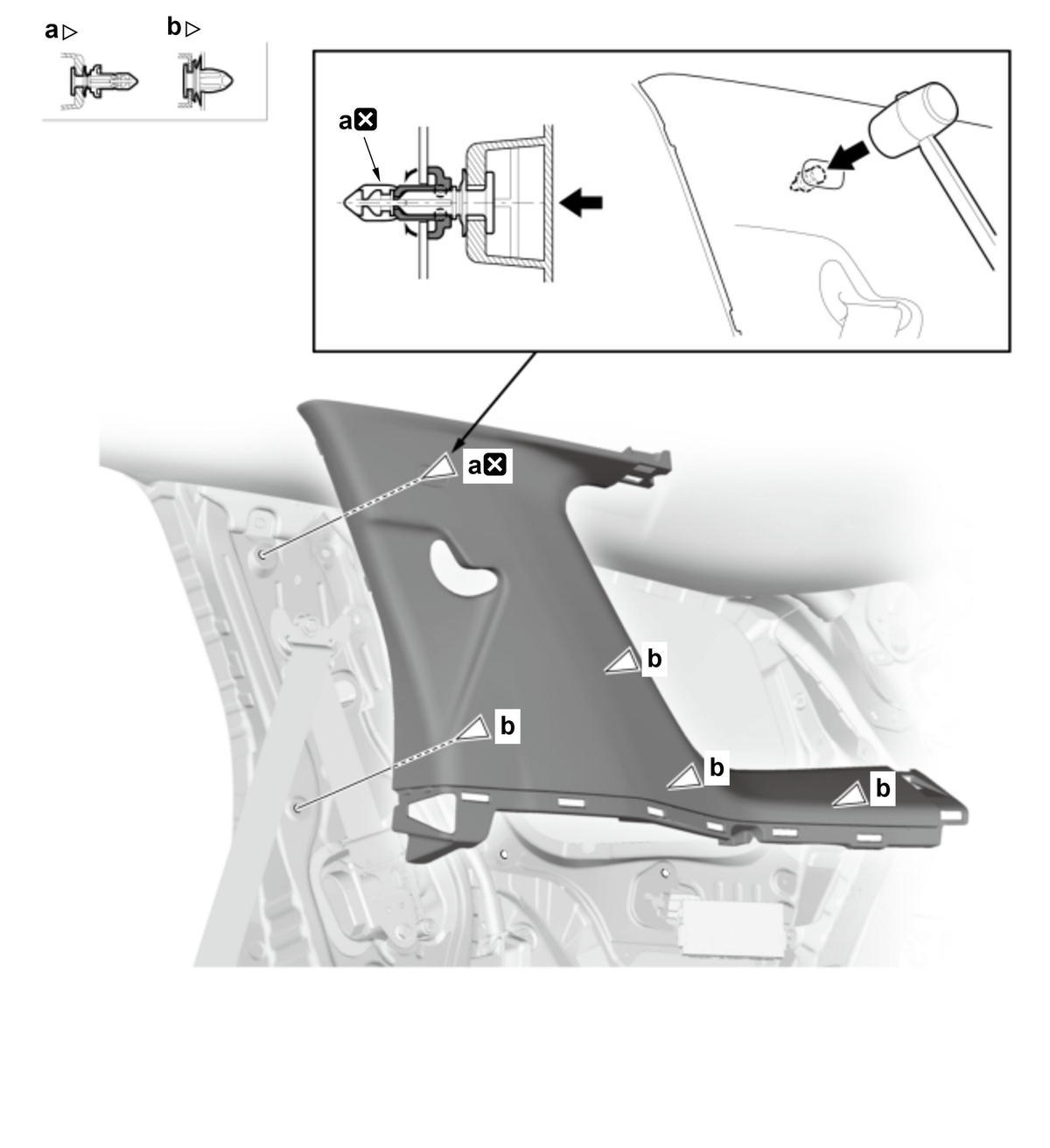

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

Installation
- After inspecting the quarter pillar trim, then install the quarter pillar trim.

AC.-

Key Information

Do the following before starting your work.

Remove:

Rear Roof Trim

Sub-Procedure

Removal

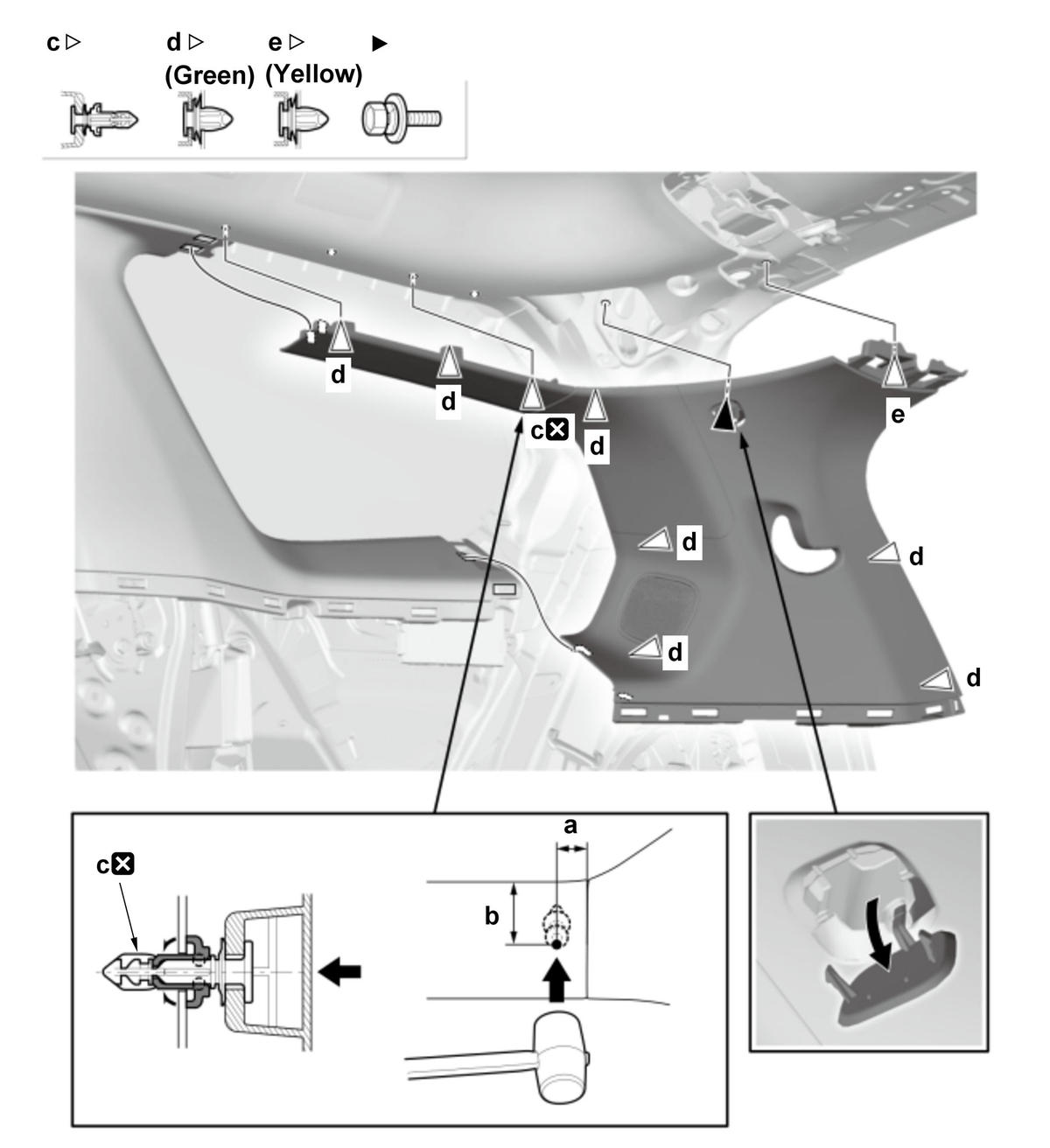

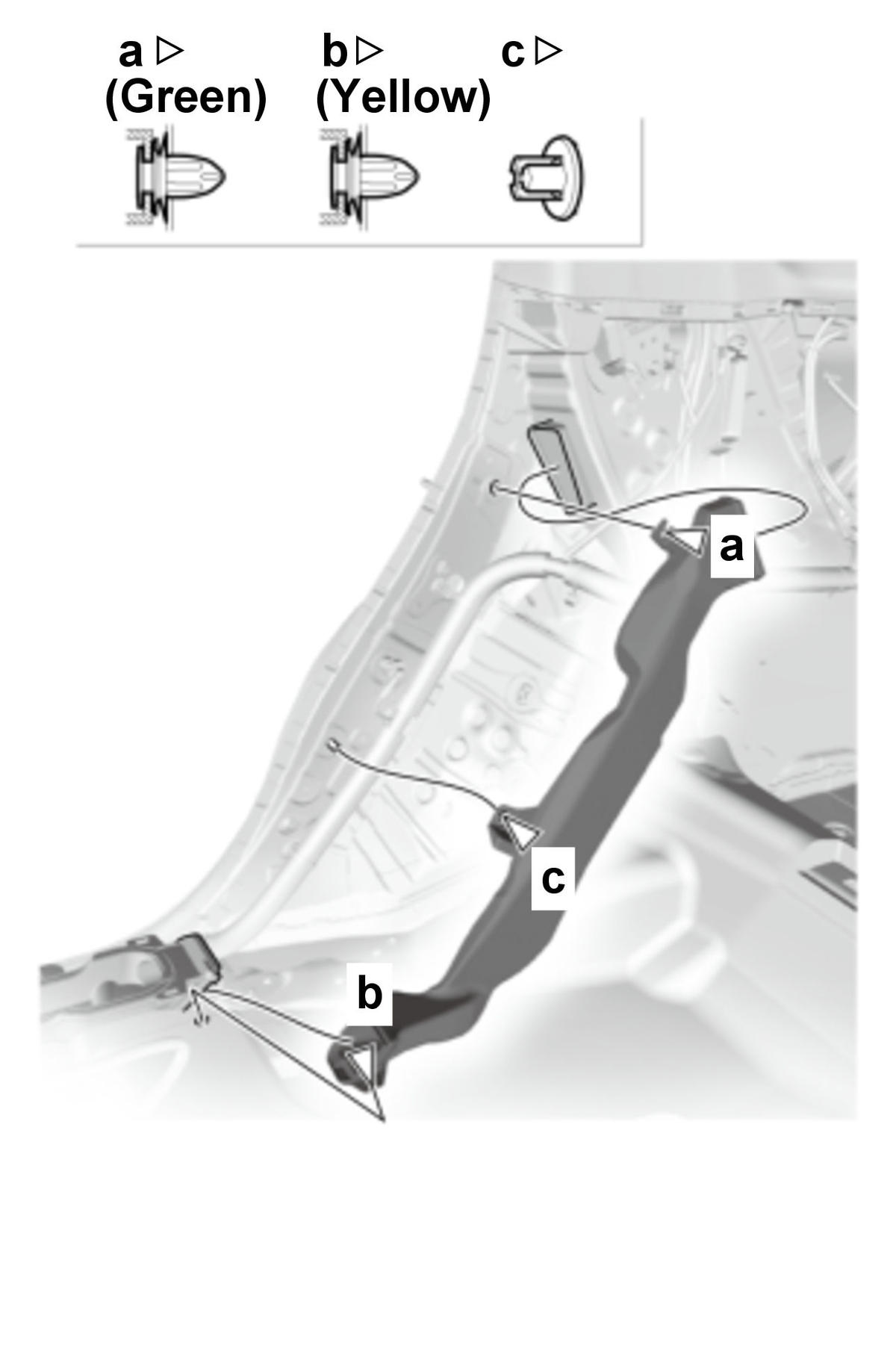

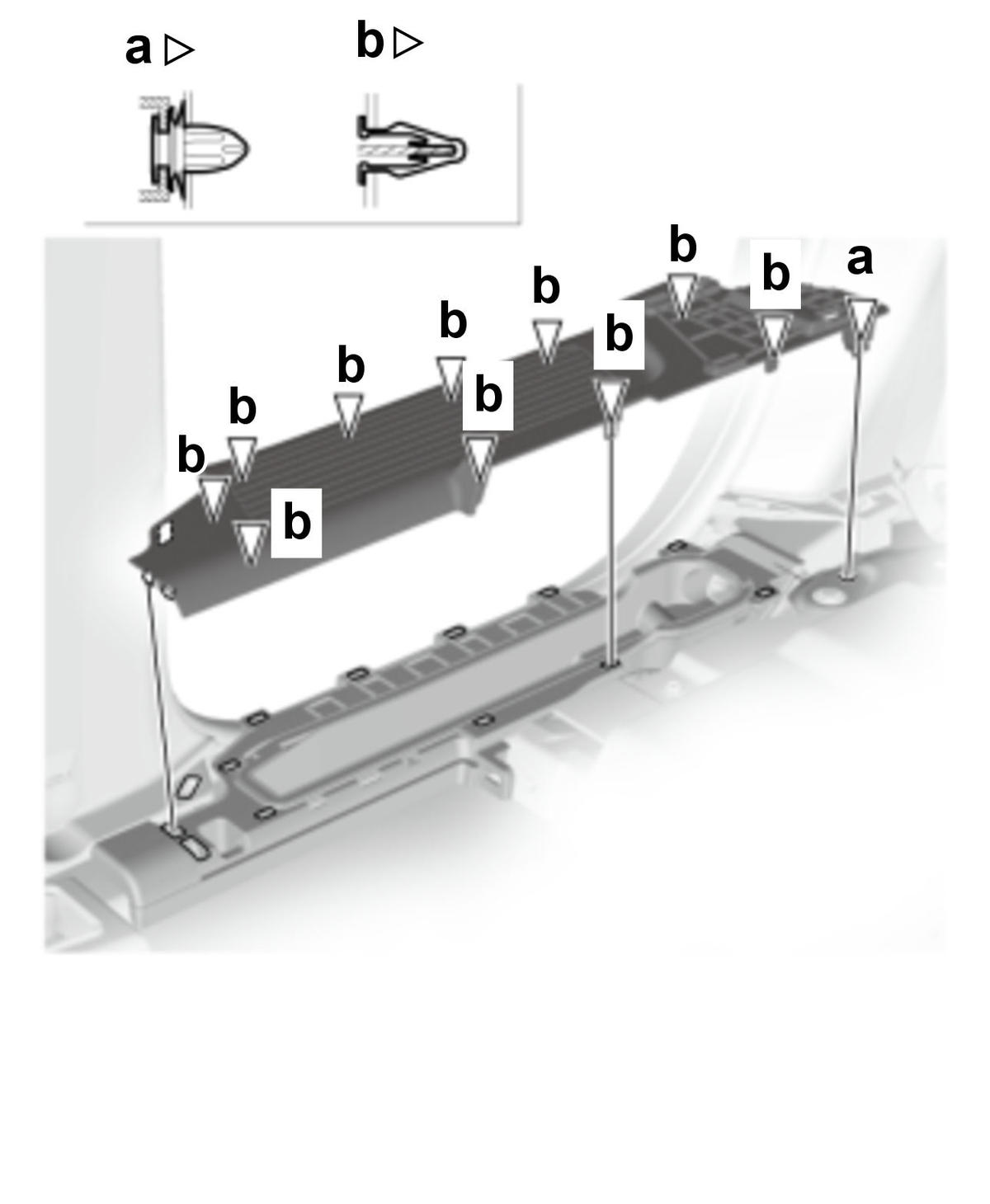

Refer to the figure.

Specifications

Position	Standard Value
a	30 mm (1.18 in)
b	40 mm (1.57 in)

Courtesy of HONDA, U.S.A., INC.

Installation

After inspecting the rear pillar trim, then install the rear pillar trim.

AD.-
WARNING:
- SRS components are located in this area. Before doing repairs or service:
  - Review the SRS component locations .
  - Review the precautions and procedures .
NOTE: If you are replacing the second row seat belt after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.

Preconditions
- 12 Volt Battery Negative Terminal Disconnected
After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
AE.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:
- If you are replacing the side impact sensor (second) after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.
- Be careful not to bump (by impact wrench, hammer, etc.) the area around the side impact sensor.
Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

Installation

NOTICE:

Before installing the rear side trim panel,, make sure the SRS indicator works normally.

After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
AF.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:
- If you are replacing the side impact sensor (third) after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.
- Be careful not to bump (by impact wrench, hammer, etc.) the area around the side impact sensor.
Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

Installation

NOTICE:

Before installing the rear side trim panel, make sure the SRS indicator works normally.

After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

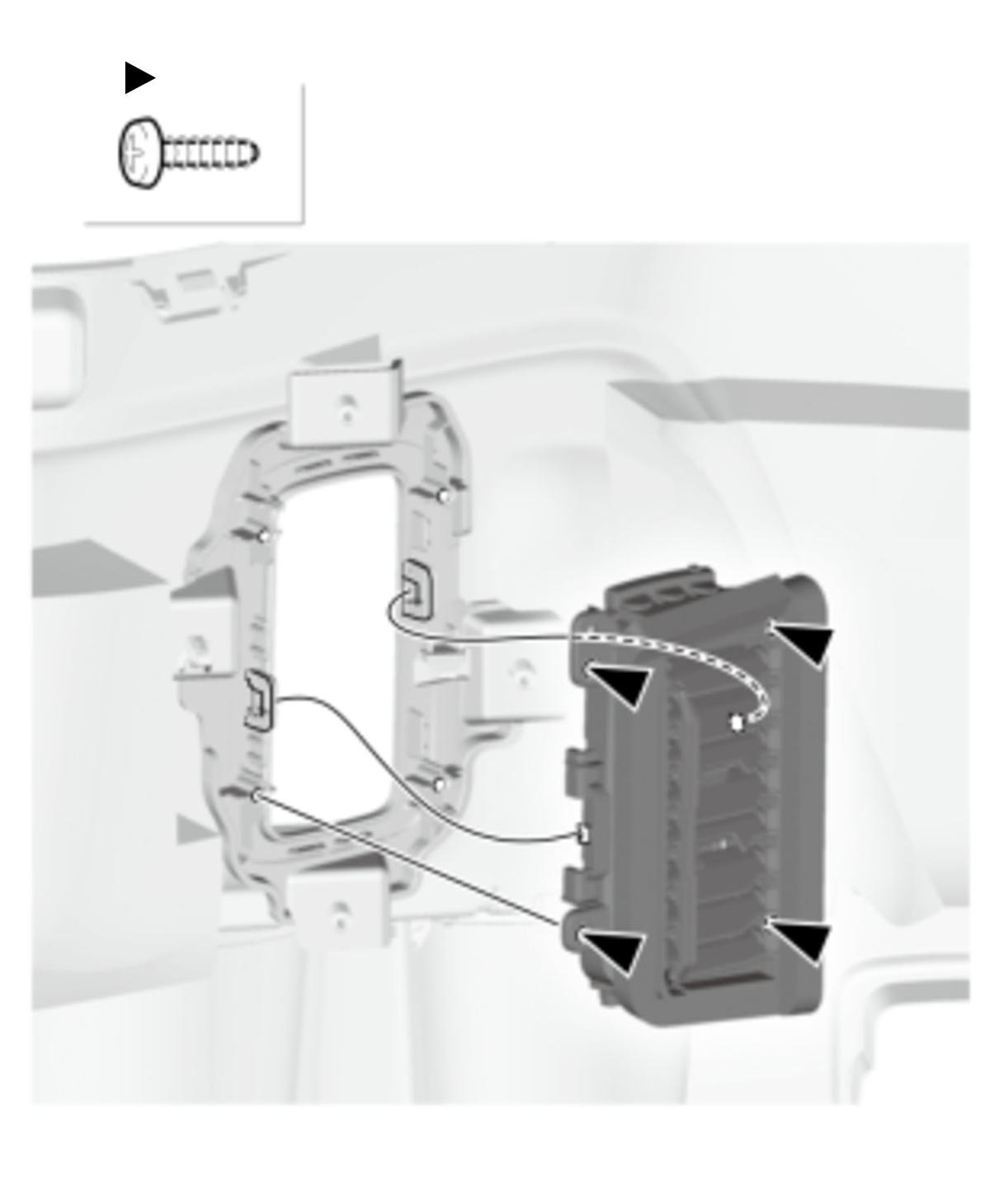

AG.-

Courtesy of HONDA, U.S.A., INC.

Sub-Procedure

Removal
- Refer to the figure.

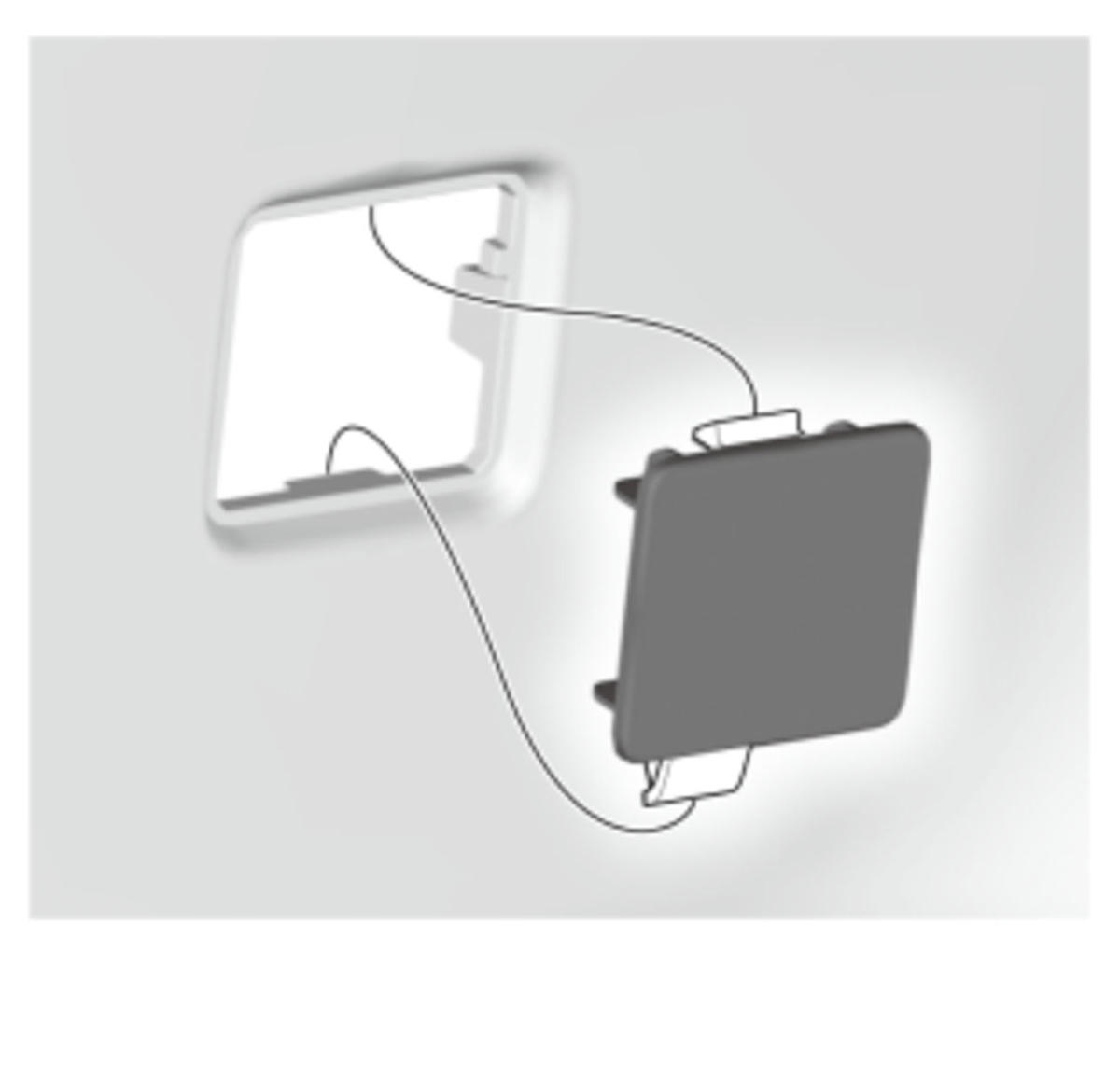

AH.-

Courtesy of HONDA, U.S.A., INC.
AI.-

Courtesy of HONDA, U.S.A., INC.

Sub-Procedure

Removal

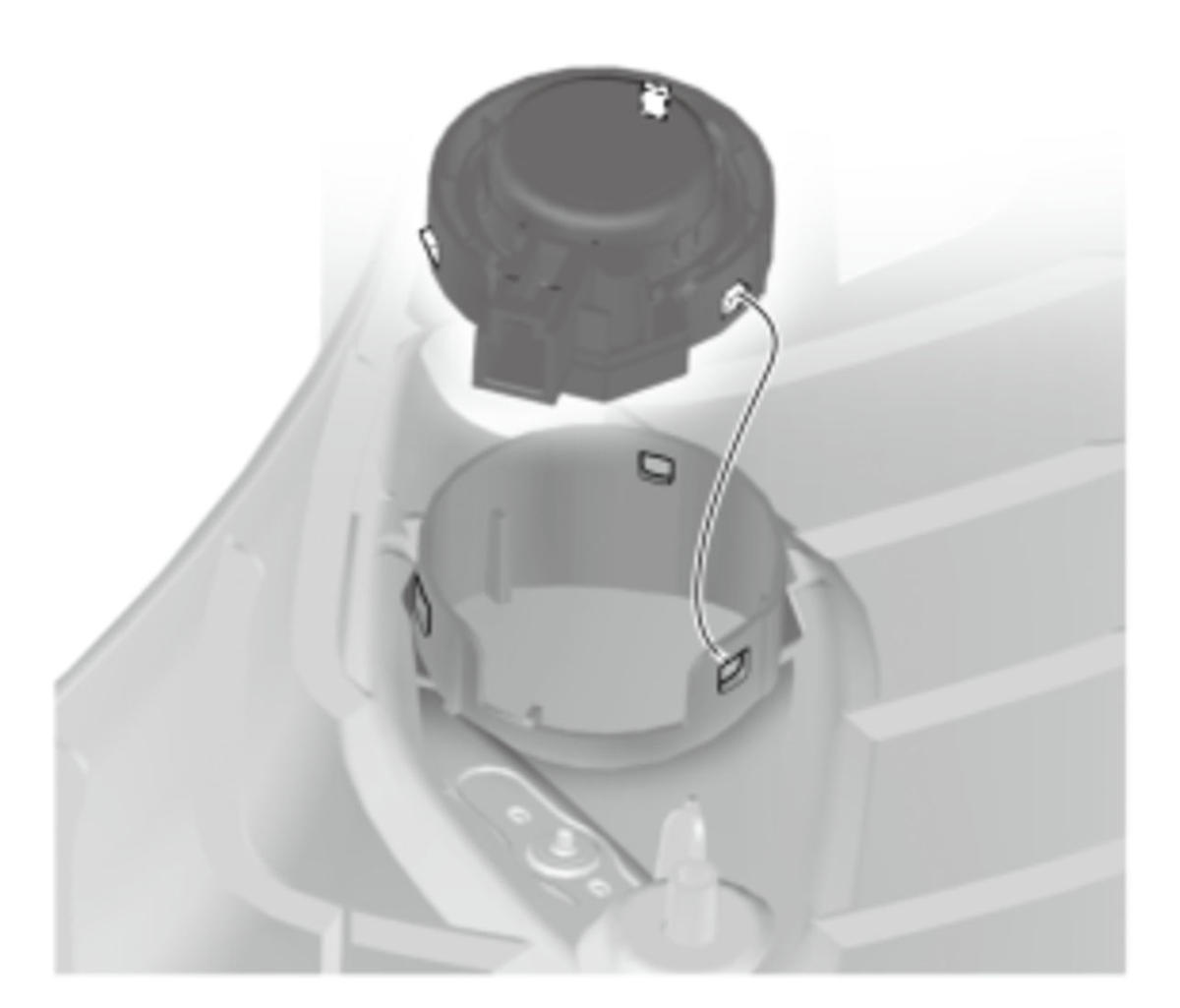

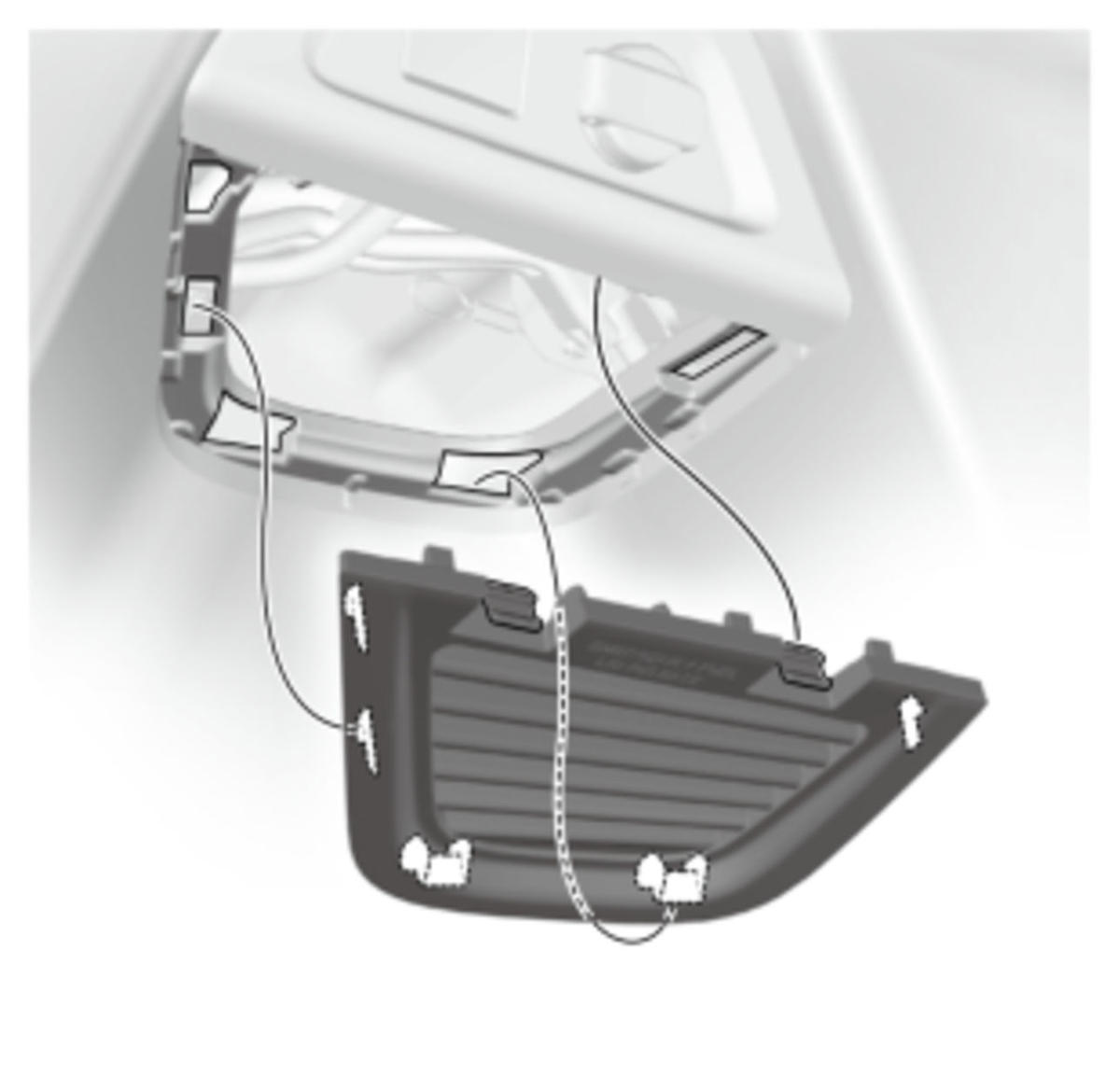

- Refer to the figure.

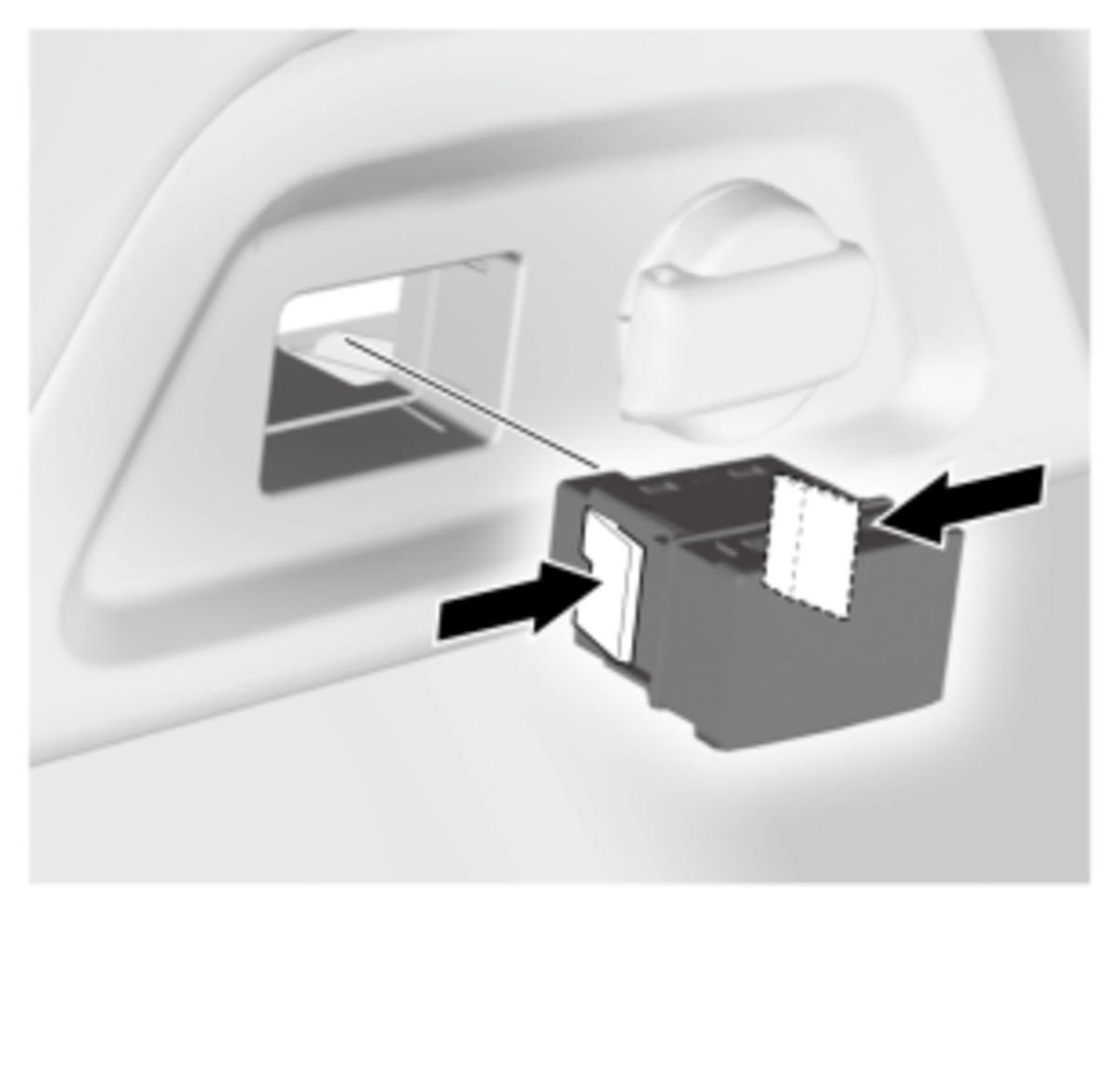

AJ.-
After Installation
- Power tailgate control unit resetting

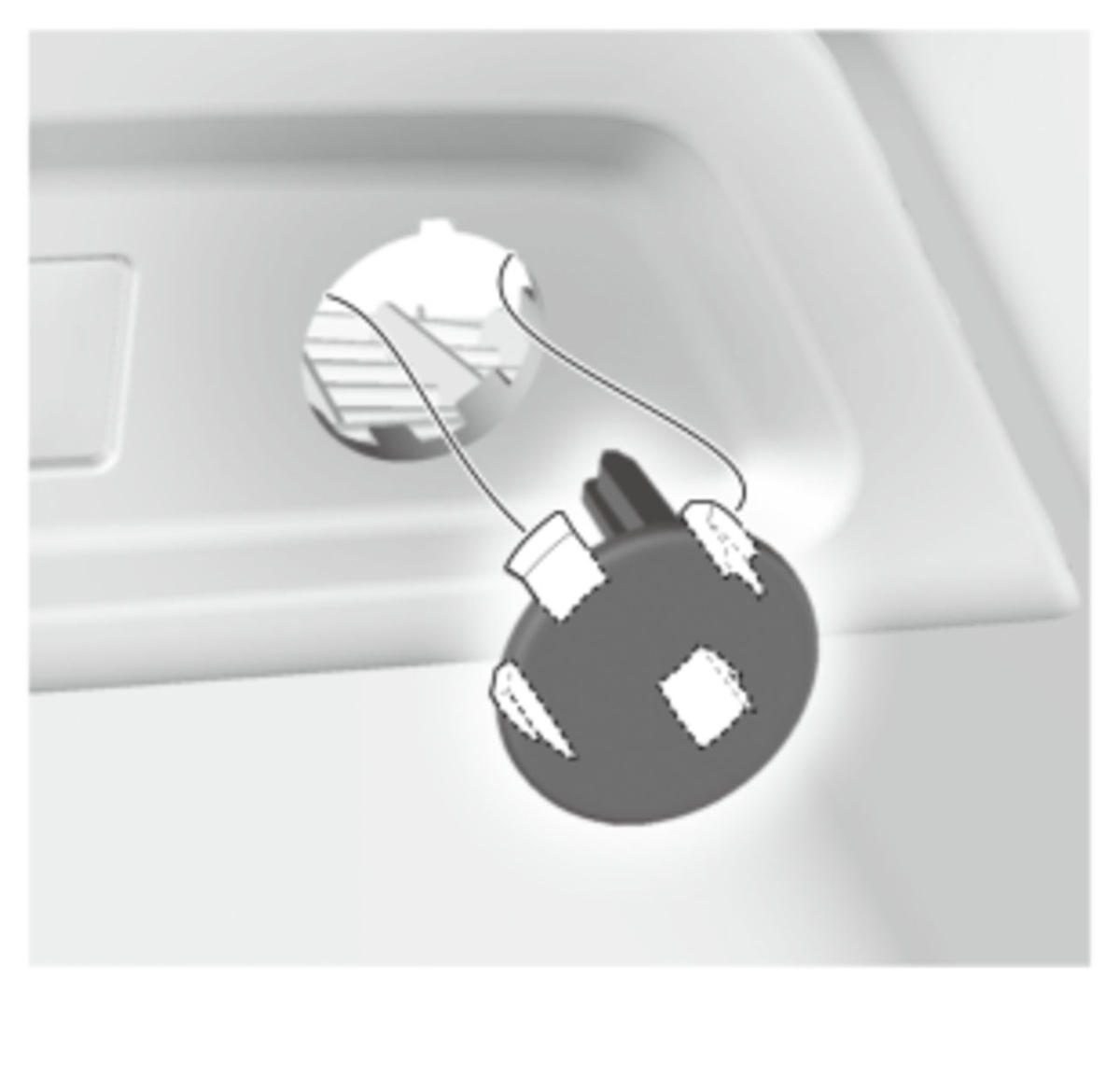

AK.-

Courtesy of HONDA, U.S.A., INC.

Sub-Procedure

Removal
- Refer to the figure.

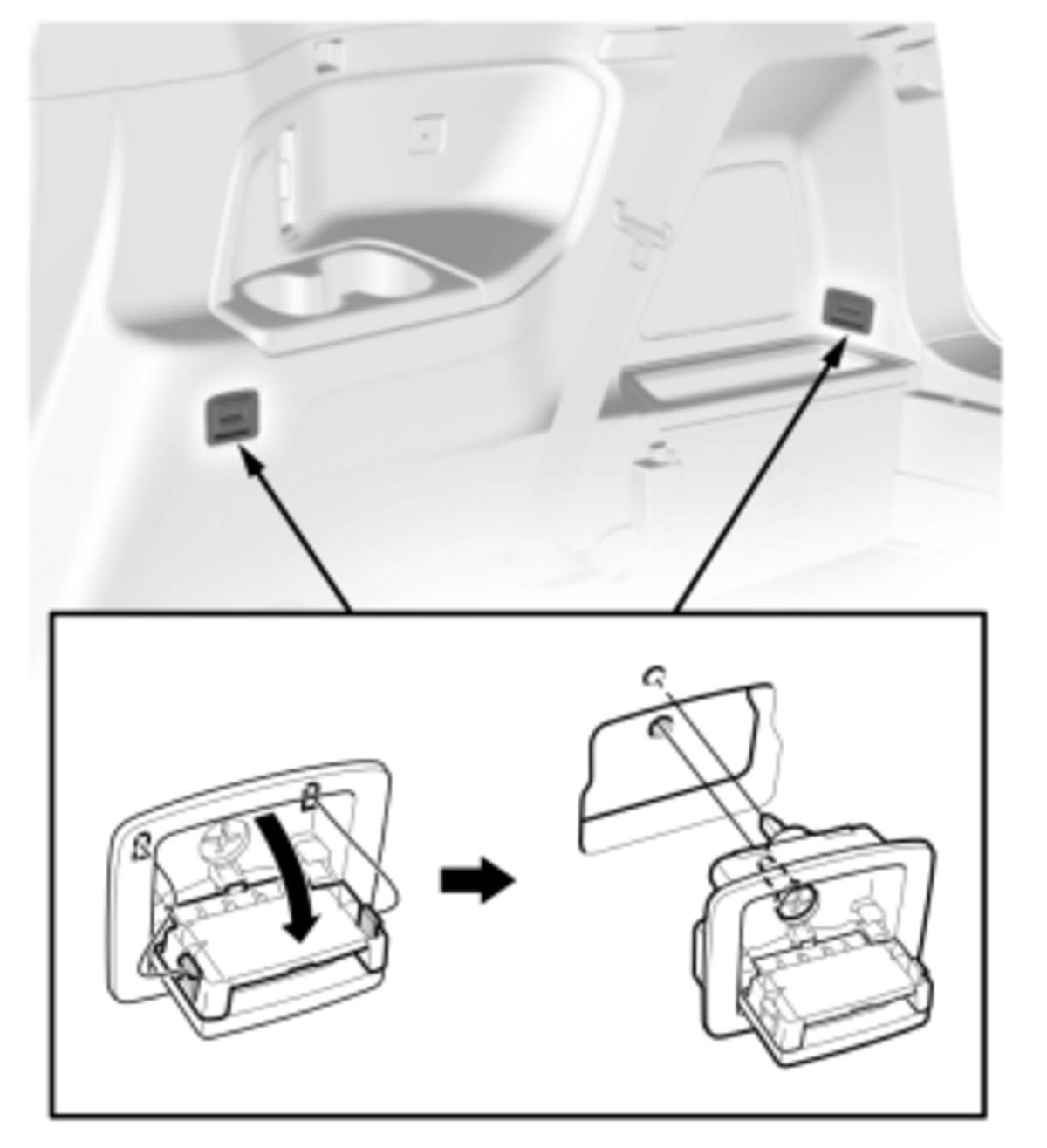

AL.-

Courtesy of HONDA, U.S.A., INC.

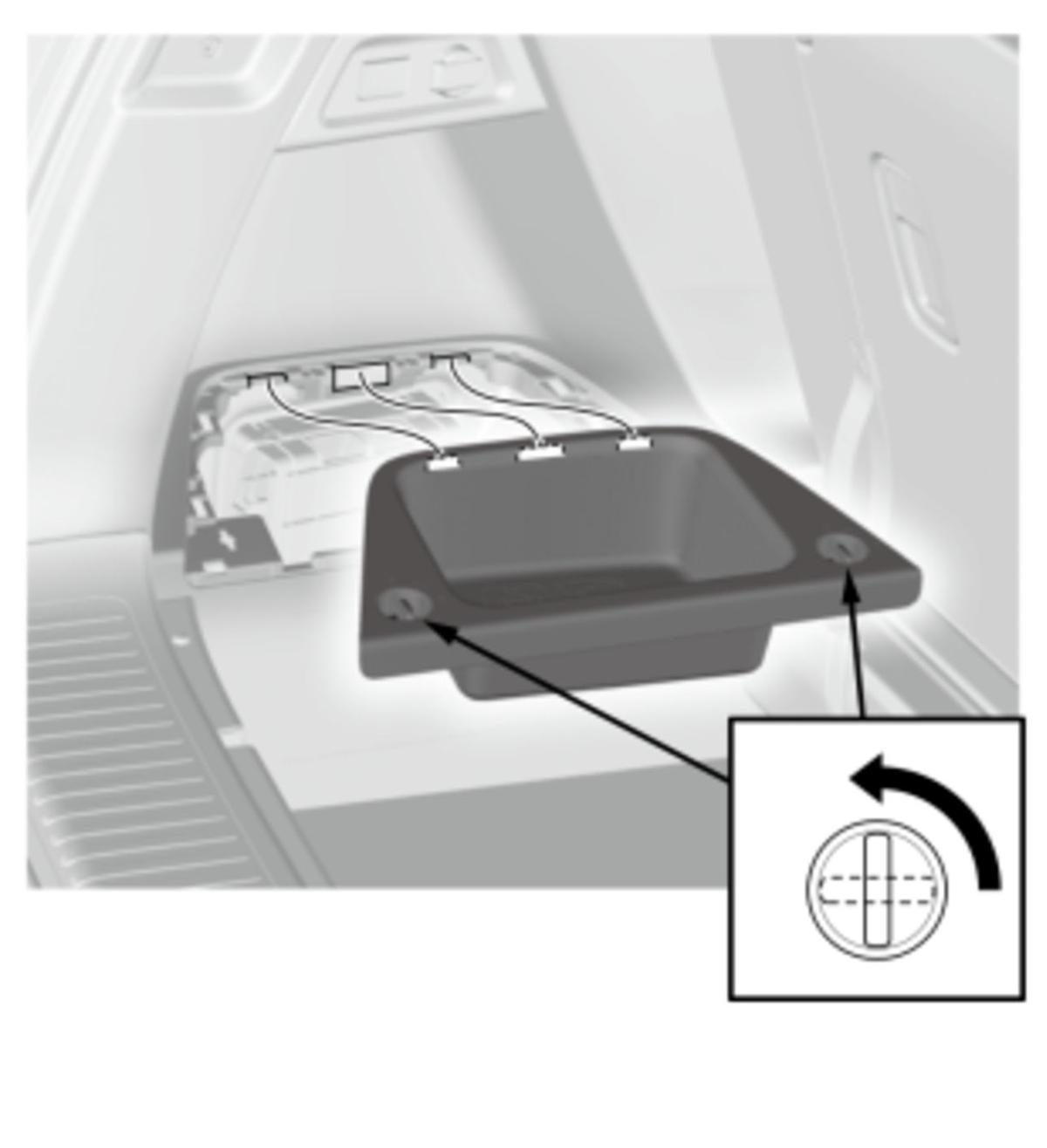

AM.-

Courtesy of HONDA, U.S.A., INC.
AN.-

Courtesy of HONDA, U.S.A., INC.

Sub-Procedure

Removal

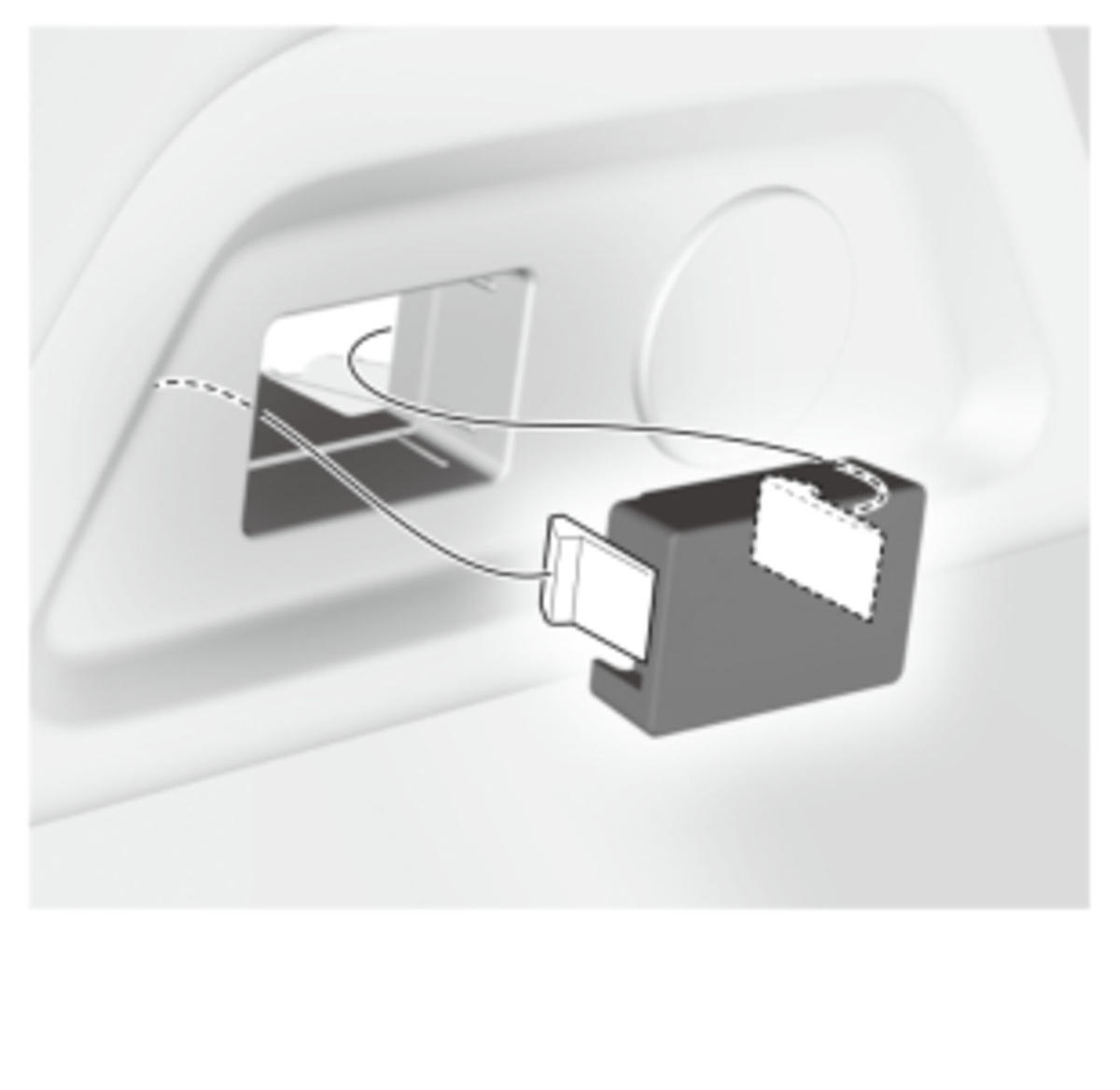

- Refer to the figure.

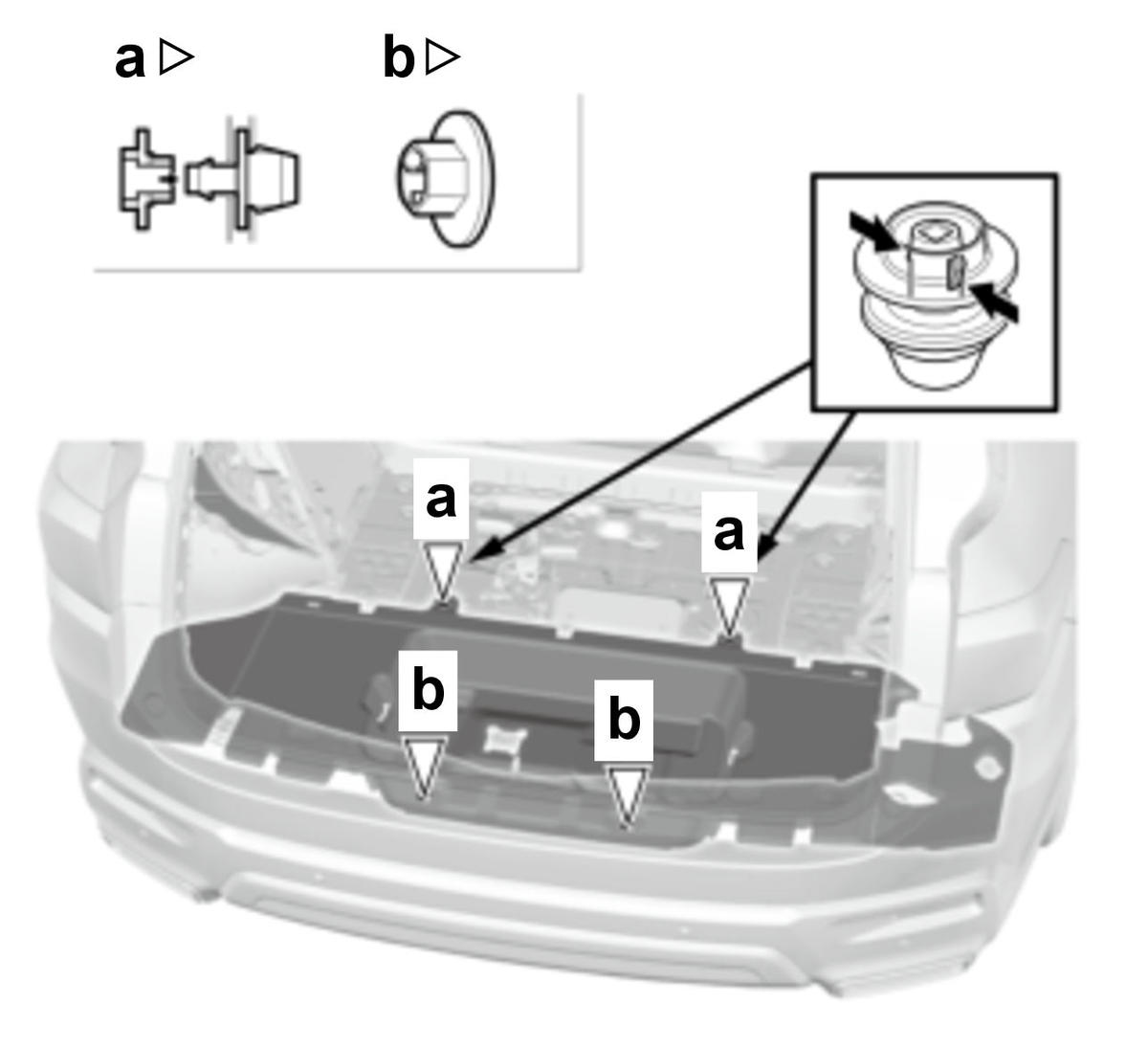

AO.-

Courtesy of HONDA, U.S.A., INC.
