Power Lumbar Support Switch Test: Test

How to use this manual .

1. Power Lumbar Support Switch - Test

   Preconditions

   • Driver's Seat Outer Recline Cover Removed

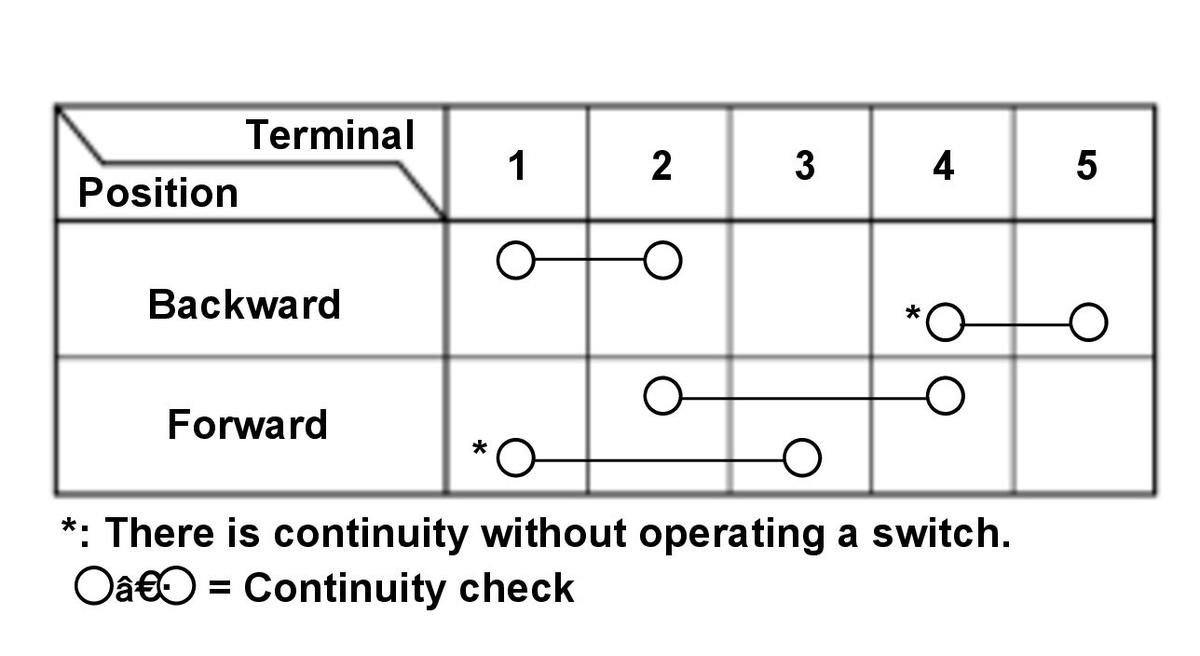

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

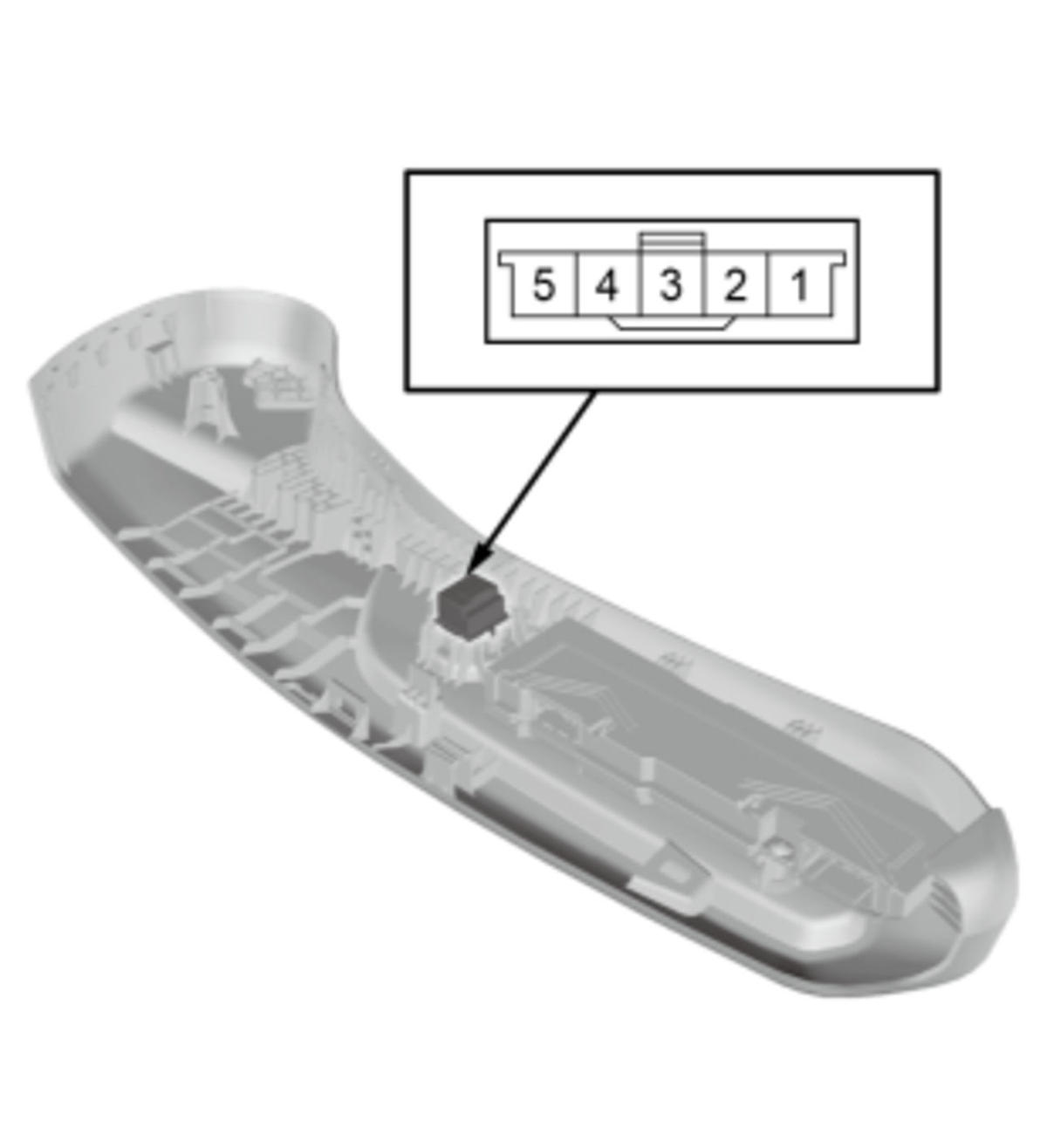

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

   Result

   • If the result is not as specified, replace the power lumbar support switch .
