Second Row Seat Heater Control Unit Connector for Inputs and Outputs

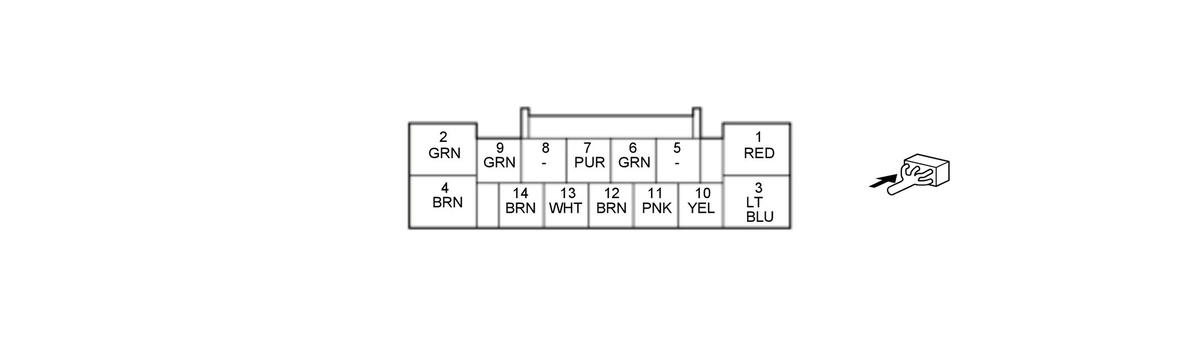

Second Row Seat Heater Control Unit Connector (14P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | RR_DR_HEATER | Drives left second row seat heater signal |
| 2 | HTR+ | Detects SMART FET (built-into power distribution module) signal |
| 3 | AS_HTR | Drives right second row seat heater signal |
| 4 | ECU_GND | Second row seat heater control unit ground |
| 5 | - - - | Not used |
| 6 | AS_TH- | Ground for right second row seat heater thermistor |
| 7 | DR_TH- | Ground for left second row seat heater thermistor |
| 8 | - - - | Not used |
| 9 | IG1 | IG1 power source |
| 10 | BB-CAN_L | Communication line |
| 11 | BB-CAN_H | Communication line |
| 12 | AS_TH+ | Detects right second row seat heater thermistor signal |
| 13 | DR_TH+ | Detects left second row seat heater thermistor signal |
| 14 | ECU_GND | Second row seat heater control unit ground |
