Front Seat Heater Control Unit Connector for Inputs and Outputs

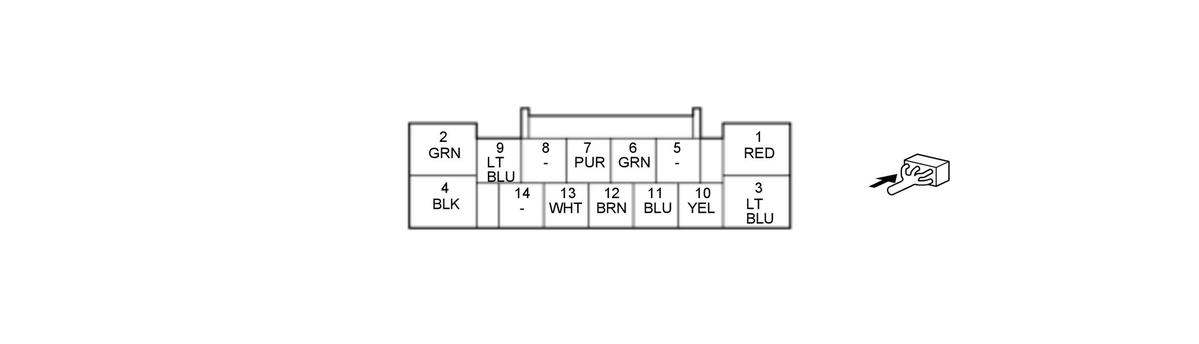

Front Seat Heater Control Unit Connector (14P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | FR_DR_SEAT_HEATER | Drives driver's seat heater |
| 2 | AVS_H/SEAT_RLY_OUT | Detects SMART FET (built-into power distribution module) signal |
| 3 | FR_AS_SEAT_HEATER | Drives front passenger's seat heater |
| 4 | GND | Front seat heater control unit ground |
| 5 | - - - | Not used |
| 6 | FR_AS_H/SEAT_TH- | Ground for front passenger's seat heater thermistor |
| 7 | FR_DR_H/SEAT_TH- | Ground for driver's seat heater thermistor |
| 8 | - - - | Not used |
| 9 | IG1_OPTION(VST) | IG1 power source |
| 10 | BB-CAN_L | Communication line |
| 11 | BB-CAN_H | Communication line |
| 12 | FR_AS_H/SEAT_TH+ | Detects front passenger's seat heater thermistor signal |
| 13 | FR_DR_H/SEAT_TH+ | Detects driver's seat heater thermistor signal |
| 14 | - - - | Not used |
