Seats Component Location Index

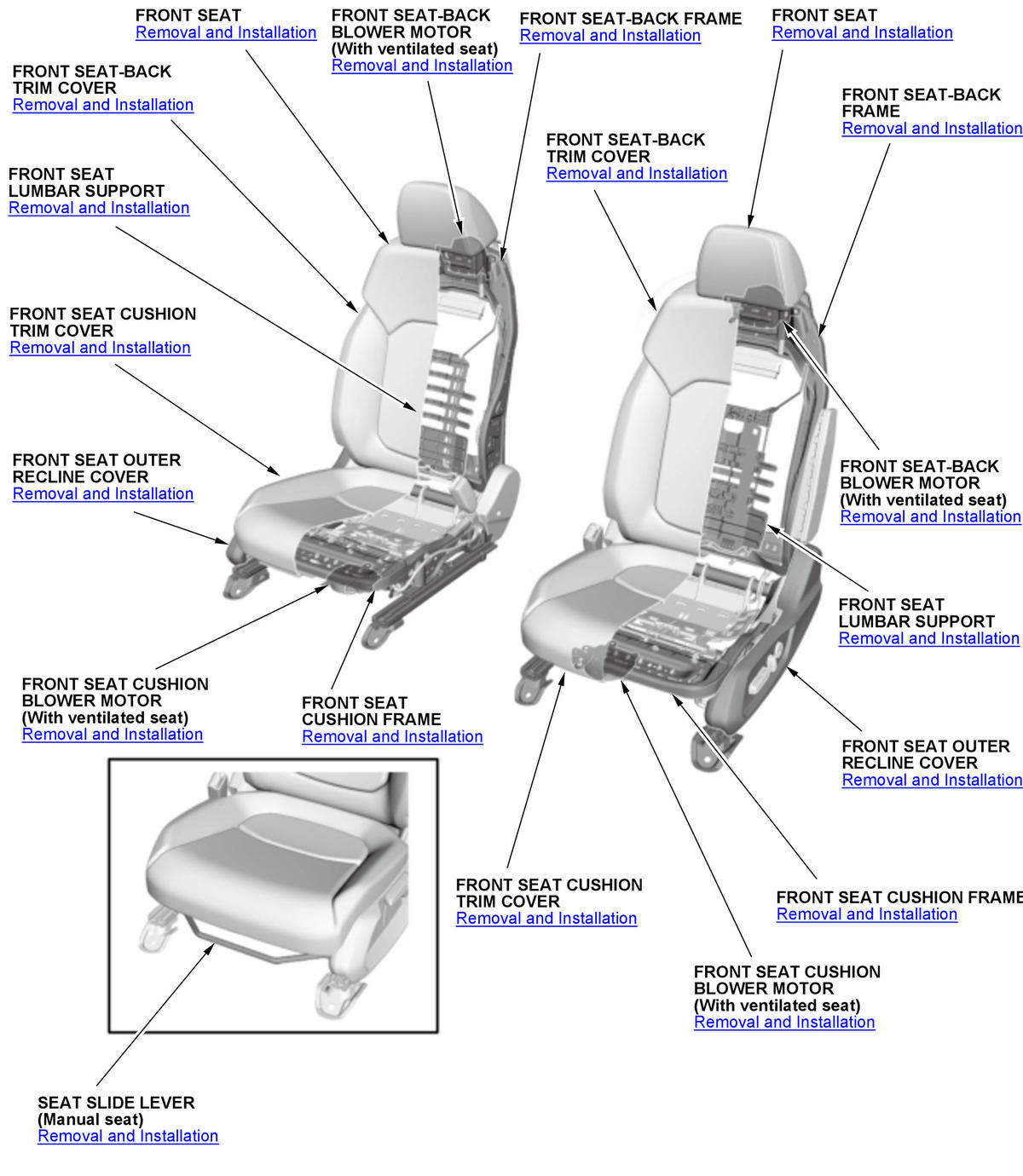

Front

GHH582262

Courtesy of HONDA, U.S.A., INC.

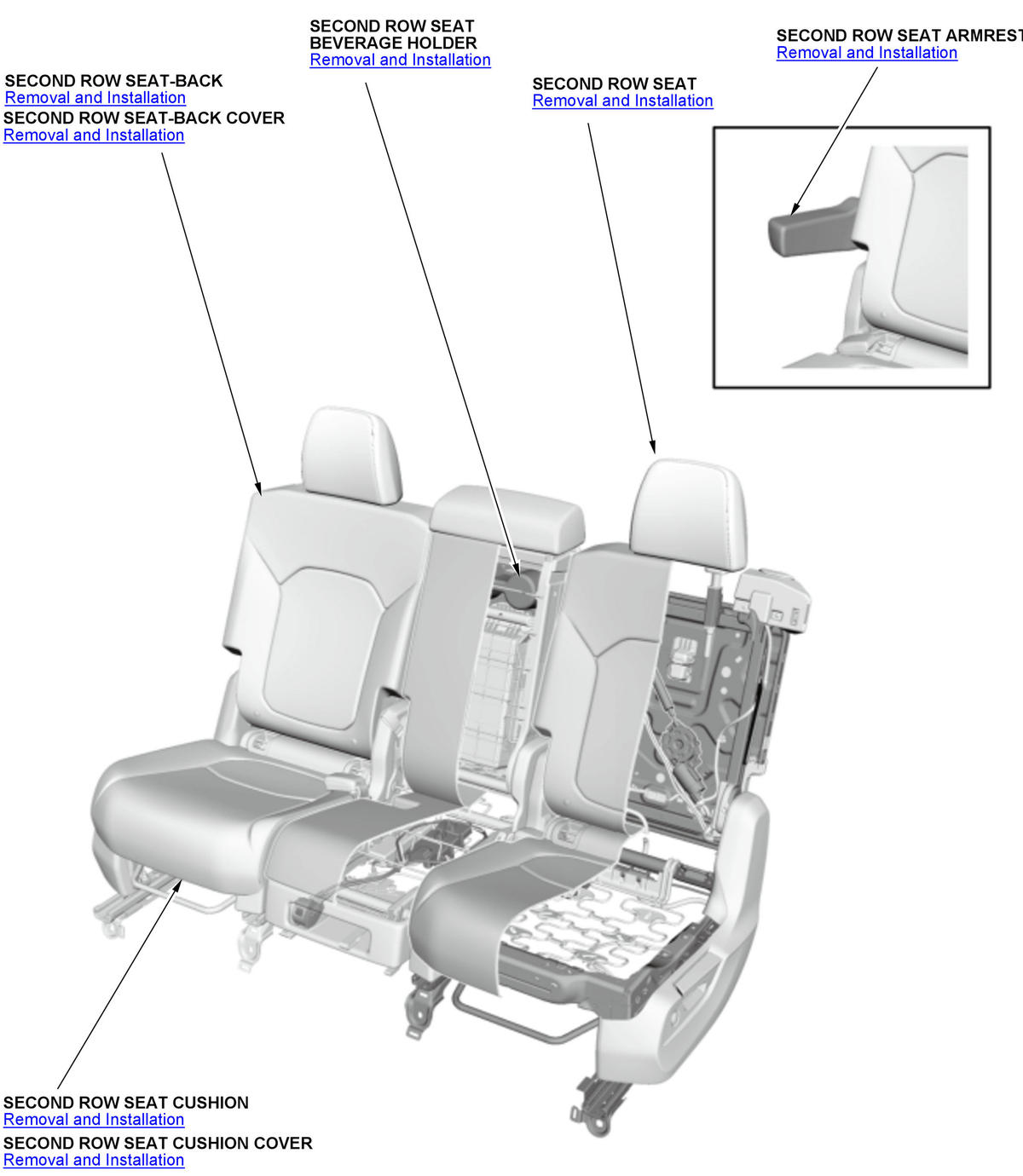

Second Row

GHH582263

Courtesy of HONDA, U.S.A., INC.

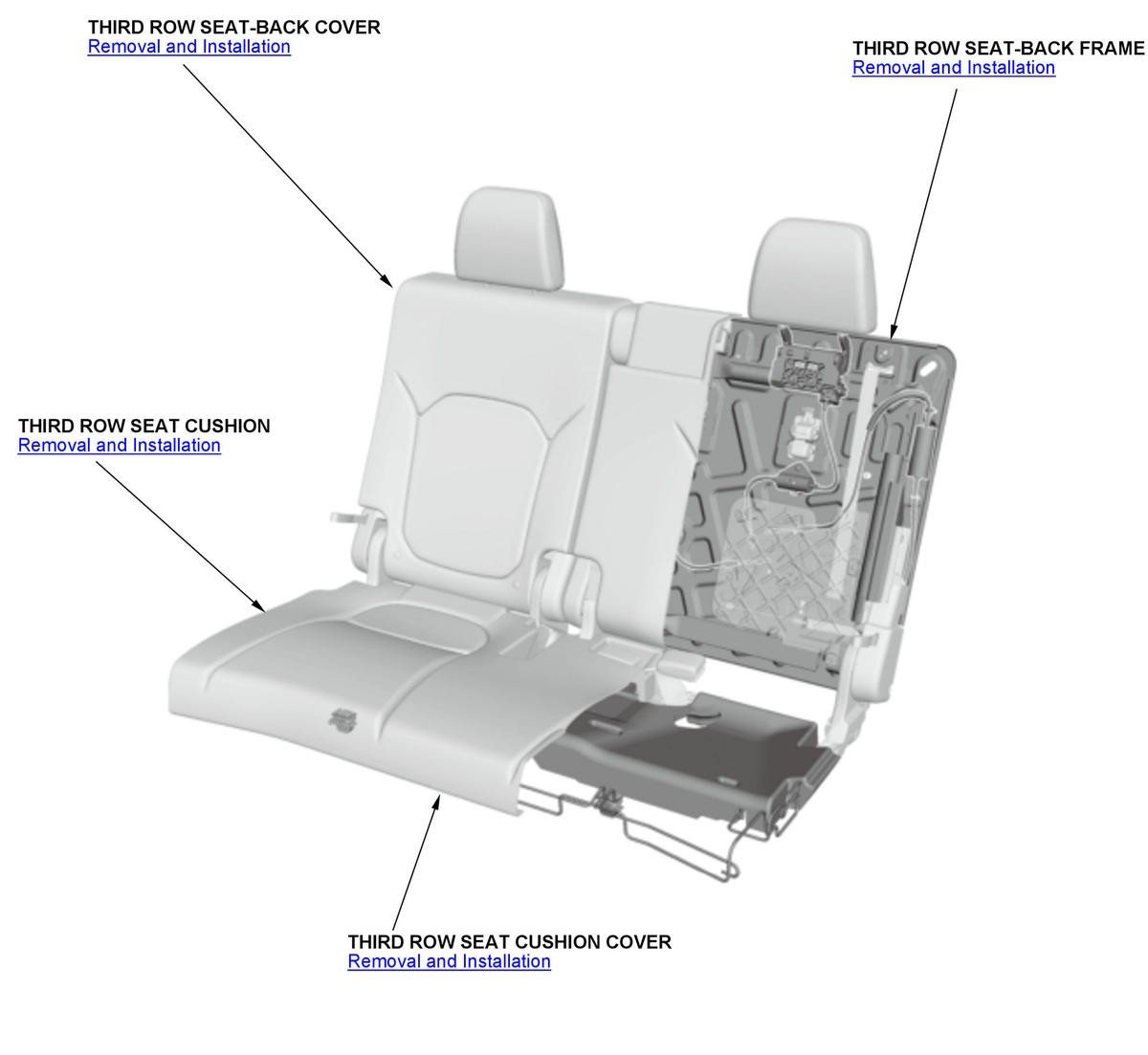

Third Row

GHH582264

Courtesy of HONDA, U.S.A., INC.
