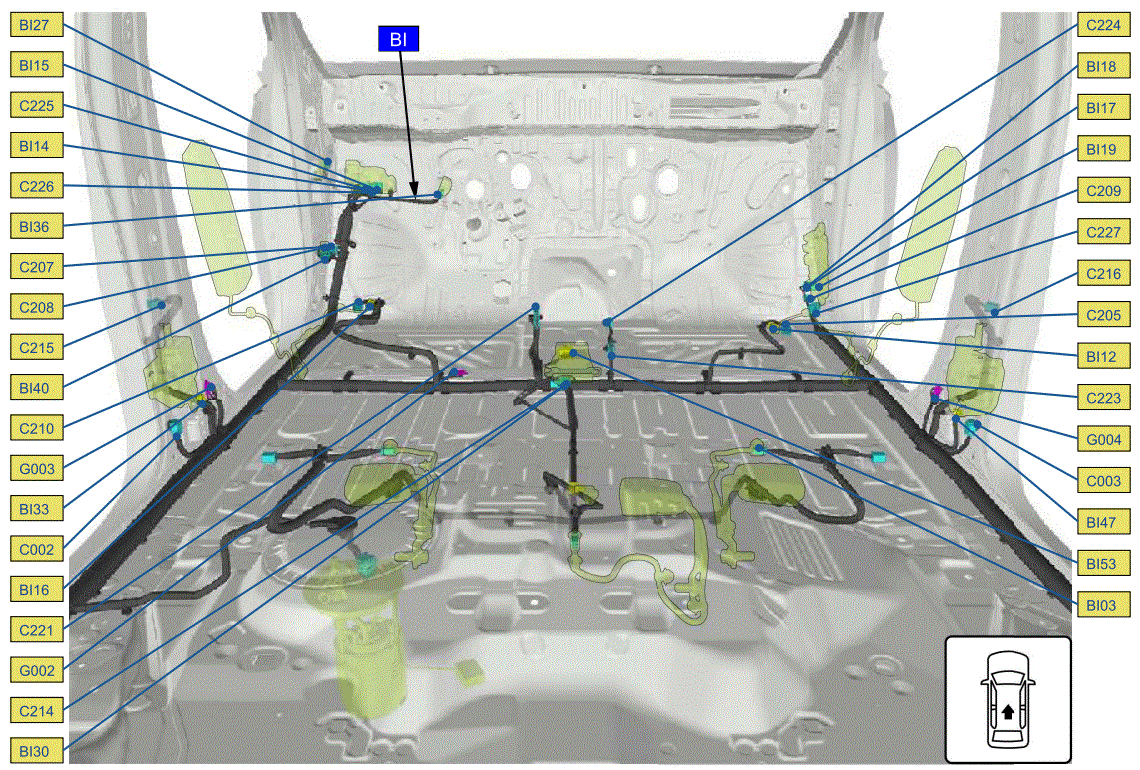

| Ref. No |
Connector Name |
Male/Female |
Connector Type |
Notes |
| BI01 |
Center Rear Second Seat Belt Buckle Switch Connector (2P) |
Female |
Component Connector |
|
| BI02 |
Left Rear Second Seat Belt Buckle Switch Connector (2P) |
Female |
Component Connector |
|
| BI03 |
Right Rear Second Seat Belt Buckle Switch Connector (2P) |
Female |
Component Connector |
|
| BI12 |
Front Passenger's Side Airbag Connector (4P) |
Female |
Component Connector |
|
| BI14 |
Under-Dash Fuse/Relay Box Connector G (18P) |
Female |
Component Connector |
|
| BI15 |
Under-Dash Fuse/Relay Box Connector H (18P) |
Female |
Component Connector |
|
| BI16 |
Driver's Side Airbag Connector (4P) |
Female |
Component Connector |
|
| BI17 |
Power Distribution Module Connector E (1P) |
Female |
Component Connector |
|
| BI18 |
Power Distribution Module Connector F (3P) |
Female |
Component Connector |
|
| BI19 |
Power Distribution Module Connector G (5P) |
Female |
Component Connector |
|
| BI21 |
Fuel Tank Unit Connector 4P |
Female |
Component Connector |
|
| BI27 |
Left-Front LF Antenna/Initiator Connector (2P) |
Female |
Component Connector |
|
| BI30 |
Middle Interior LF Antenna Connector (2P) |
Female |
Component Connector |
|
| BI33 |
Driver's Seat Belt Tensioner Connector (2P) |
Female |
Component Connector |
|
| BI36 |
Parking and Back-Up Sensor Control Unit Connector (20P) |
Female |
Component Connector |
|
| BI40 |
Relay Holder A |
|
Component Connector |
|
| BI47 |
Front Passenger's Seat Belt Tensioner Connector (2P) |
Female |
Component Connector |
|
| BI50 |
Rear Safing Sensor Connector (2P) |
Female |
Component Connector |
|
| BI53 |
SRS Unit Connector B (57P) |
Female |
Component Connector |
|
| C202 |
C202 |
|
In-line Connector |
|
| C204 |
C204 |
|
In-line Connector |
|
| C205 |
C205 |
|
In-line Connector |
|
| C207 |
C207 |
|
In-line Connector |
|
| C208 |
C208 |
|
In-line Connector |
|
| C209 |
C209 |
|
In-line Connector |
|
| C210 |
C210 |
|
In-line Connector |
|
| C214 |
C214 |
|
In-line Connector |
|
| C215 |
C215 |
|
In-line Connector |
|
| C216 |
C216 |
|
In-line Connector |
|
| C221 |
C221 |
|
In-line Connector |
|
| C221 |
C221 |
|
In-line Connector |
|
| C223 |
C223 |
|
In-line Connector |
|
| C224 |
C224 |
|
In-line Connector |
|
| C225 |
C225 |
|
In-line Connector |
|
| C226 |
C226 |
|
In-line Connector |
|
| C227 |
C227 |
|
In-line Connector |
|
| C002 |
C002 |
|
Junction Connector |
|
| C003 |
C003 |
|
Junction Connector |
|
| G002 |
G002 |
|
Ground |
|
| G003 |
G003 |
|
Ground |
|
| G004 |
G004 |
|
Ground |
|
