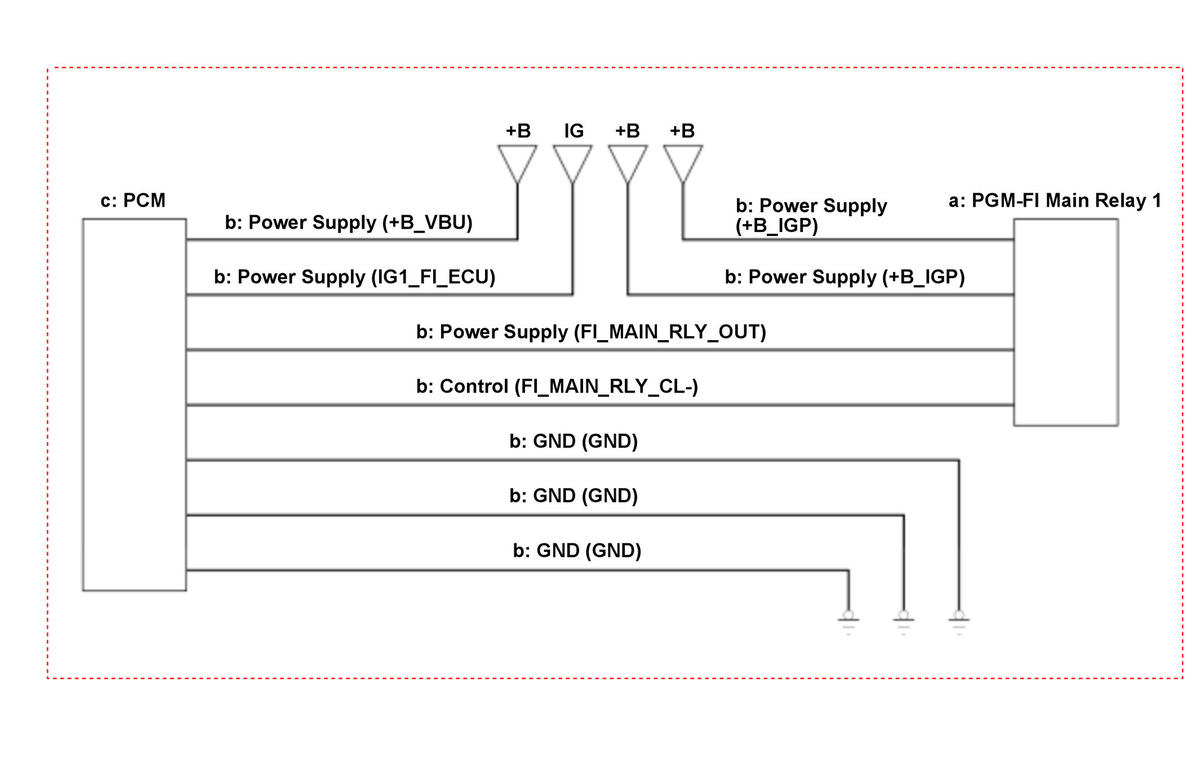

Inspection Outline
- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
- CAN Gateway System [CAN Gateway]: Go to the indicated DTC's troubleshooting .
| Inspection Items | Work Items | |
|---|---|---|
| a | PGM-FI Main Relay 1 | Do the PGM-FI Main Relay 1 Test |
| b | External Circuit | +B_VBU, IG1_FI_ECU Circuit Inspection |
| +B_IGP Circuit Inspection | ||
| FI_MAIN_RLY_OUT, FI_MAIN_RLY_CL- Circuit Inspection | ||
| GND Circuit Inspection | ||
| c | PCM | PCM Inspection |
