DTC C0049-7B: Inspection

BRAKE_LEVEL_SW Shorted Wire Inspection

Test Procedure

• Preparation
  • Brake fluid level switch connector (2P): disconnected
  • Gauge control module connector A (32P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

    Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

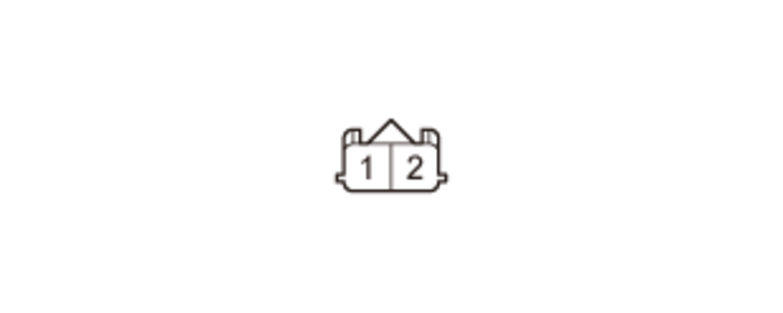

			(Disconnected) Brake fluid level switch connector (2P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	BRAKE_LEVEL_SW shorted to ground inspection	OFF		There is more than 1 M?

Results

• If abnormal, there is a problem in the circuit.

VSA Modulator-Control Unit Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining VSA modulator-control unit is the cause.

Results

• There is a problem with the VSA modulator-control unit.
