DTC B1036 (Body Control Module)
>>
Inspection Outline

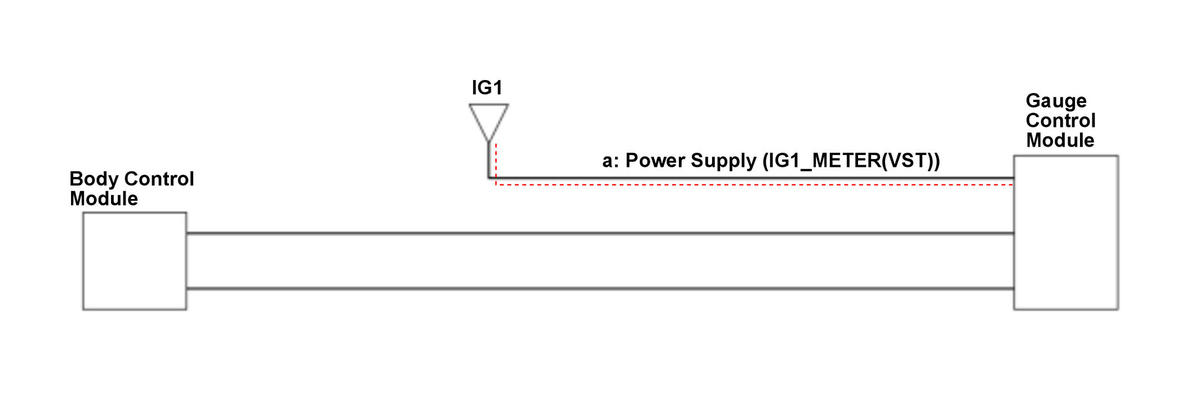

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
IG1_METER(VST) Circuit Inspection
Courtesy of HONDA, U.S.A., INC.
