Keyless/Power Door Locks/Security System Component Location Index

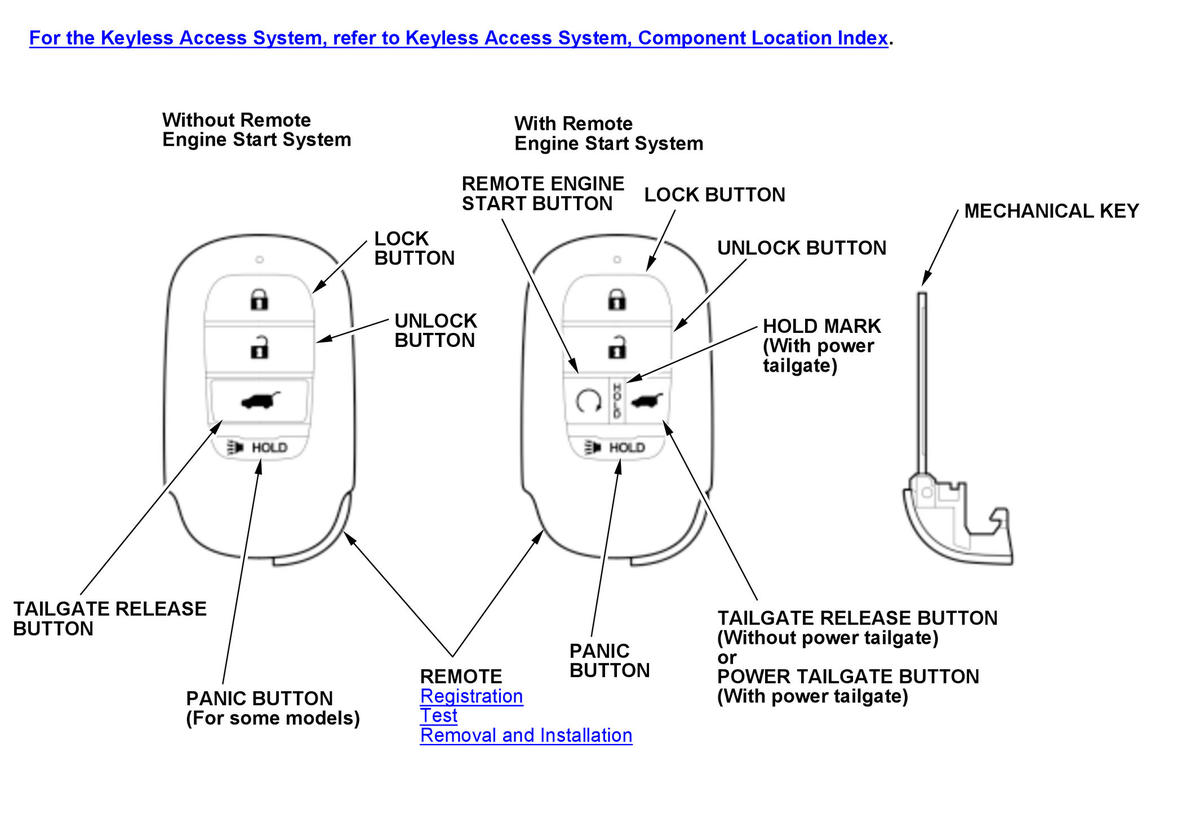

GHH582485Courtesy of HONDA, U.S.A., INC.

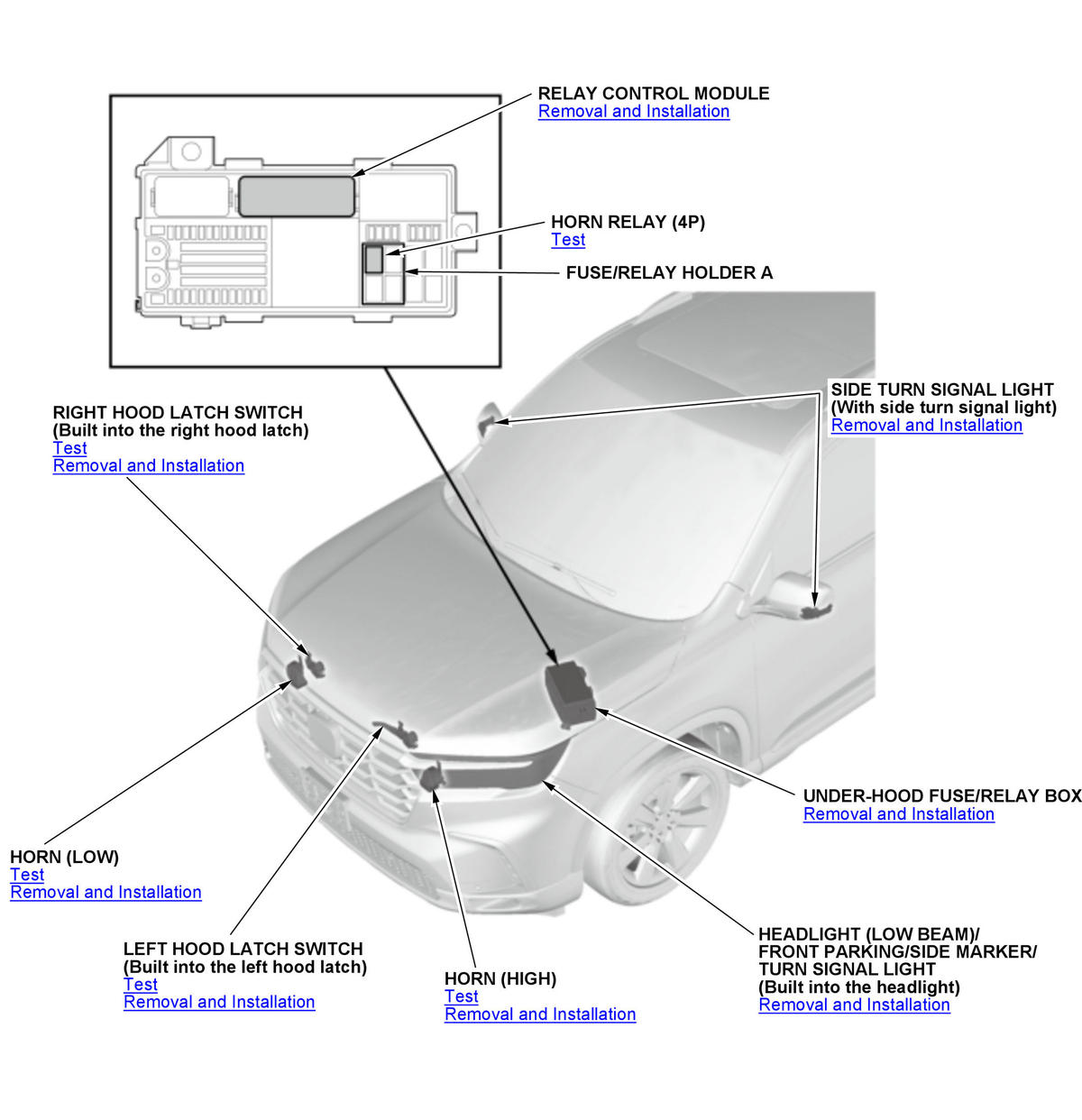

GHH582486Courtesy of HONDA, U.S.A., INC.

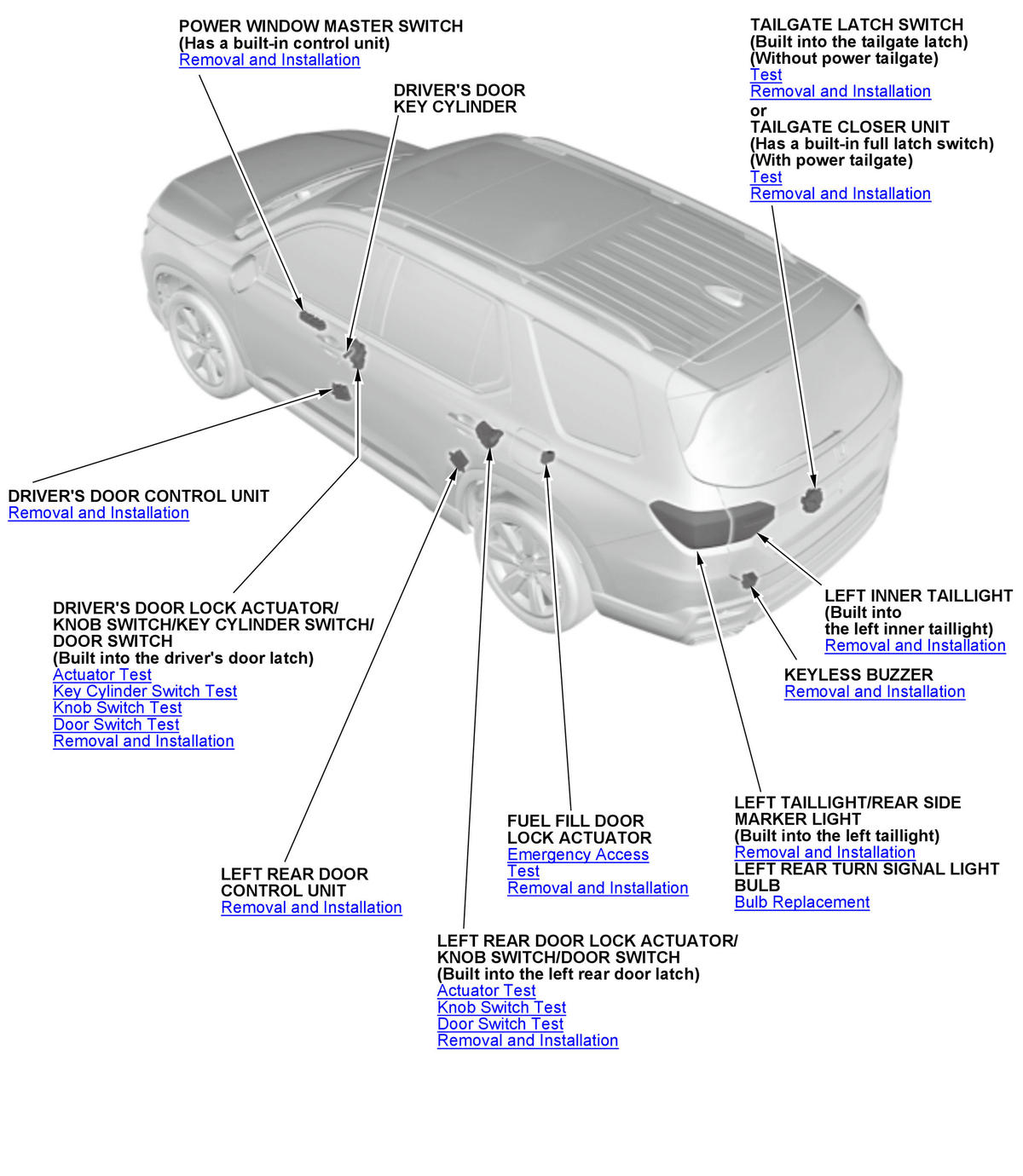

GHH582487Courtesy of HONDA, U.S.A., INC.

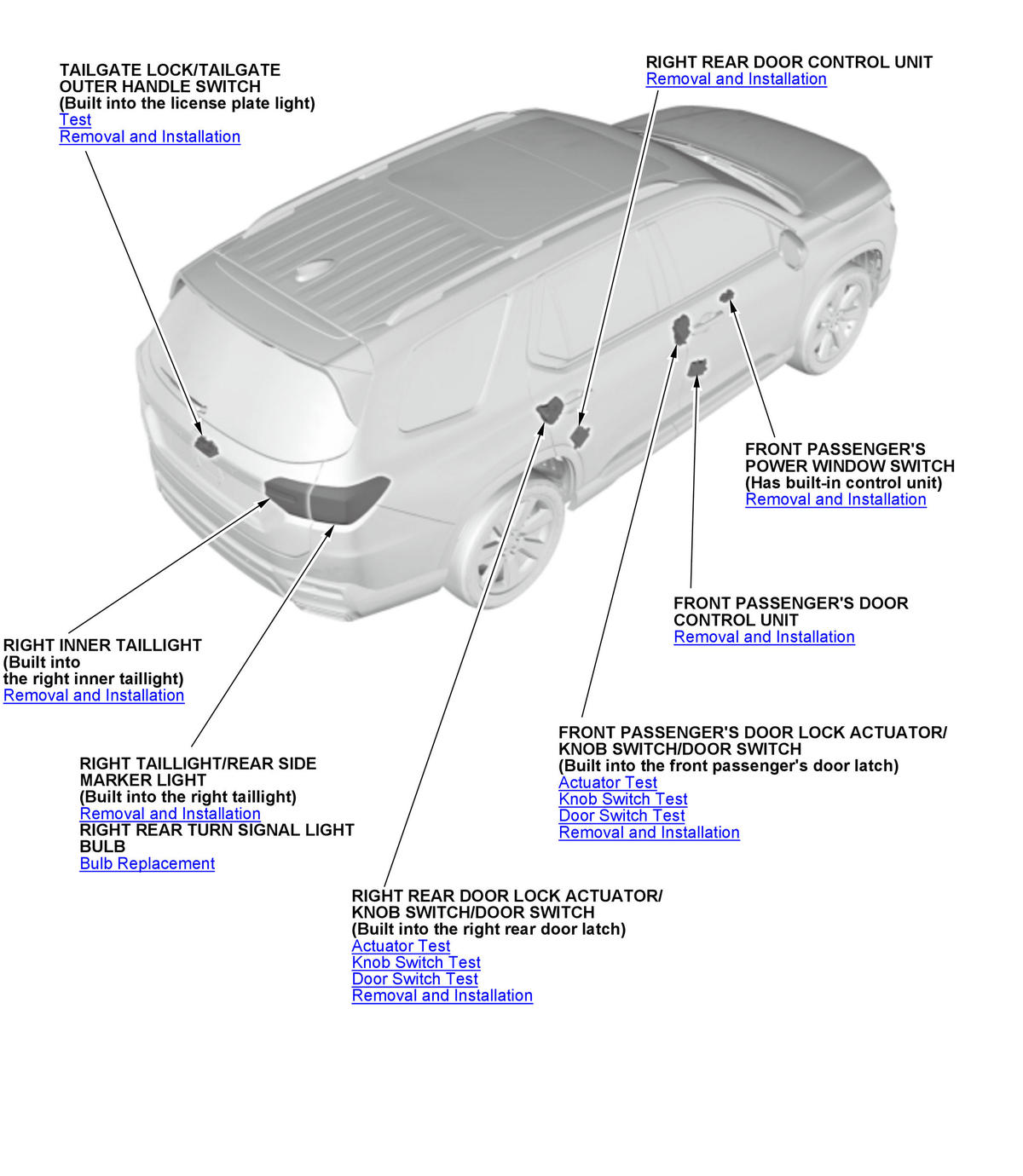

GHH582488Courtesy of HONDA, U.S.A., INC.

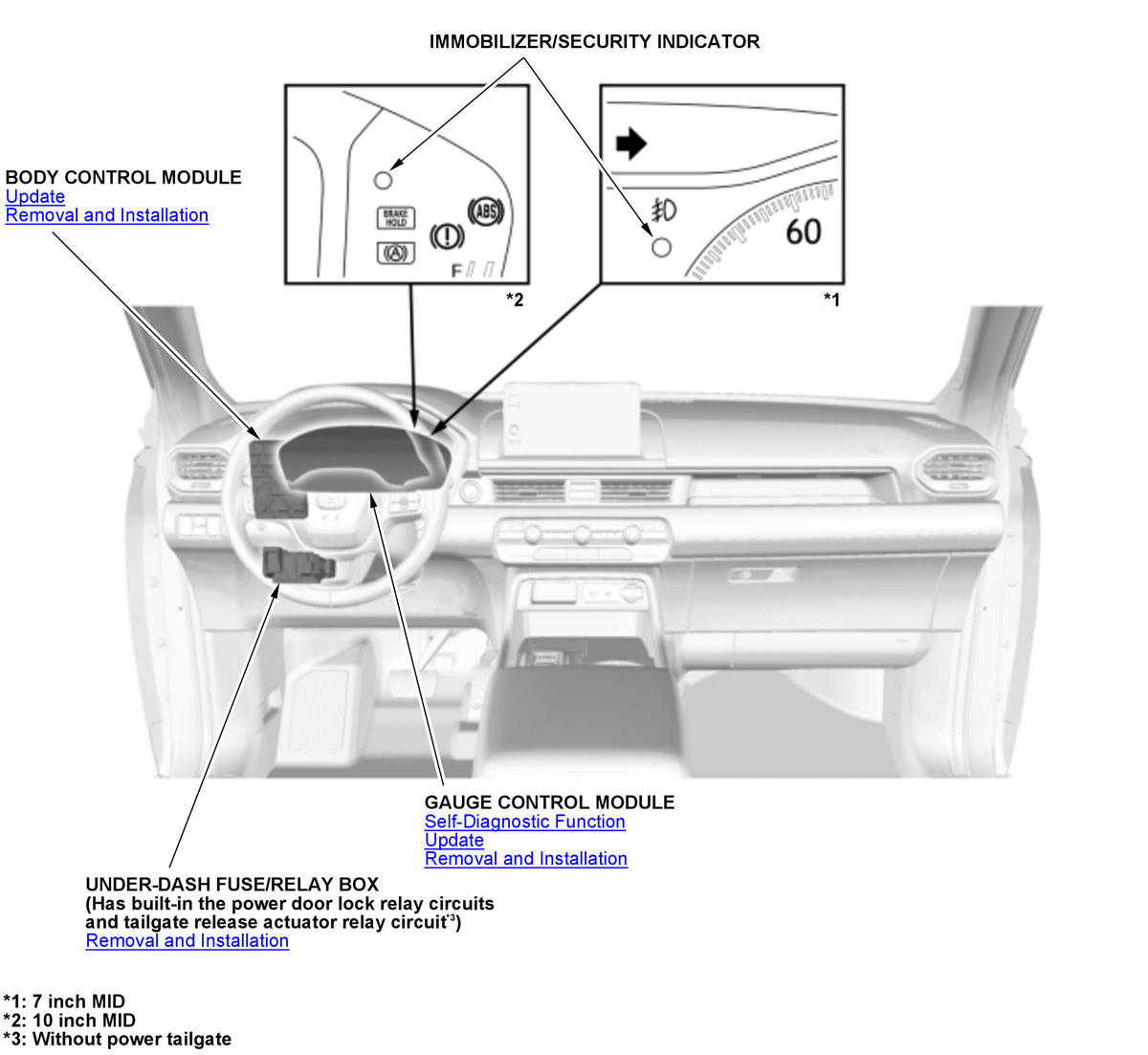

GHH582489Courtesy of HONDA, U.S.A., INC.
