Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 10 V | - | |
| Line pressure commanded pressure | 950 kPa (9.96 kgf/cm 2, 137.8 psi) | - | |
| Other | Steady 1st to 10th gear ratio or reverse preparation | ||

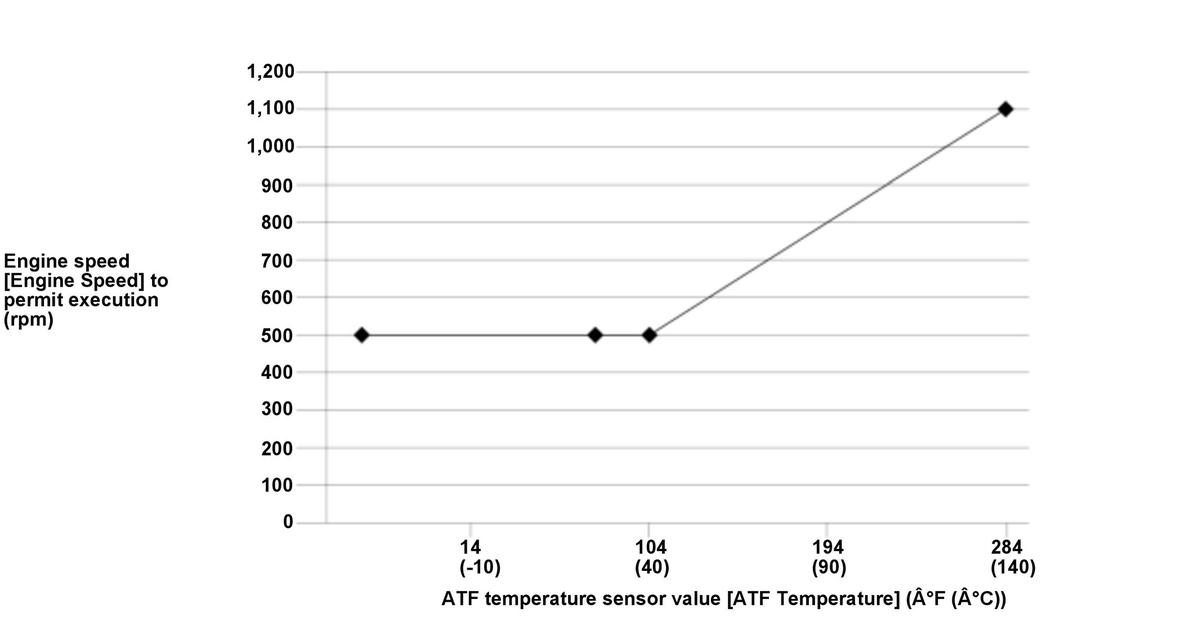

| The engine speed [Engine Speed] to permit execution of the malfunction diagnosis must be the value or more shown in the following graph depending on the ATF temperature sensor value [ATF Temperature] | |||
[ ]:HDS Parameter
