DTC Advanced Diagnostics: P07A7: General Description

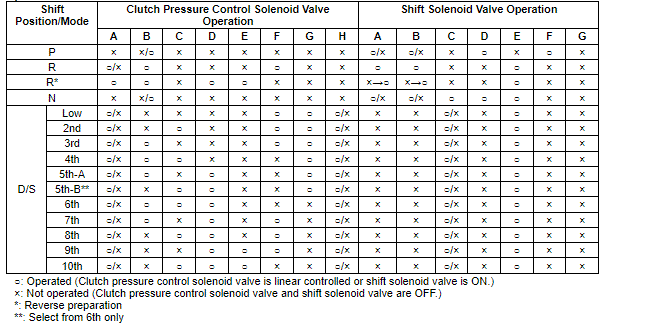

Operation Chart

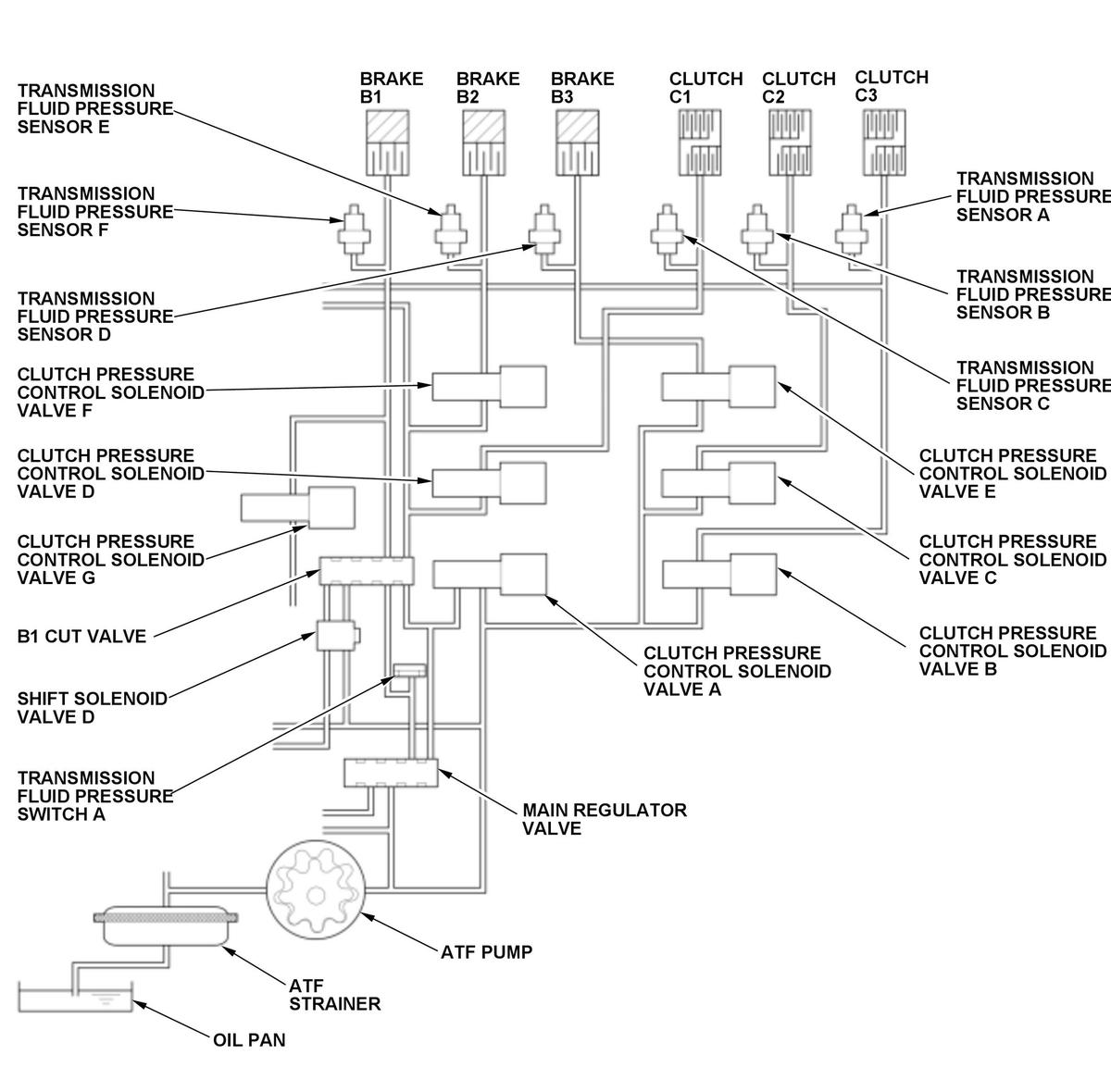

Clutch pressure control solenoid valve B controls the hydraulic pressure of clutch C3. A spool in clutch pressure control solenoid valve B pushes the valve according to the duty cycle controlled by the transmission control module (TCM) (the hydraulic pressure is proportional to the current). Transmission fluid pressure sensor A measures hydraulic pressure supplied to clutch C3. Transmission fluid pressure sensor A is a strain gauge that changes output voltage depending on the hydraulic pressure change supplied to clutch C3. The sensor outputs low signal voltage at low hydraulic pressure and outputs high signal voltage as the hydraulic pressure rises. Transmission fluid pressure sensor A is monitored to detect malfunctions, and if the transmission fluid pressure sensor A value is in abnormal range against the clutch C3 commanded pressure, the TCM detects the clutch C3 stuck on failure and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Depending on the driving conditions |
| DTC Type | Two drive cycles, MIL on, shift position indicator blinks |
