Electrical System - Components Location, Testing & Troubleshooting
>>
Relay and Control Unit Locations
>>
Relay Locations
Relay Locations

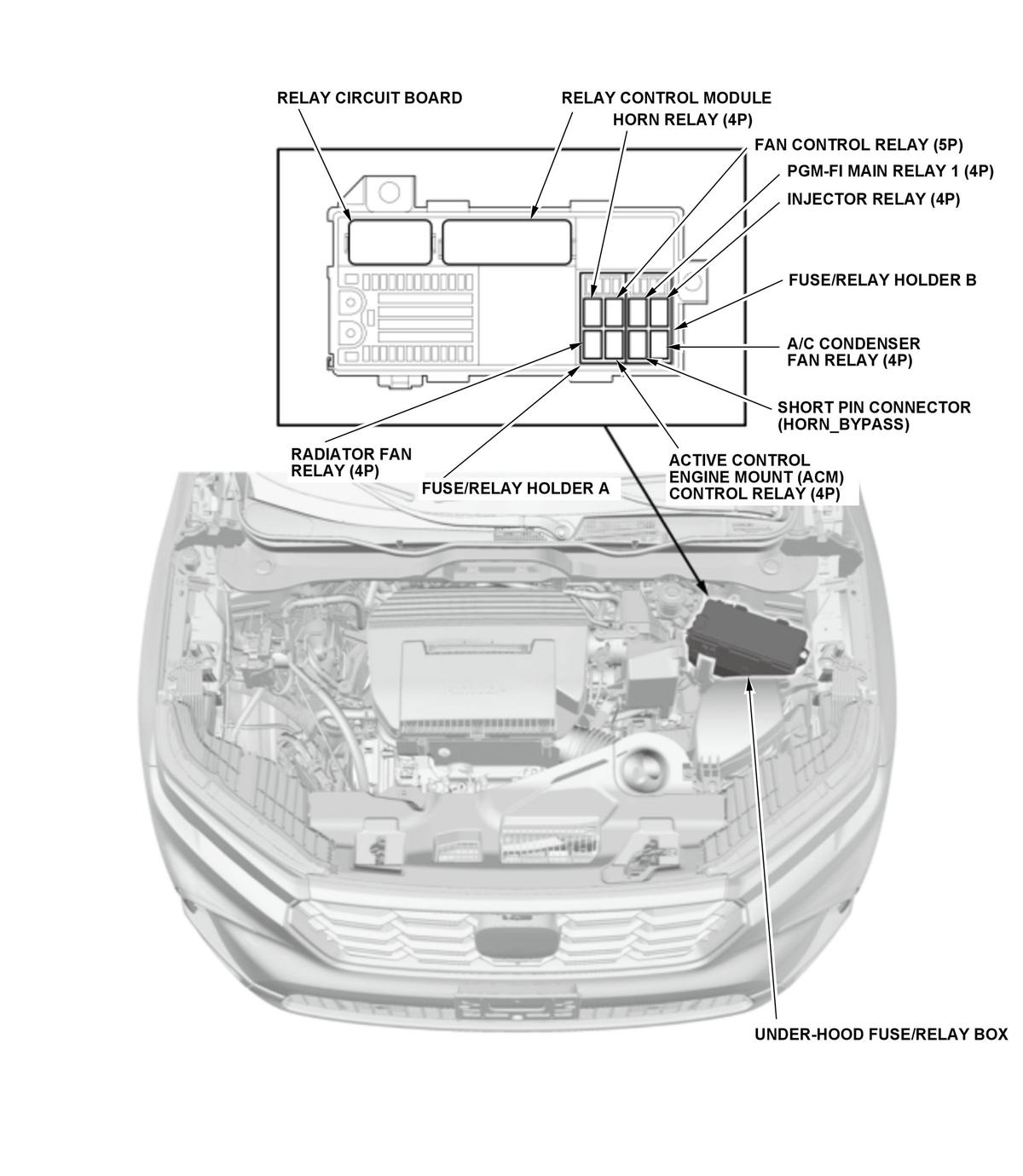

Engine Compartment
Courtesy of HONDA, U.S.A., INC.

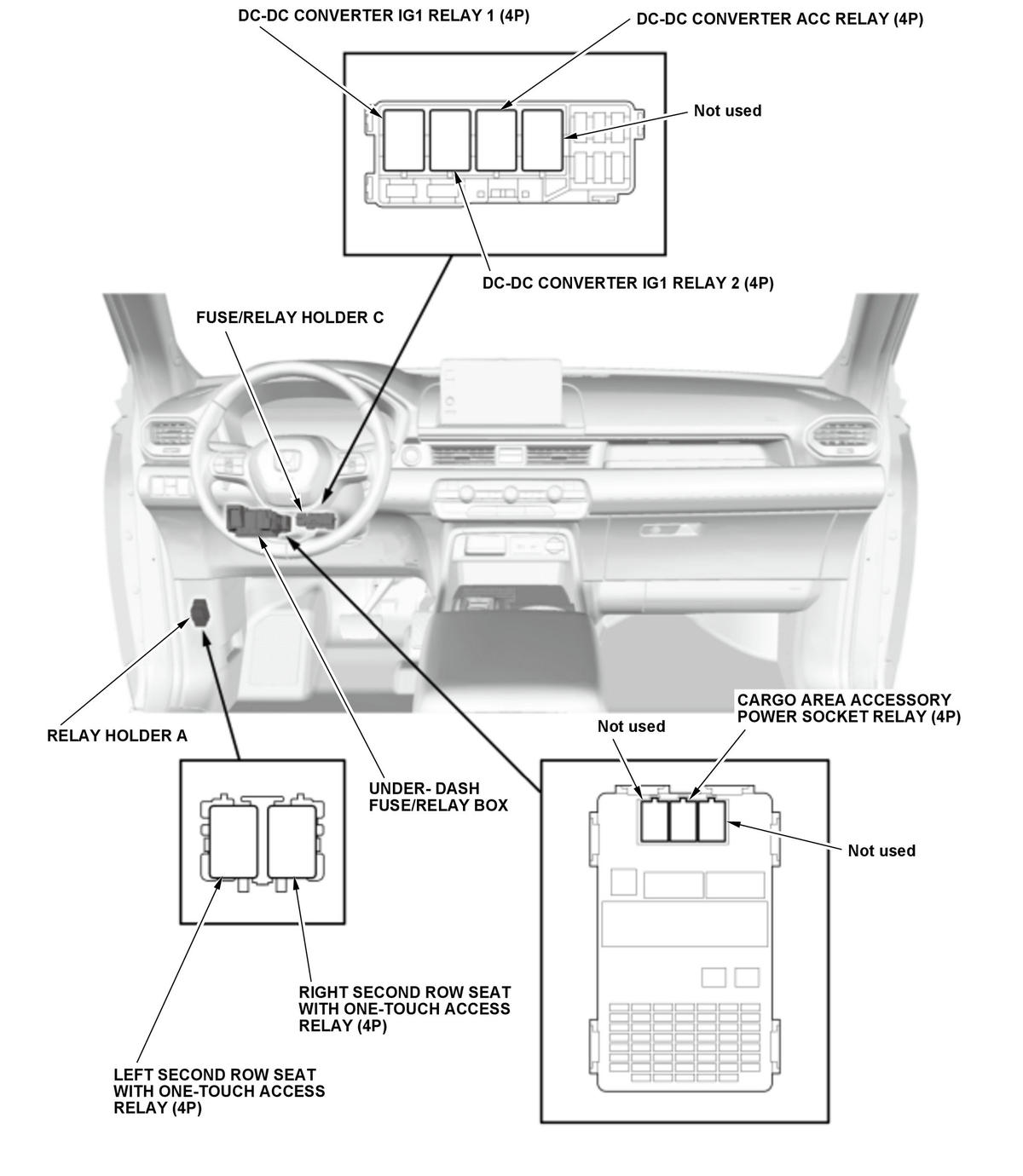

Dashboard
Courtesy of HONDA, U.S.A., INC.

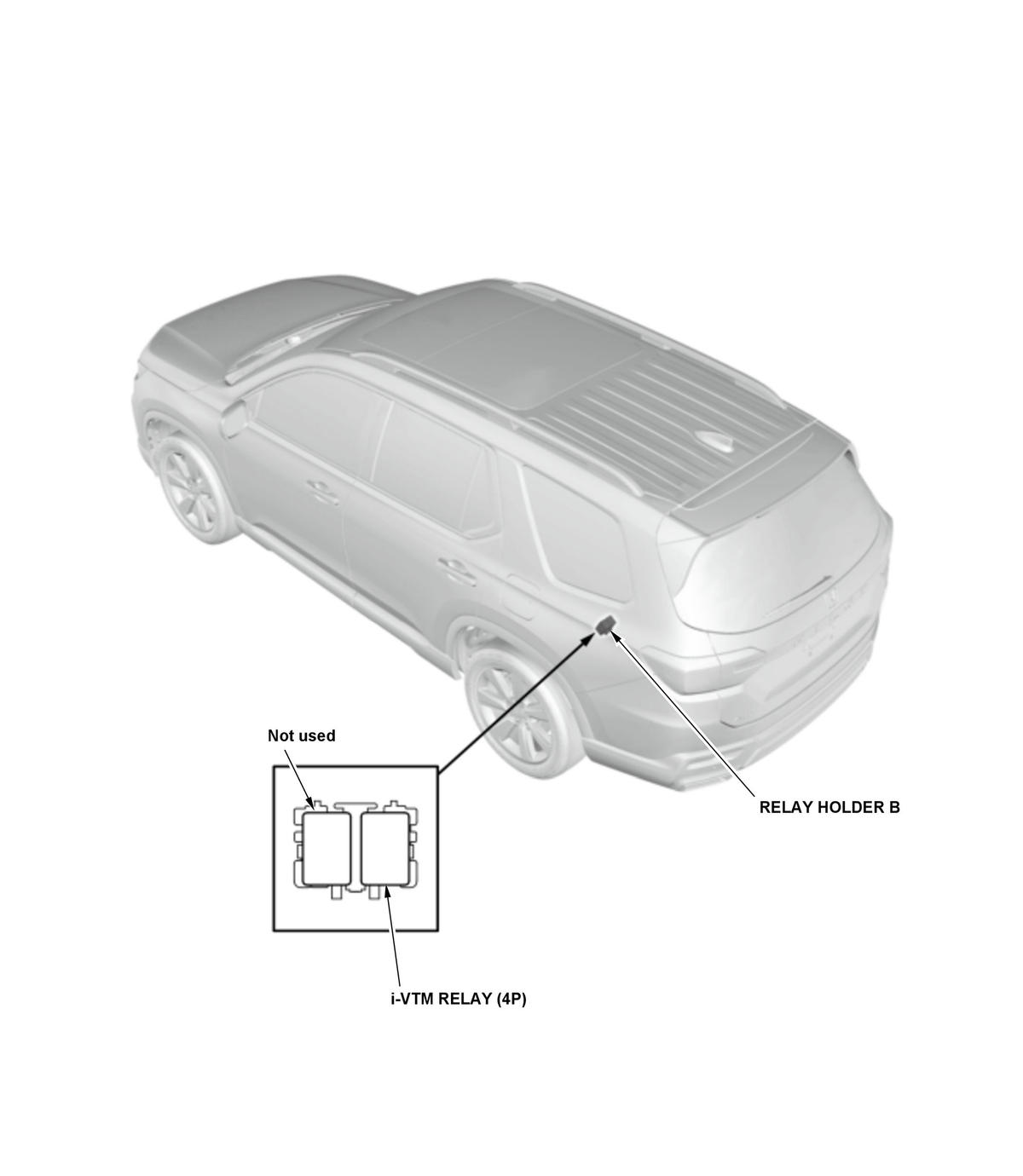

Floor
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
